Each Kit Includes:
- 48″ POLYCAST 600 Pre-sloped channel (1 for each 4′ of kit ordered)
- Request neutral channels for runs with no slope
- 24″ Ductile iron Patriot grates (2 per channel) (Made in the USA)
- Grate Hold-down devices (1 per grate)
- Installation Chairs
- End Outlet (fits 4″ S&D pipe)
- End Cap
- Installation instructions

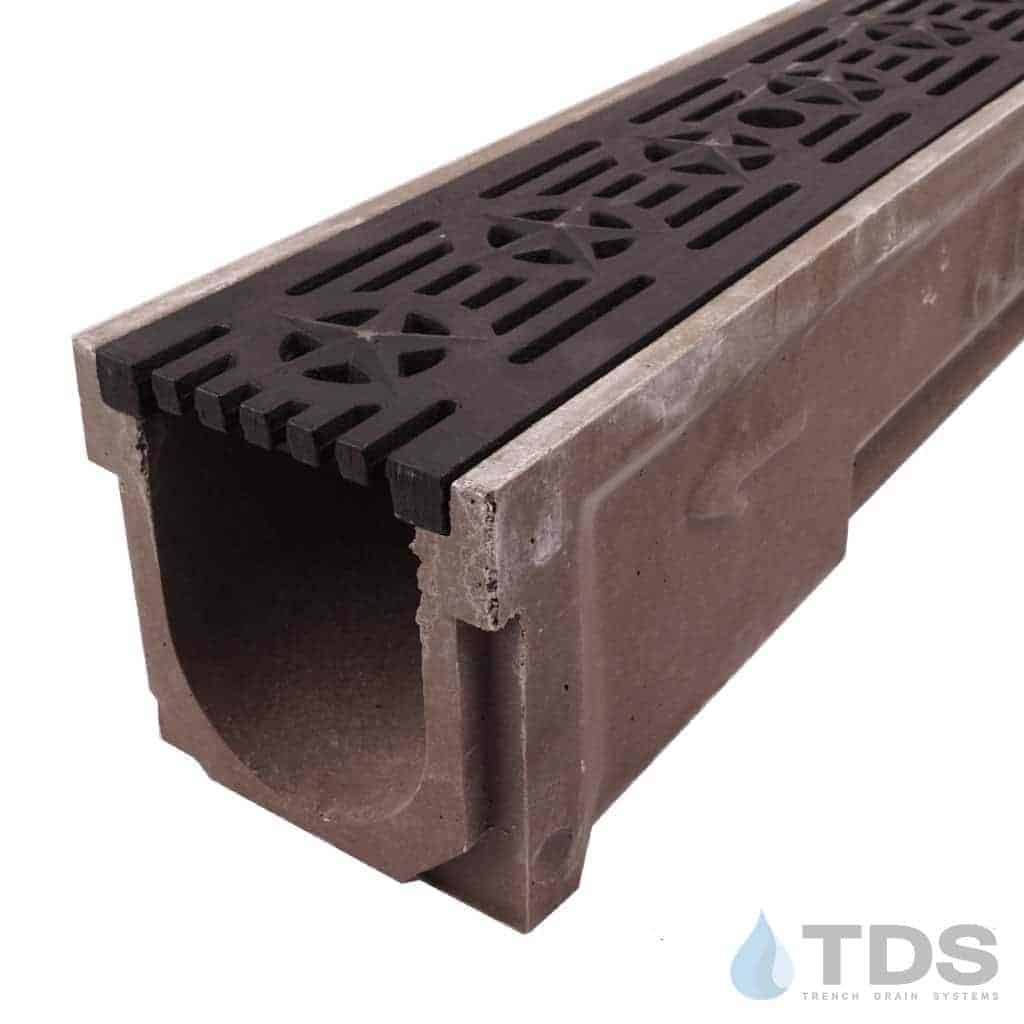

POLYCAST 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.
Grating:
- Decorative ductile iron Patriot grates – (Class C Load Rating)
- Open Surface Area: 21%
- ADA Grate
- Color: Black
- DG0692 Specification Sheet
Each Kit Includes:
- 48" POLYCAST 600 Pre-sloped channel (1 for each 4' of kit ordered)
- Request neutral channels for runs with no slope
- 24" Ductile iron Patriot grates (2 per channel) (Made in the USA)
- Grate Hold-down devices (1 per grate)
- Installation Chairs
- End Outlet (fits 4" S&D pipe)
- End Cap
- Installation instructions
Also available in Vinyl Ester Channels, request your quote now.
Want to learn more about this system? Click Here for more information.
Layout Info:
Please review the inlet/outlet depths shown for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.
