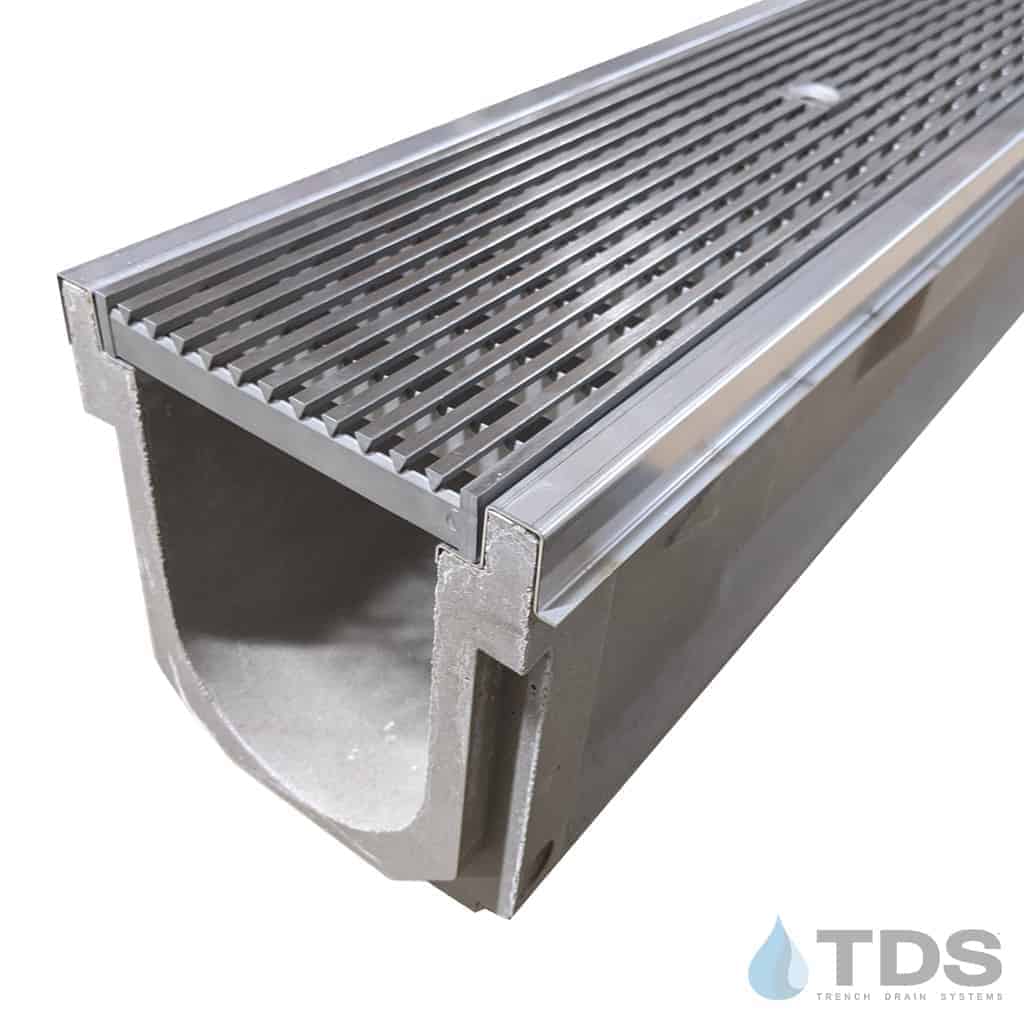

POLYCAST® 600 Series Kit w/ DG0655 Wedge Wire w/ Stainless Steel Edging - Load Class B

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 316L

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 600

Grate Load Class: Class B

Grate Pattern: WEDGE WIRE

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Kits include:

• 48″ POLYCAST® pre-sloped channel (1 for each 4′ of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 48″ Stainless Steel Wedge Wire Grates (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Outlet (fits 4″ S&D pipe)
• End Cap
• Stainless Steel Edging
• Installation instructions

POLYCAST® 600 Series is a polymer concrete channel that has a built-in 0.65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Grating:

• Stainless Steel Wedge Wire Grates - (Class B Load Rating)
• Open Surface Area:  20%
• Material: Stainless Steel

Specification Sheet for TDS DG0655 Wedge Wire

POLYCAST® 600 Kit Includes:

• 48" POLYCAST® pre-sloped channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 48" Stainless Steel Wedge Wire Grates (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions
• Stainless Steel Edging

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

Layout Info:

Before we can ship your pre-sloped drain order, a layout will need to be approved by you. We will contact you via email with a layout drawing showing channel depths to be shipped. Once layout approval is received, the order is shipped.

If you choose all neutral channels (no slope), please note this in the ‘Order Notes’ during checkout. A layout is not necessary with neutral channels. TDS reserves the right to choose the channel depths based on availability. If you require specific channel depths, please note this in the ‘Order Notes’ during checkout, and we will do our best to accommodate the request.

NOTE: For proper installation, grates must be in the channel during installation.

2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
