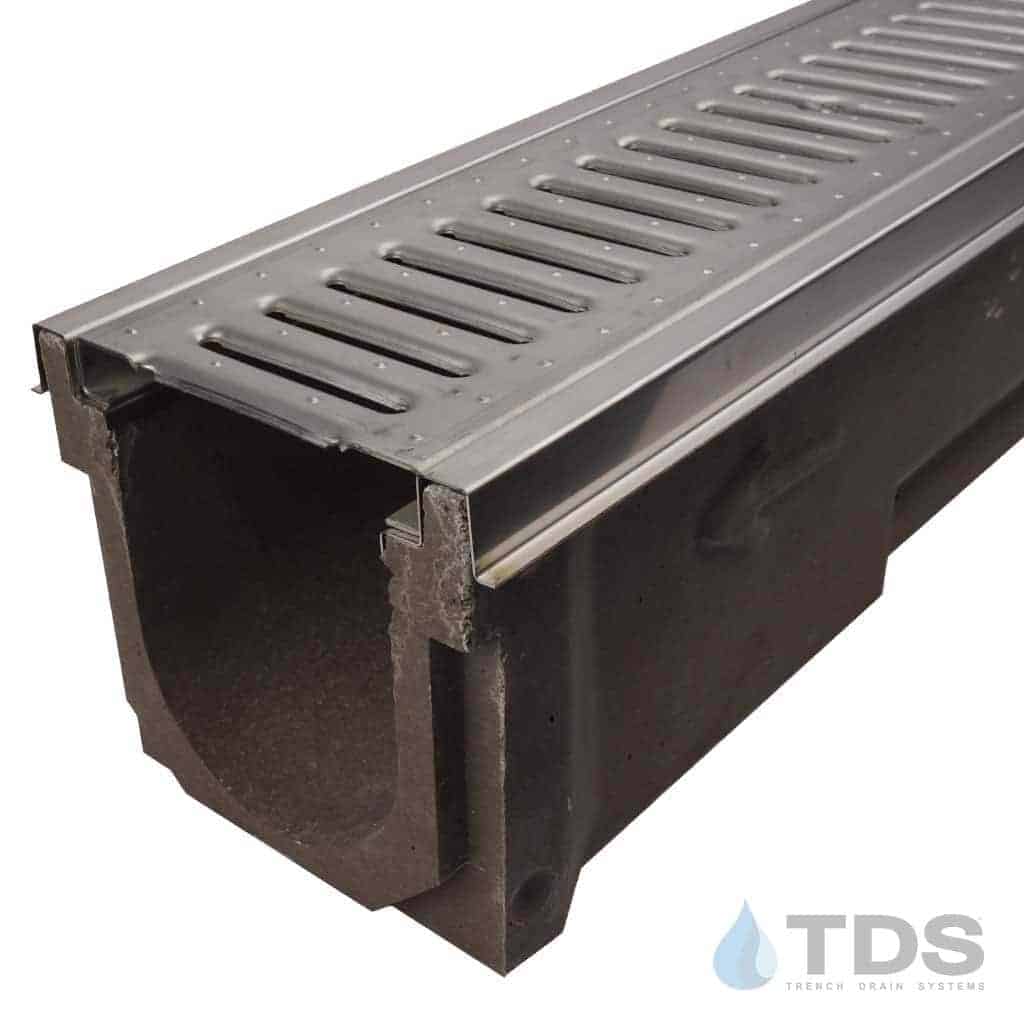

POLYCAST 600 Series Kit with DG0647 Slotted Stainless Grate and Edging

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

POLYCAST® 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM.  The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Grating:

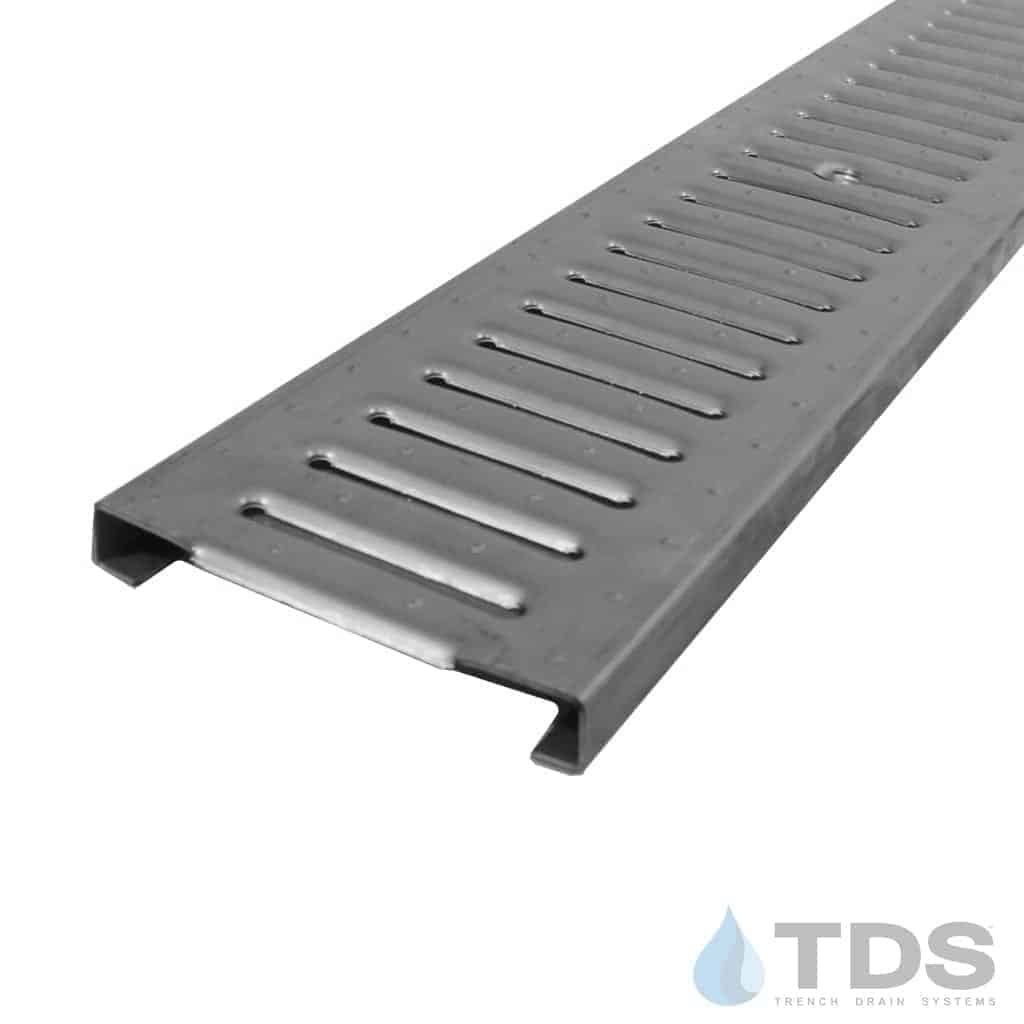

• DG0647 - Stainless slotted grate - (Class B Load Rating)
• Open Surface Area: 17% (34IN2)
• Color: Silver

DG0647 Specification Sheet

Each Kit Includes:

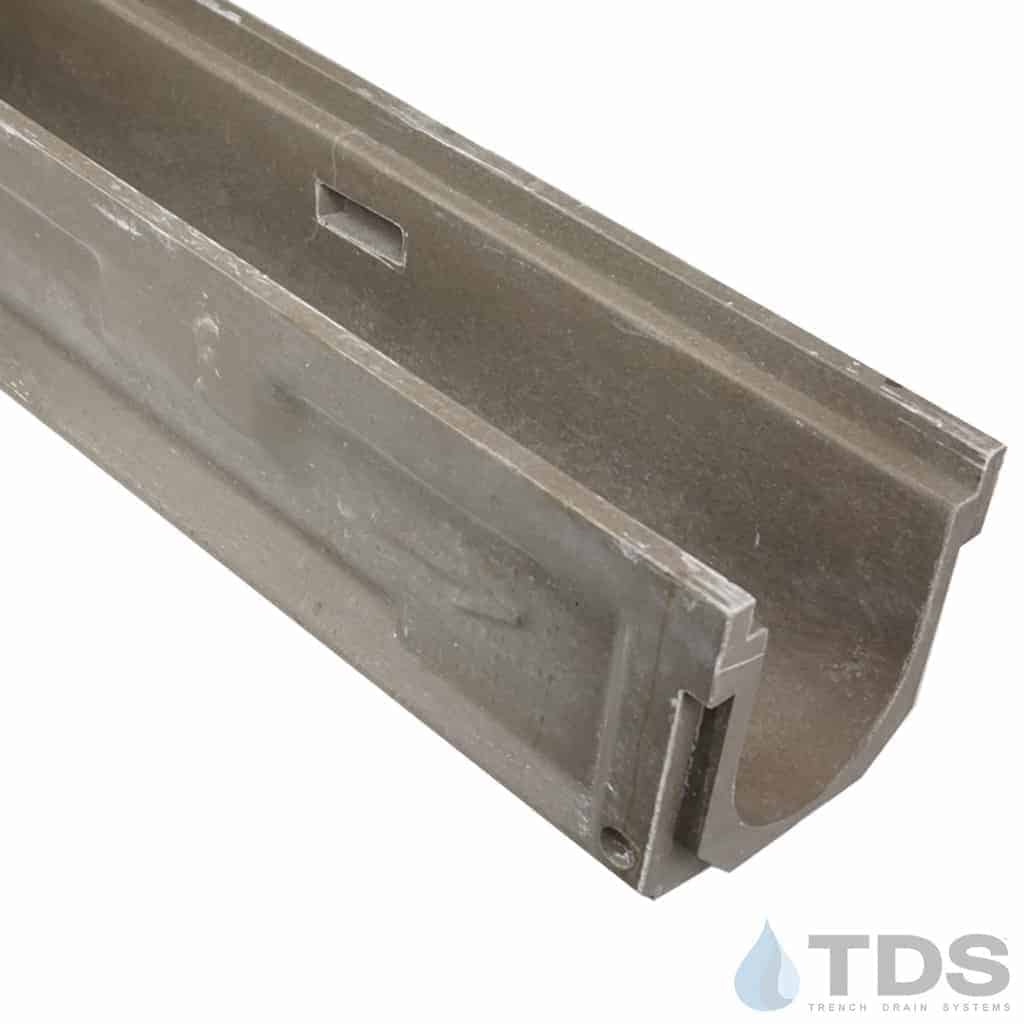

• 48" POLYCAST 600 pre-sloped channel (1 for each 4' of kit ordered)
  • Request neutral channels for runs with no slope

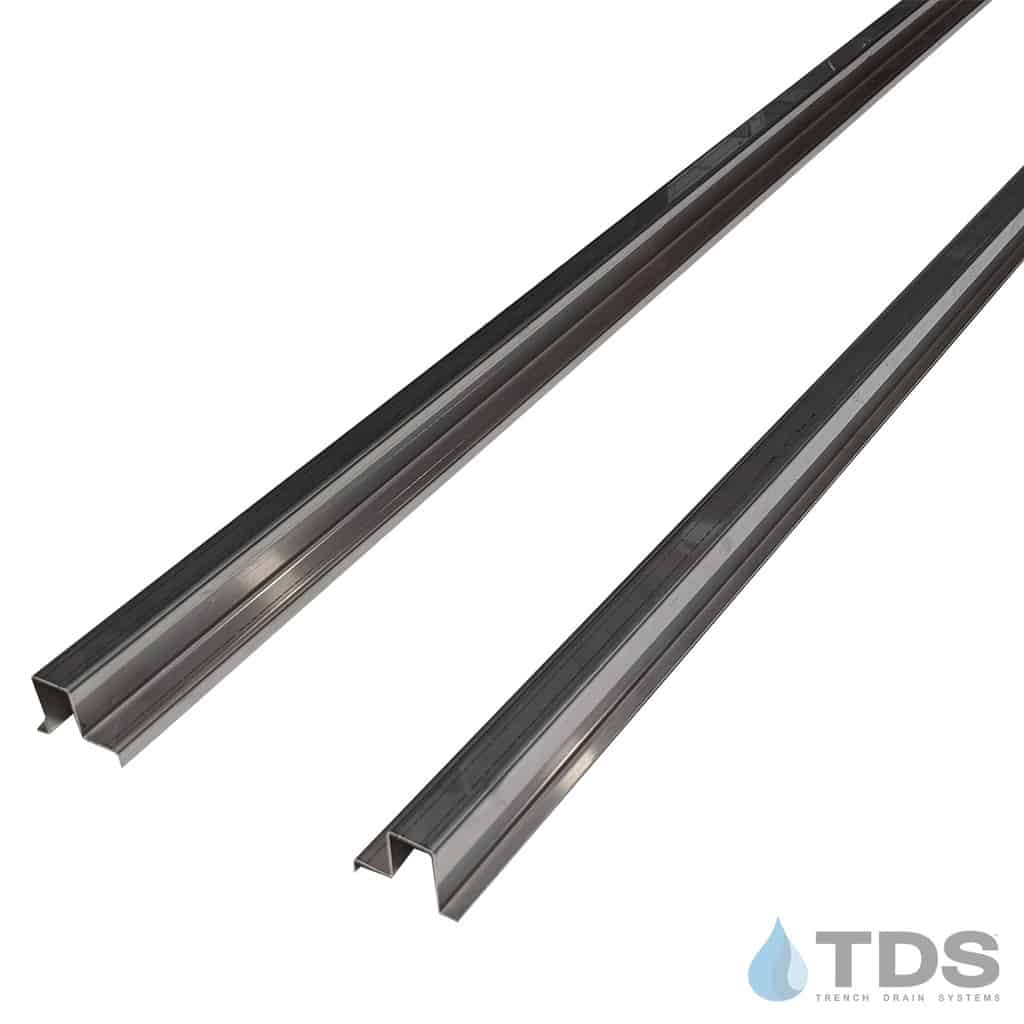

• 48" Stainless Steel Edging (1pr per channel)
• 48" Stainless Steel Slotted grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

Layout Info:
Please review the inlet/outlet depths shown for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.
