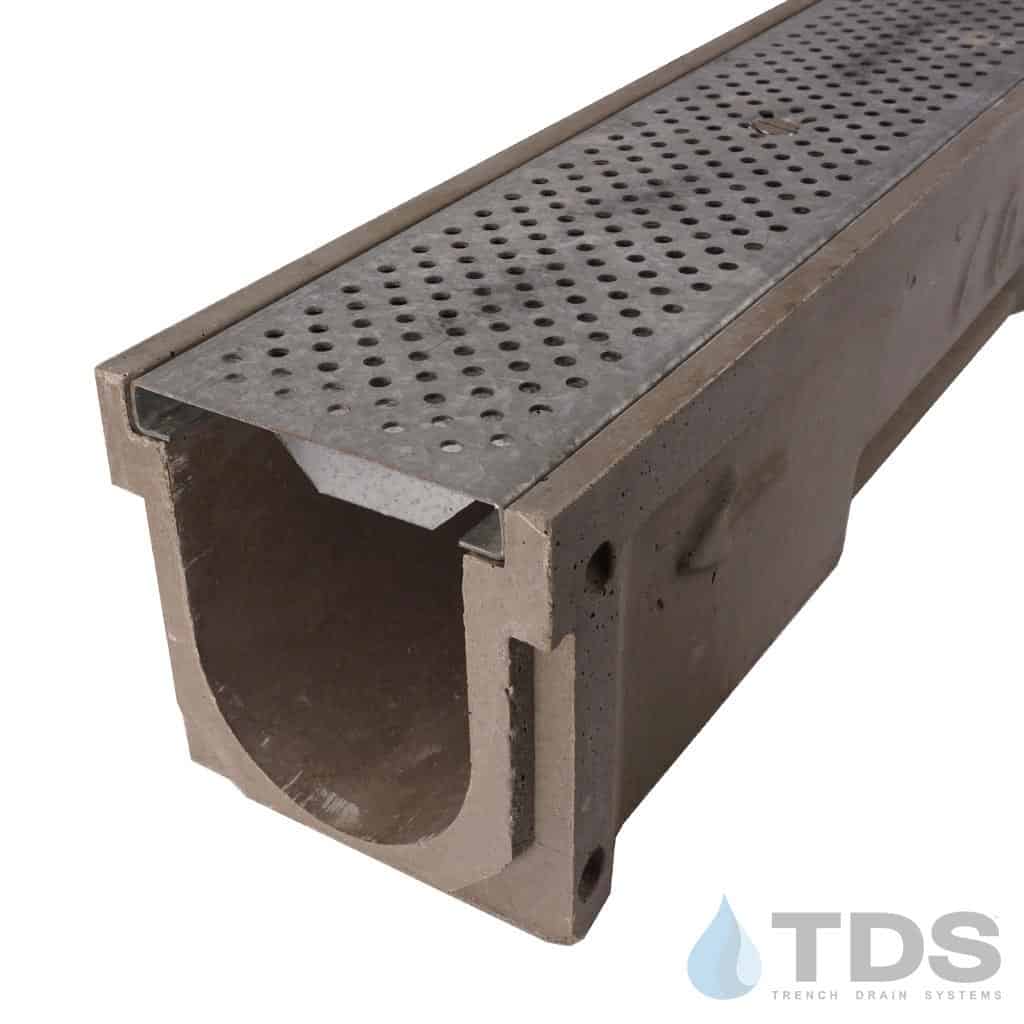

POLYCAST® 600 Series Kit with DG0646R Reinforced Perforated Galvanized Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class C

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

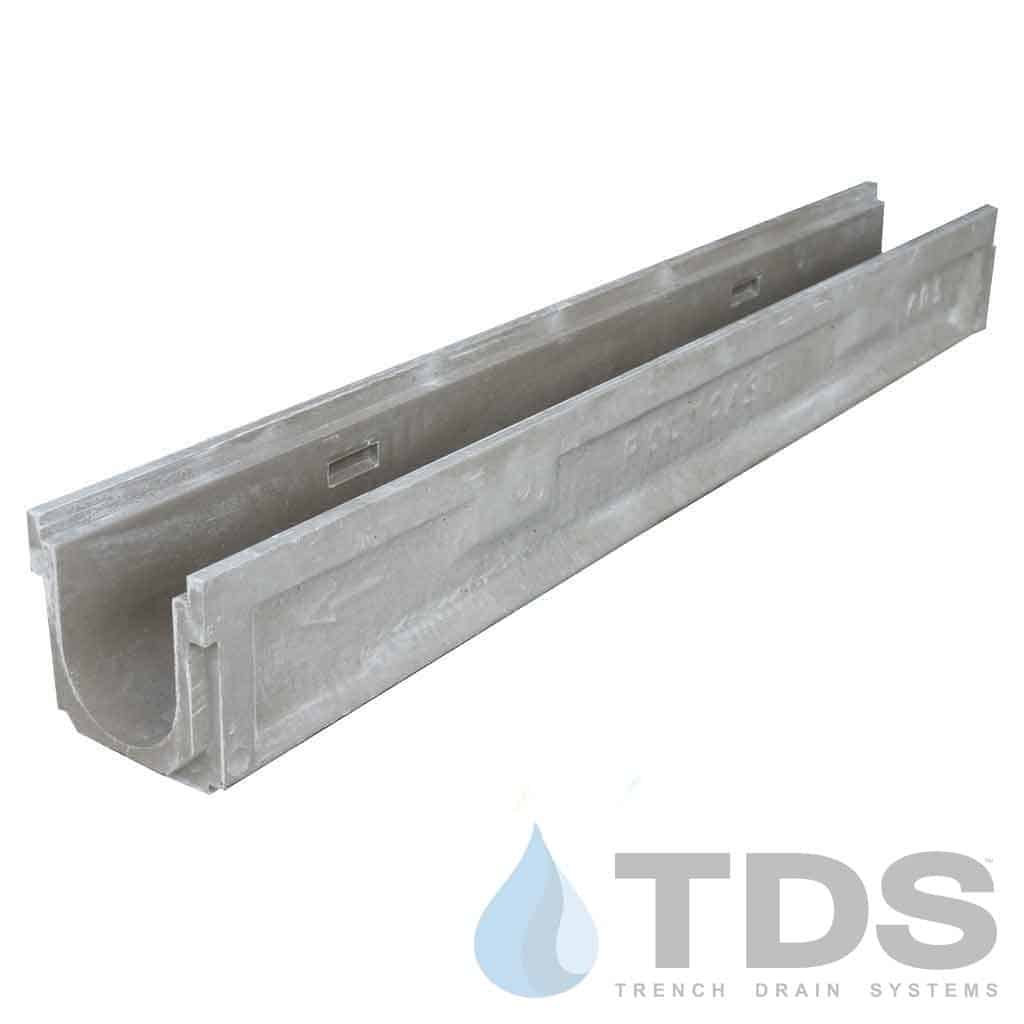

POLYCAST® 600 Series is a polymer concrete channel that has a built-in 0.65 percent slope that allows the system to achieve flow rates of 470 GPM.  The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.

Grating:

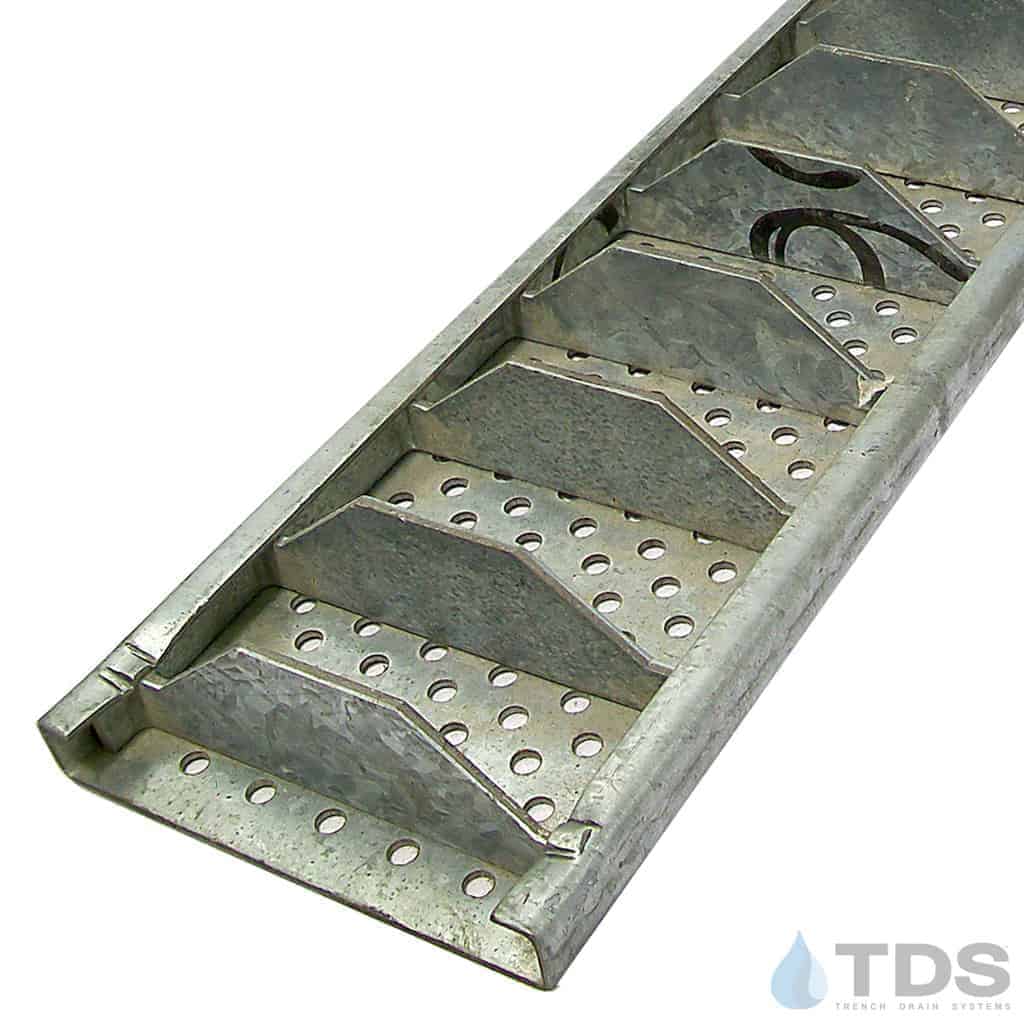

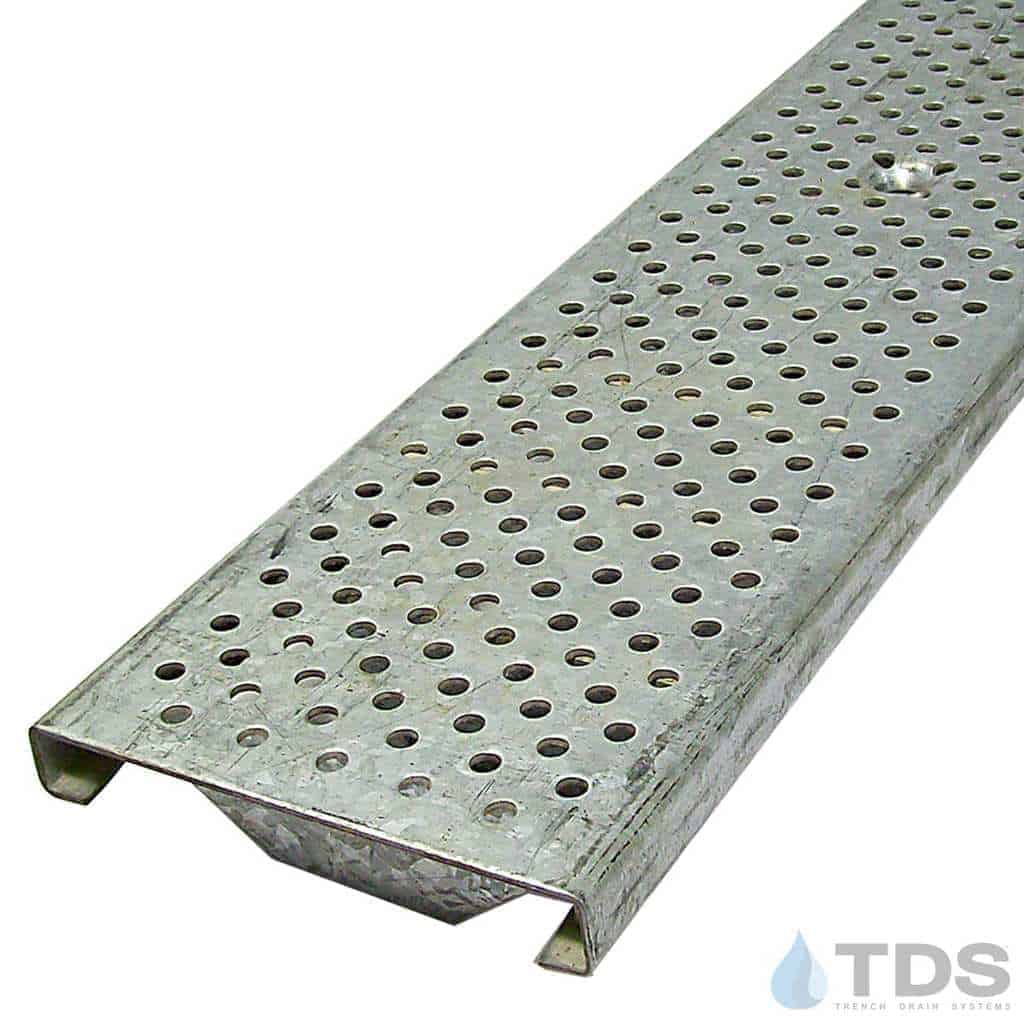

• Perforated reinforced grates
• Galvanized steel
• Load Class C load rating
• Open Surface Area:  20%
• DG0646R Specification Sheet

Each Kit Includes:

• 48" POLYCAST® 600 pre-sloped channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 48" Galvanized reinforced grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions

Layout Info:

Please review the inlet/outlet depths shown for each system length.

Feel free to Request a Quote for:

• Specific channels or channel depth requirements
• Vinyl ester channels for extreme temperatures and chemical resistance
• Large projects (over 100')

Want to learn more about this system? Click Here for more information.
