POLYCAST 600 Series Kit with DG0641D Slotted Ductile Iron Grate

POLYCAST 600 Series Kit with DG0641D Slotted Ductile Iron Grate

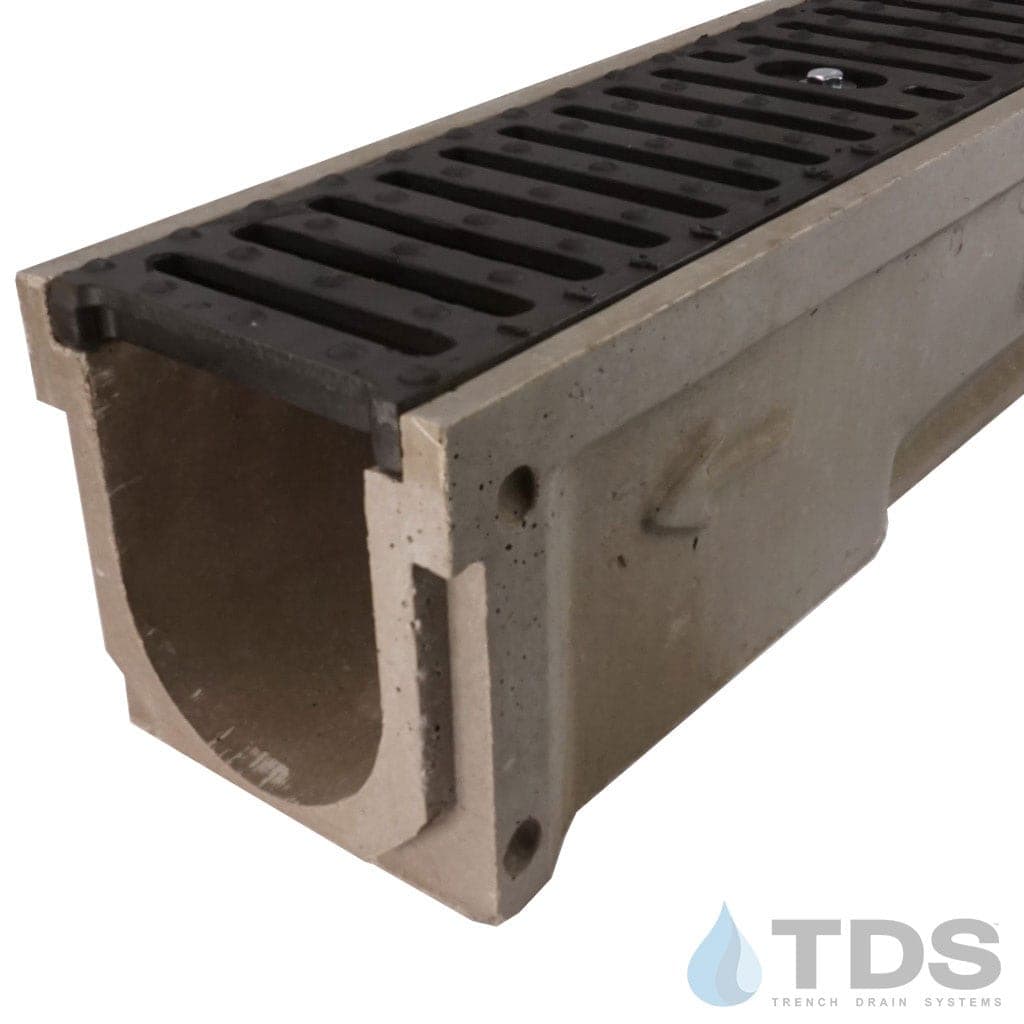

  • POLY600-xx-641D-TDSdrains ductile iron slotted grate polymer concrete channel Polycast
1 1

Drainage Kits

PCK6-DG0641D-EXT2

Each Kit Includes:

  • 48" POLYCAST®  pre-sloped channel (1 for each 4' of kit ordered)
    • Request all neutral channels when no slope is required
  • 24" Ductile iron slotted grates (2 per channel)
  • Grate Hold-down devices (1 per grate)
  • Installation Chairs
  • End Outlet (fits 4" S&D pipe)
  • End Cap
  • Installation instructions
$224.51 USD
$224.51 USD
Sale Sold out
Kit Length
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: Polycast
  • System: Polycast 600
  • Grate Load Class: C
  • Grate Pattern: SLOTTED
  • Grate Pattern Style: SLOTTED
  • Channel Material: Polymer Concrete - Polyester
  • Channel Frame / Edging: No Frame, No Edging
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

POLYCAST 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Grating:

  • Ductile iron slotted grates - (Class D Load Rating)
  • Open Surface Area: 19.8 sq. inches/Lin. Ft.
  • 40 GPM
  • Color: Black

Each Kit Includes:

  • 48" POLYCAST®  pre-sloped channel (1 for each 4' of kit ordered)
    • Request all neutral channels when no slope is required
  • 24" Ductile iron slotted grates (2 per channel)
  • Grate Hold-down devices (1 per grate)
  • Installation Chairs
  • End Outlet (fits 4" S&D pipe)
  • End Cap
  • Installation instructions

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

POLYCAST 600 LayoutPOLYCAST-600-Channel-Depths-2

Layout Info:
Please review the inlet/outlet depths shown for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.

2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
