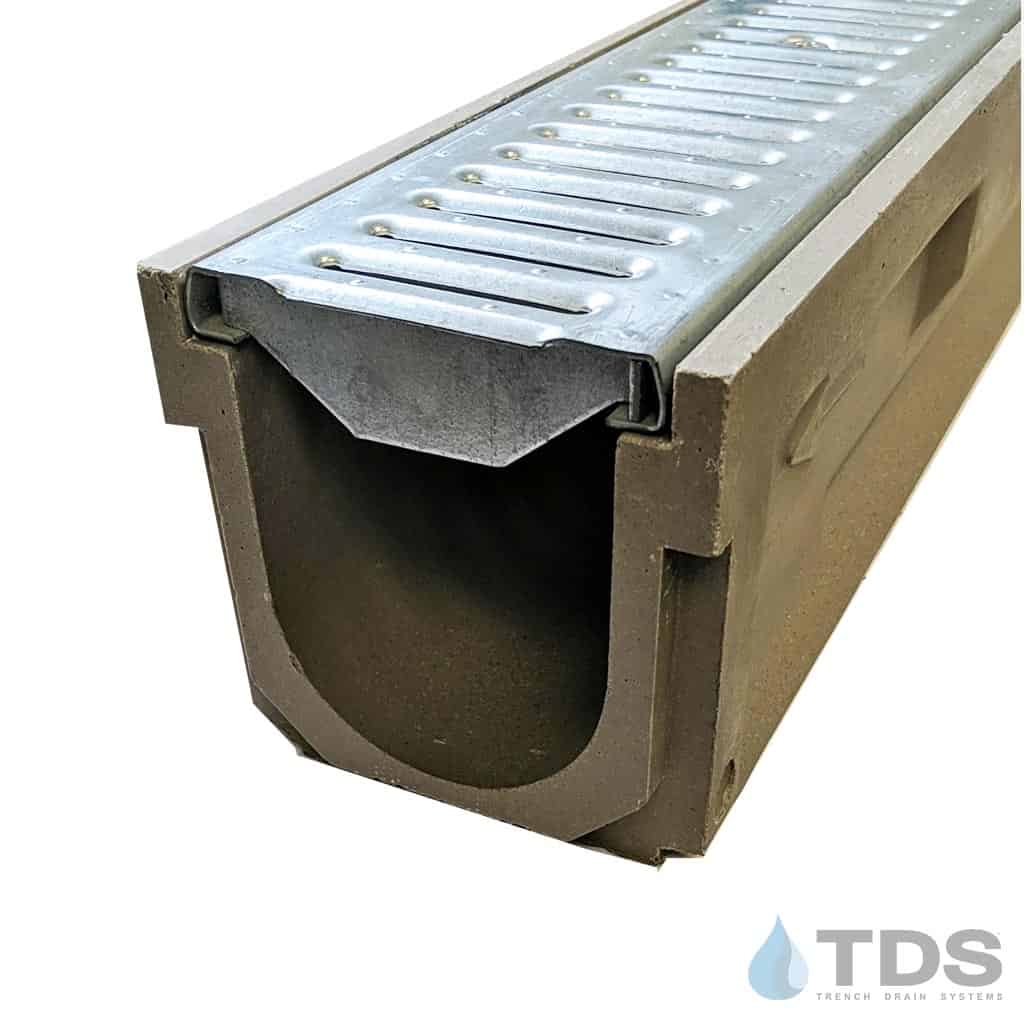

POLYCAST 600 Series Kit with DG0640R Slotted Galvanized Grate

Each Kit Includes:
48″ POLYCAST 600 channel(s)
Non-sloped runs available by requesting all neutral channels
48″ Galvanized Steel Reinforced Slotted Grates
Grate Hold-down devices 2/grate
Installation Chairs
End Cap
End Outlet

POLYCAST 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM.  The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Typical Applications

• Decks and Patios
• Grocery Stores
• Hotels
• Driveways
• Courtyards

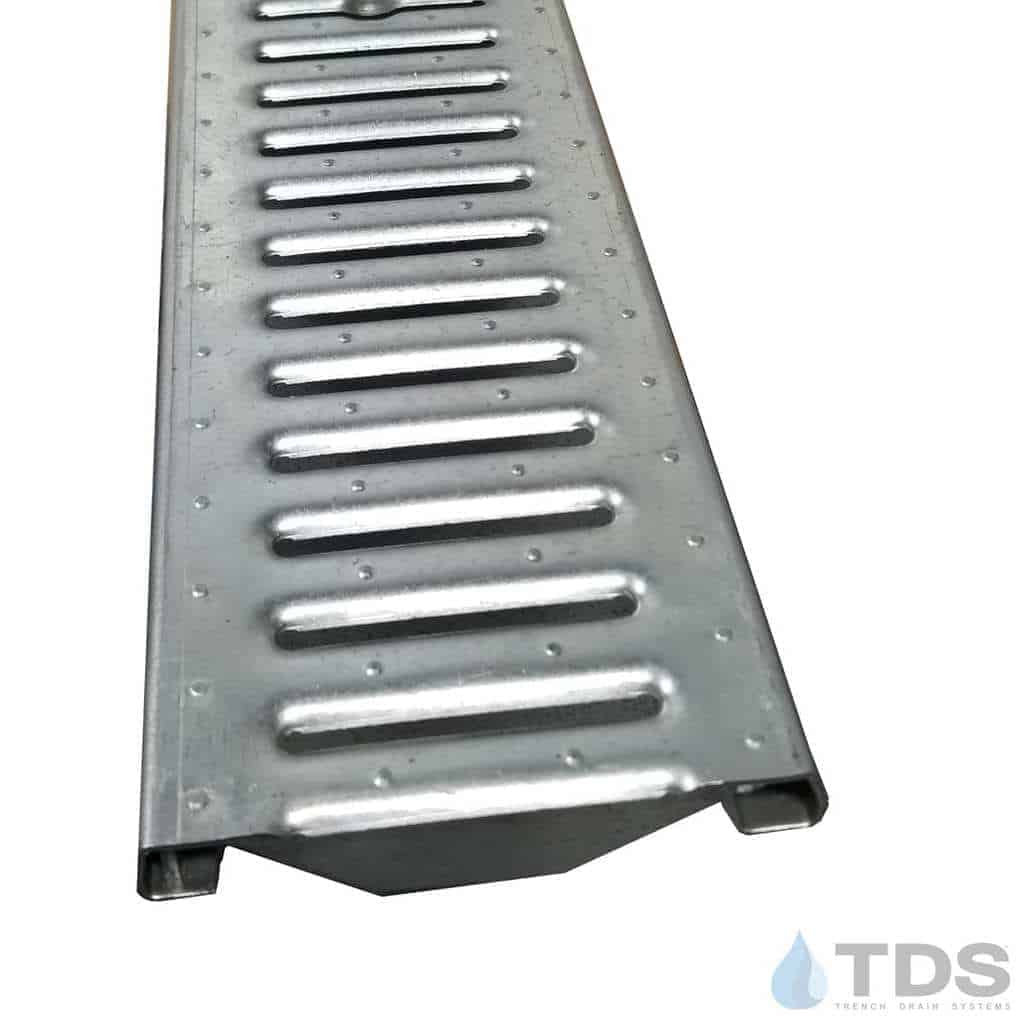

Grating:

• Galvanized Reinforced Grate - (Class C Load Rating)
• Pattern: Slotted
• Open Surface Area: 17%

DG0640R Specification Sheet

Each Kit Includes:

• 48" POLYCAST 600 channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 48" Galvanized Steel Grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (1 per system)
• End Outlet (1 per system)
• Installation instructions

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

Layout Info:
Please review the inlet/outlet depths shown below for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.

NOTE: For proper installation, grates must be in the channel during installation.

2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
