POLYCAST® 600 Series Kit w/ DG0692 Patriot Ductile Iron Grate & Galvanized Edging

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 600

Grate Load Class: Class C

Grate Pattern: PATRIOT

Grate Pattern Style: PATRIOTIC

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Large Project? Request Quote.

POLYCAST 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Grating:

• Ductile iron Patriot grates – (Class C Load Rating)
• Open Surface Area: 21%
• ADA Grate
• Color: Black
• DG0692 Grate Specification Sheet

Each Kit Includes:

• 48" POLYCAST® Pre-sloped channel (1 for each 4' of kit ordered)
  • Request all neutral channels when no slope is required
• Galvanized Steel Edging

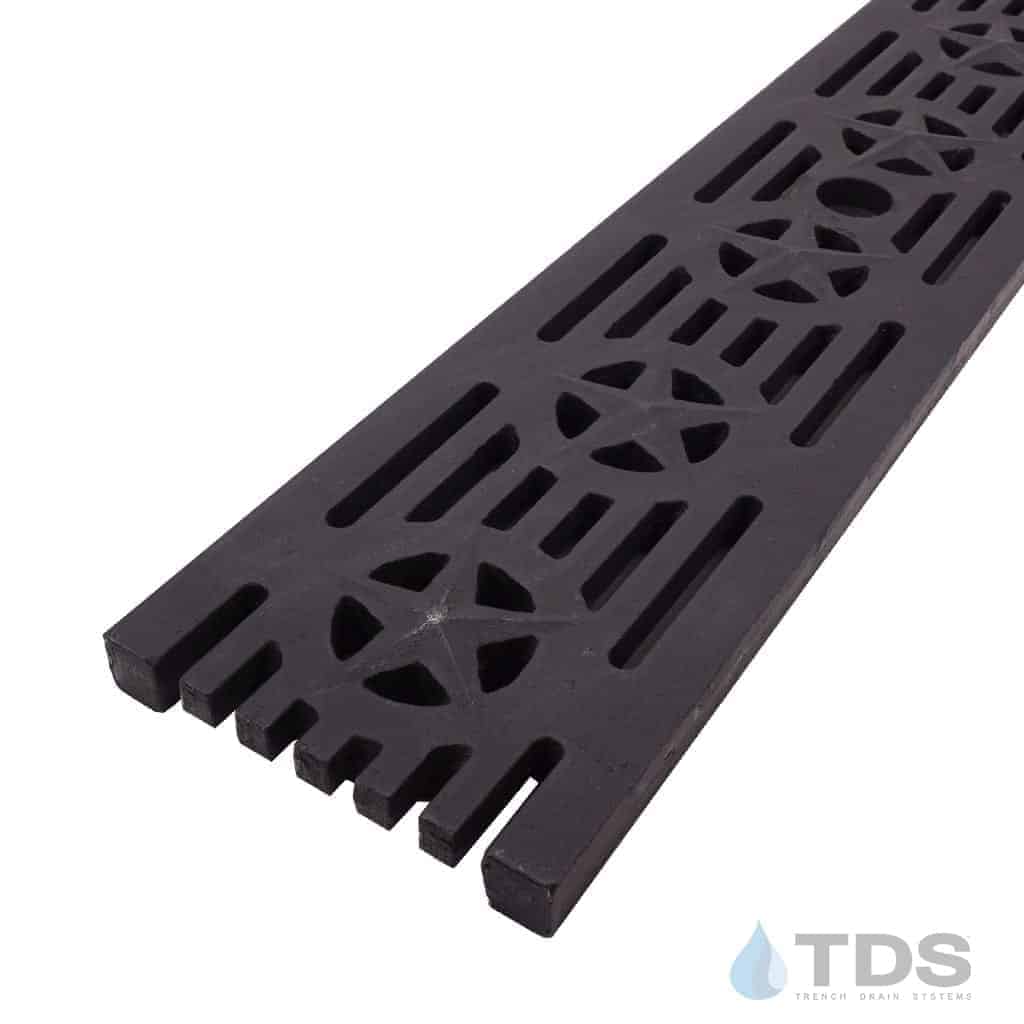

• DG0692 Decorative ductile iron Patriot grate (Made in the USA)
• Grate Hold-down devices
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

Layout Info:
Please review the inlet/outlet depths shown for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.
