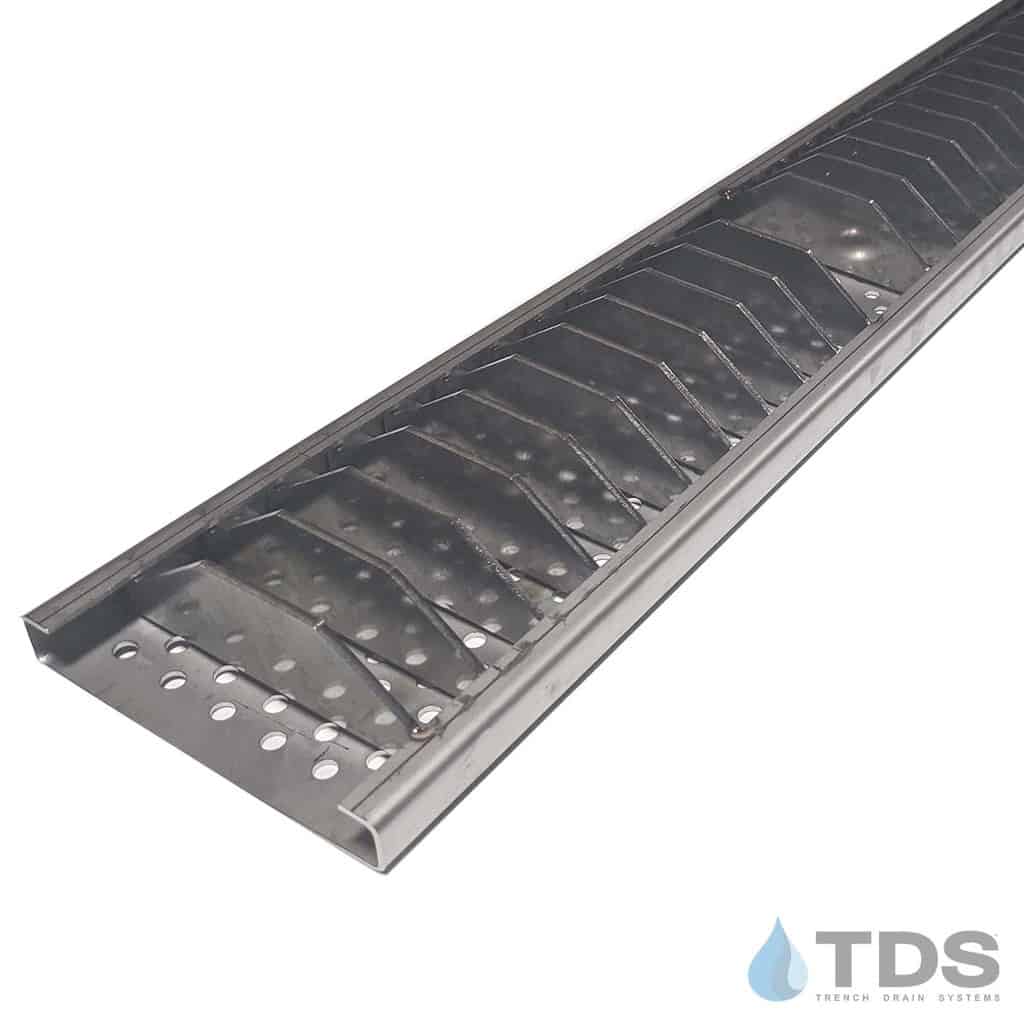

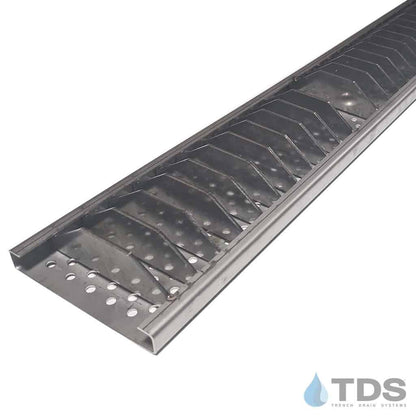

POLYCAST® 600 Series Kit w/DG0657R Reinforced Perforated Stainless Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class C

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

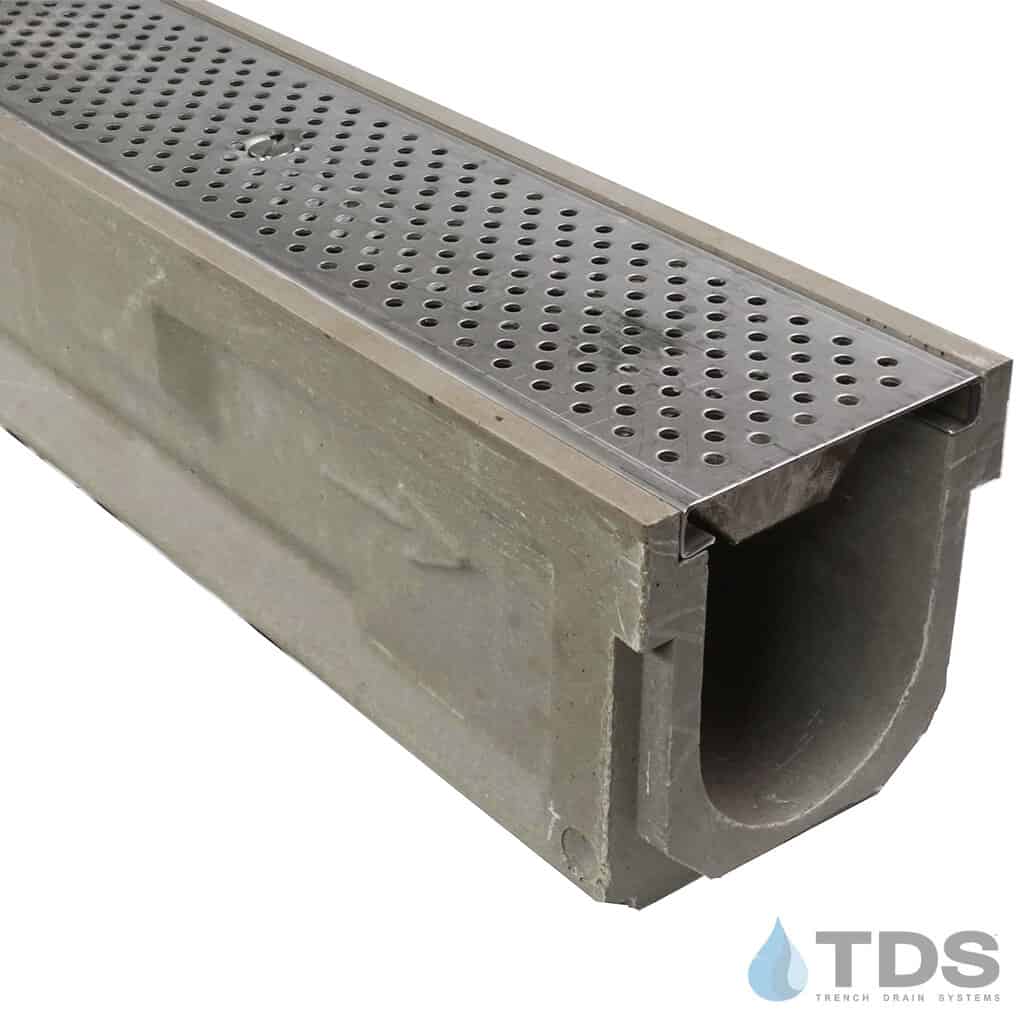

POLYCAST 600 Series is a polymer concrete channel that has a built-in .65 percent slope allowing the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

For heavy trucks or fork truck traffic, we recommend adding the ductile iron frames to your kit.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Grating:

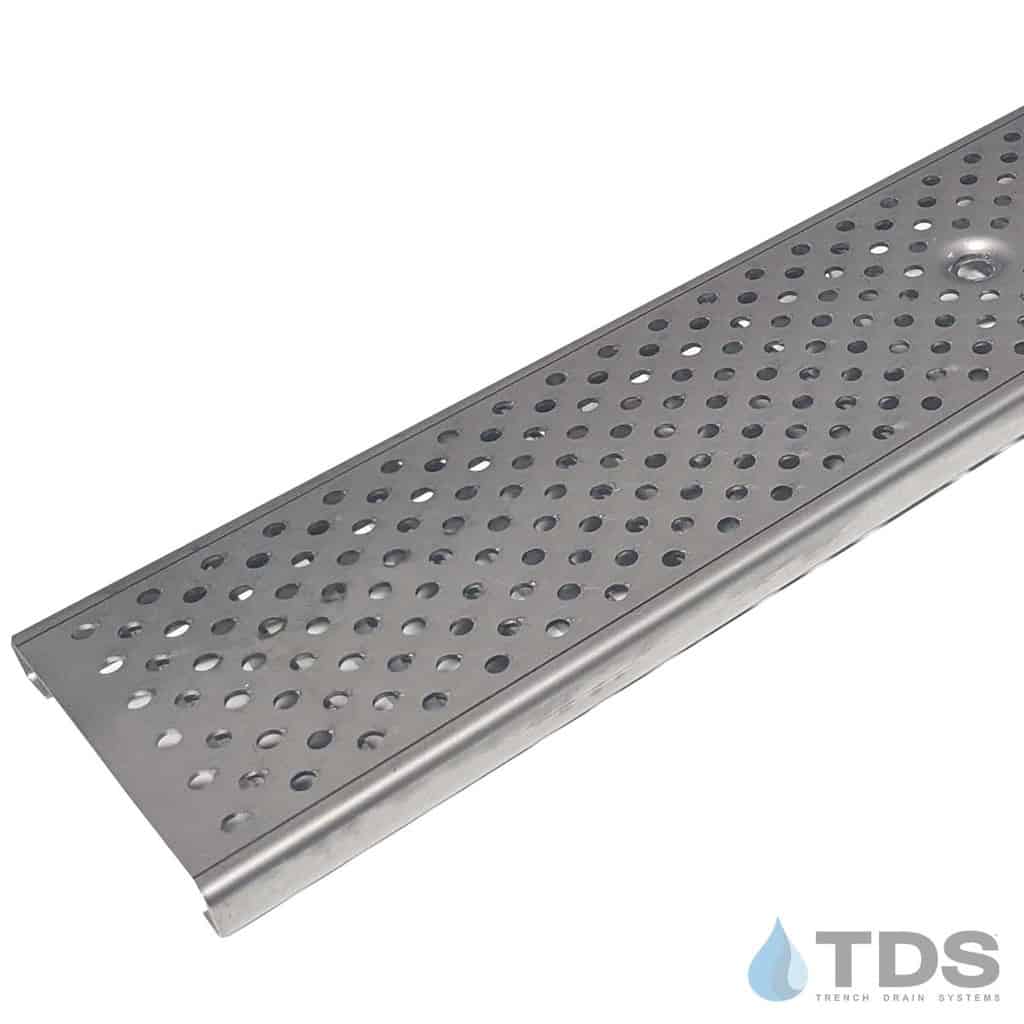

• Stainless Steel Perforated grates - Class C Load Rating
• Open Surface Area:  8.5 Square Inch per linear foot
• Material: Stainless Steel

Each Kit Includes:

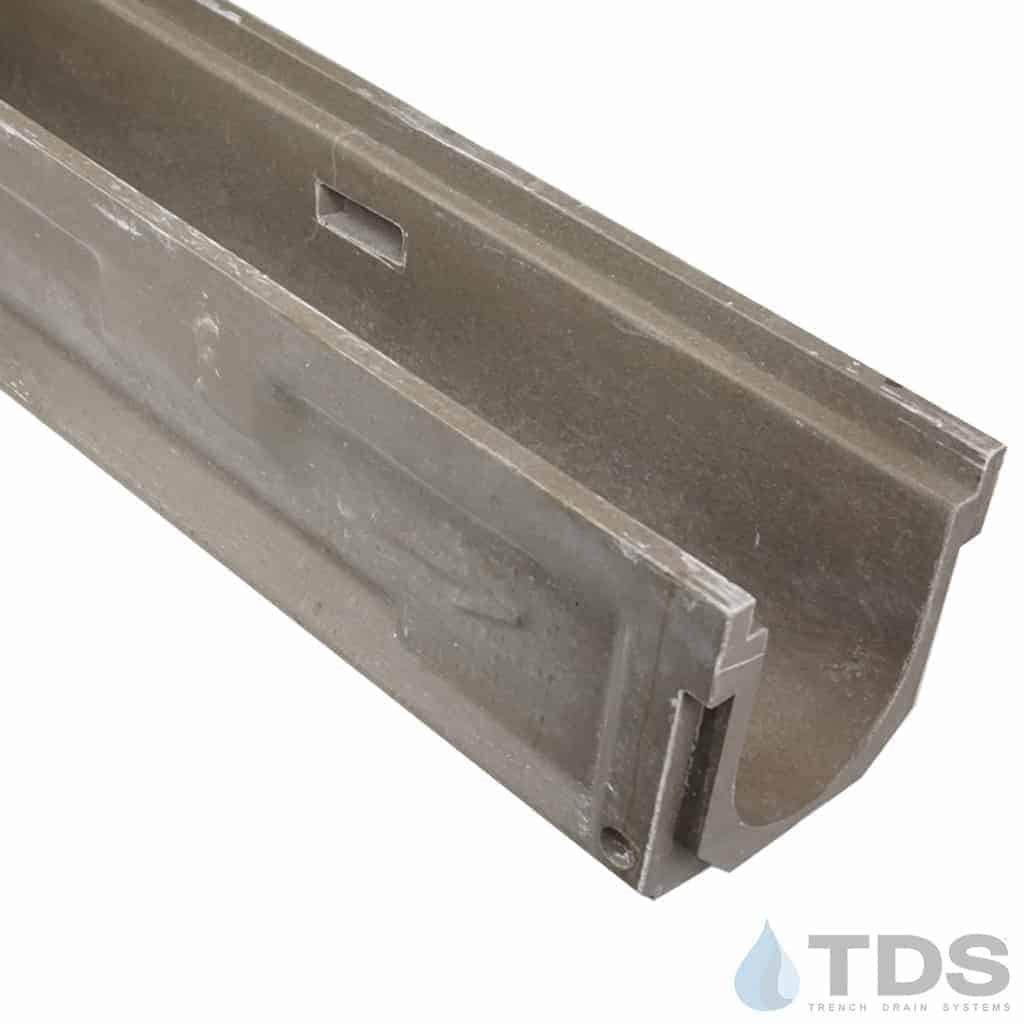

• 48" POLYCAST 600 Pre-sloped channel (1 for each 4' of kit ordered)
  (Non-sloped runs available by requesting all neutral channels)
• 48" Stainless Steel Perforated grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions

Note: 2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

Layout Info:
Please review the inlet/outlet depths shown for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.
