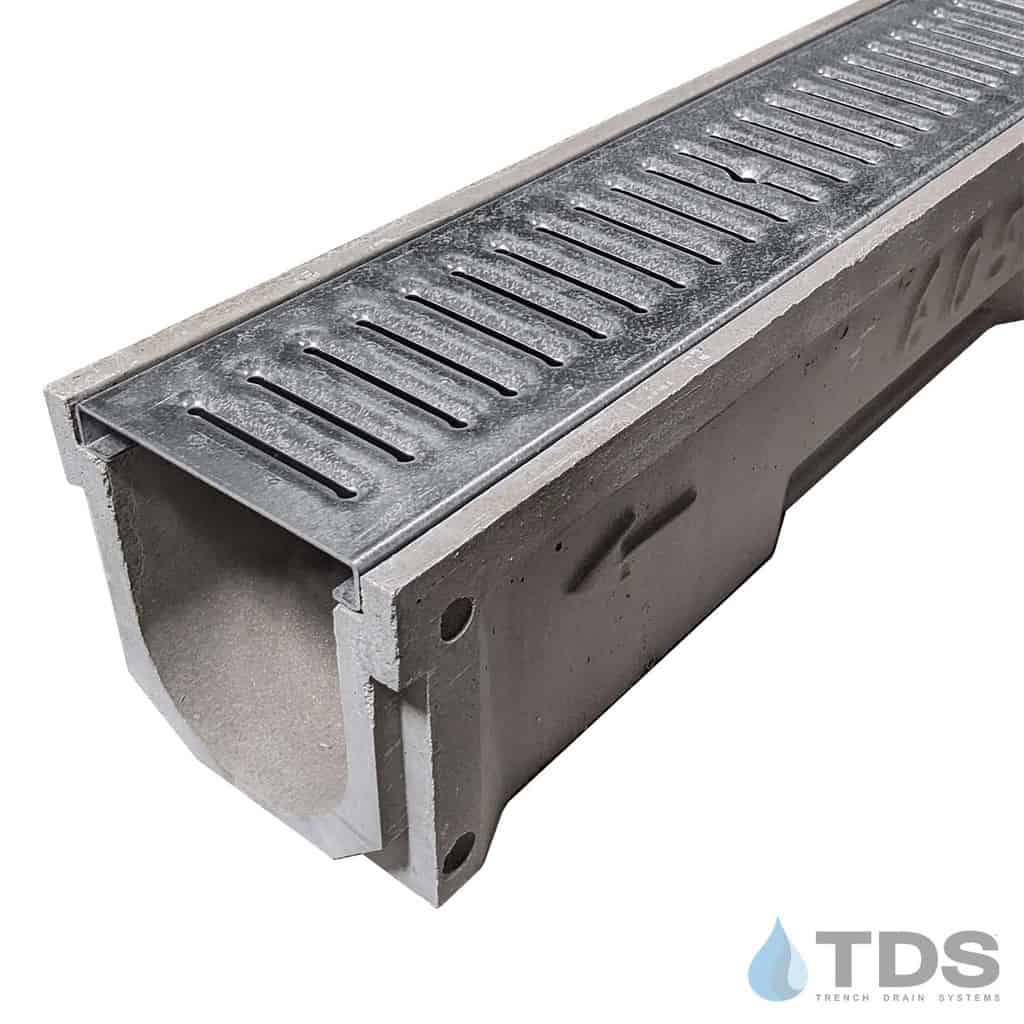

POLYCAST®600 Series Kit w/ DG0640 Slotted Galvanized Grate | Load Class B

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

POLYCAST® 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM.  The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Typical Applications

• Decks and Patios
• Hotels
• Swimming Pools
• Hotels



Grating:

• Galvanized Grate - (Class A Load Rating)
• Pattern: Slotted
• Open Surface Area: 17%

Specification Sheet for DG0640

Each Kit Includes:

• 48" POLYCAST 600 channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 48" Galvanized Steel Grate (1 per channel) Load Class A
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (1 per system)
• End Outlet (1 per system)
• Installation instructions

Layout Info:
If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.

Want to learn more about this system? Click Here for more information.
