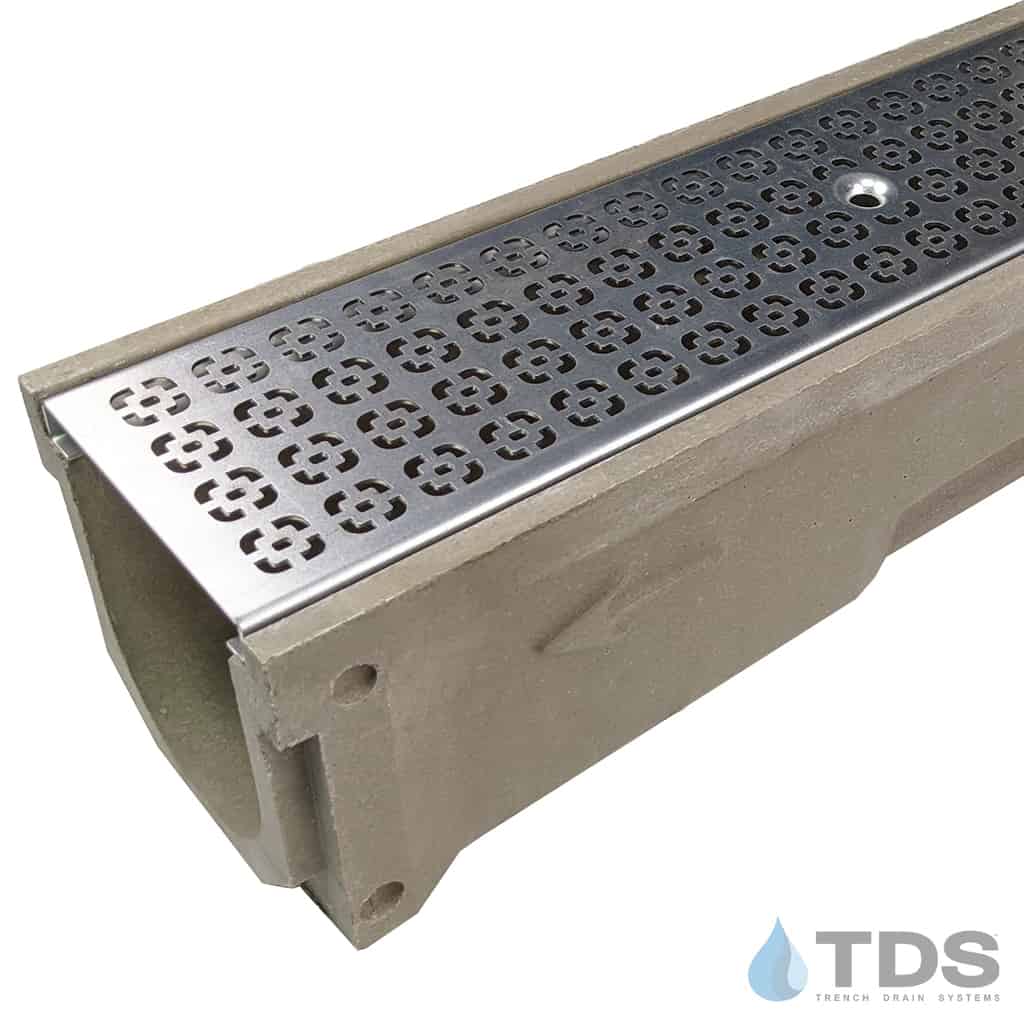

POLYCAST 600 Series Kit w/ DG0623 Square Deco Galvanized Steel Grate | Load Class A

Each Kit Includes:

• 48″ POLYCAST 600 Pre-sloped channel (1 for each 4′ of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 48″ galvanized steel grate (1 per channel)
• Grate hold-down devices (2 per grate)
• Installation chairs
• End outlet (fits 4″ S&D pipe)
• End cap
• Installation instructions

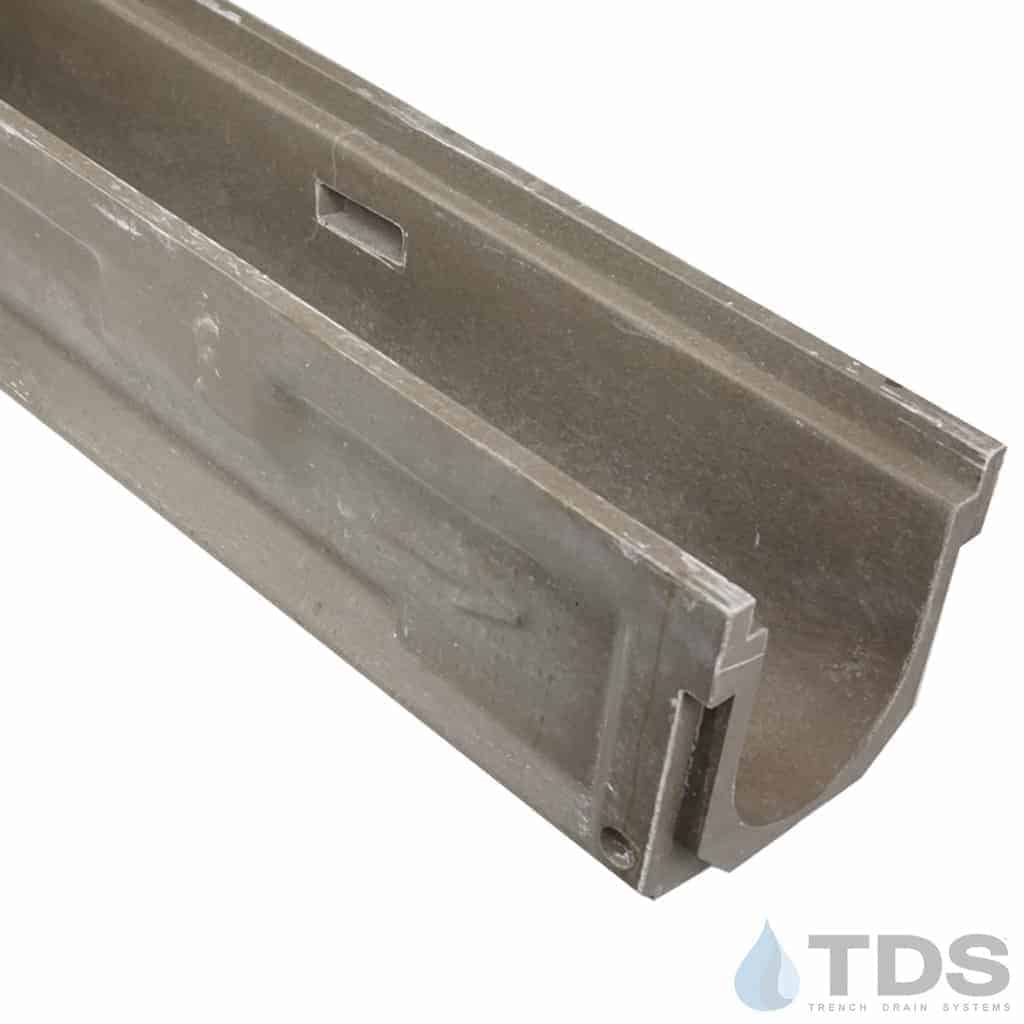

POLYCAST 600 Series is a 6.25" wide (OD) polymer concrete channel with a built-in 0.65 percent slope, allowing the system to achieve flow rates of 470 GPM. The DG0623 Square Deco pattern is an exclusive product of TDS. Made of galvanized steel, this 5.25" wide grate offers an impressive look. This kit is ideal for applications with foot traffic such as patios, courtyards and sidewalks.

Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.

Each Kit Includes:

• 48" POLYCAST 600 Pre-sloped channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 48" galvanized steel grate (1 per channel)
• Grate hold-down devices (2 per grate)
• Installation chairs
• End outlet (fits 4" S&D pipe)
• End cap
• Installation instructions

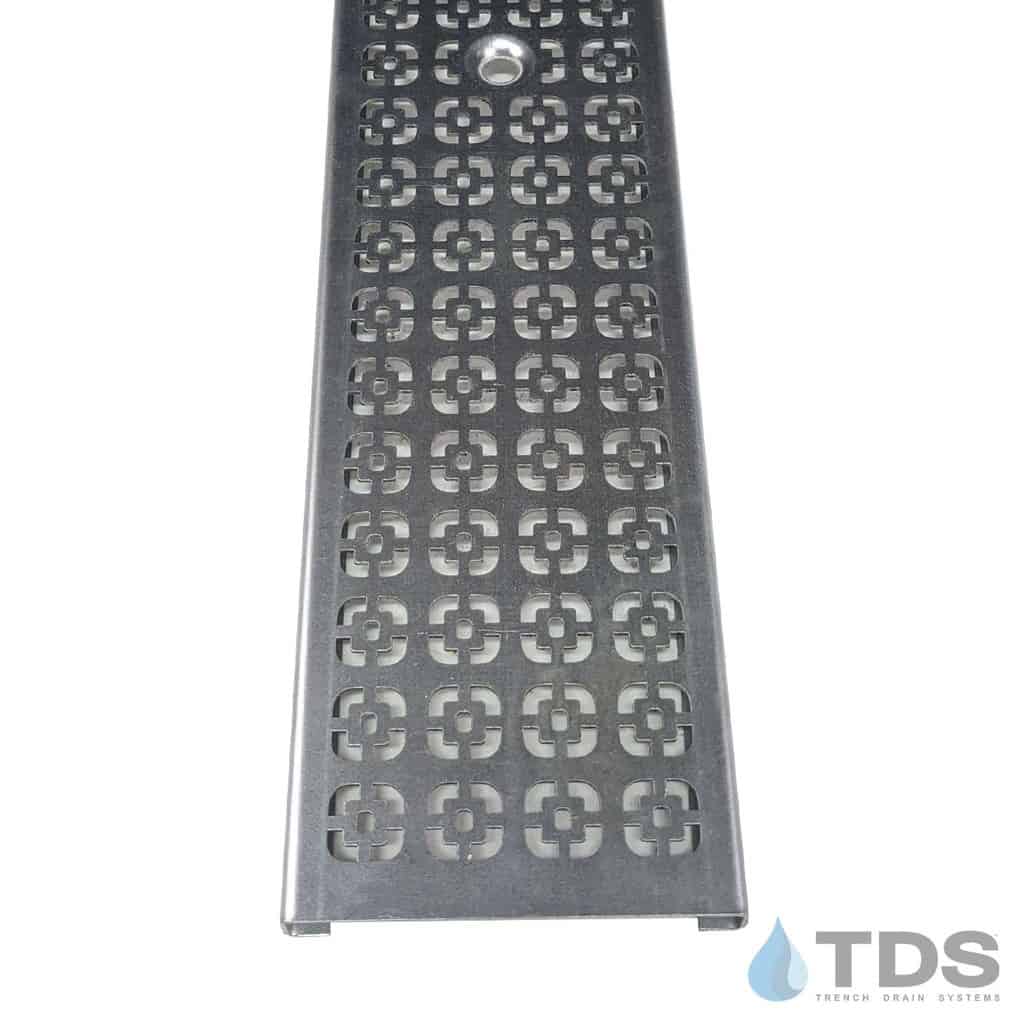

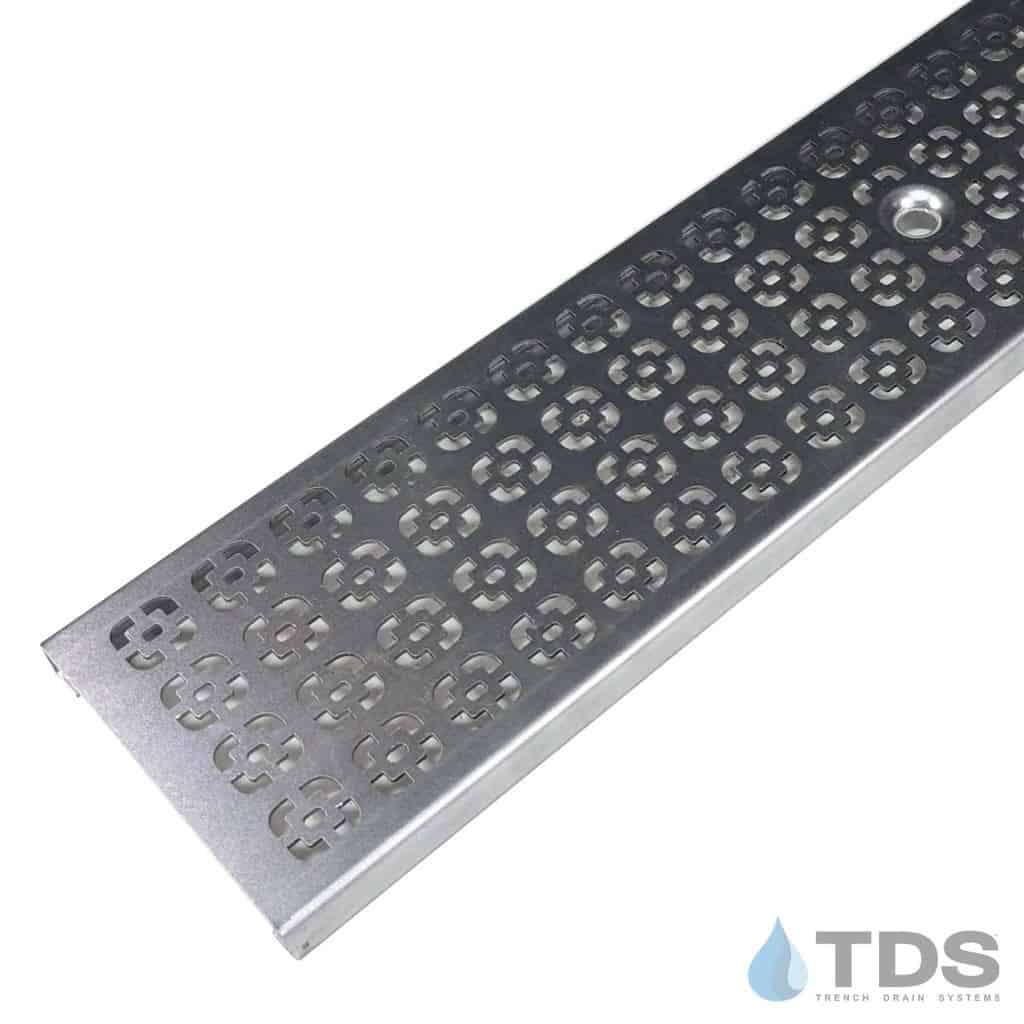

Grating:

• Galvanized steel
• Class A load rating - pedestrian traffic
• Square Deco perforated pattern
• Exclusive pattern of TDS
• ADA compliant
• Heelproof

Layout Info:

Please review the inlet/outlet depths shown for each system length.

Feel free to Request a Quote for:

• Specific channels or channel depth requirements
• Vinyl ester channels for extreme temperatures and chemical resistance
• Large projects (over 100')

Want to learn more about this system? Click Here for more information.

NOTE: For proper installation, grates must be in the channel during installation.

2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
