POLYCAST 600 Series Kit w/ ADA DG0675HD Transverse Slot Ductile Iron Grate & Galvanized Edging

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class D

Grate Pattern: TRANSVERSE SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

POLYCAST 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Grating:

• DG0675HD - Transverse Slotted ductile iron ADA Compliant - (Class C Load Rating)

• Class E load rating when mounted in a ductile iron frame
• Open Surface Area: 19.8 sq. inches/Lin. Ft.
• 32 sq.in./Lin ft. (26%)
• Color: Black
• DG0675HD Specification Sheet

Each Kit Includes:

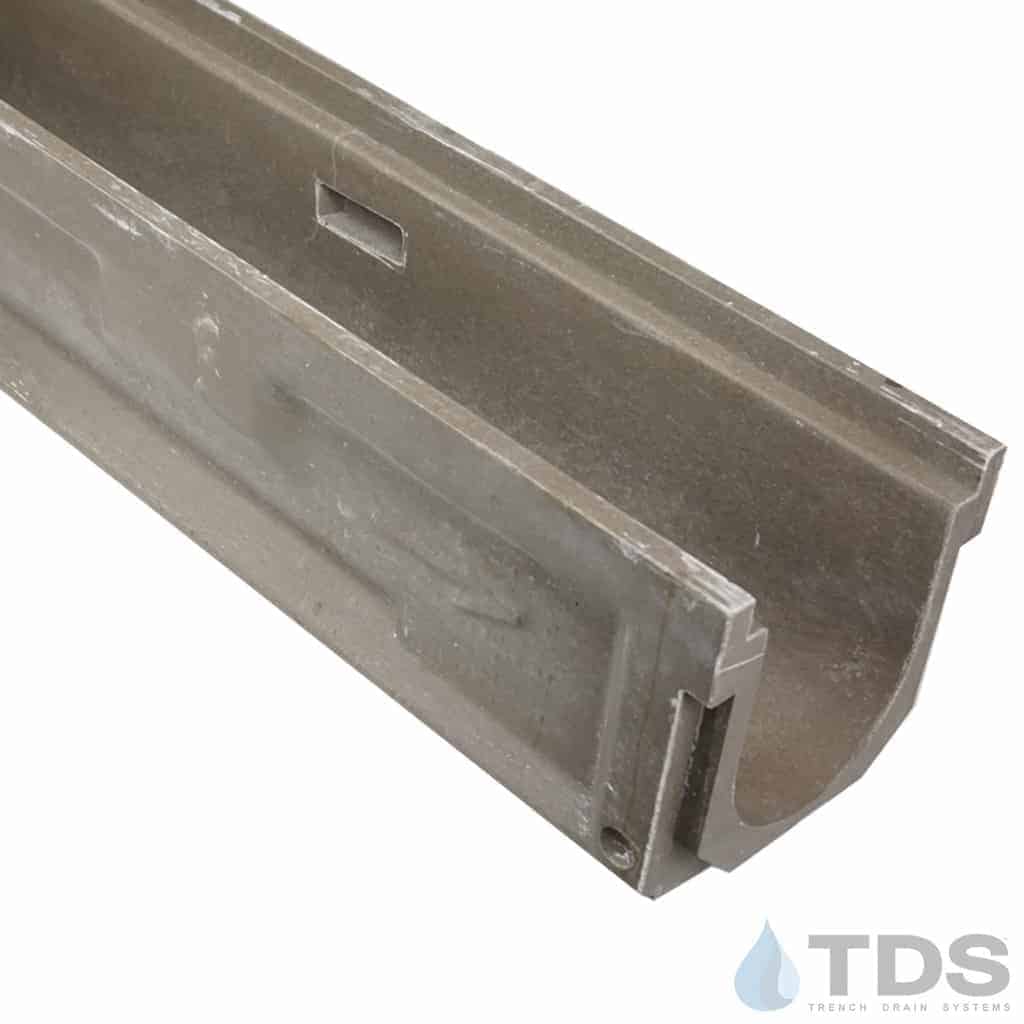

• 48" POLYCAST® Pre-sloped channel (1 for each 4' of kit ordered)
  • Request all neutral channels when no slope is required

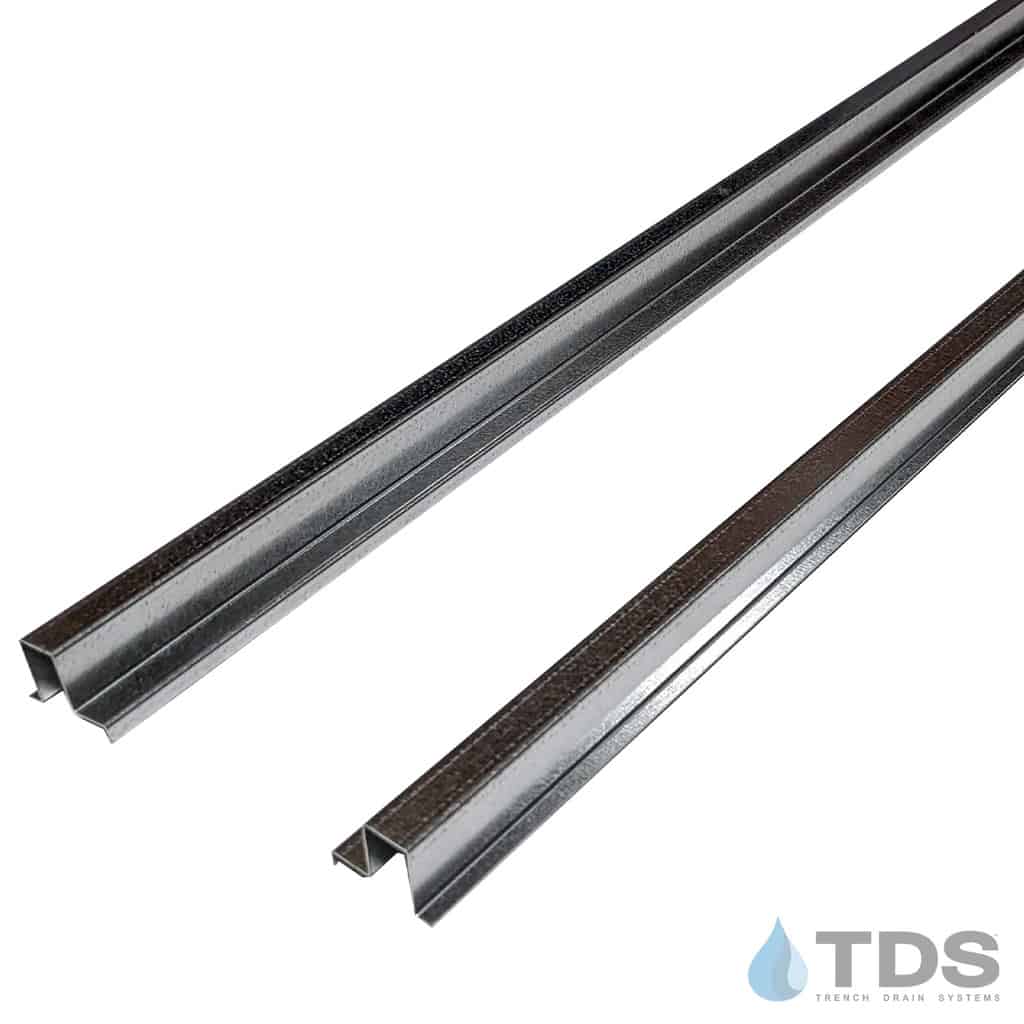

• Galvanized Steel Edging

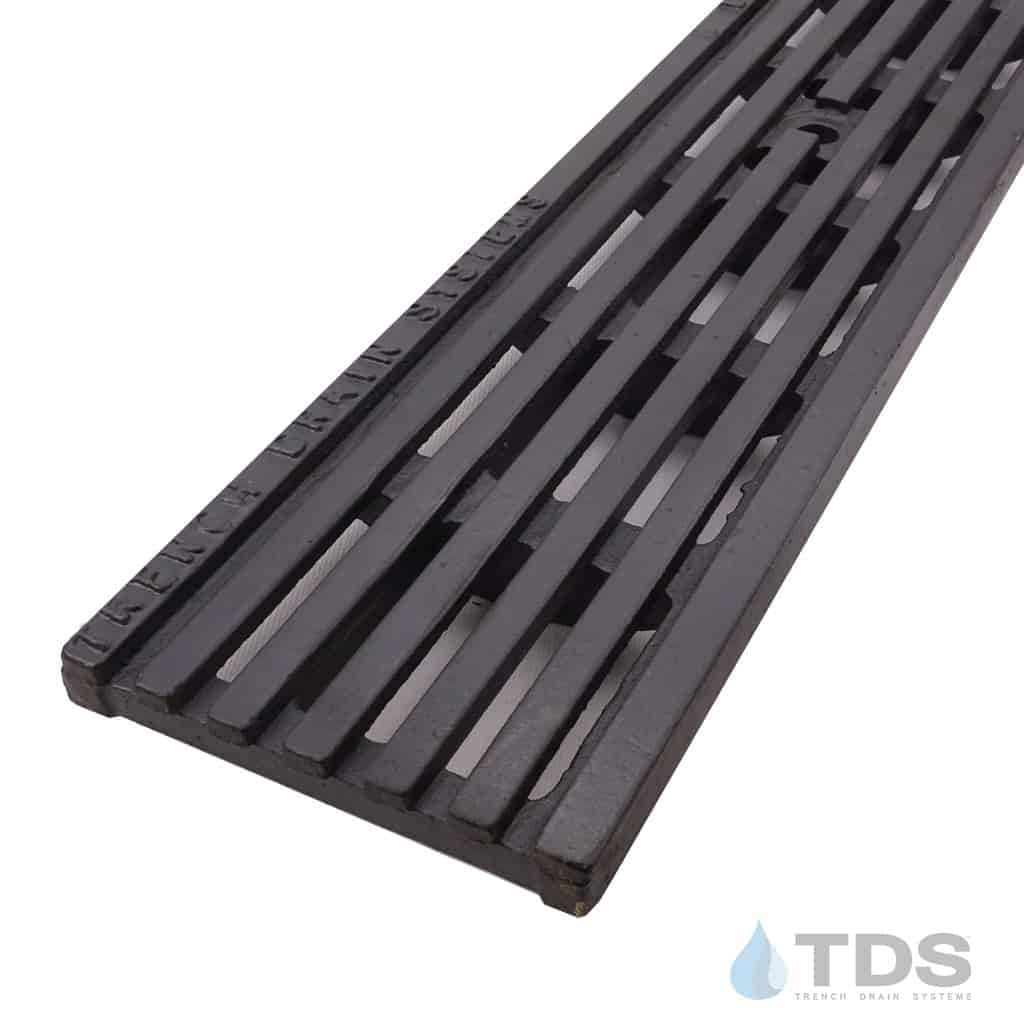

• DG0675HD Ductile iron ADA grates
• Grate Hold-down devices
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions
