POLYCAST 600 Series Channels

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600, POLYCAST 700, and POLYCAST 900

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

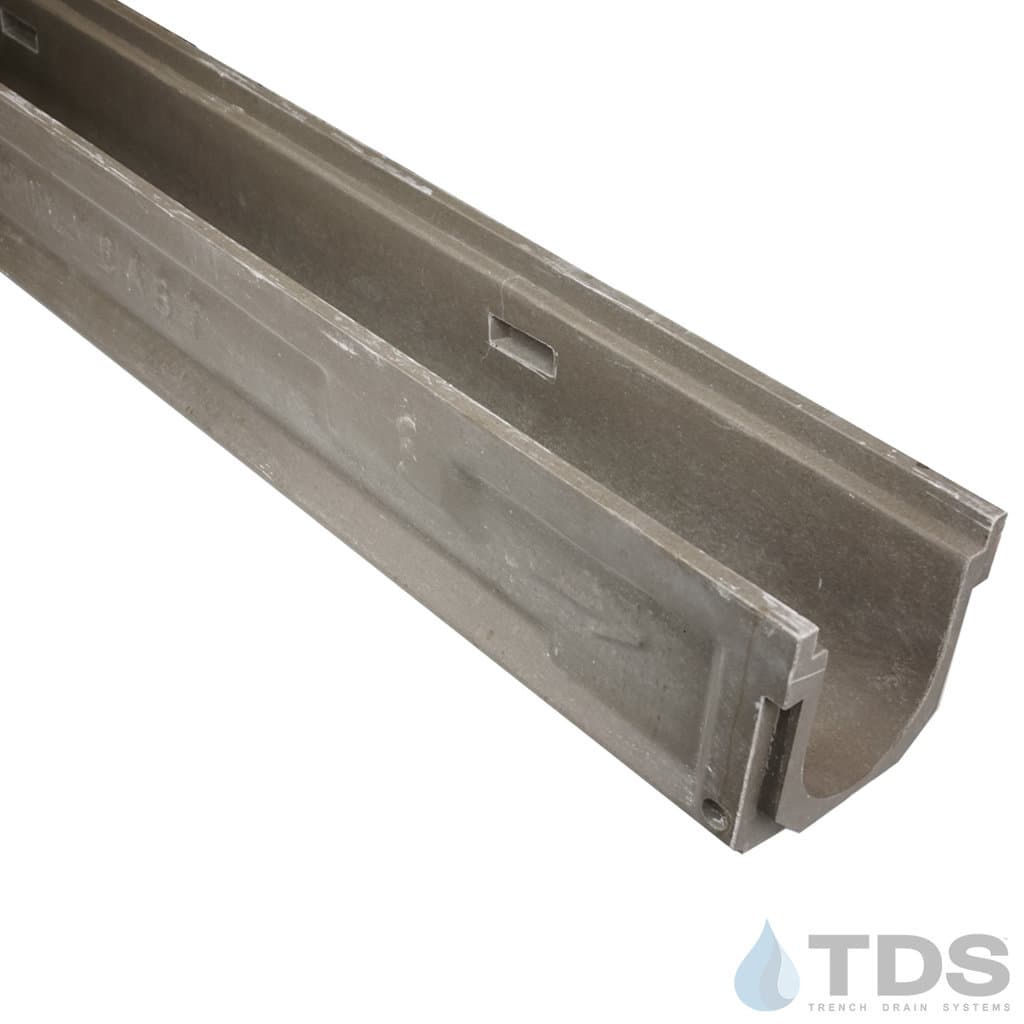

Hubbell's POLYCAST® 600 Series is 6.25" wide (OD) polymer concrete channels have a built-in .65 percent slope that allows the system to achieve flow rates up to 470 GPM. This POLYCAST® systems comes as pre-sloped, neutrals, and half channels. Certain 4' channels and all half channels have a 4" bottom outlet that can be cored out for pipe connections.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Uses:

• Garages
• Driveways
• Parking Lots
• Public Areas
• Swimming Pools
• Recreational Areas

Channel Material: Polymeric concrete
Clear Width: 4″ inside diameter w/2" radius bottom
Total Width: 6-1/4"

Also available in Vinyl Ester Channels for extreme temperatures and harsh chemicals, request your quote now.
