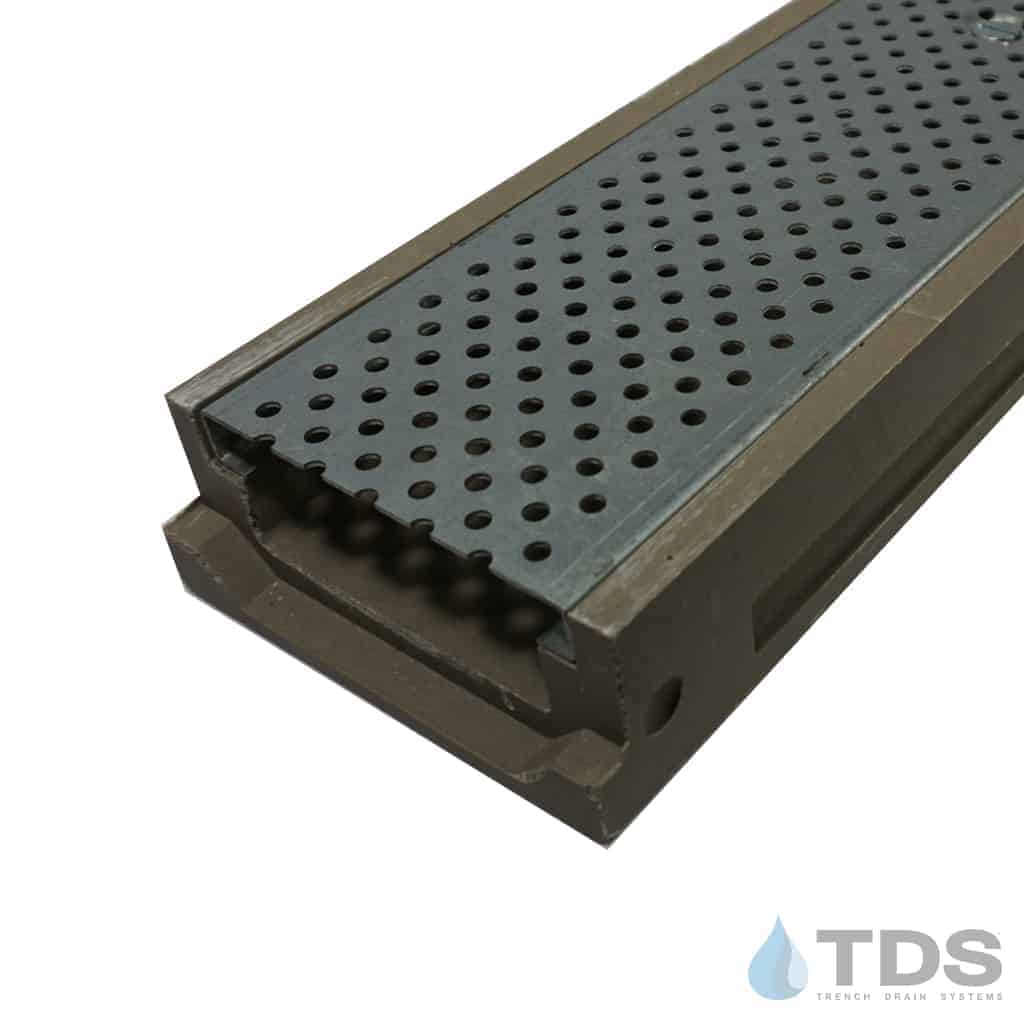

POLYCAST 500 Series Kit with DG0646 Perforated Galvanized Grate

POLYCAST 500 Series Kit with DG0646 Perforated Galvanized Grate

Skip to product information
1 of 1

Drainage Kits

SKU:PCK5-DG0646-40

Installation Chairs Included
Regular price $2,857.11 USD
Regular price $0.00 USD Sale price $2,857.11 USD
Sale Sold out
Kit Length
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Galvanized Steel
  • Manufacturer: Polycast
  • System: Polycast 500
  • Grate Load Class: A
  • Grate Pattern: Perforated
  • Grate Pattern Style: Perforated
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: No Frame, No Edging
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Sport Complex - Recreational

Description

Installation Chairs Included

POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25" wide and comes in 48” lengths . A bottom outlet will need to be core drilled for pipe connection.  Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.

Typical Applications

500 End View

  • Elevated Slabs
  • Hotels
  • Swimming Pools
  • Decks and Patios
  • Grocery Stores

Grating:

  • Galvanized Grate - (Class A Load Rating - Pedestrian Traffic)
  • Pattern: Perforated
  • Open Surface Area: 17%
  • Heel Proof
  • ADA Compliant

Specification Sheet for DG0646 Galvanized Perforated Grate

Each Kit Includes:

  • 48" POLYCAST 500 channel (1 for each 4' of kit ordered)
  • 48" Galvanized Steel Grate (1 per channel)
  • Grate Hold-down devices (2 per grate)
  • Installation Chairs
  • End Caps (2 per system)
  • Installation instructions
