POLYCAST 500 Series Kit with DG0641D-G Slotted Ductile Iron-Galvanized Grate and Ductile Frame

Grate Width: 5.25" for Hubbell Polycast

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw and Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500

Grate Load Class: Class F

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - Ductile Iron

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

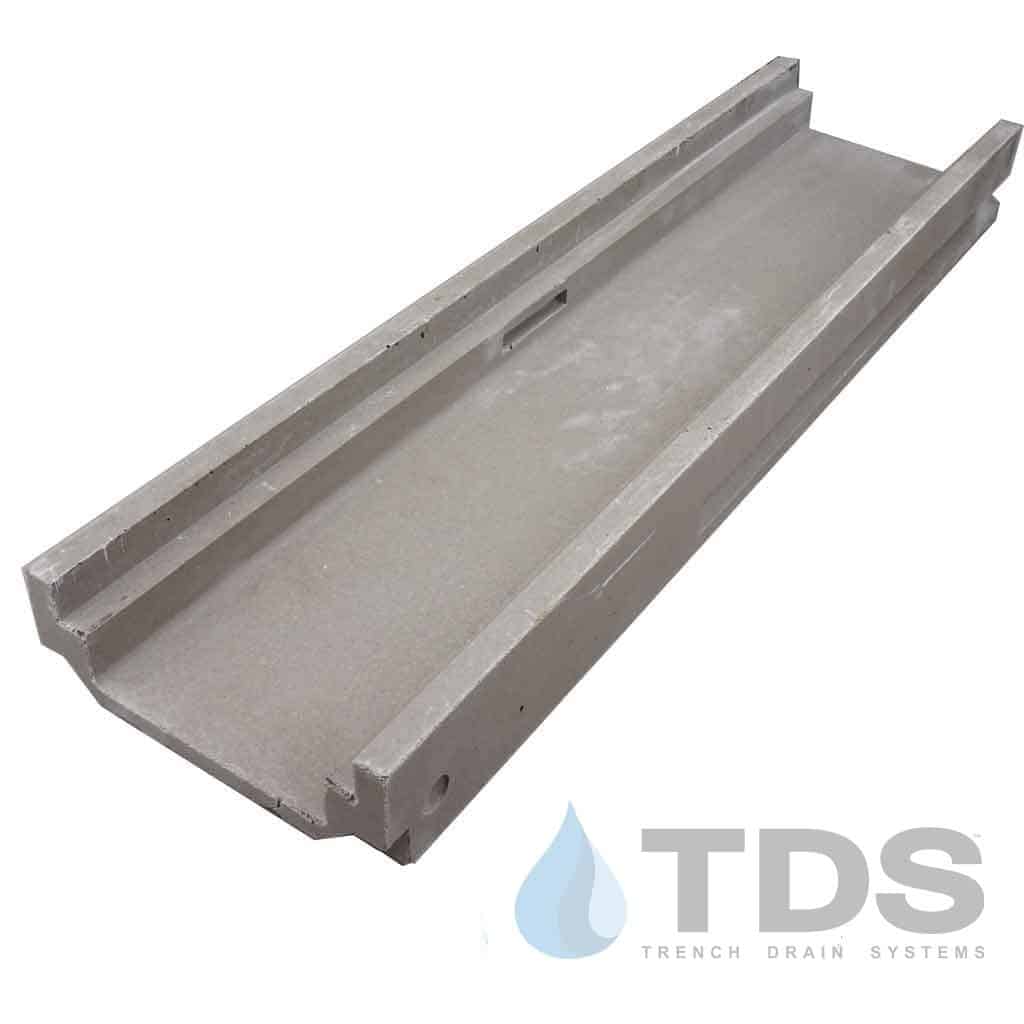

POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25" wide and comes in 48” lengths . A bottom outlet will need to be core drilled for pipe connection.  Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.

Grating:

• Ductile Iron-Galvanized Grate - (Class F Load Rating with frame)
• Pattern: Slotted
• Open Surface Area: 39%

Each Kit Includes:

• 48" POLYCAST 500 channel (1 for each 4' of kit ordered)
• 24" Ductile Iron Frame (2 per channel)
• 24" Ductile Iron-Galvanized Grate (2 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (2 per system)
• Installation instructions
