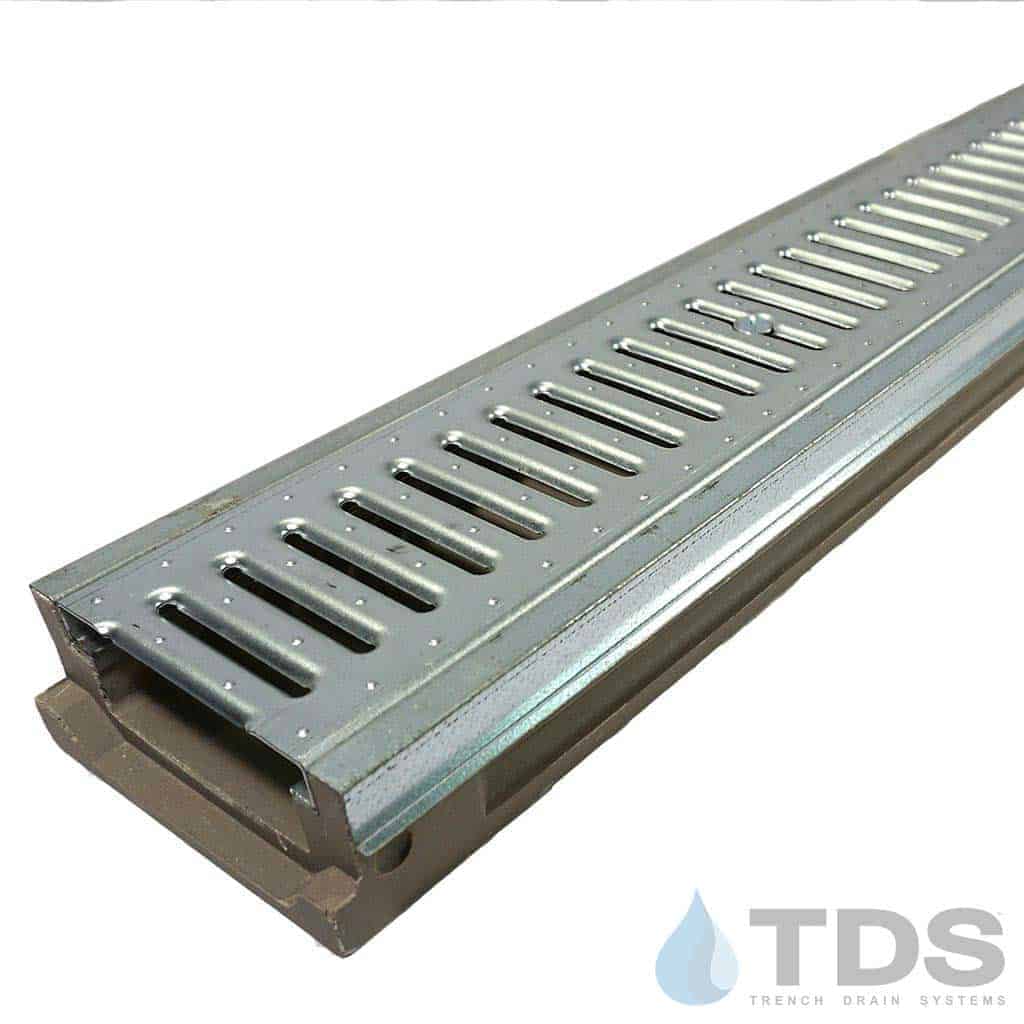

POLYCAST 500 Series Kit with DG0640 Slotted Galvanized Grate and Edging

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Each Kit Includes:

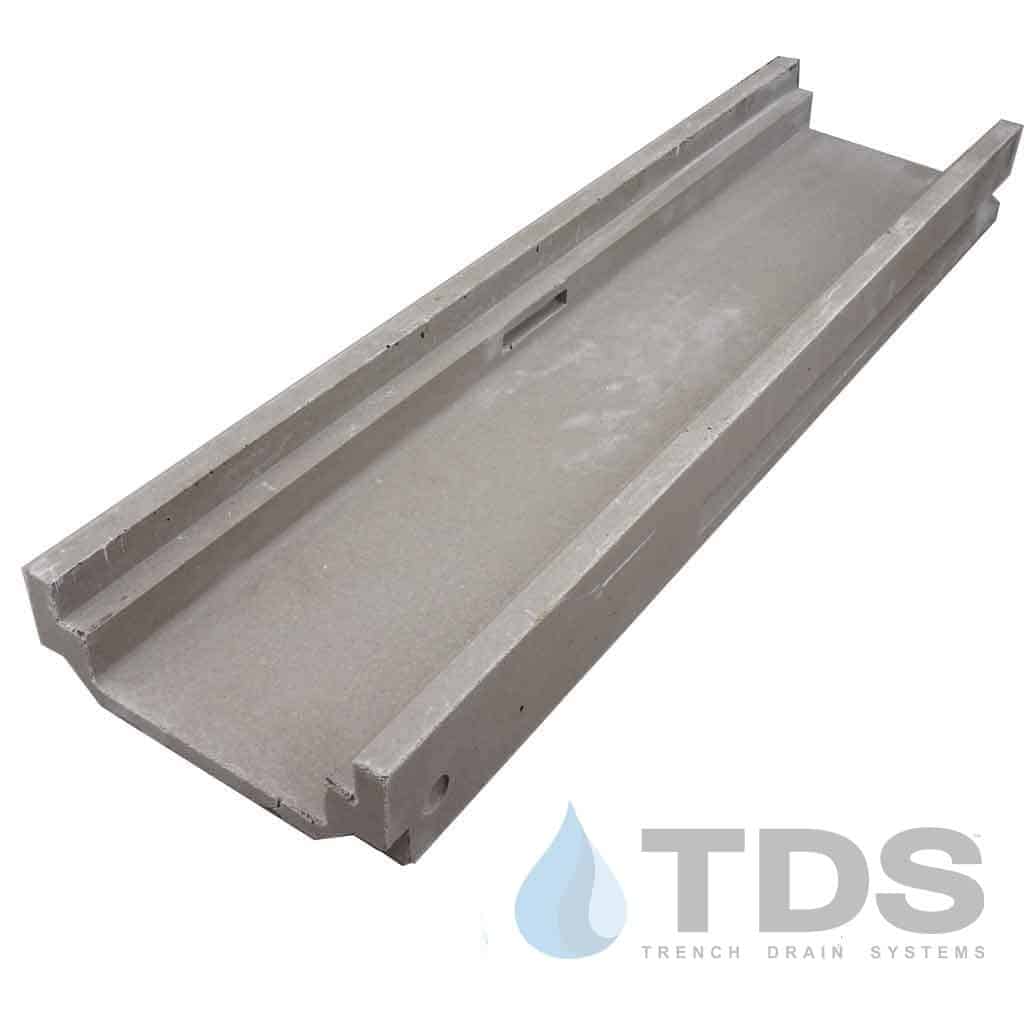

48″ POLYCAST channel(s)

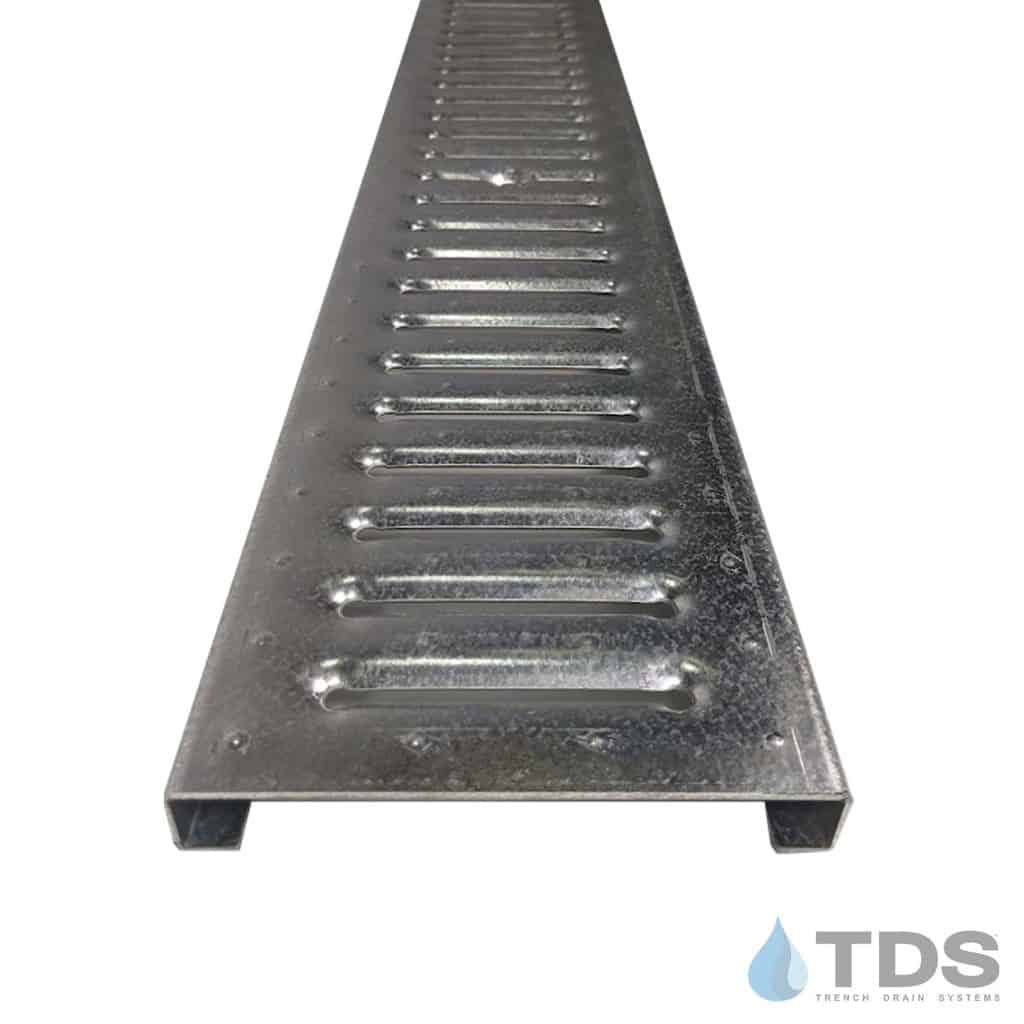

48″ Galvanized Steel Reinforced Slotted Grates
24″ HDPE Frame 2/channel
Grate Hold-down devices 2/grate
Installation Chairs
End Cap
End Outlet

POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25" wide and comes in 48” lengths . A bottom outlet will need to be core drilled for pipe connection.  Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.

Typical Applications

• Decks and Patios
• Grocery Stores
• Multi Level Garages
• Parking Lots
• Hotels
• Swimming Pools

Grating:

• Galvanized Grate - (Class A Load Rating)
• Pattern: Slotted
• Open Surface Area: 17%
• Heel Proof
• ADA Compliant

Each Kit Includes:

• 48" POLYCAST  500 channel (1 for each 4' of kit ordered)

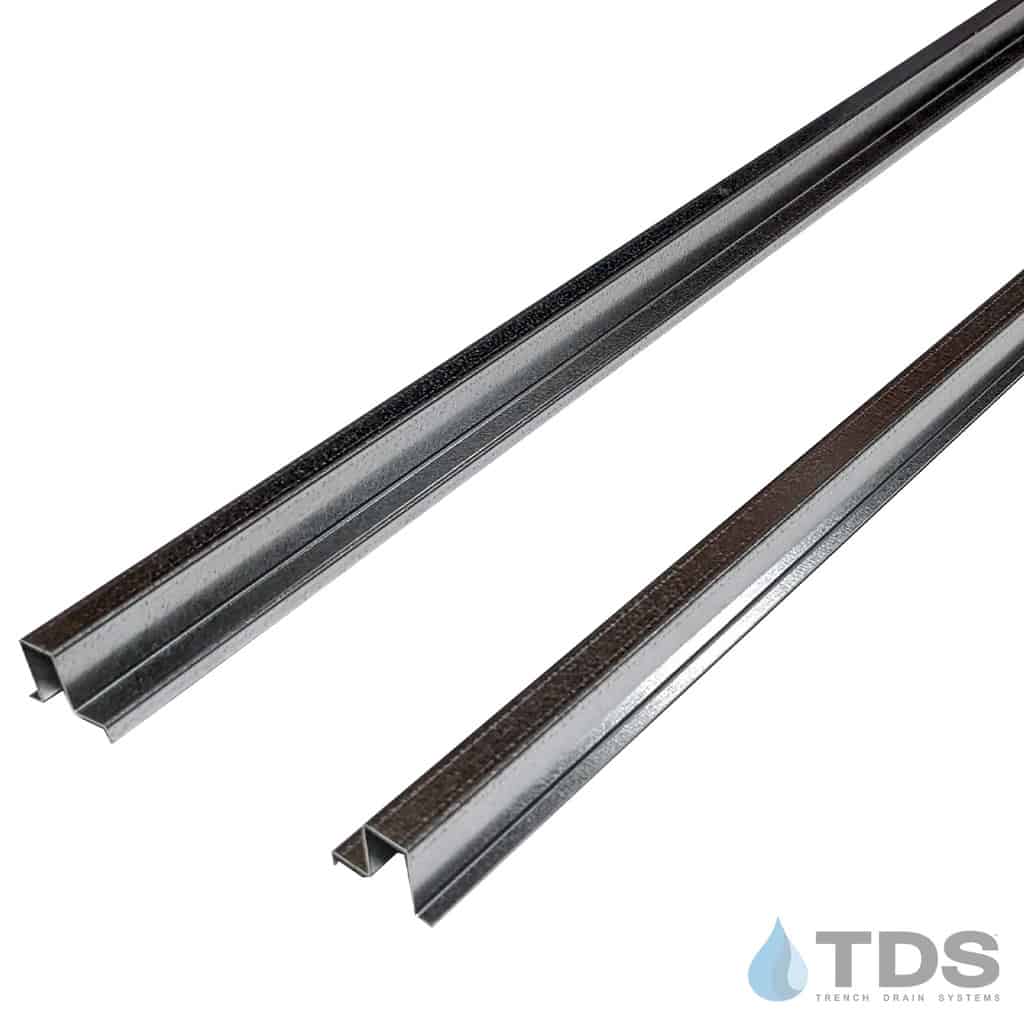

• 48" Galvanized Steel Edging (1pr per channel)
• 48" Galvanized Steel Grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (2 per system)
• Installation instructions
