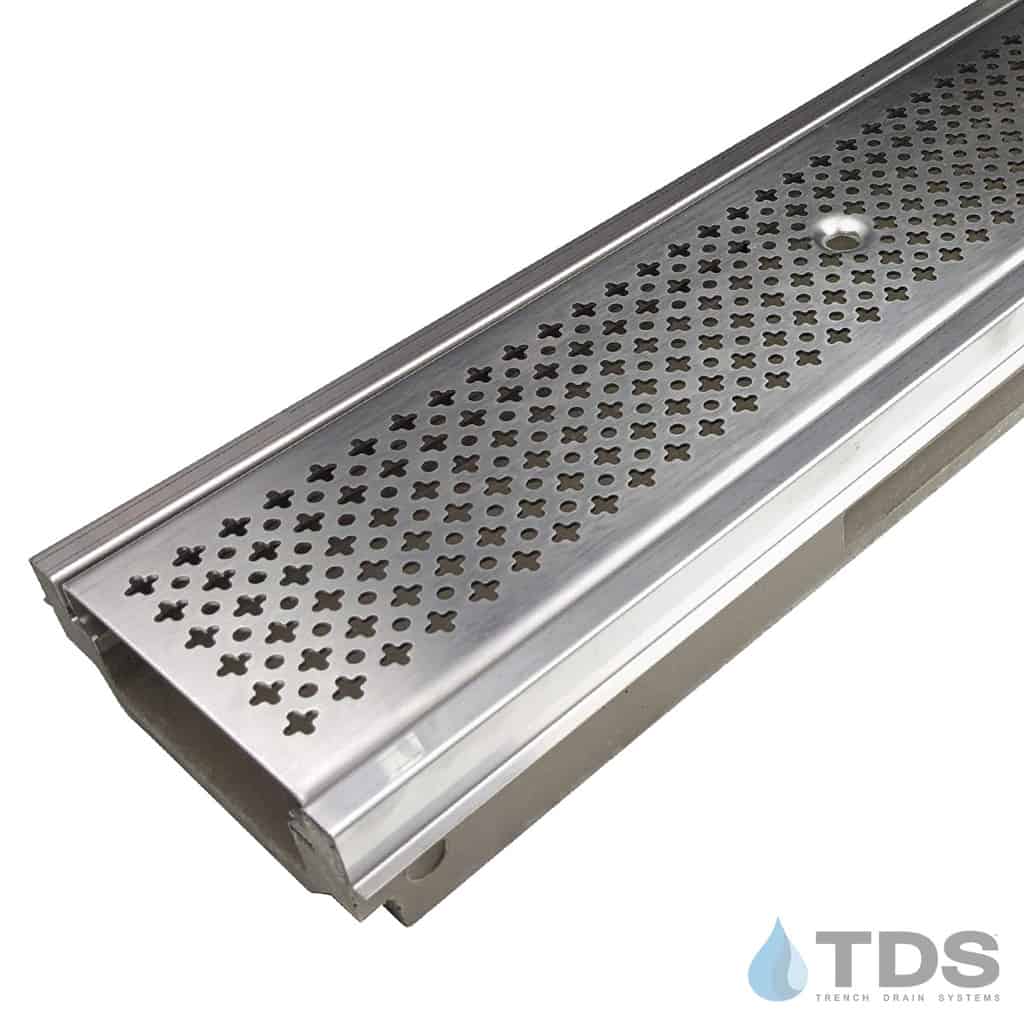

POLYCAST 500 Kit w/ Stainless Steel Edging and DG0630 Cathedral Grate | Class A

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500

Grate Load Class: Class A

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Each Kit Includes:

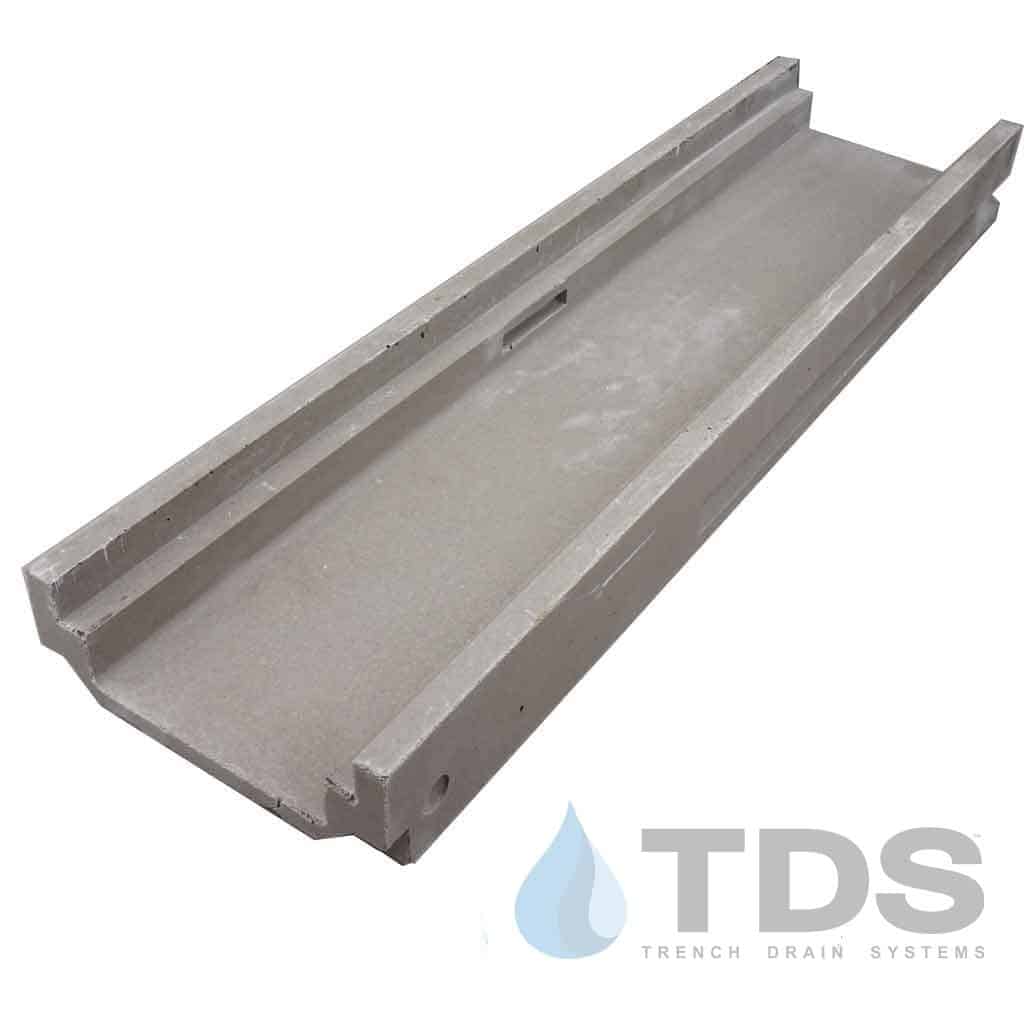

• 48″ POLYCAST 500 channel (1 for each 4′ of kit ordered)

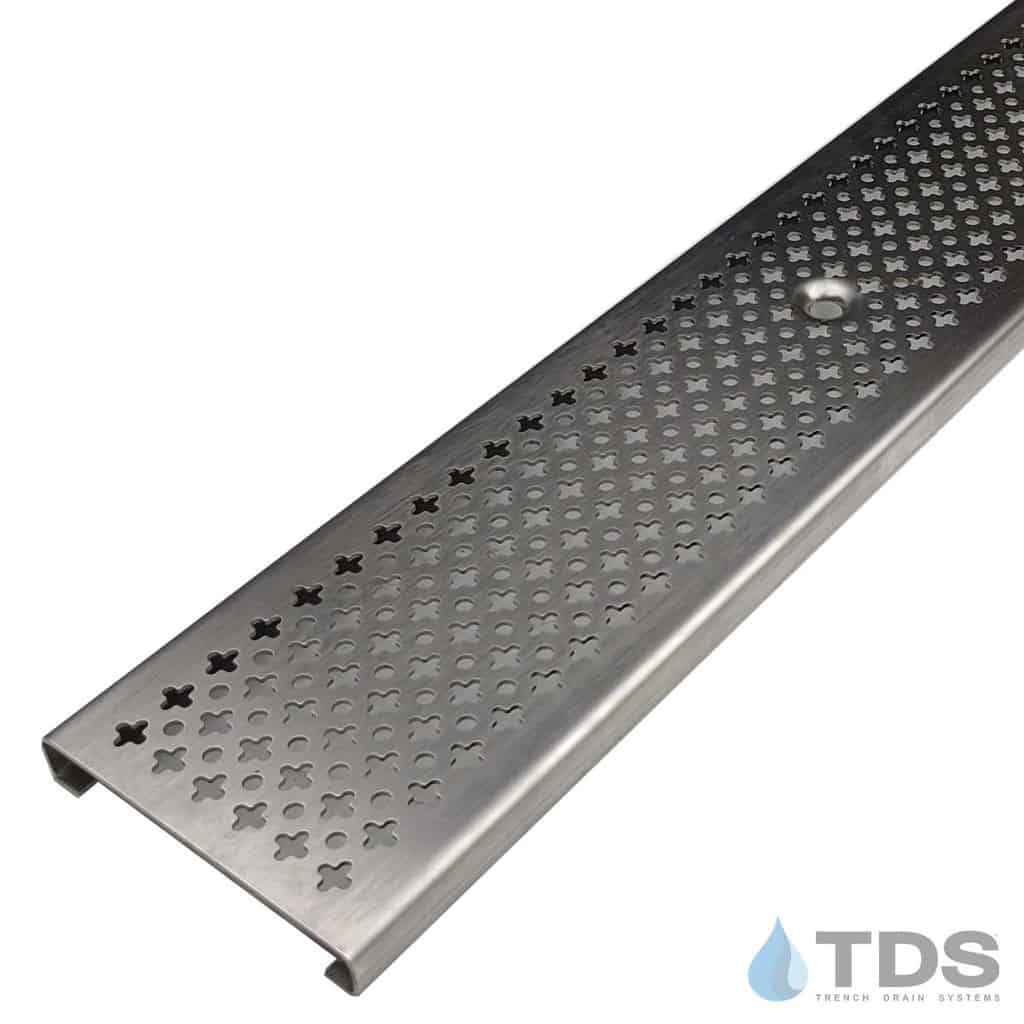

• 48″ Stainless Steel Grate (1 per channel)
• 48″ Stainless Steel Edging (2 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs

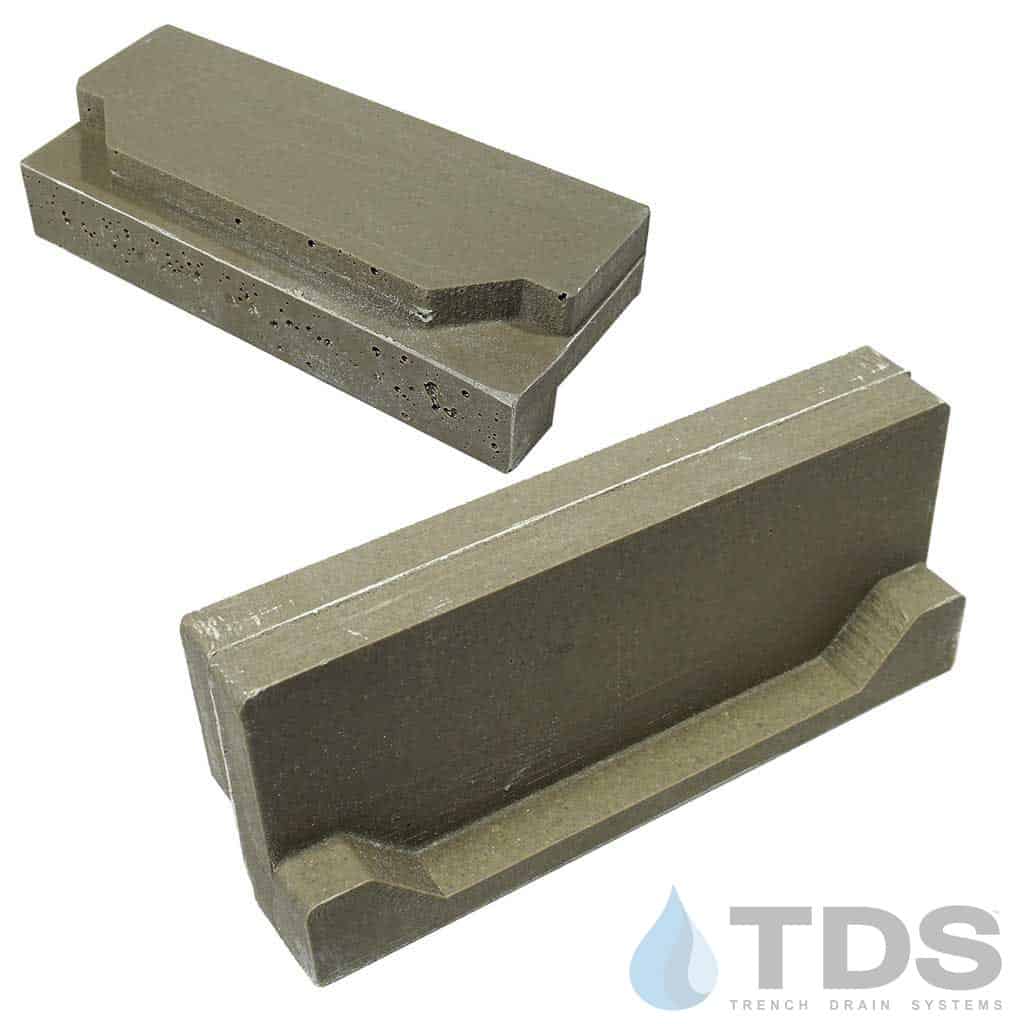

• End Caps (2 per system)
• Installation instructions

POLYCAST® 500 shallow trench drain is 1.75” in depth, 6.25" wide and comes in 48” lengths . A bottom outlet will need to be core drilled for pipe connection. Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.

Typical Applications

• Elevated Slabs
• Hotels
• Swimming Pools
• Decks and Patios
• Grocery Stores

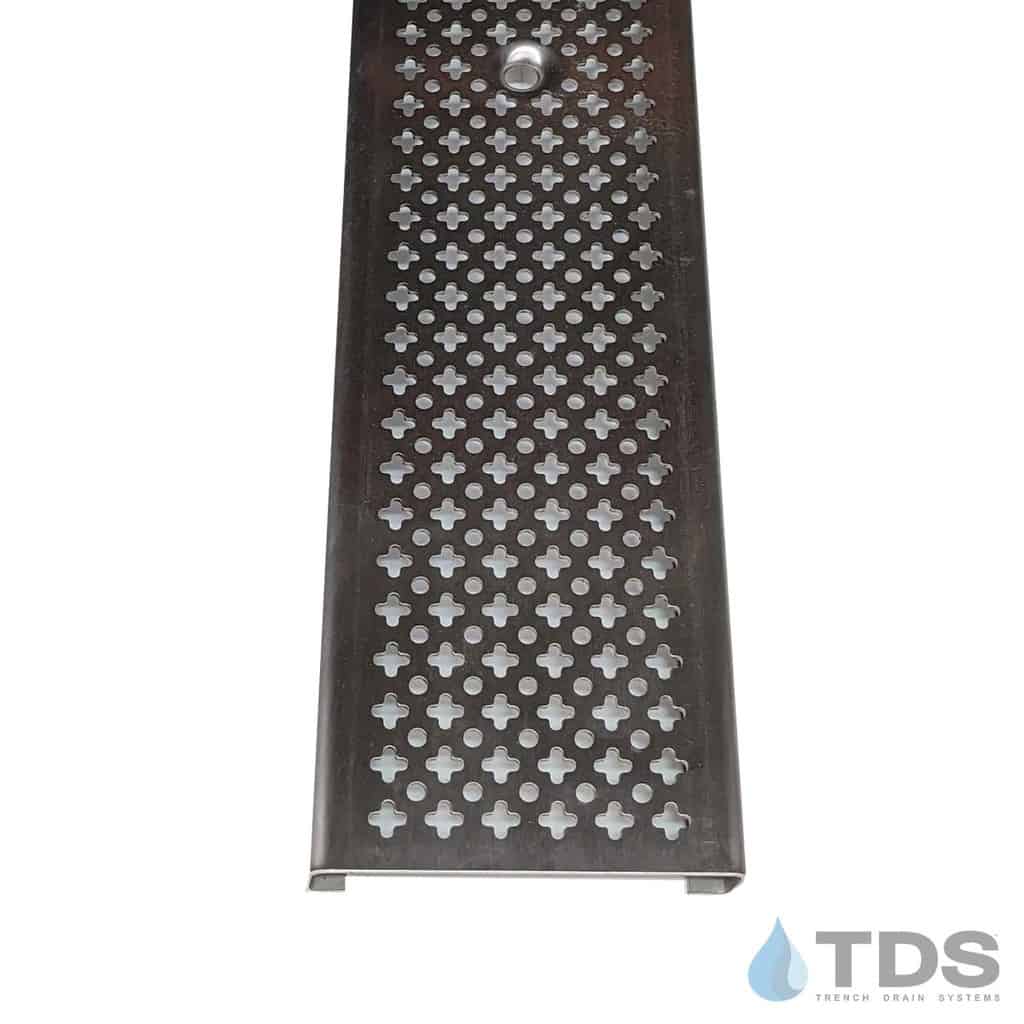

Grating:

• 304 Stainless Steel - (Class A Load Rating - Pedestrian Traffic)
• Pattern: Cathedral/Perforated
• Heel Proof
• ADA Compliant

Each Kit Includes:

• 48" POLYCAST 500 channel (1 for each 4' of kit ordered)
• 48" Stainless Steel Grate (1 per channel)
• 48" Stainless Steel Edging (2 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (2 per system)
• Installation instructions
