Each Kit Includes:
- 48″ POLYCAST 500 channel (1 for each 4′ of kit ordered)
- 48″ Stainless Steel Grate (1 per channel)
- Grate Hold-down devices (2 per grate)
- Installation Chairs

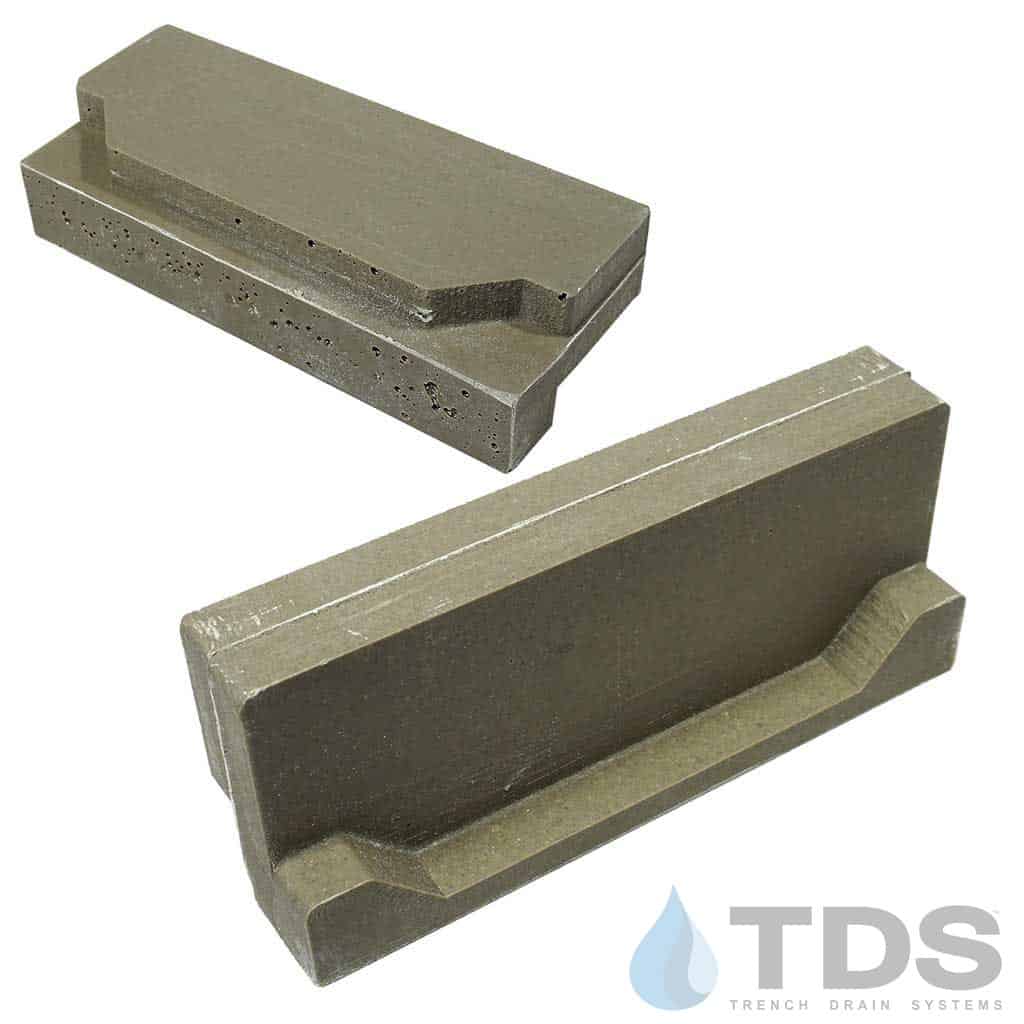

- End Caps (2 per system)
- Installation instructions

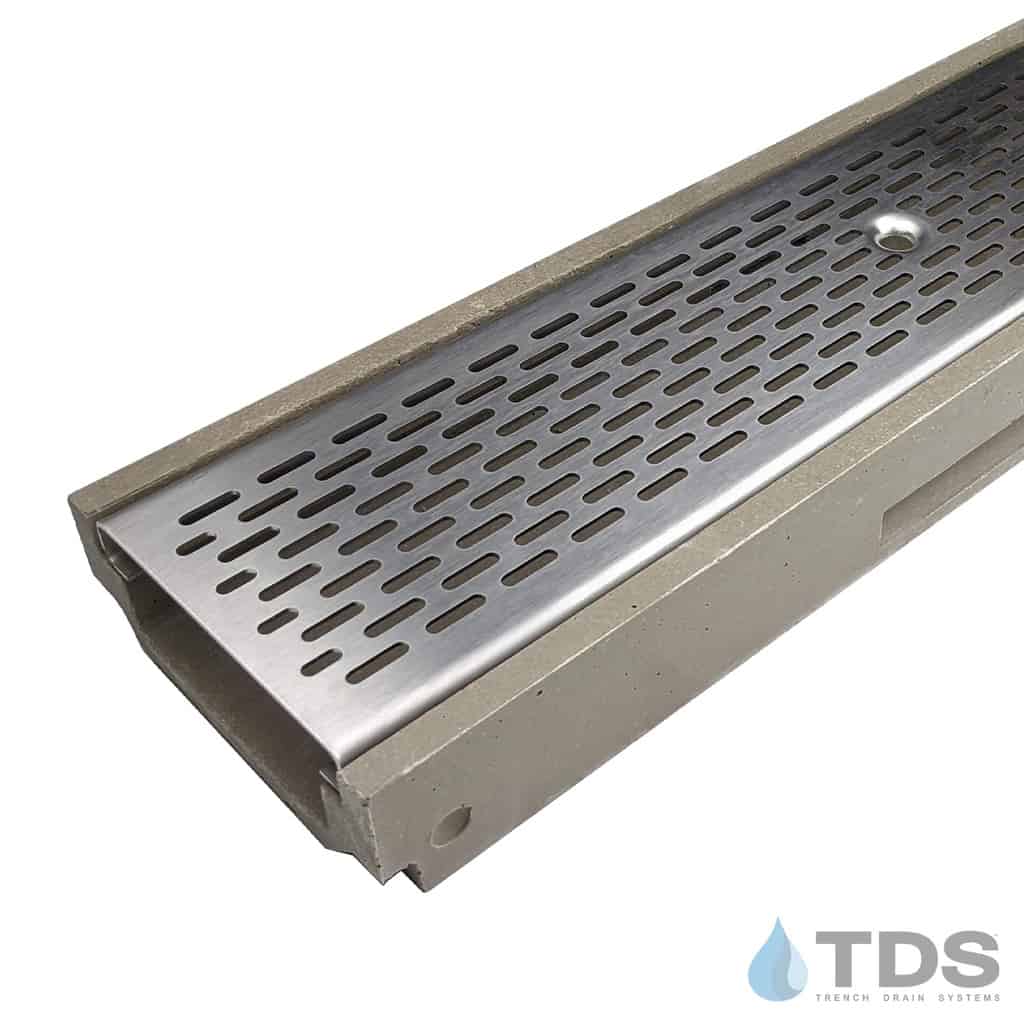

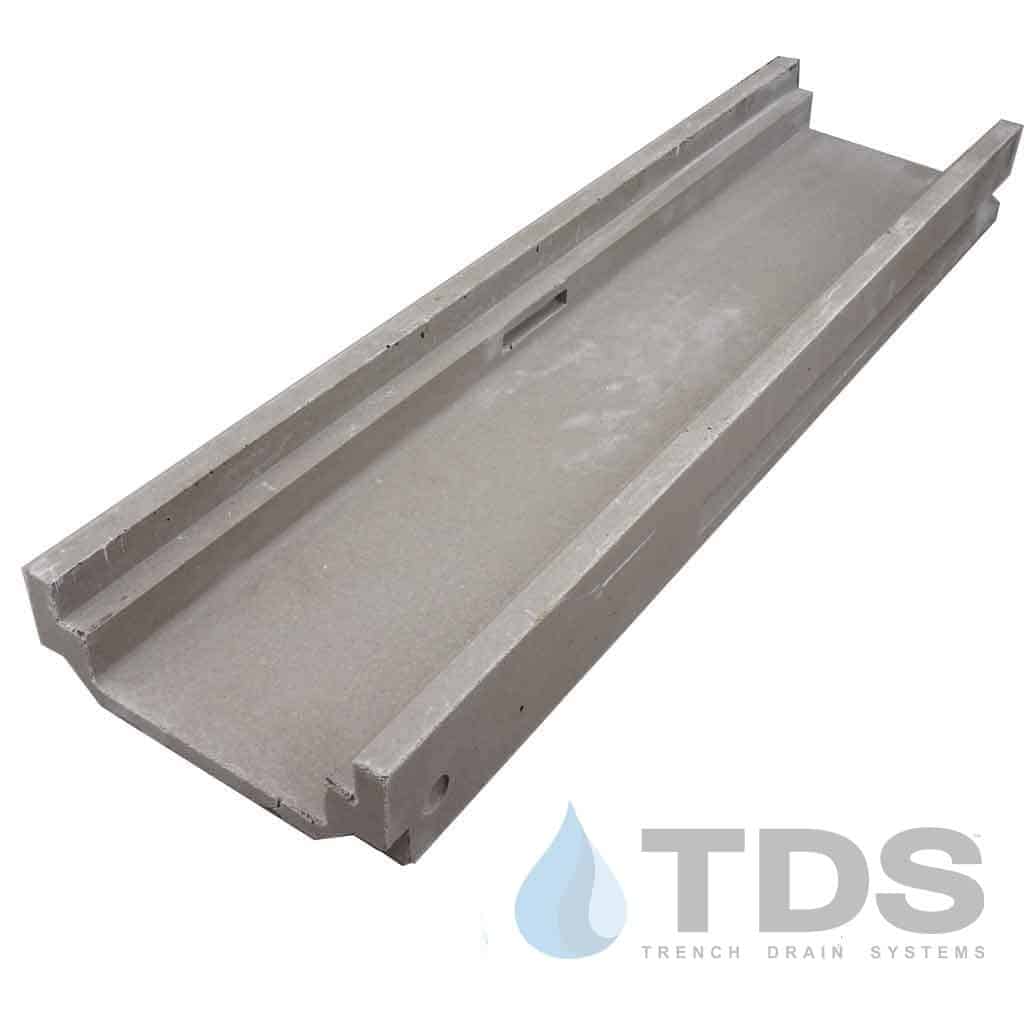

POLYCAST 500 shallow trench drain is 1.75" in depth, 6.25" wide and comes in 48" lengths. A bottom outlet will need to be core drilled for pipe connection. Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.
Typical Applications
- Elevated Slabs
- Hotels
- Swimming Pools
- Decks
- Patios
- Grocery Stores
Grating:
-

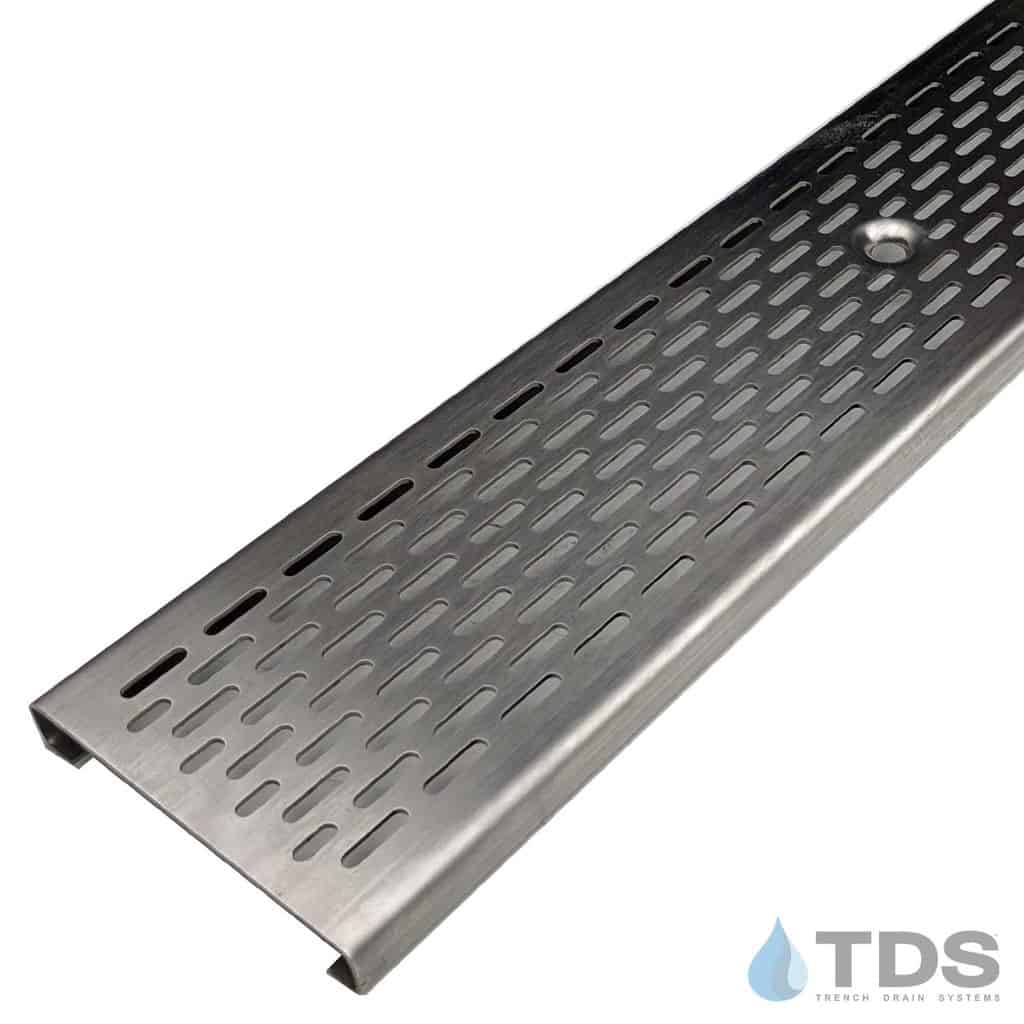

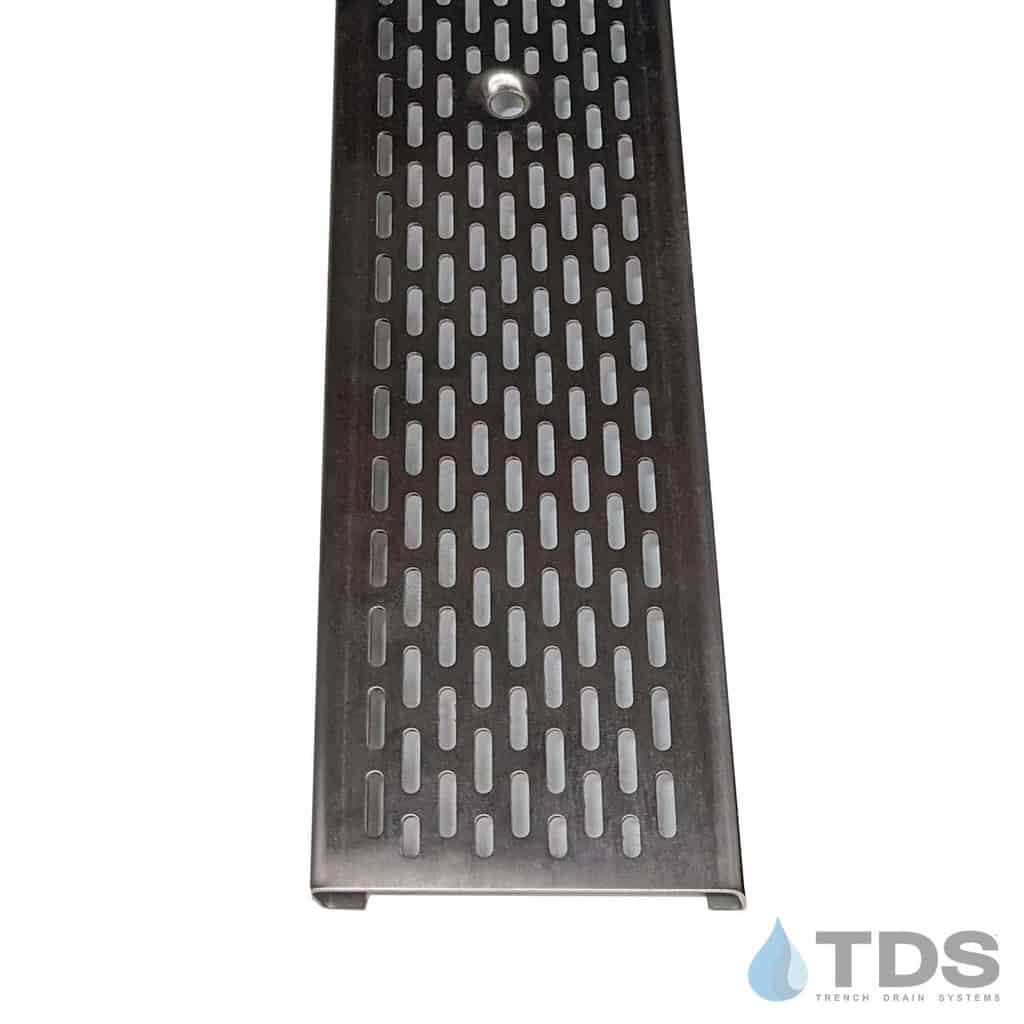

Stainless Steel - (Class A Load Rating - Pedestrian Traffic)
- Pattern: Transverse Slotted
- Heel Proof
- ADA Compliant
