POLYCAST DG0646 Class A ADA Compliant Perforated Galvanized Steel 6" x 48" Grate

Grate Width: 5.25" for Hubbell Polycast

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500 and POLYCAST 600

Grate Load Class: Class A

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

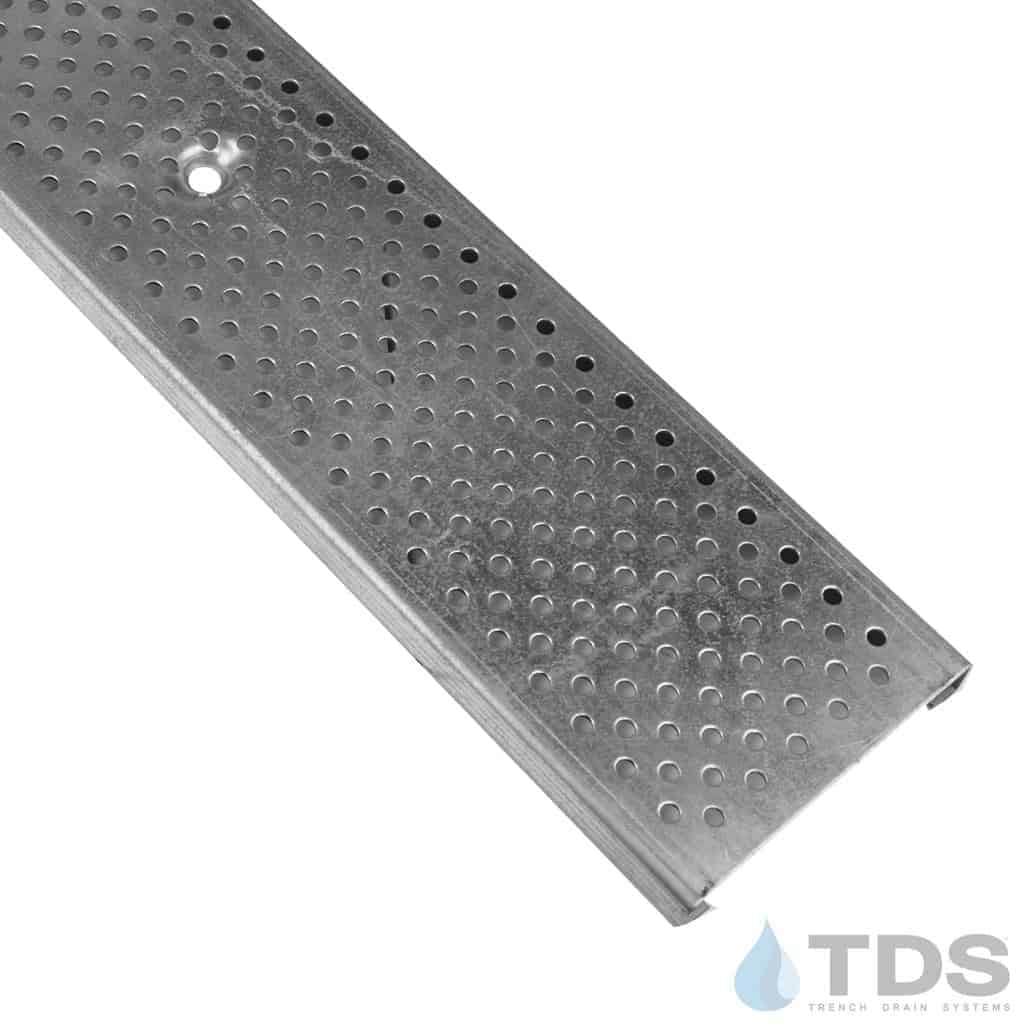

This light-duty DG0646 Perforated Galvanized Steel Grate is a great replacement for any 6" grate! This Perforated Grate measures 5.25" width and length options of 24" and 48" with a slot size of 0.25" dia. Class A Load Requirements for Light Loads and is ADA-compliant. These grates are perfect for any low-traffic applications such as pedestrians, bicycles, and golf carts.

Locking device not included. Click below for the related locking device:

POLYCAST® 600 locking devices for DG0646

Specification Sheet for DG0646 Galvanized Perforated Grate

Actual Dimensions: 5.12″ x 47.81″ x 0.75

Large project? Request a Quote
