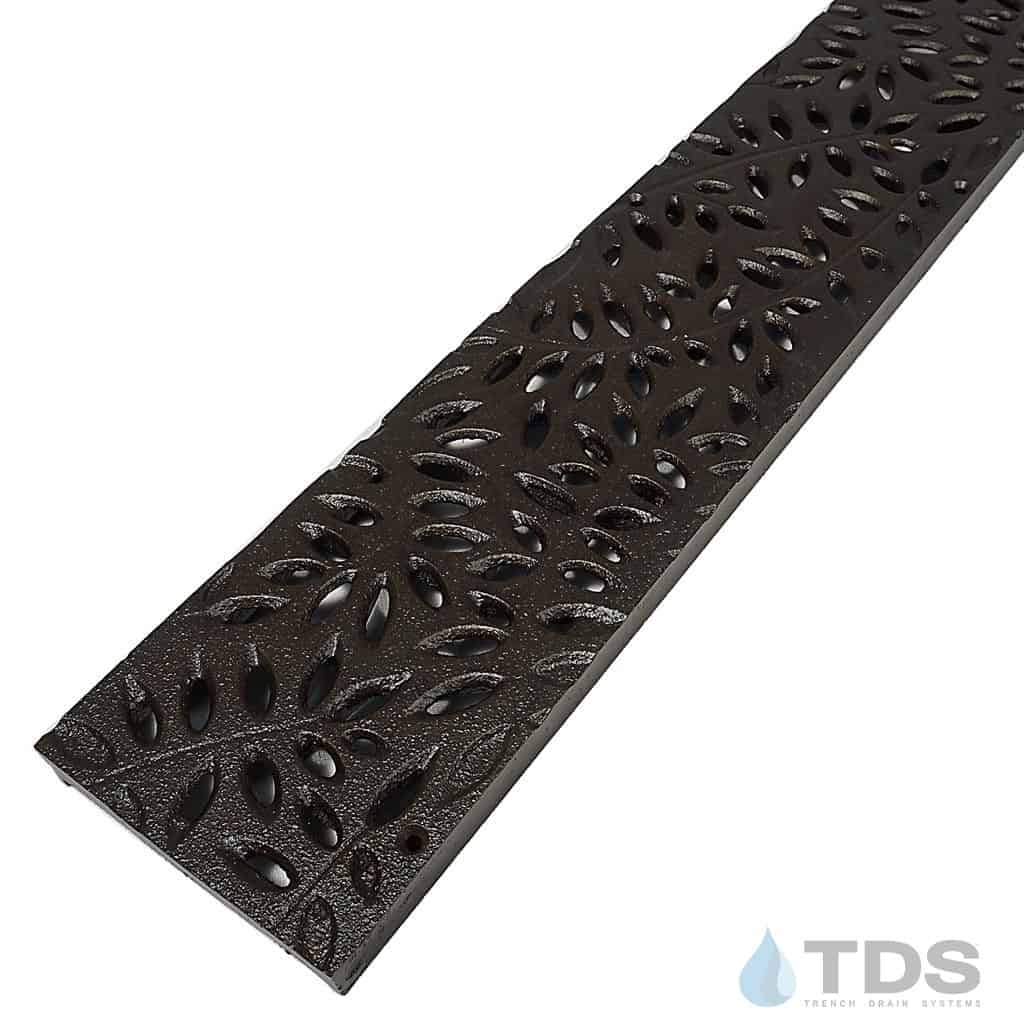

NDS Spee-D® Channel w/ 252CI-BF Botanical Cast Iron 4"x24" BoOF Grate

Grate Width: 4.13" for NDS Spee-D

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: NDS

System: Spee-D

Grate Load Class: Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Large project? Request a Quote

Each kit includes:

• Channels (in 4′ lengths)
• One End Cap
• One End Outlet (Fits 3″ S&D pipe or 4″ S&D fittings)
• Couplers (1 for each joint)
• Grates (BoOF)
• Hold-Down Screws (NDS829)

The NDS Spee-D® Channel trench drain system is a 4.75″ PVC channel drain designed for residential and light commercial applications. This drainage kit comes with a lightweight PVC neutral channel, end cap/outlet, couplers, hold-down screws, and Load Class B decorative BoOF(Baked-on Oil Finish) cast iron ADA-compliant grates in the "Botanical" pattern. The pattern is available in a Natural/RAW finish.

The Spee-D® drainage system also offers bottom and end outlets to fit 3″ or 4″ S&D piping. This versatile 4" wide trench drain offers 90° and 45° fabricated elbows, as well as cross and t-sections. (Sold Separately)

Actual Grate Dimensions: 4.12" W x 24" L

Specification Sheet for Spee-D® Channel

Each kit includes:

• Channels (in 4' lengths)
• One End Cap
• One End Outlet (Fits 3″ S&D pipe or 4″ S&D fittings)
• Couplers (1 for each joint)
• Grates (BoOF)
• Hold-Down Screws (NDS829)
