NDS® Sand Mini Channel Kit w/Foam 316 Stainless Steel HP Grates

NDS® Sand Mini Channel Kit w/Foam 316 Stainless Steel HP Grates

  • MCKs-BA-FOAM-0336 Sand Mini Channel with Perforated Foam Stainless Steel Grates
  • Perforated Stainless Steel Grates
  • TDS500S-TDSdrains
  • mini-channel-side-spec-profile
  • 3" NDS Sand Mini Channel Coupler MCKS-548-TDSdrains
  • 3" NDS Sand Mini Channel End Outlet MCKS-546-TDSdrains

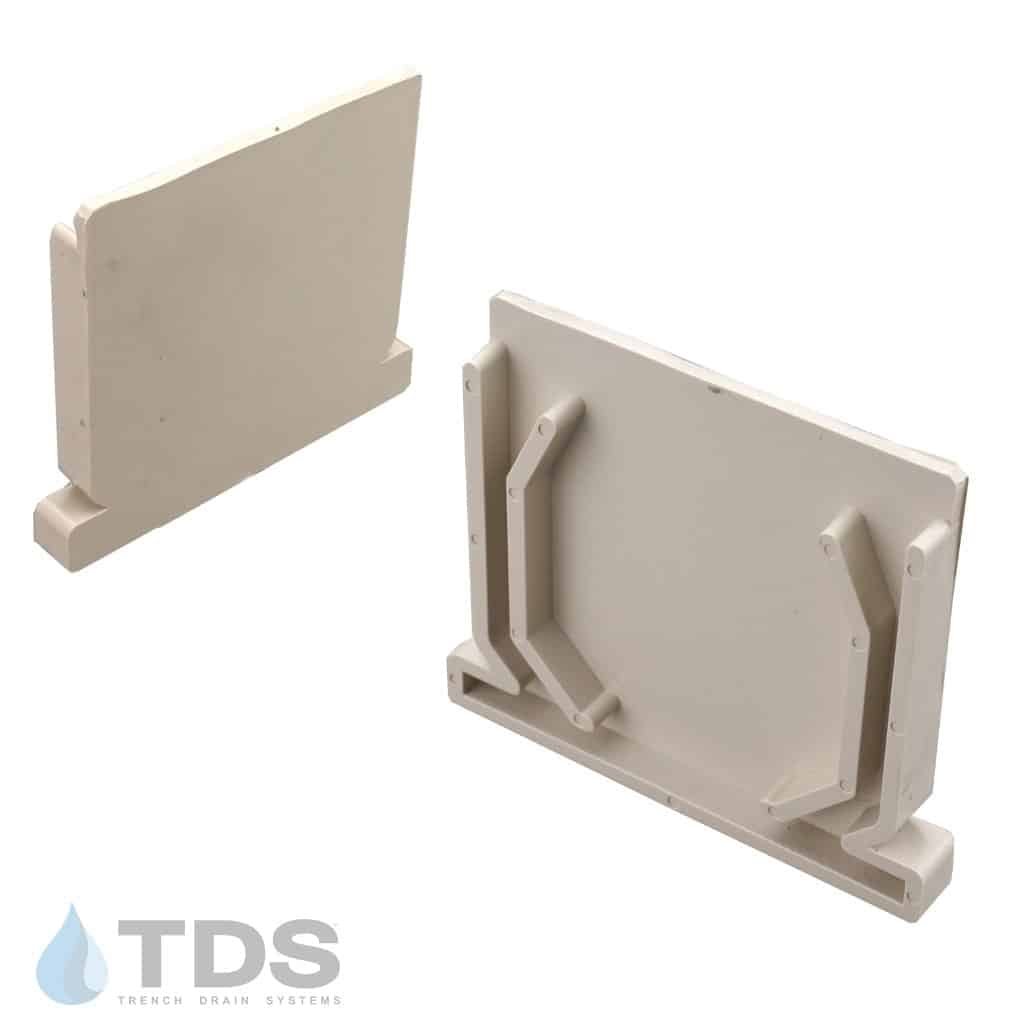

  • NDS 3" Sand Mini Channel End Caps MCKS-547-TDSdrains
1 7

Drainage Kits

MCKS-TDS-FOAM-EXT3

  • Kit includes:
  • NDS 500S Channel (1) for every 6ft ordered
  • NDS 547S End cap (1)
  • NDS 546S End outlet (1)
  • NDS 548S Coupler (1) for each channel over 6ft
  • TDS Foam Stainless Steel TDS-FOAM-0336
  • NDS 529 Grate hold-down (1pkg per kit – 64 pcs)

    • $313.10 USD
    $0.00 USD $313.10 USD
    Sale Sold out
    Kit Length
    View full details

    Additional Information

    • Grate Width: 2.75"
    • Grate Thickness: 0.38"
    • Product Type: Channel Kit, Kit
    • Grate Material / Color / Finish: Stainless Steel 316L
    • Manufacturer: NDS, TDS
    • System: Mini Channel, Bronze Age
    • Grate Load Class: A, B
    • Grate Pattern: Foam
    • Grate Pattern Style: Perforated
    • Channel Material: Plastic (PP, HDPE, PE) - Sand, Plastic (PP, HDPE, PE) - Gray
    • Frame/Edging: No Frame, No Edging
    • Application: Decorative, Residential, Sport Complex - Recreational

    Description

    Mini Channel plastic drain is a non-sloped 3" wide system built for light traffic applications such as pools, patios, and walkways. The channel is UV-protected and manufactured from durable lightweight polyolefin. This kit has 304 stainless steel grates in the heelproof perforated Foam,

    An exclusive product from our Bronze Age decorative grate selection.

    mini-channel-side-spec-profile

    Each kit includes:

    • Channels
    • One End Cap
    • One Outlet (compatible with SCH 40 pipe)
    • Couplers (1 for each joint)
    • 316 Stainless Grates (1 for every 3′ channel)
    • Hold Down Screws  (1pkg per kit – 64 pcs)

    Extension kits do not include end caps or outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

    Available online in 6, 12, 18 and 24-foot kits. Custom system lengths and 316L Marine-grade stainless steel grates are available: Request Quote

    Mini Channel Installation Guide
