NDS® Dura Slope Kit with DS-661 HDPE Slotted Grate | Dark Gray

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Gray

Manufacturer: NDS

System: Dura Slope

Grate Load Class: Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

The 6" Dura Slope by NDS® is a lightweight HDPE drainage system. NDS® Dura Slope sets high standards for chemical and load resistance. Its four-foot modular channel sections offer neutral and 0.7% slopes with rounded bottoms, creating an efficient water evacuation route for any application. Each channel has a 4" bottom outlet knockout that provides a greater degree of design variability for the drainage system.

Grating:

• DS-661 Dark Gray Slotted Plastic Grate
• 2 fastening holes per grate
• Free Drain Area: 16.5%
• No openings greater than 1/2″

Each Dura Slope Kit Includes:

• Channel
• Grates

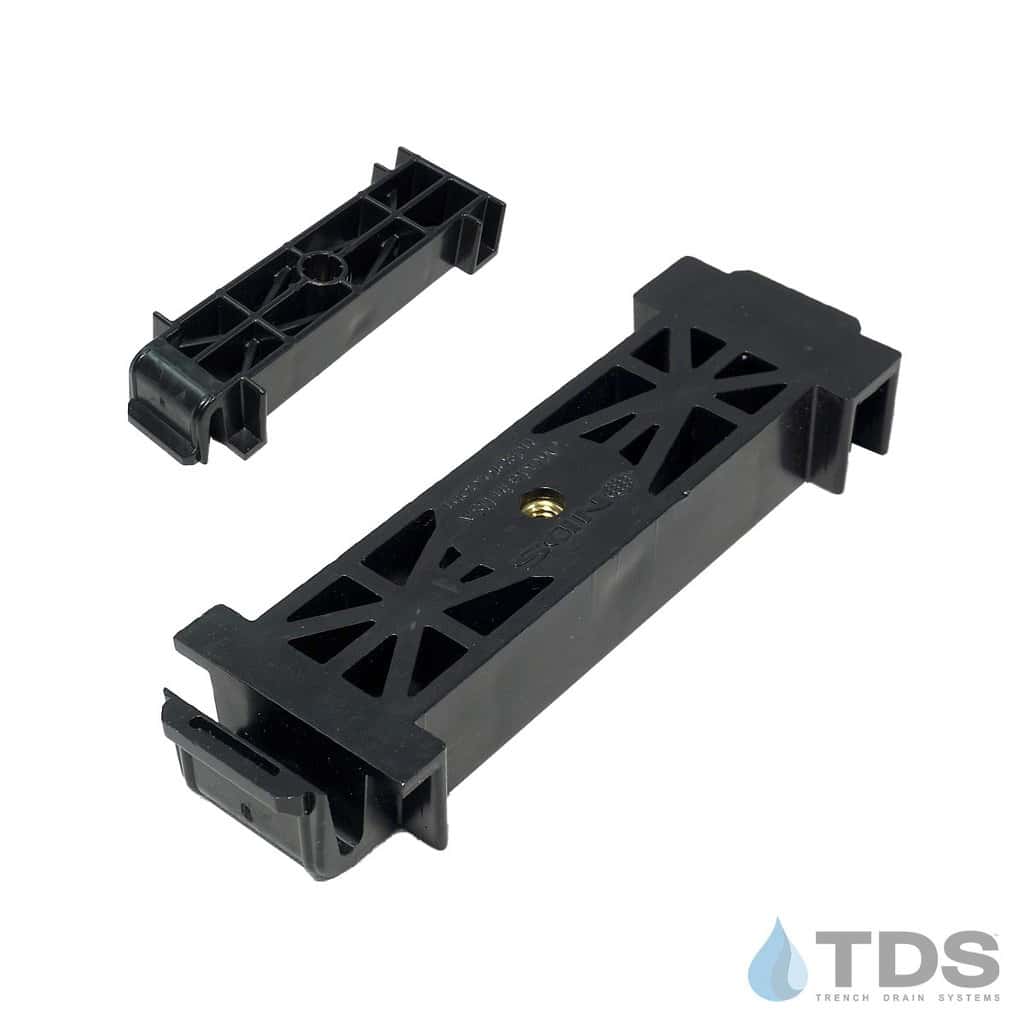

• Grate Locking Devices
• End Outlet (fits 4" S&D, PVC, SCH40 and 80 pipe)
• End Cap
• Screws for mounting end cap and end outlet
• Installation instructions

Want to know more about this system? Click Here for more information.

Layout Info:
Before we can ship your pre-sloped drain order, a layout will need to be approved by you. Once we receive your order, we will contact you via email with a layout drawing showing what channels you will receive and the order they need to be installed. We will need a confirmation email from you that you accept the layout.

DrainageKits.com reserves the right to choose the channel depth of the channels you receive. If you have certain channels or a channel depth in mind, please note this in Order Notes at checkout. We will do our best to accommodate you if the channels are in stock. Channels are shipped with installation covers that should be in place during the concrete pour.
