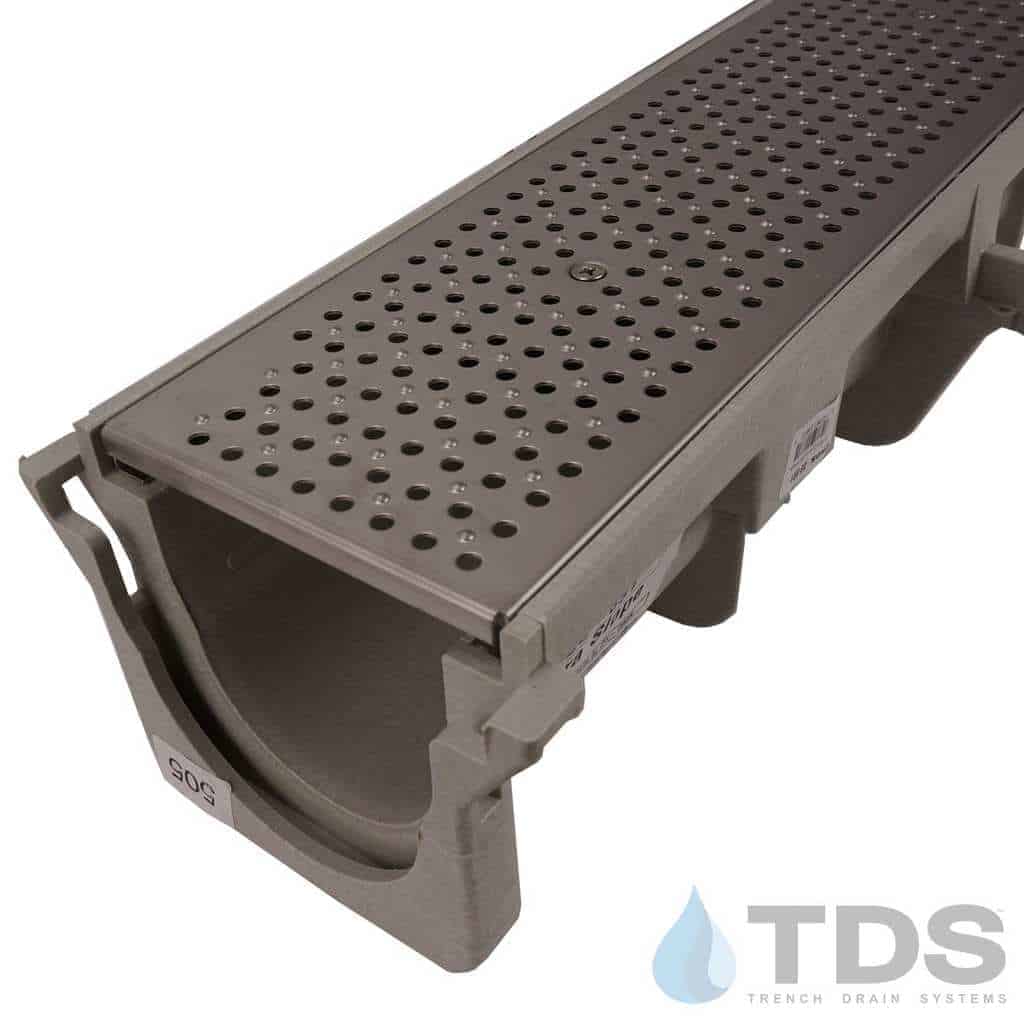

NDS Dura Slope Kit with DS-226 Stainless Steel Perforated Grate

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: NDS

System: Dura Slope

Grate Load Class: Class A

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

The 6″ Dura Slope by NDS® is one of the most customizable plastic trench drains available for commercial projects. A lightweight HDPE drainage system, NDS® Dura Slope sets high standards for chemical and load resistance. Its four-foot modular channel sections offer 0.7% slope with rounded bottom, creating an efficient water evacuation route for any application. Each channel has a 4″ bottom outlet knockout that provides a greater degree of design variability for the drainage system.

Dura Slope™ channels are designed with the Pre-installed ProFit™ locking system, which maintains structural integrity during installation and locking devices for the grating. LeveLoc™ integral re-bar supports are located at 24” intervals along each side of the channel and contain an internal protruding knob designed to grip #3 or #4 re-bar (3/8” - 1/2”) for easier channel height adjustment during installation. DuraLoc™ tongue and groove ends connect allowing for a precise fit and ensuring straight channel runs, incorporating an integral snap-lock feature that prevents joint movement during channel installation.

Each Dura Slope Kit Includes:

• 1 - 48″ Dura Slope channel for each 4ft. of kit length ordered
• 2 - 2ft. Interlaken deco cast iron grates for each 4ft. of length ordered (Raw or BooF finish)
• 4 - Grate Locking Devices for each 4ft. of length ordered
• 1 - End Outlet (fits 4" S&D, PVC, SCH40 and 80 pipe)
• 1 - End Cap
• Screws for mounting end cap and end outlet
• Installation instructions

Grating:

• Stainless Steel Perforated Grate Class A

• ADA Compliant
• Heelproof

Want to know more about this drainage system? Click Here for more information.

Layout Info:
Before we can ship your pre-sloped drain order, a layout will need to be approved by you. Once we receive your order, we will contact you via email with a layout drawing showing what channels you will receive and the order they need to be installed. We will need a confirmation email from you that you accept the layout.

DrainageKits.com reserves the right to choose the channel depth of the channels you receive. If you have certain channels or a channel depth in mind, please note this in Order Notes at checkout. We will do our best to accommodate you if the channels are in stock. Channels are shipped with installation covers that are to be in place during the concrete pour.
