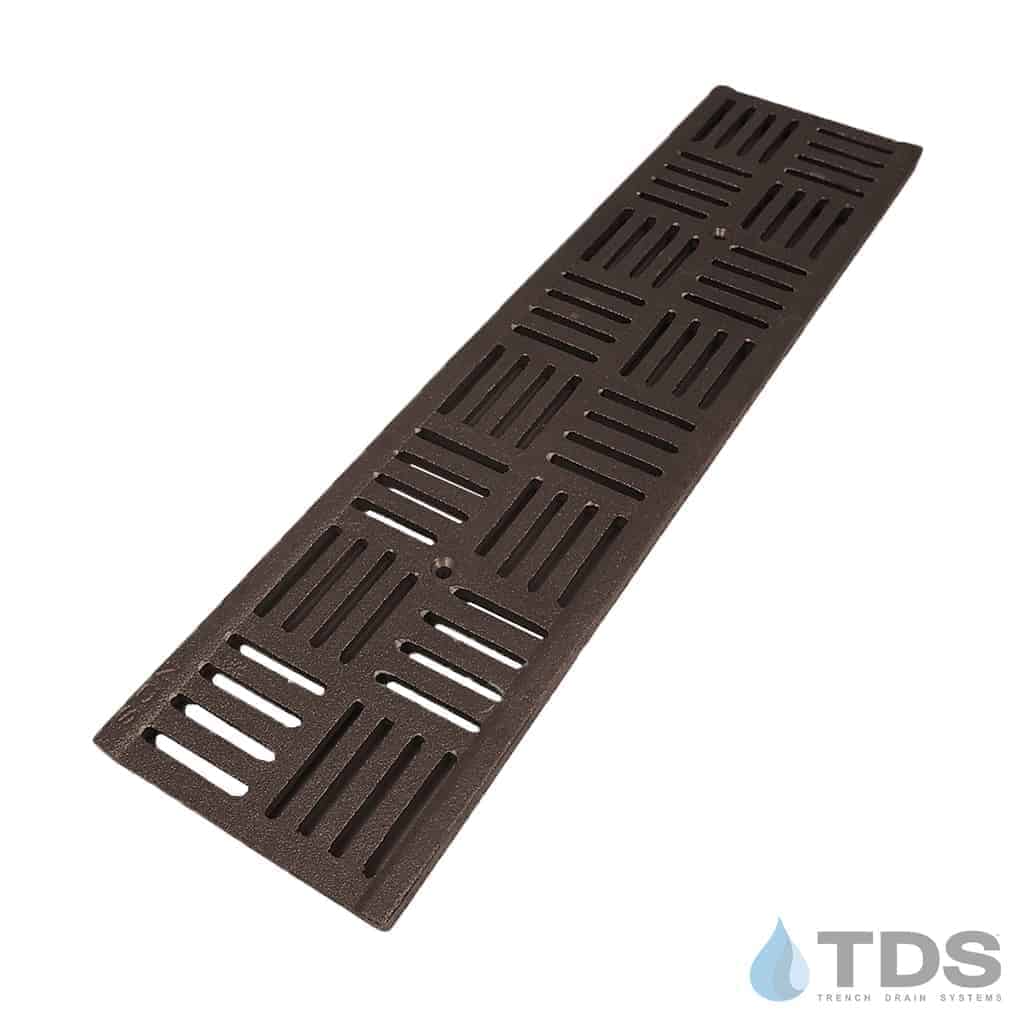

NDS DS-609-BF Class D Deco Slot Cast Iron 6" x 24" Grate - BoOF

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: NDS

System: Dura Slope

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Ductile Iron decorative grate in a Slot pattern for the NDS® Dura Slope trench drain system.  Open surface area 16.75 square inches per foot. Class D. Recommended for heavy-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph. H-20 rated.

Locking Devices (2 per grate) sold separately: NDS-629 & DS-122

• Width 6"
• Length 24"
• Height 3/4"

Not a regularly stocked item.  Please allow for extra days for delivery.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown. The Baked-on oil finish will still rust, but not to the same extreme.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
