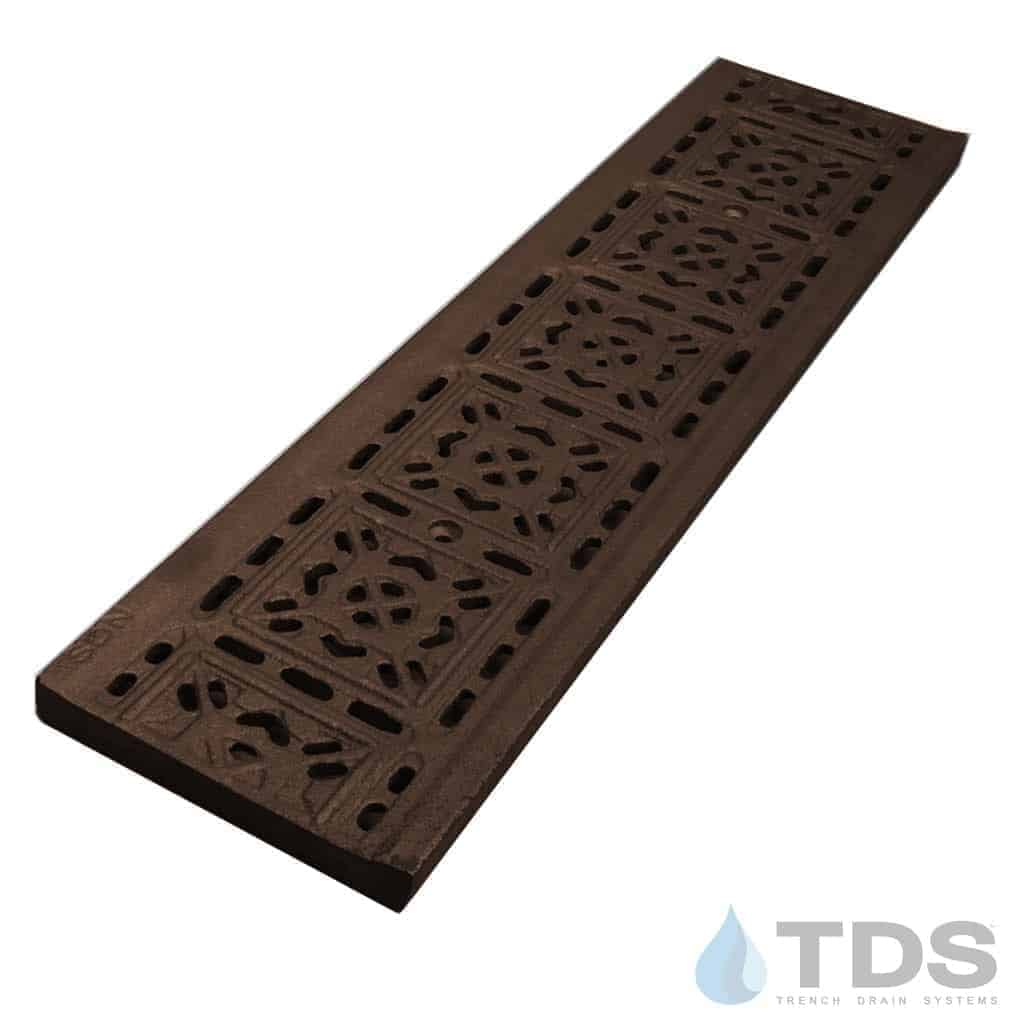

NDS DS-603-BF Class C Tile Ductile Iron 6" x 24" Grate - BoOF

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: NDS

System: Dura Slope

Grate Load Class: Class D

Grate Pattern: TILE

Grate Pattern Style: ABSTRACT

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Not a regularly stocked item. Please allow extra time for delivery.

Large project? Request a Quote

Ductile Iron decorative grate in a Tile pattern for the NDS® Dura Slope trench drain system. Open surface area 7.95 square inches per foot. Class C: Loads 176-325 psi. Recommended for heavy-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph. H-20 rated.

• Width 6"
• Length 24"
• Height 3/4"

Not a regularly stocked item. Please allow extra time for delivery.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
