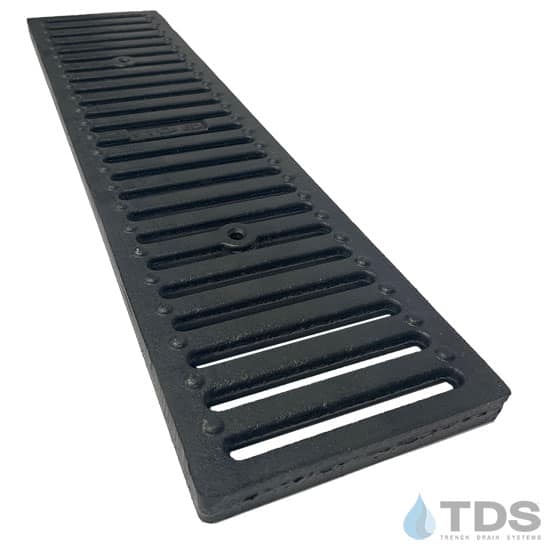

NDS® DS-232 Class D ADA-Compliant Slotted Ductile Iron 6" x 24" Grate

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS

System: Dura Slope

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Ductile iron slotted grate suitable for the NDS® Dura Slope trench drain system. This metal grate weighs approximately 15 lbs and is ADA-compliant. It is rated at a Load Class D but must be used in tandem with the DS-200H (ductile iron frame) to achieve this Load Rating. It is rated for H-20 loading and can handle up to 64 gallons per minute (GPM).

Actual Dimensions : 6" wide x 24" long x 3/4" deep

Specification Sheet for DS-232

Designed to fit: NDS Dura Slope

Locking Devices (2 per grate) sold separately: NDS-629 (pkg 40) & DS-122
