NDS® 919PB Round 6" Grate with Styrene Collar - Polished Brass

Grate Width: 6.00" Dia

Grate Thickness:

Grate Material / Color / Finish: Bronze - Polished

Manufacturer: NDS

System: Point Drain

Grate Load Class: Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material:

Channel Frame / Edging:

Application: Decorative and Residential

Large project? Request a Quote

NDS® 919PB is a 6" round polished brass grate with brass colored styrene low-profile adapter. This versatile grate pipe adapter has an open surface area of 13.10 square inches and can handle water drainage flow up to 40.07 GPM (Gallons Per Minute). It is ADA-compliant and is rated for pedestrian or light-weight traffic. The system is made in the USA and is designed to fit the Spee-D® Basin as well as, 6" sewer and drain pipe fittings.

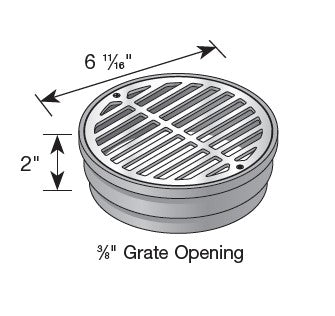

Actual Dimensions: 6.68" Wide x 2" High (Includes Styrene Collar)

•  Open surface area 13.10 sq in
• Grate openings at .37"
•  40.07 Gallons per minute (GPM) flow rate
•  ADA-Compliant
•  Fits Spee-D® Basin and 6" sewer & drain pipe fittings
•  Load Class A
