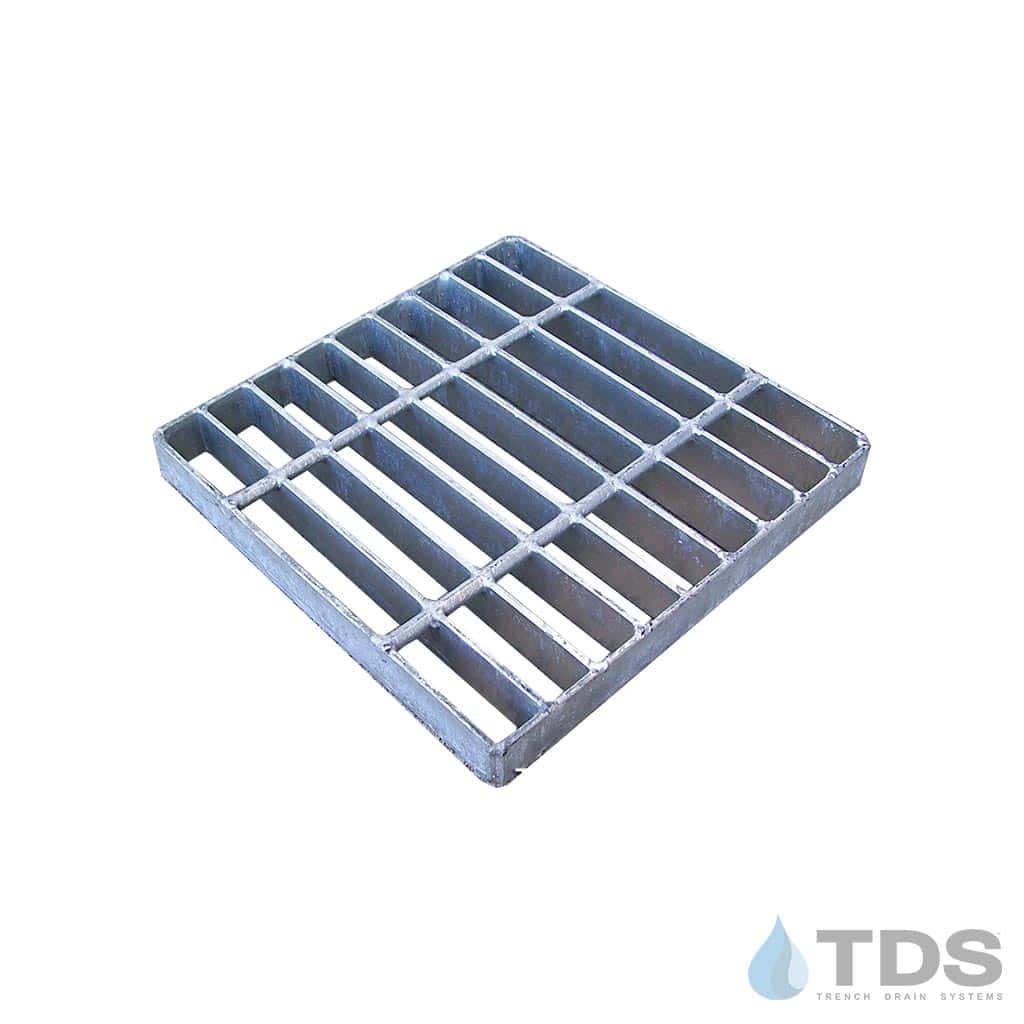

NDS 915 Class C HD Bar Galvanized 9" x 9" Grate

Grate Width: 9.0" x 9.0" for NDS 900 Series

Grate Thickness: 1.125"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: NDS

System: 900 Series

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Galvanized steel bar catch basin grates from NDS®. Class C load rated.
Large project? Request a Quote

The square galvanized steel grate from NDS® is ideal for yard drains to collect surface water and minimizing the amount of debris that enters the system. This rust- and corrosion-resistant galvanized steel grate can be used with the 9 inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess stormwater from driveways, parking lots, and landscaped areas.

Actual Dimensions: 8-3/4" x 8-3/4" x 1-1/8"

Load Class C (when properly installed)

Capacity: 189.48 GPM (Gallons per Minute)

Open Surface Area: 61.94 square inches

Grate Openings: 3/4″
