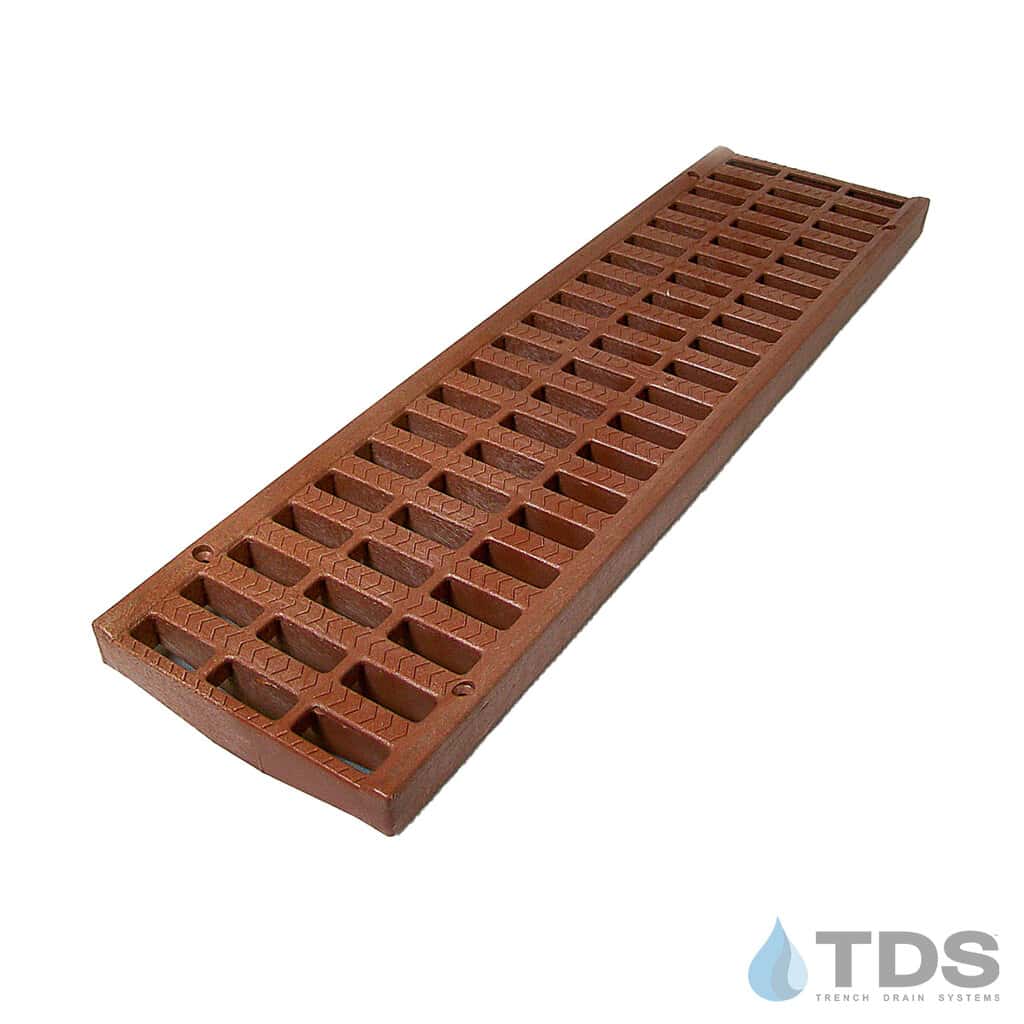

NDS 818 Class B ADA Compliant Light Traffic HDPE 5" x 20" Grate - BRICK RED

Grate Width: 5.18" for Pro Series 5

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Brick Red

Manufacturer: NDS

System: Pro Series 5

Grate Load Class: Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

NDS® Pro 5 Series direct replacement plastic slotted grates.
Large project? Request a Quote

NDS®  5" Pro Series 5 plastic channel grates have UV inhibitors in the grates to prevent fading and cracking from the sun.  Available in six colors: white, light gray, green, black, sand and brick red. All NDS® structural Polyolefin grates are chemically resistant, rustproof, and maintenance-free.

• Structural foam Polyolefin light traffic channel grate
• Open surface area 25.12 square inch/foot
• 32.91 GPM per foot
• Requires 4 #829 Screws (not included)
• ADA Compliant
• Recommended for medium-duty pneumatic tire traffic.
• Autos and light trucks less than 20 mph
• Class B Load Rating: 61-175 psi
