NDS 816 Class B ADA Compliant Light Traffic HDPE 5" x 20" Grate - BLACK

NDS 816 Class B ADA Compliant Light Traffic HDPE 5" x 20" Grate - BLACK

  • nds816-black-grate Pro Series 5
1 1

Drainage Kits

NDS816

NDS® Pro 5 Series direct replacement plastic slotted grates.
Large project? Request a Quote
$38.23 USD
$0.00 USD $38.23 USD
Sale Sold out
Option 1
View full details

Additional Information

  • Grate Width: 5.18"
  • Grate Thickness: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Plastic/HDPE - Black
  • Manufacturer: NDS
  • System: Pro Series 5
  • Grate Load Class: B
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Plastic (PP, HDPE, PE)
  • Frame/Edging: No Frame, No Edging
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Sport Complex - Recreational

Description

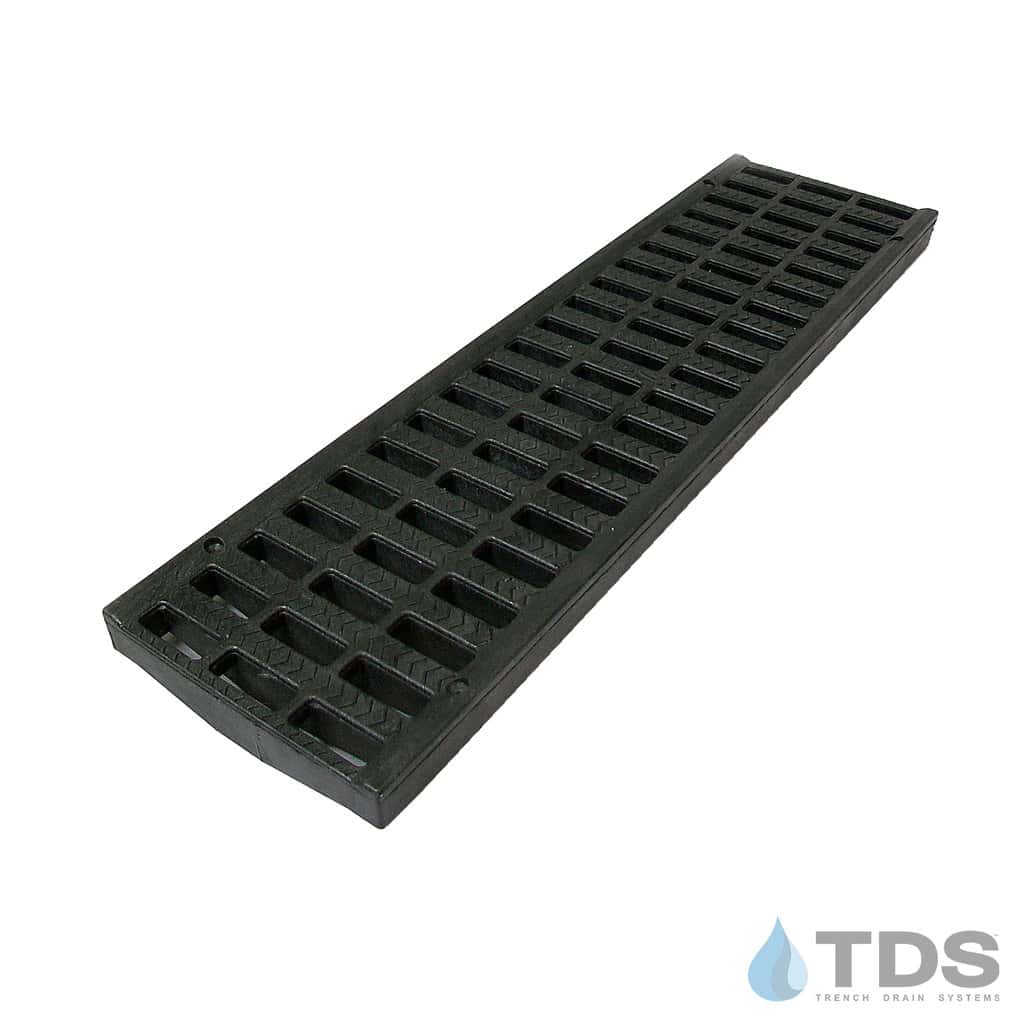

NDS® Pro 5 Series direct replacement plastic slotted grates.
Large project? Request a Quote

NDS®  5" Pro Series 5 plastic channel grates have UV inhibitors in the grates to prevent fading and cracking from the sun.  Available in six colors: white, light gray, green, black, sand and brick red. All NDS® structural Polyolefin grates are chemically resistant, rustproof, and maintenance-free.

  • Structural foam Polyolefin light traffic channel grate
  • Open surface area 25.12 square inch/foot
  • 32.91 GPM per foot
  • Requires 4 #829 Screws (not included)
  • ADA Compliant
  • Medium-duty pneumatic tire traffic.
  • Autos and light trucks less than 20 mph
  • Class B Load Rating: 61-175 psi
