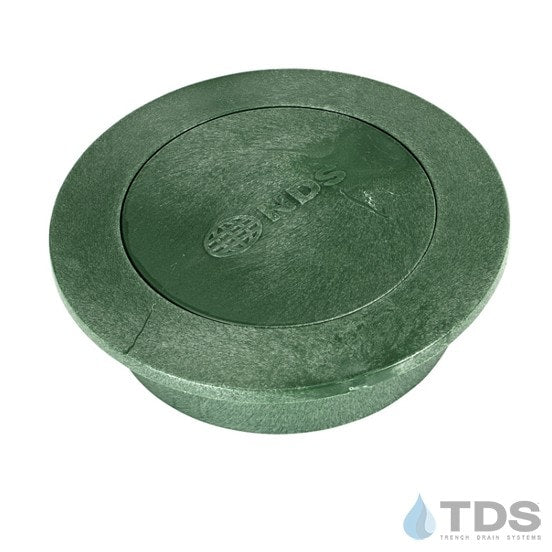

NDS 620 Pop-Up Emitter for 6" SDR pipe

Grate Width: 6.00" Dia

Grate Thickness:

Grate Material / Color / Finish: Plastic/HDPE - Green

Manufacturer: NDS

System: Point Drain

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material:

Channel Frame / Edging:

Application: Decorative and Residential

The 6" NDS 620 pop-up emitter helps to divert and release runoff to water-safe areas away from structures, easily eroded landscapes, and poor drainage areas. This product is wholesale grade and spring-loaded, ensuring closure after rainfall. Retail-grade versions of this product do not include this feature.

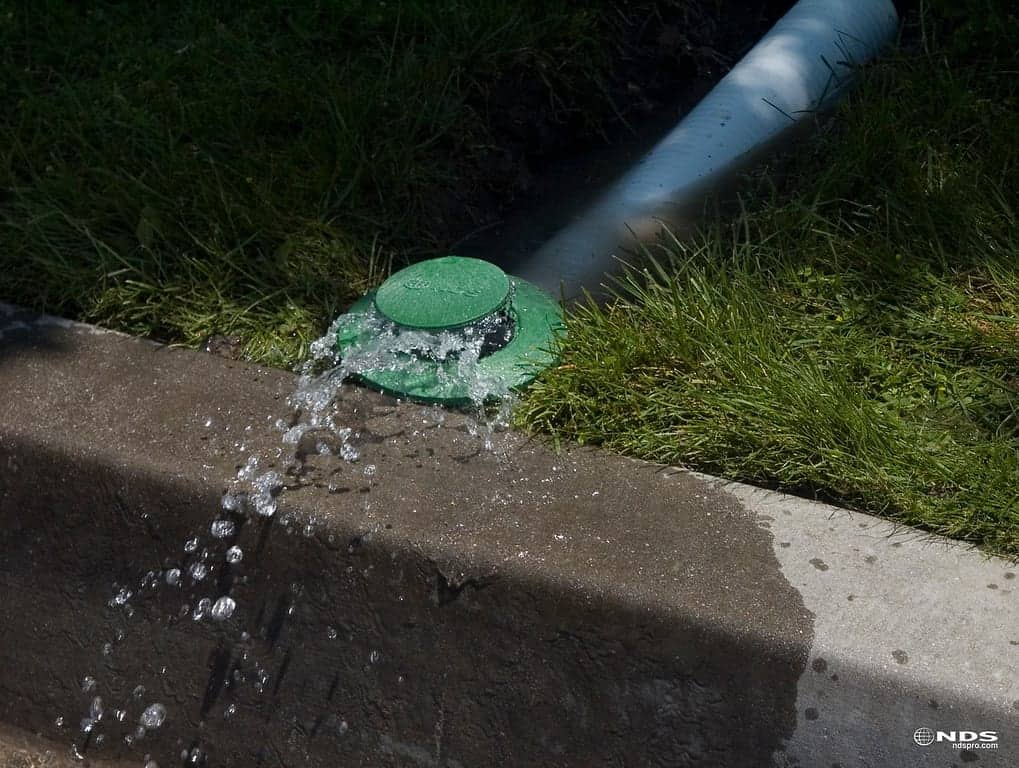

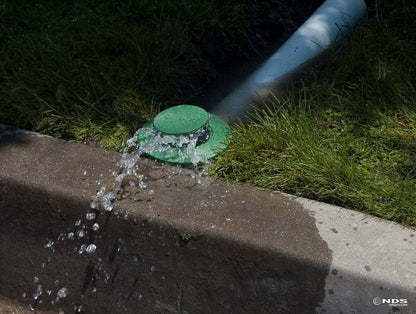

This special design permits captured water by catch basins, channel drains, Flo-Well, downspouts, or roof gutter systems to flow through a drainage pipe away from structural foundations. For example, water can be routed from a low area to a water-safe area such as a curbside drainage system.

The emitter opens with a negligible amount of hydrostatic pressure and then closes again once the pressure eases. Since the Emitter is closed during dry weather, debris and/or rodents cannot enter the drain pipes.

• Features
• Overall TOP width 7-15/16"
• Polyolefin material
• UV inhibitor
• Spring automatically retracts
• 88 G.P.M.
• Fits 6" Sewer and Drain Fittings
• Can be installed in vertical applications

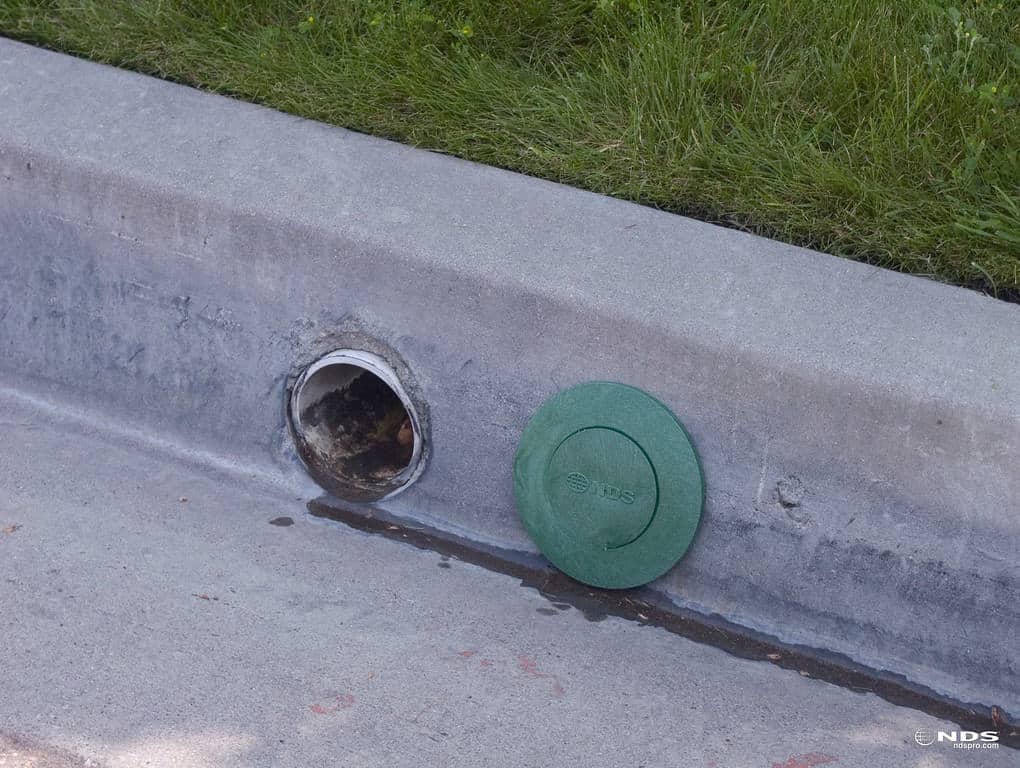

• Ideal for discharging water from retaining walls and street curbs
