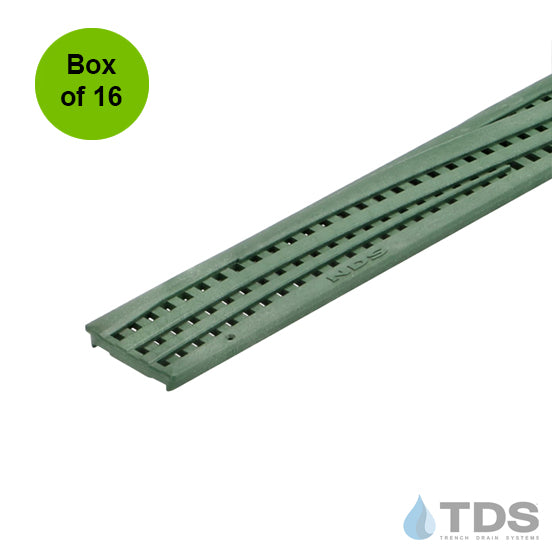

NDS 555GR - Box of 16 - Class B ADA Compliant Wave Polyolefin 3" x 36" Grate - GREEN

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38" with T-Top

Grate Material / Color / Finish: Plastic/HDPE - Green

Manufacturer: NDS

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: ACANTHUS

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

NDS® Wave decorative Mini Channel grate

Large project? Request a Quote

The green Wave pattern is a decorative Polyolefin grate that fits the NDS® Mini Channel drainage system. The NDS® Wave pattern is ADA compliant and heel proof, making it an excellent option for pedestrian locations. Designed for maximum durability and drainage, this grate has a Load Class B rating and UV inhibitors to prevent fading and cracking from the sun. All NDS® Polyolefin grates are chemically resistant, rustproof, and maintenance-free. Note: The Wave grate overlaps and covers the channel's top edge.

Actual Dimensions: 36"L x 3.08" W

Box of 16 grates

NDS-846 screws (sold separately) are required for fastening down to Mini Channel.

NOTE: These NDS® grates are designed for the Mini Channel trench drain system. If you are replacing slotted grates, be aware the decorative grates are a full 3 inches wide and extend over the top of the channel edge.
