NDS 555CI Class B ADA Compliant Wave Cast Iron 3" x 12" Grate - RAW

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: WAVE

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

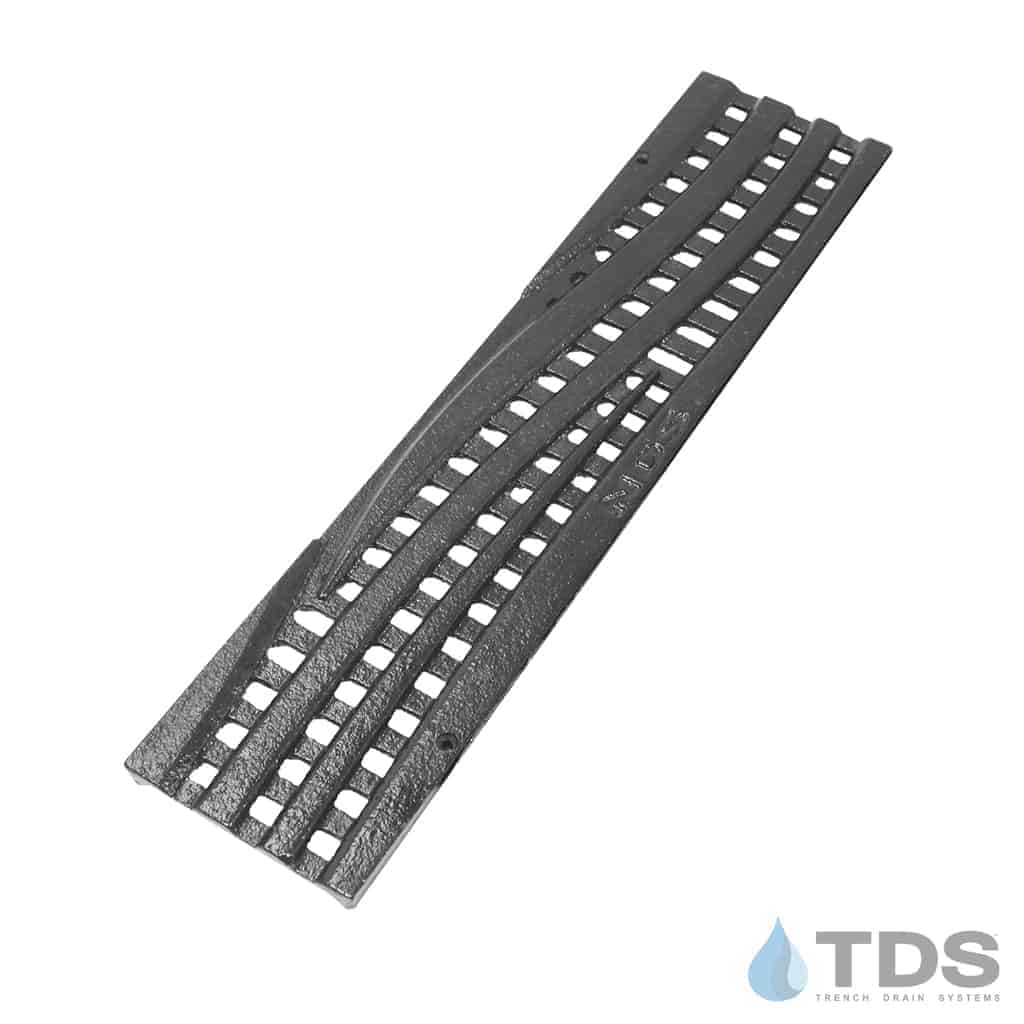

NDS® Mini Channel decorative cast iron grate with the Wave pattern. This grating comes in a natural raw finish, is heelproof, ADA-compliant, and made to fit the 3" Mini Channel linear trench drain systems. Grates are shipped with a temporary black coating that will slowly transition into a brown shade over time.

Actual Dimensions: 2-3/4" Wide x 12" Long

Specification Sheet for NDS 554CI Wave

Designed to fit: NDS Mini Channel

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.
