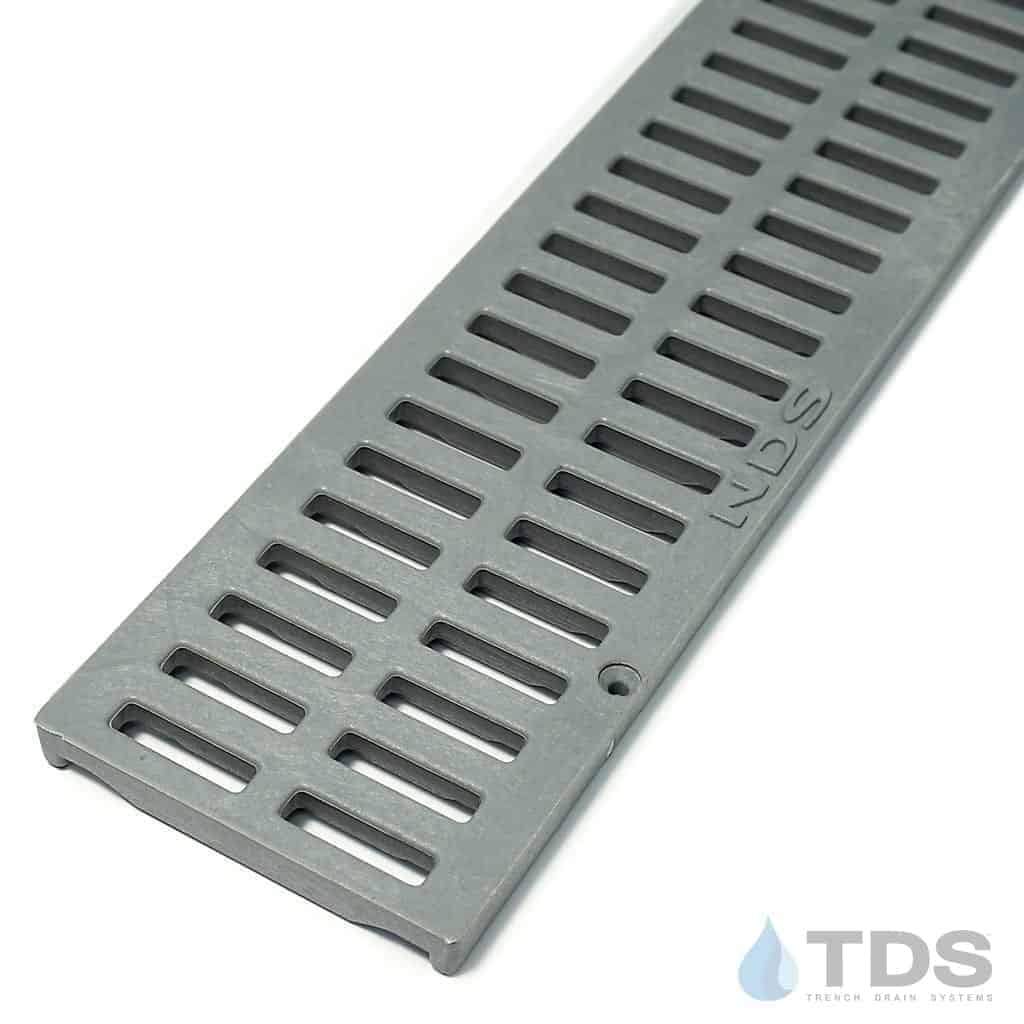

NDS 541 Class B ADA Compliant Heel-Proof HDPE 3" x 36" Grate - GRAY

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Plastic/HDPE - Gray

Manufacturer: NDS

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: ACANTHUS

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Choose from 6 great colors.
Large project? Request a Quote

NDS® Mini Channel slotted plastic grates are UV Protected High-Density Polyethylene (HDPE). Slotted plastic grates are chemically resistant, rustproof, and low maintenance. Commonly referred to as a 3" system, the grates are nominally 2.75" and have an open surface area of 9.90 square inches (30.29 GPM) per foot.

Four screw holes per grate for NDS529 fasteners (not included).

Actual Dimensions: 2.75" W x 36" L x .25" H

Grates are Made in the USA and available in different colors

• 542-Green
• 551- Brick
• 541-Gray
• 543-Black
• 544-Sand
• 540-White
• 553PB - Polished Brass

Designed to fit: NDS Mini Channel
