NDS 3" Sand Mini Channel Kit with TDS Bronze Age Pedreda Grate - Aluminum

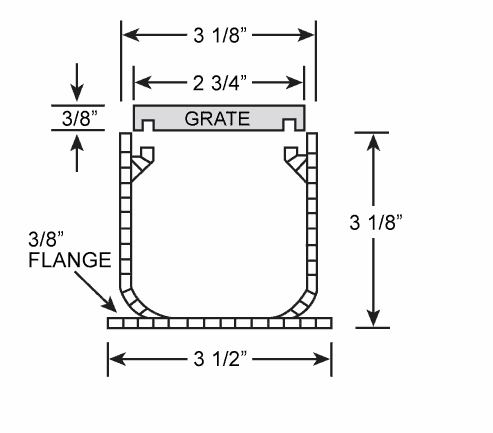

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Aluminum

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: PEDREDA

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE) - Sand

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has an aluminum grate in the Pedreda pattern by TDS Bronze Age.

Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available by calling 610-638-1221.

Specification Sheet for Bronze Age Pedreda Grate | Class A or B

Mini Channel Installation Guide

Each standard kit includes:

• Channels (in 3′ or 6′ lengths)
• One End Cap
• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• Grates


Each extension kit includes:

• Channel(s) (in 3′ or 6′ lengths)
• Coupler
• Grates
• Locking Devices

The 3' and 6' Extension kits are intended to add on to standard kits and do not include the end cap/outlet. They include grate(s), channel(s), locking devices, and a coupler. Additional parts are sold separately if it is intended to be a stand-alone kit.
