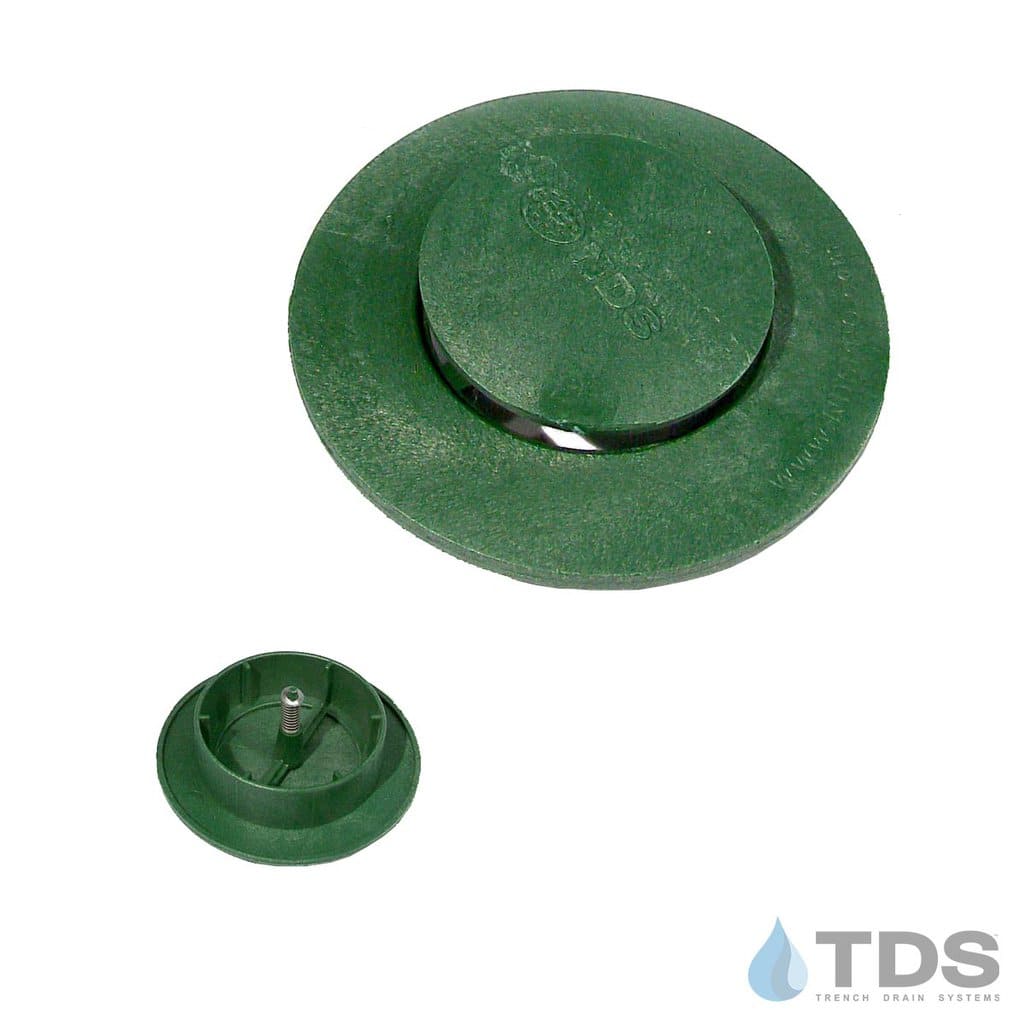

NDS 420 Pop-Up Emitter for 3" & 4" SDR pipe

Grate Width: 3.00" Dia and 4.00" Dia

Grate Thickness: 1.25" with T-Top

Grate Material / Color / Finish: Plastic/HDPE - Green

Manufacturer: NDS

System: Point Drain

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material:

Channel Frame / Edging:

Application: Decorative and Residential

A pipe cap that allows water to be diverted and released to water-safe areas away from structures, erosion-prone landscapes and poor drainage areas. This product is wholesale grade and spring-loaded, ensuring closure after rainfall. Retail-grade versions of this product do not include this feature.

Permits water captured by grates, catch basins, channel drains, Flo-Well, downspouts and roof gutter systems to flow through the drainage pipe and away from structural foundations to safe or useful areas. For example, water can be routed from a low area next to a foundation to a water-safe area, such as a curbside drainage system.

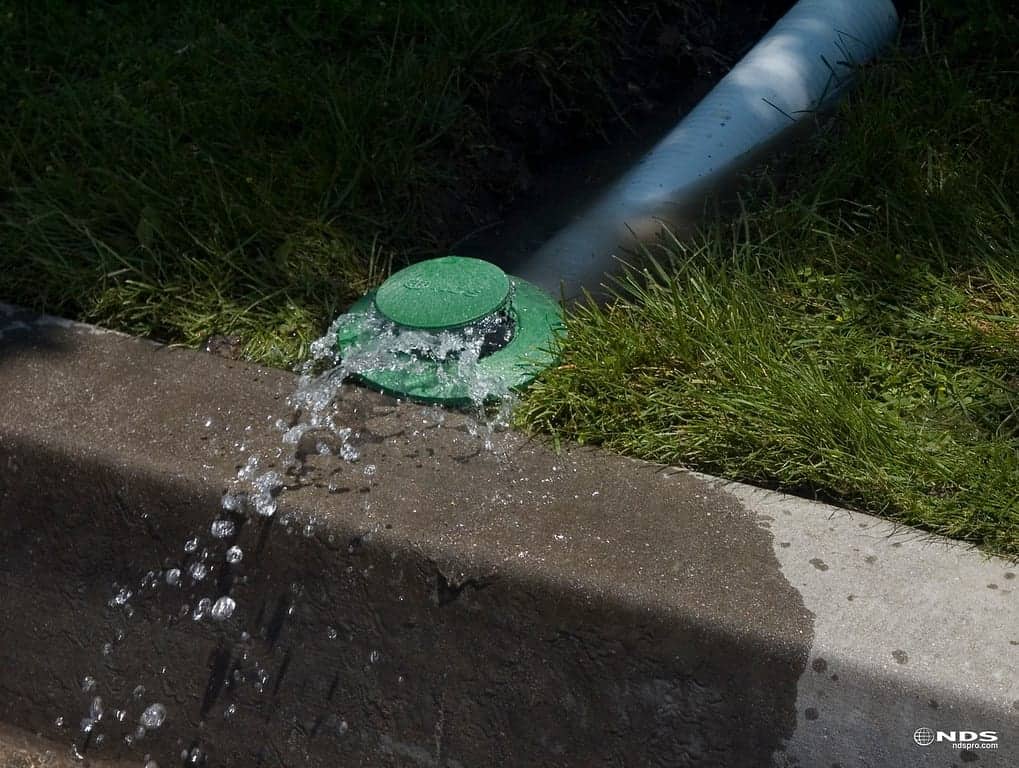

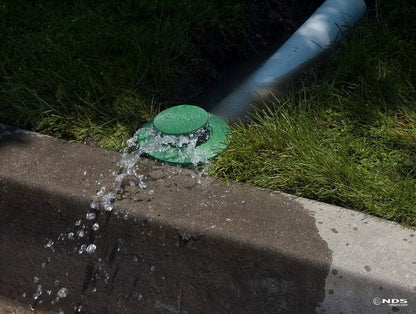

Opened by the hydrostatic pressure of water flowing through the drain pipe. As flow diminishes the Emitter closes again. The special patented design allows the Emitter to open with minimal pressure. Since the Emitter is closed during dry weather, debris and rodents cannot enter the drain pipes.

Features

• OVERALL TOP WIDTH 5 15/16"
• Polyolefin Pop-Up Drainage Emitter with spring loaded center and UV inhibitor
• Spring automatically retracts
• 40 G.P.M.
• Fits 3" and 4" Sewer and Drain Fittings

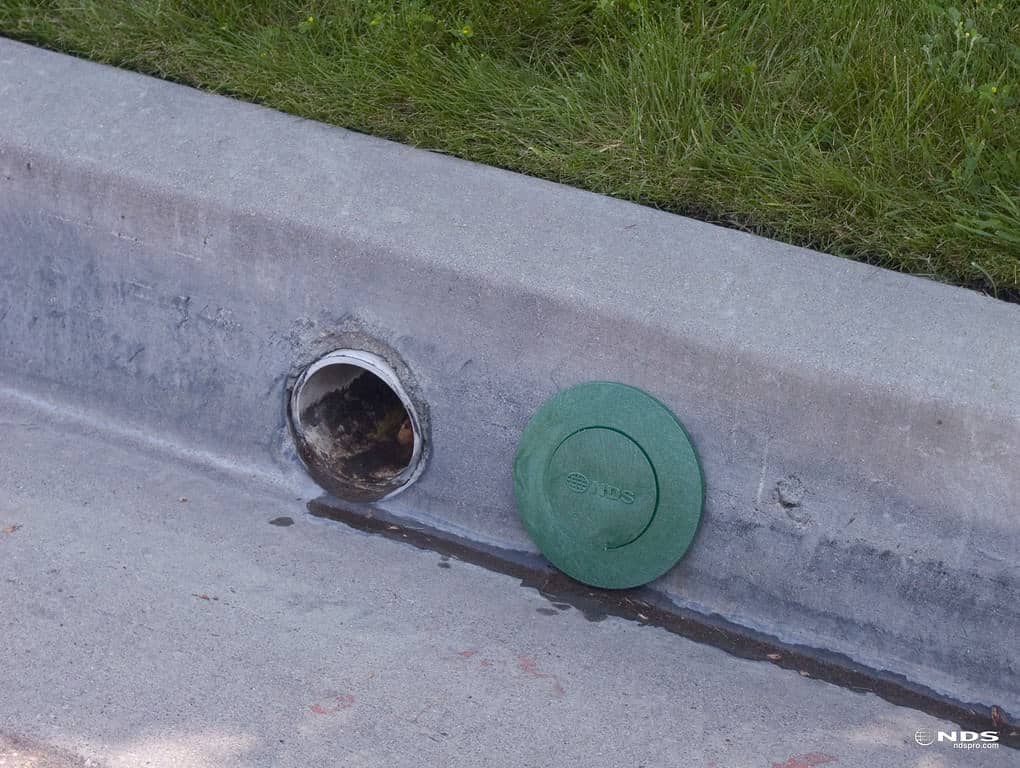

• Can be installed in vertical applications - ideal for discharging water from retaining walls and street curbs
