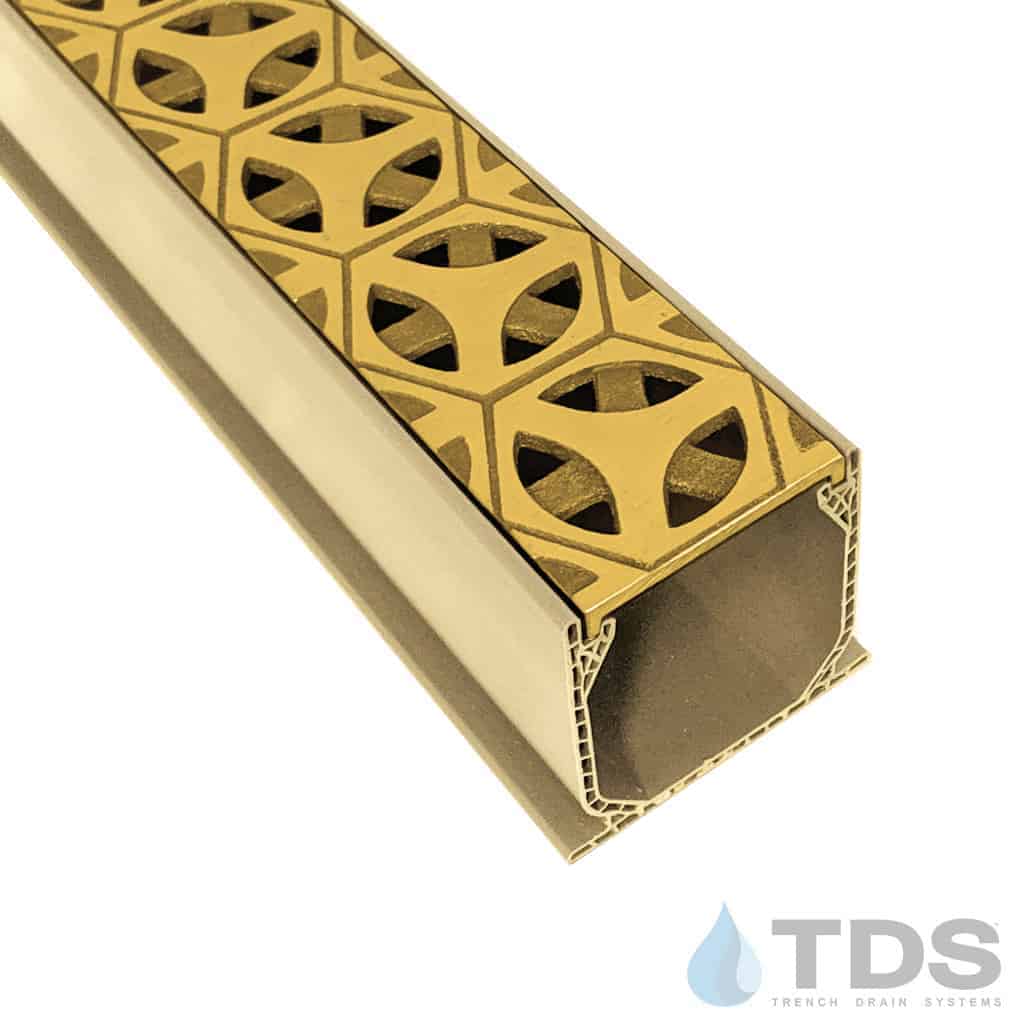

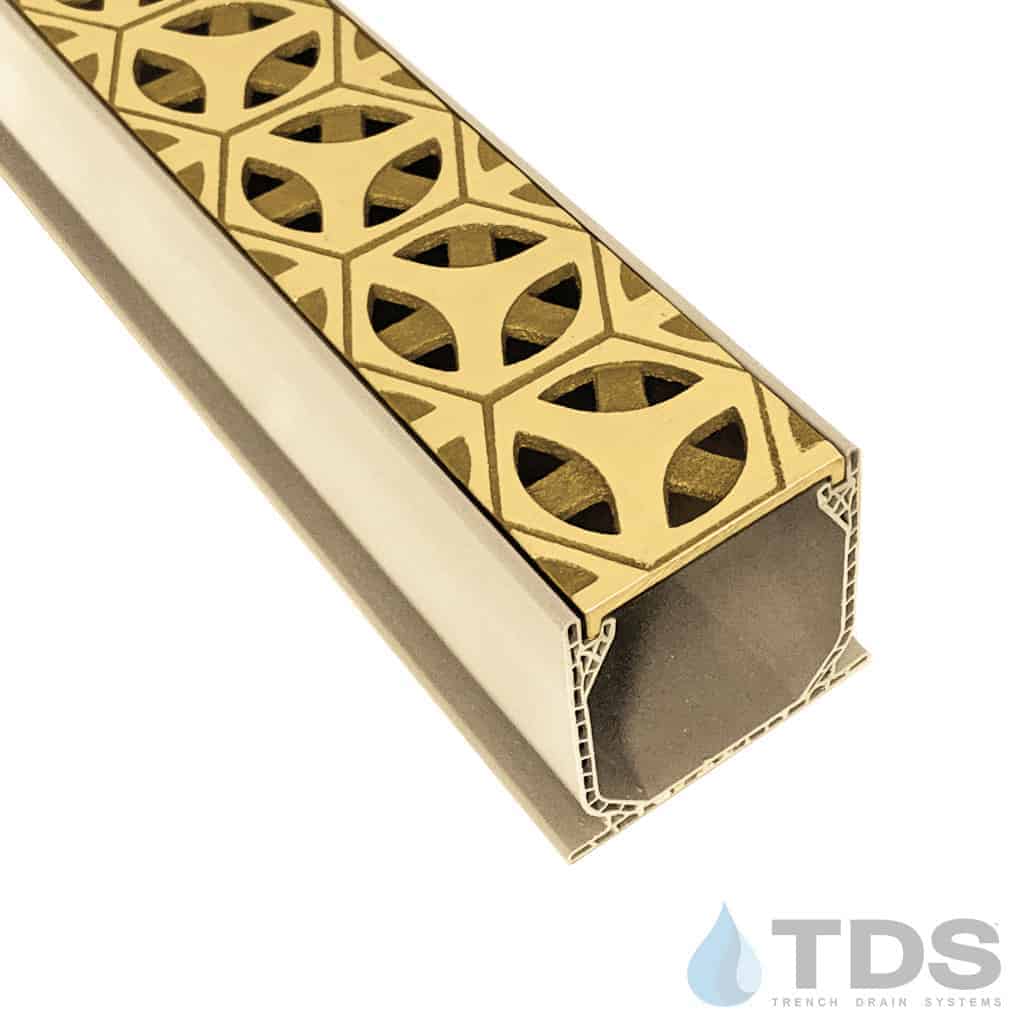

NDS 3" Sand Mini Channel Kit with TDS Bronze Age Tardis Grate - Brushed

NDS 3" Sand Mini Channel Kit with TDS Bronze Age Tardis Grate - Brushed

  • Tardis Bronze Grates
  • Tardis Bronze Grates

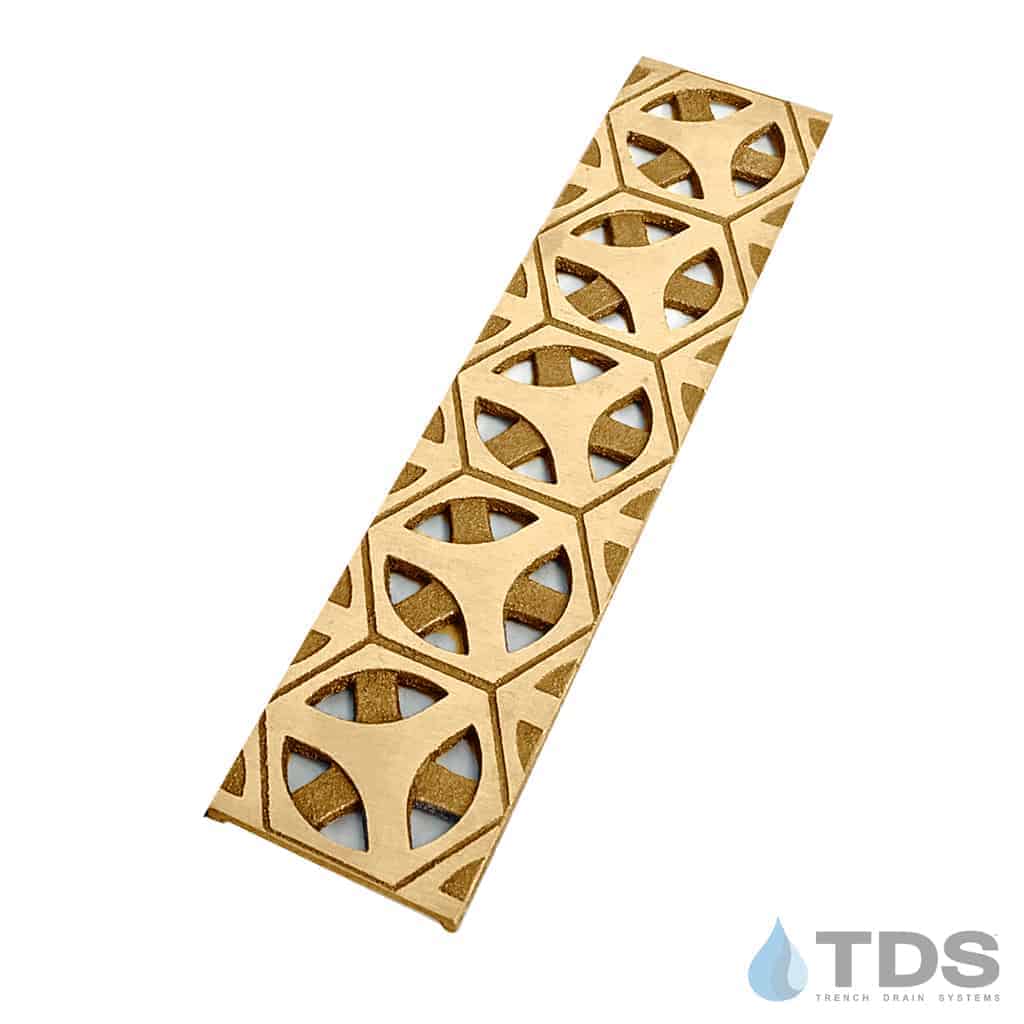

  • BA-TAR-0312 Bronze Brushed Mini Channel Tardis Grate

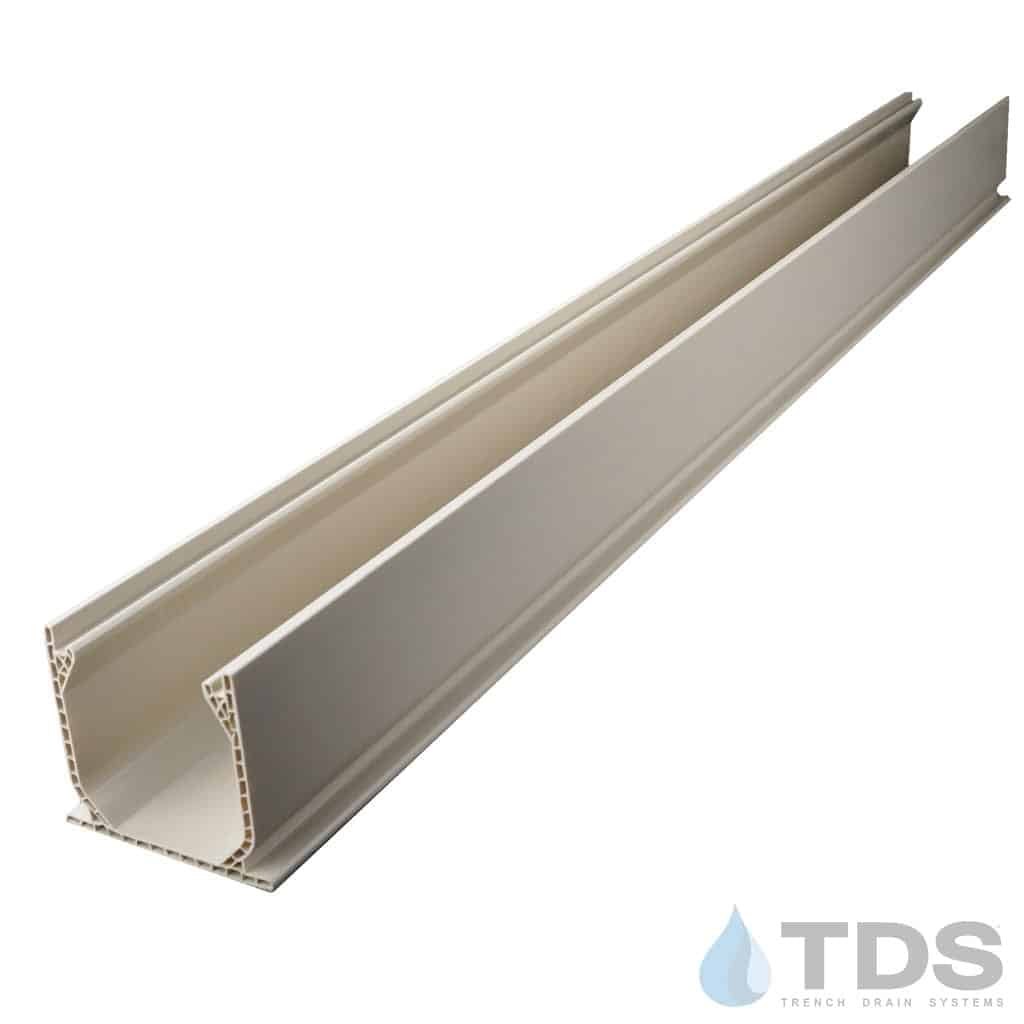

  • TDS500S-TDSdrains

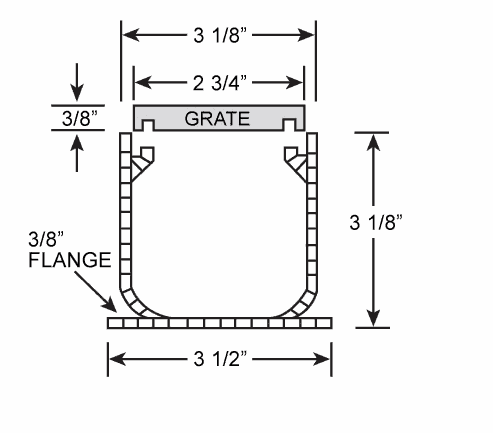

  • mini-channel-side-spec-profile

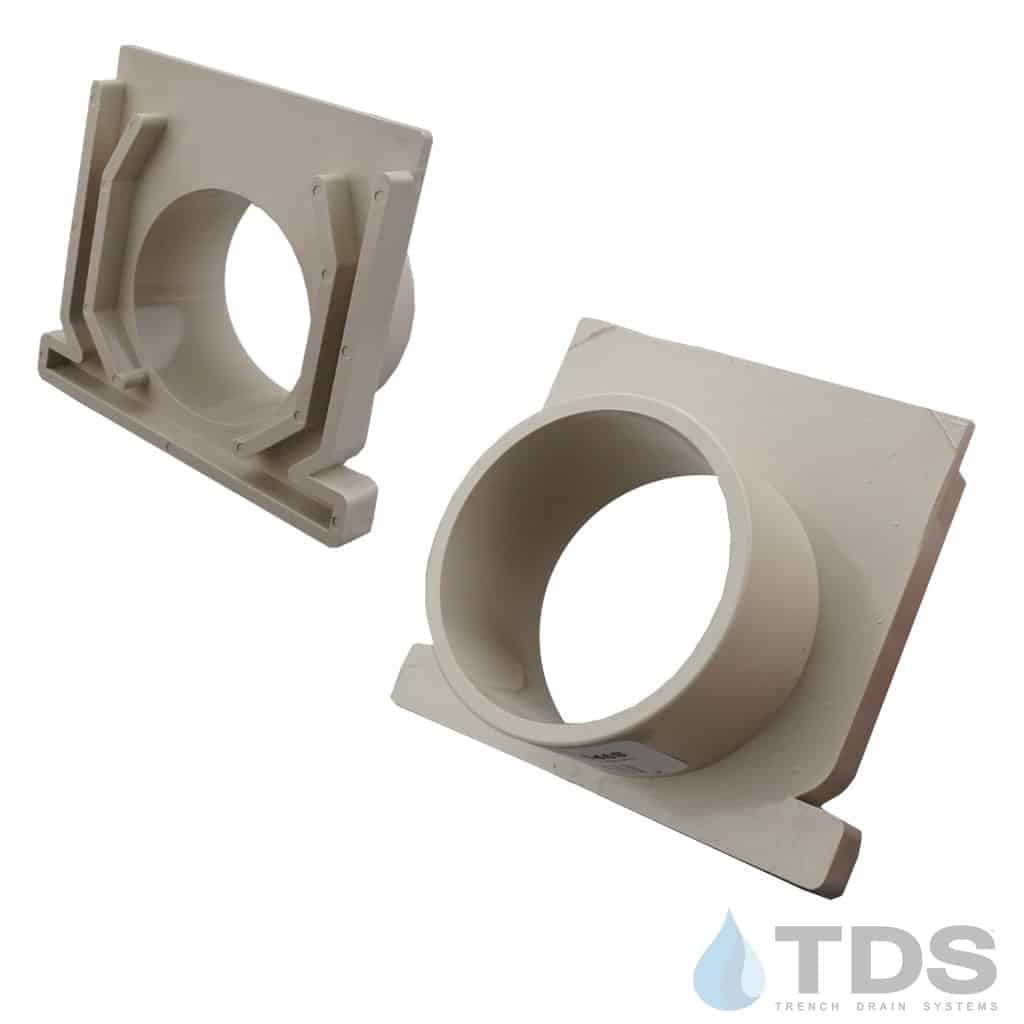

  • 3" NDS Sand Mini Channel End Outlet MCKS-546-TDSdrains

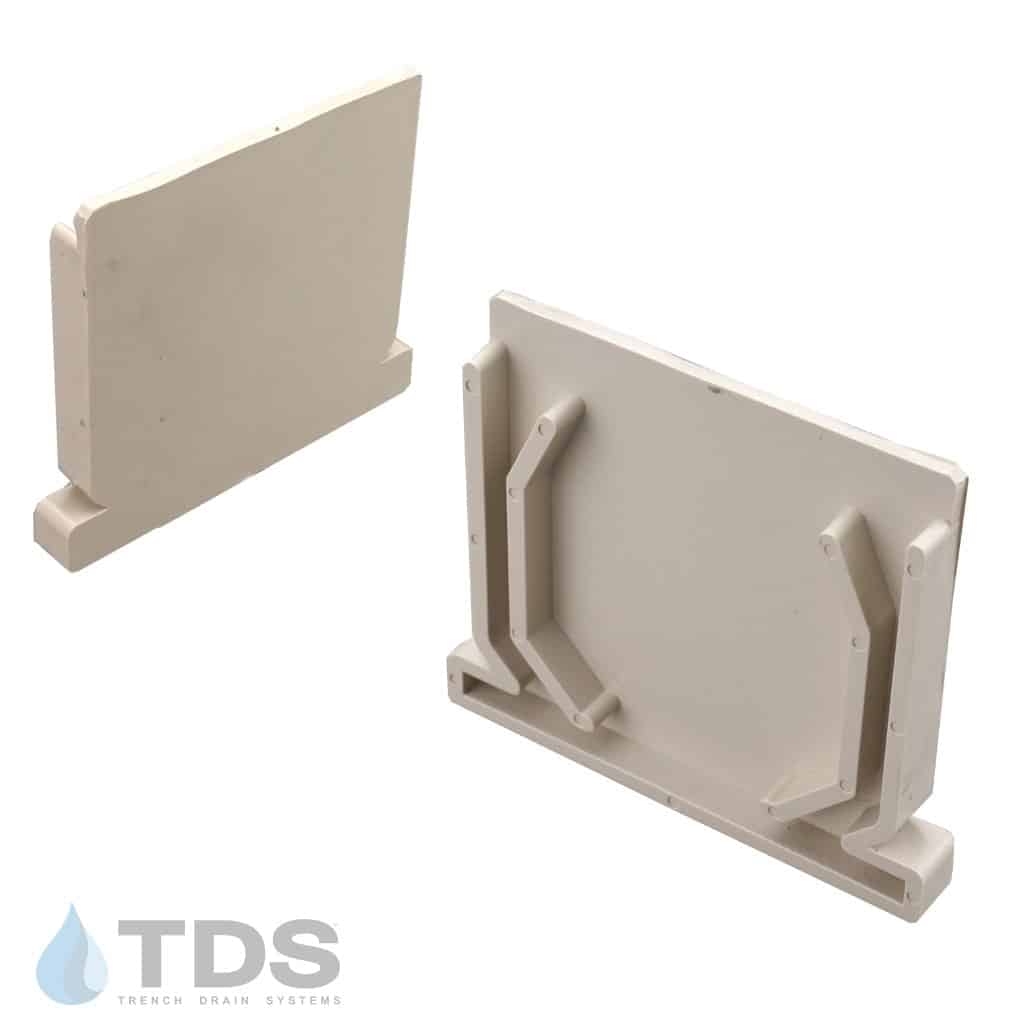

  • NDS 3" Sand Mini Channel End Caps MCKS-547-TDSdrains

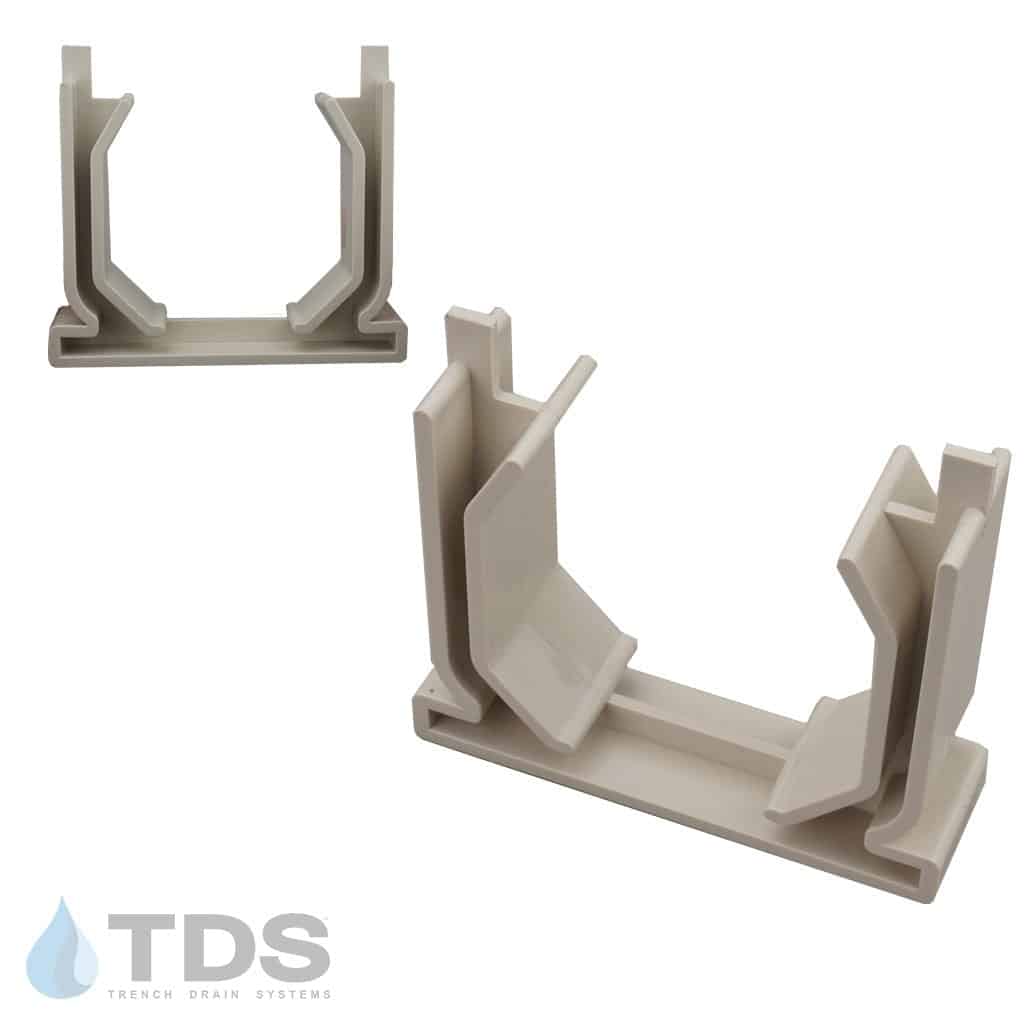

  • 3" NDS Sand Mini Channel Coupler MCKS-548-TDSdrains
1 8

Drainage Kits

MCKS-BA-TAR-B-06

  • Kit includes:
  • NDS 500S Channel (1) for every 6ft ordered
  • NDS 547S End cap (1)
  • NDS 546S End outlet (1)
  • NDS 548S Coupler (1) for each channel over 6ft
  • TDS Tardis Brushed Bronze BA-TAR-0312-B
  • NDS 529B Grate hold-down (1pkg per kit – 64 pcs)

    • $1,114.30 USD
    $0.00 USD $1,114.30 USD
    Sale Sold out
    Kit Length
    View full details

    Additional Information

    • Grate Width: 2.75"
    • Grate Thickness: 0.38"
    • Product Type: Channel Kit, Kit
    • Grate Material / Color / Finish: Bronze - Brushed
    • Manufacturer: NDS, TDS
    • System: Mini Channel, Bronze Age
    • Grate Load Class: A, B
    • Grate Pattern: Tardis
    • Grate Pattern Style: Geometric
    • Channel Material: Plastic (PP, HDPE, PE) - Sand
    • Frame/Edging: No Frame, No Edging
    • Application: Decorative, Residential, Sport Complex - Recreational

    Description

    Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways.

    The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a bronze grate in the Tardis pattern by TDS Bronze Age with a brushed finish.

    Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available. Request a Quote.

    mini-channel-side-spec-profile

    Specification Sheet for BA-TAR-0312

    Mini Channel Installation Guide

    Each kit includes:

    • Channels (in 3′ or 6′ lengths)
    • One End Cap
    • One Outlet (compatible with SCH 40 pipe)
    • Couplers (1 for each joint)
    • Grates
    • Hold Down Screws (1pkg per kit – 64 pcs)
