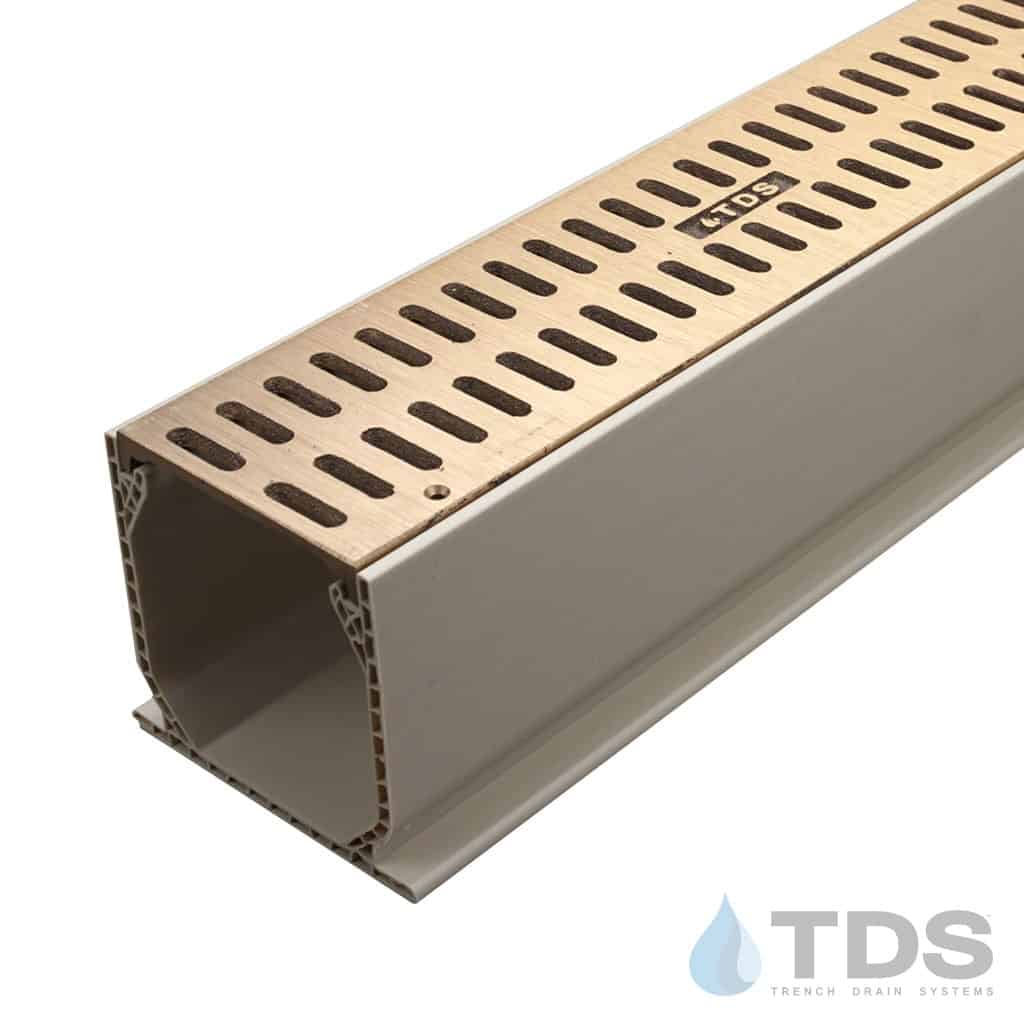

NDS 3" Sand Mini Channel Kit with TDS Bronze Age Slotted Grate - Brushed

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Bronze - Brushed

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE) - Sand

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

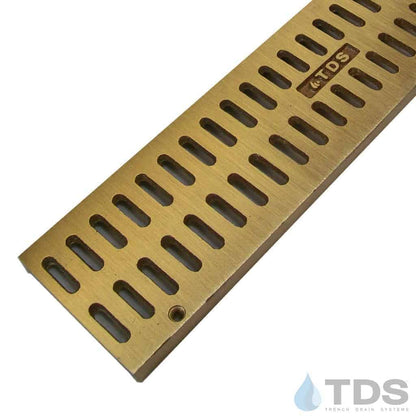

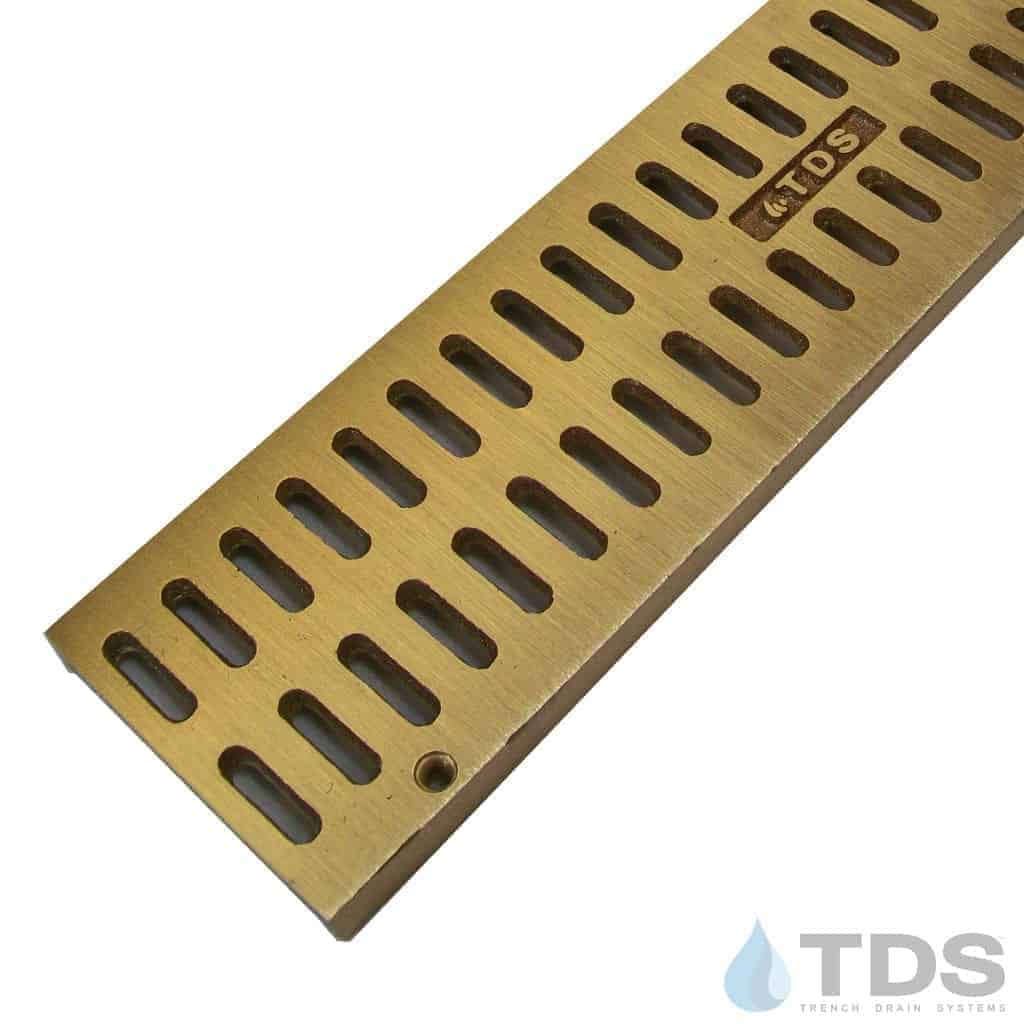

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a bronze grate in the Slotted pattern by TDS Bronze Age with a brushed finish.

Available online in 6, 12, 18 and 24-foot kits; custom system lengths are available by calling 610-638-1221.

Specification Sheet for BA-SLOT-0312

Each kit includes:

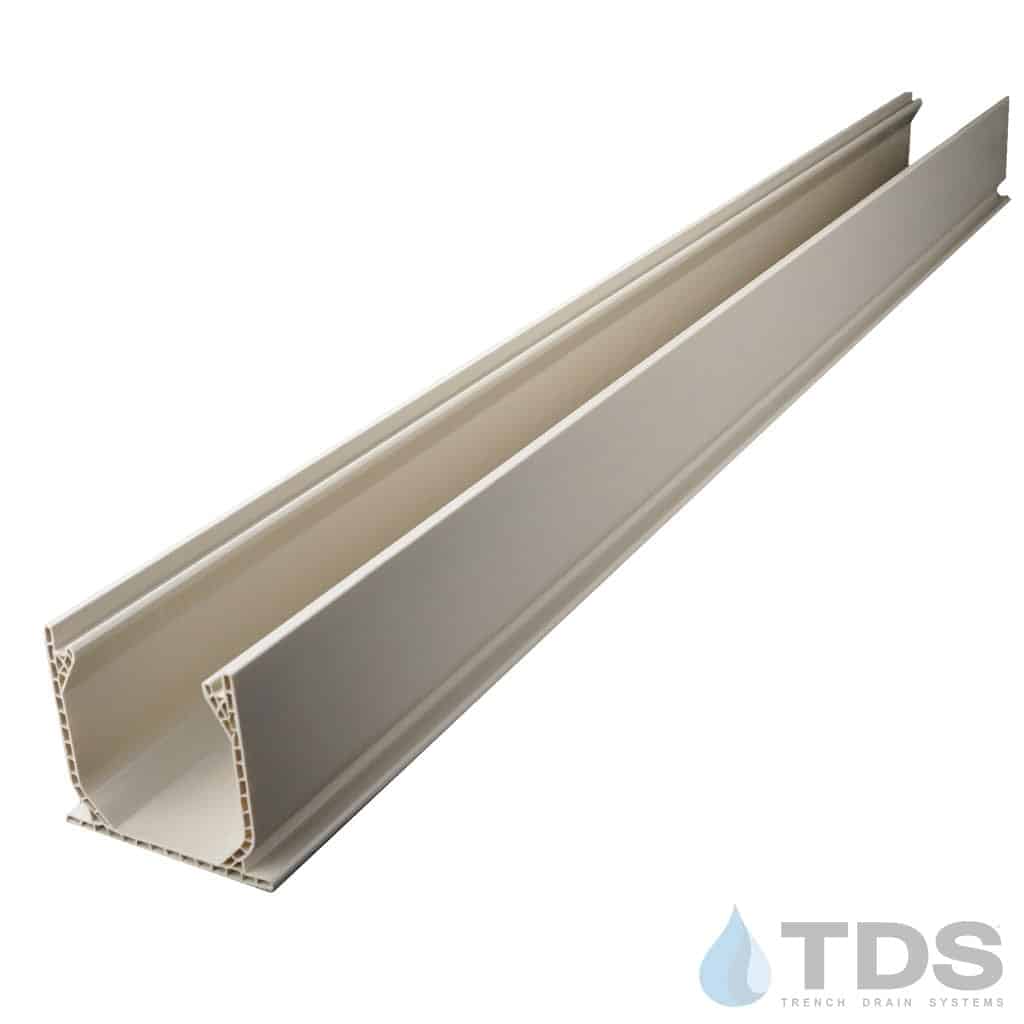

• Channels (in 3′ or 6′ lengths)

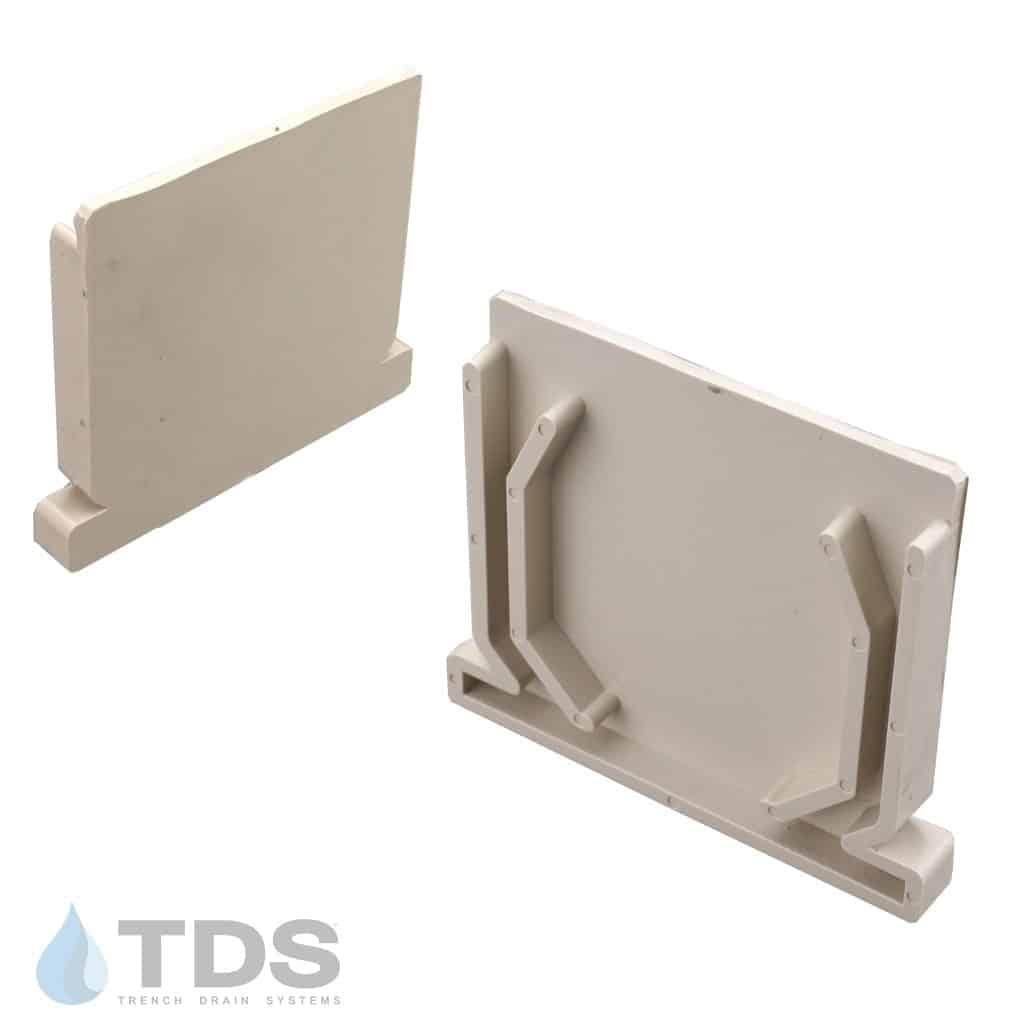

• One End Cap

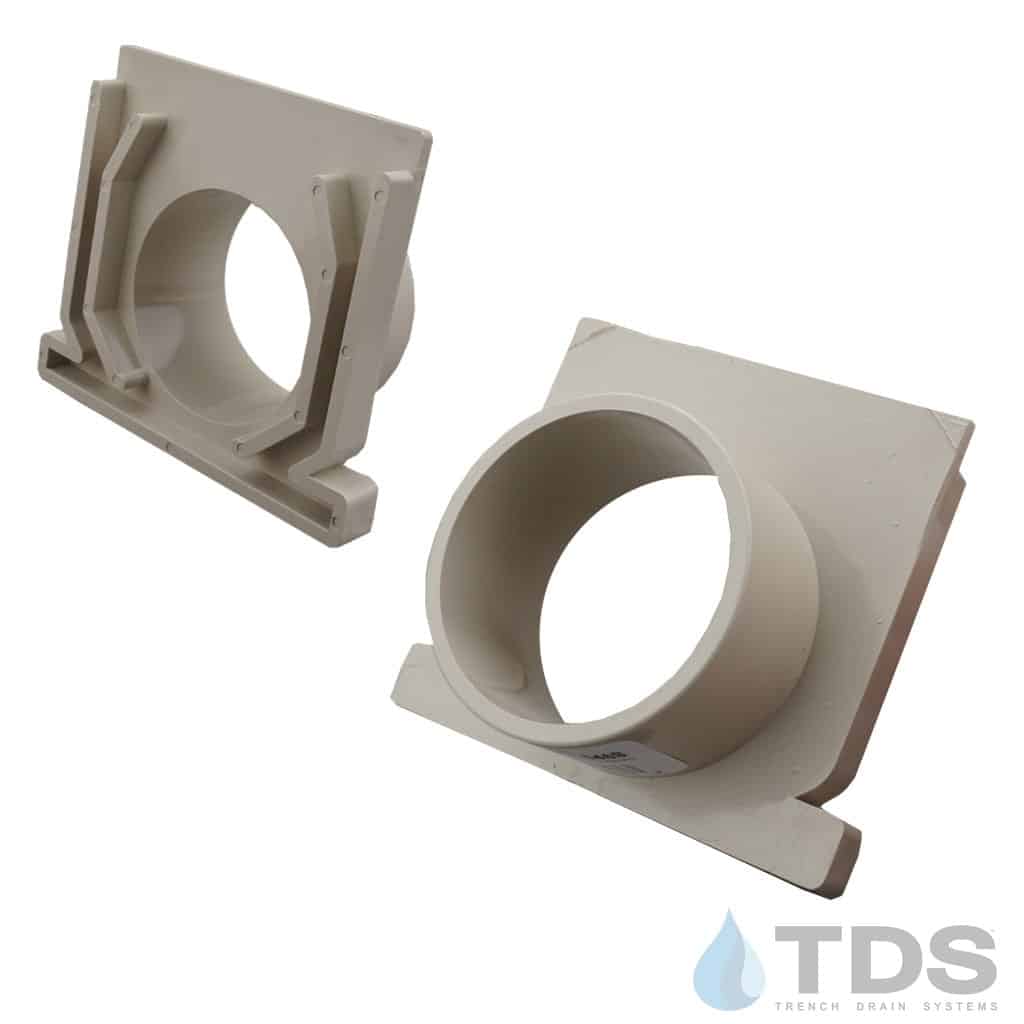

• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• Grates
• Hold Down Screws (1pkg per kit – 64 pcs)
