NDS® 3" Sand Mini Channel Kit with TDS Bronze Age™ Cathedral Grate -Ductile Iron

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Plastic - (PP, HDPE, PE) - Sand

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

NDS® Mini Channel linear drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV-protected and manufactured from durable lightweight polyolefin plastic. This kit has a ductile iron grate in the Cathedral pattern by TDS Bronze Age™ with a painted black finish (for shipping purposes only).

Available online in 6, 12, 18 and 24-foot kits; custom system lengths are available.

This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the specification sheet for details.

Specification Sheet for BA-CATH-0312-D

Mini Channel Installation Guide

Each standard kit includes:

• Channels (in 3′ or 6′ lengths)
• One End Cap
• One Outlet (compatible with SCH 40 pipe)

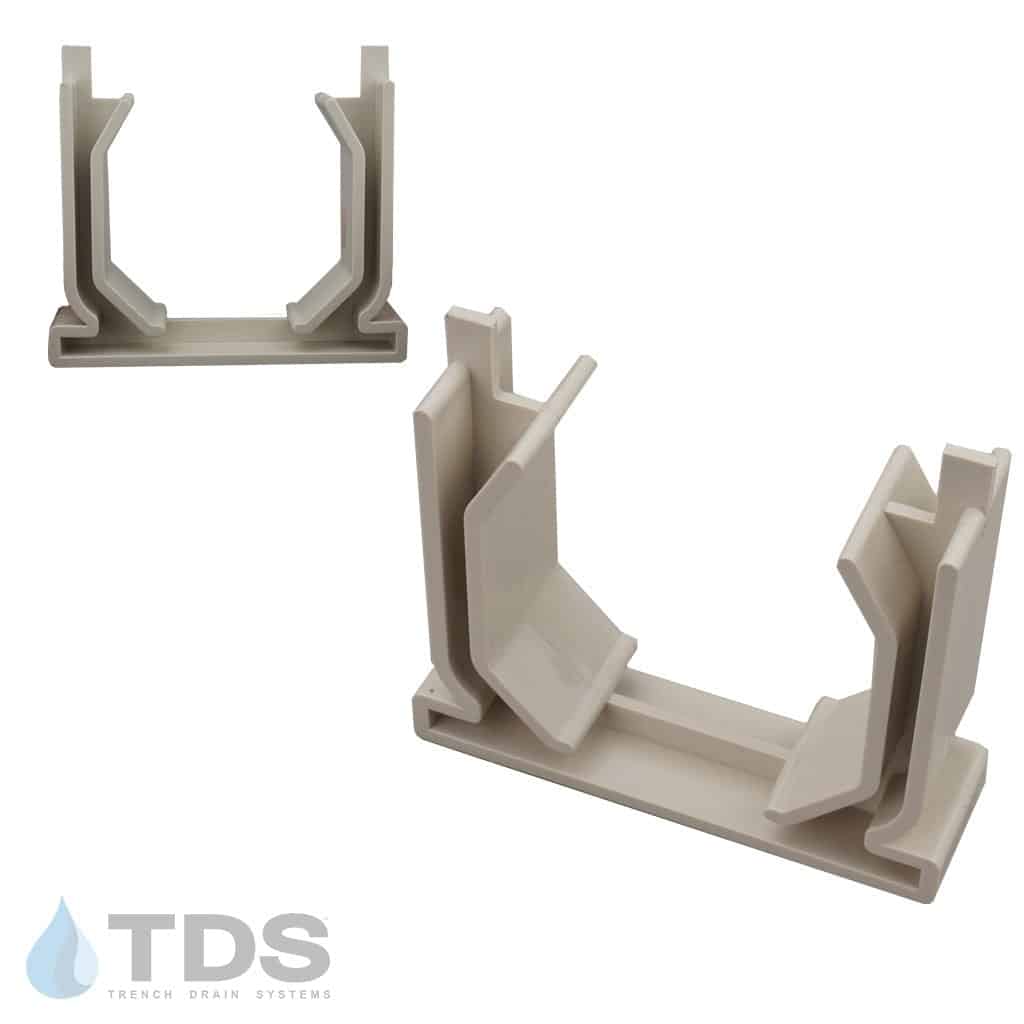

• Couplers (1 for each joint)
• Grates


Each extension kit includes:

• Channel(s) (in 3′ or 6′ lengths)
• Coupler
• Grates
• Locking Devices

The 3' and 6' Extension kits are intended to add on to standard kits and do not include the end cap/outlet. They include grate(s), channel(s), locking devices, and a coupler. Additional parts are sold separately if it is intended to be a stand-alone kit.

Please note that all raw ductile/cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
