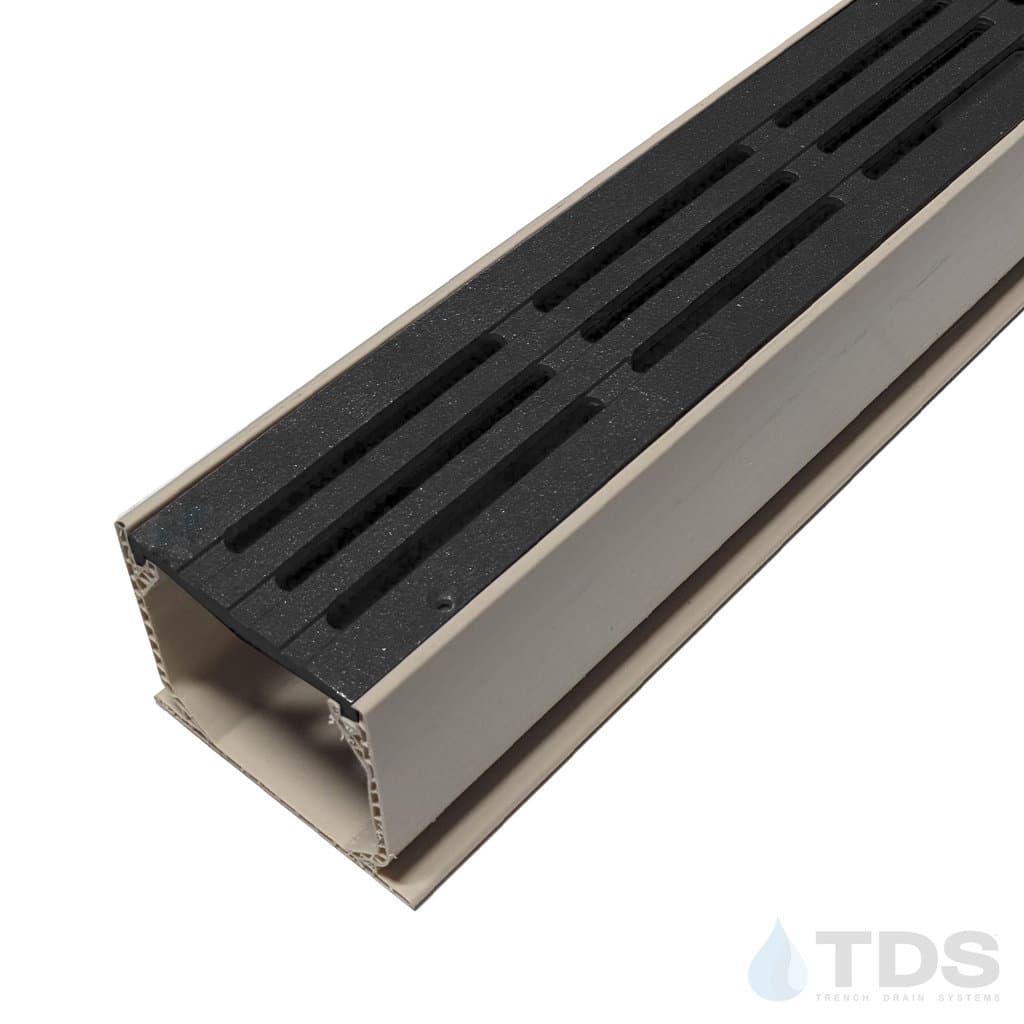

NDS® 3" Sand Mini Channel Kit with TDS Bronze Age™ Bars Grate - Ductile Iron

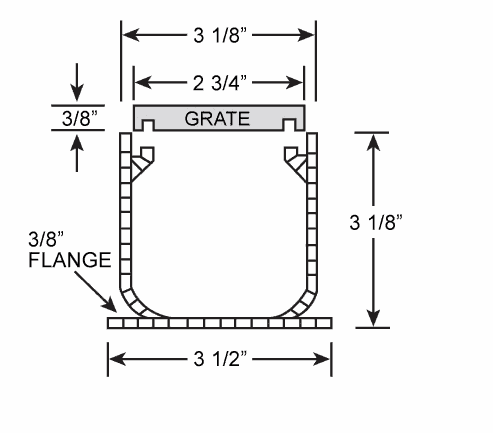

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: BARS

Grate Pattern Style: PATRIOTIC and SLOTTED

Channel Material: Plastic - (PP, HDPE, PE) - Sand

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

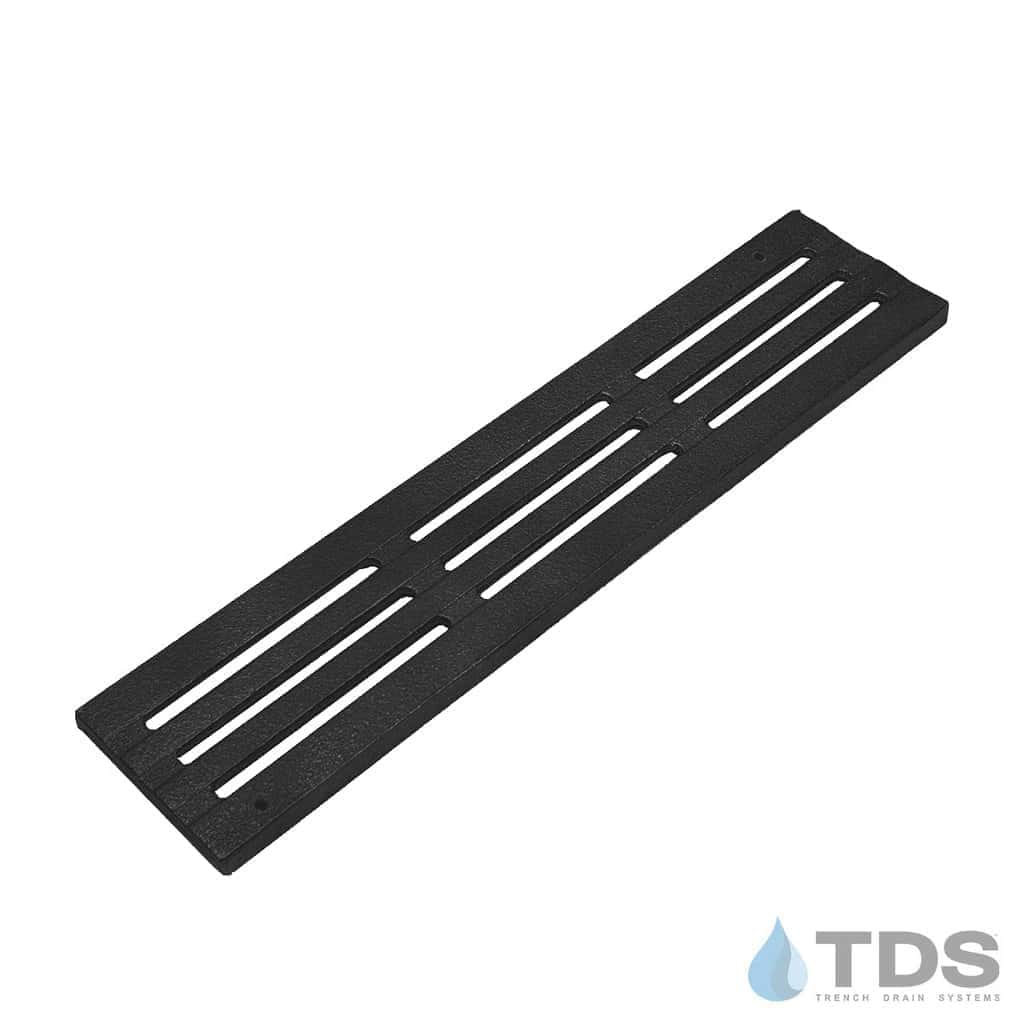

NDS® Mini Channel linear drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV-protected and manufactured from durable lightweight polyolefin plastic. This kit includes the heelproof and ADA-compliant TDS Bronze Age™ ductile iron grate in the Bars pattern with a painted black finish (for shipping purposes only).

Available online in 6, 12, 18, and 24-foot kits; custom system lengths are available. Request a Quote.

The 3ft Extension and the 6ft Extension kits are intended to be an extension to the standard length kits and do not include the end cap/outlet. Other accessories are to be purchased separately if intended to be a stand-alone kit.

This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the specification sheet for details.

Specification Sheet BA-BARS-0312-D

Mini Channel Installation Guide

Each kit includes:

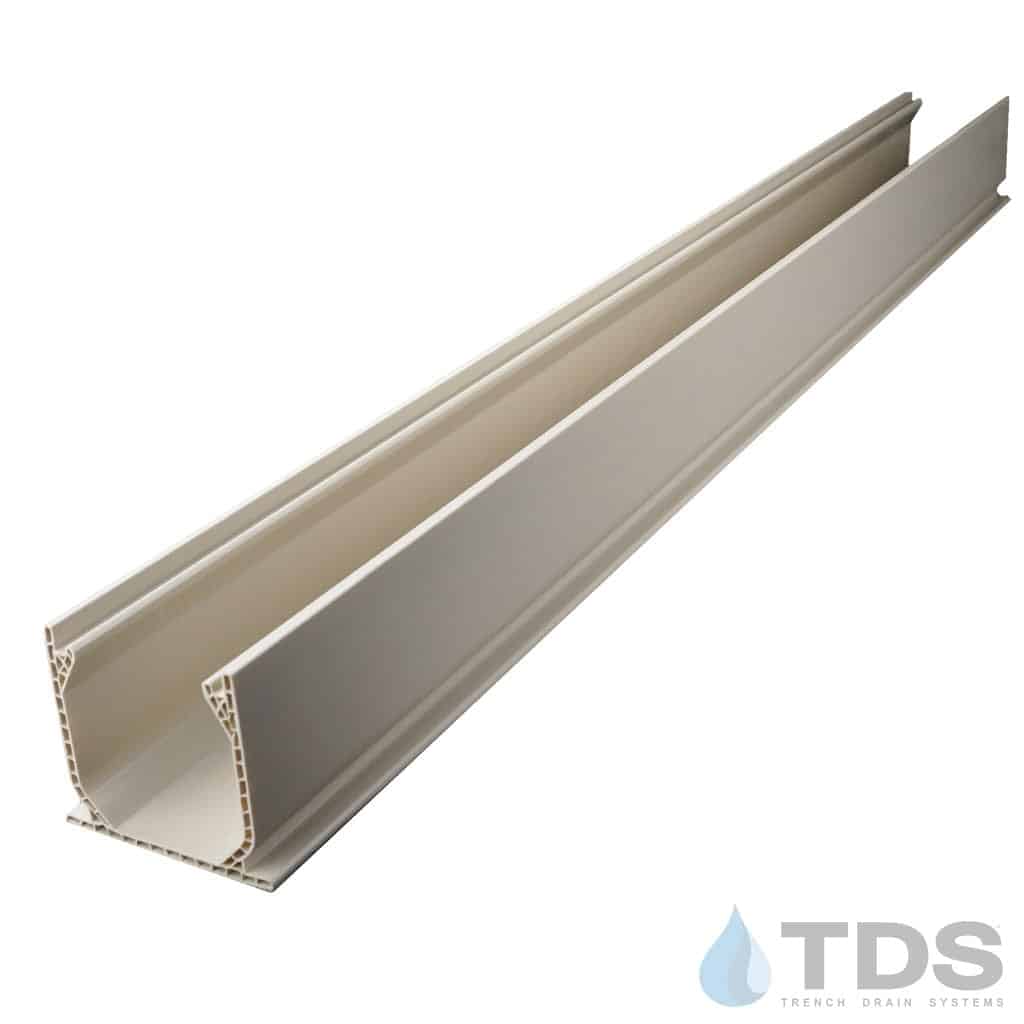

• Channels

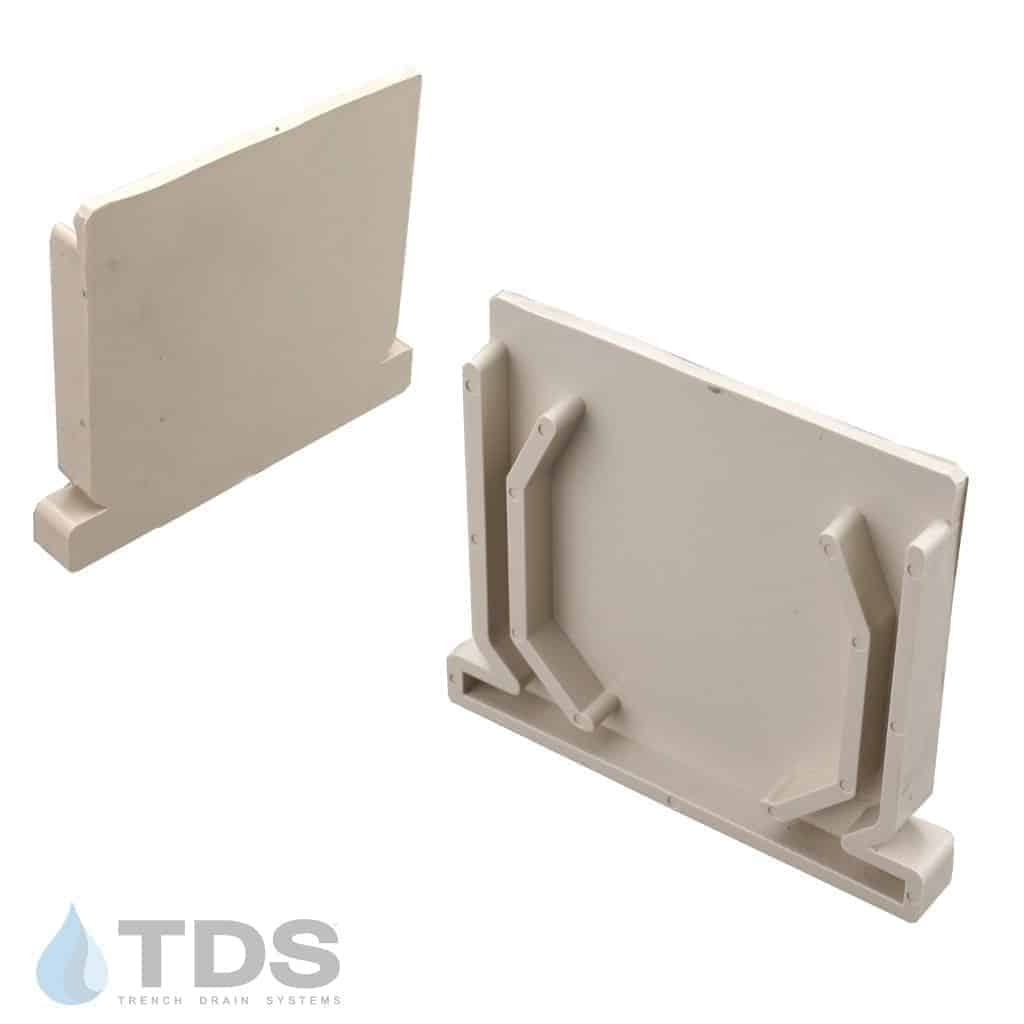

• One End Cap

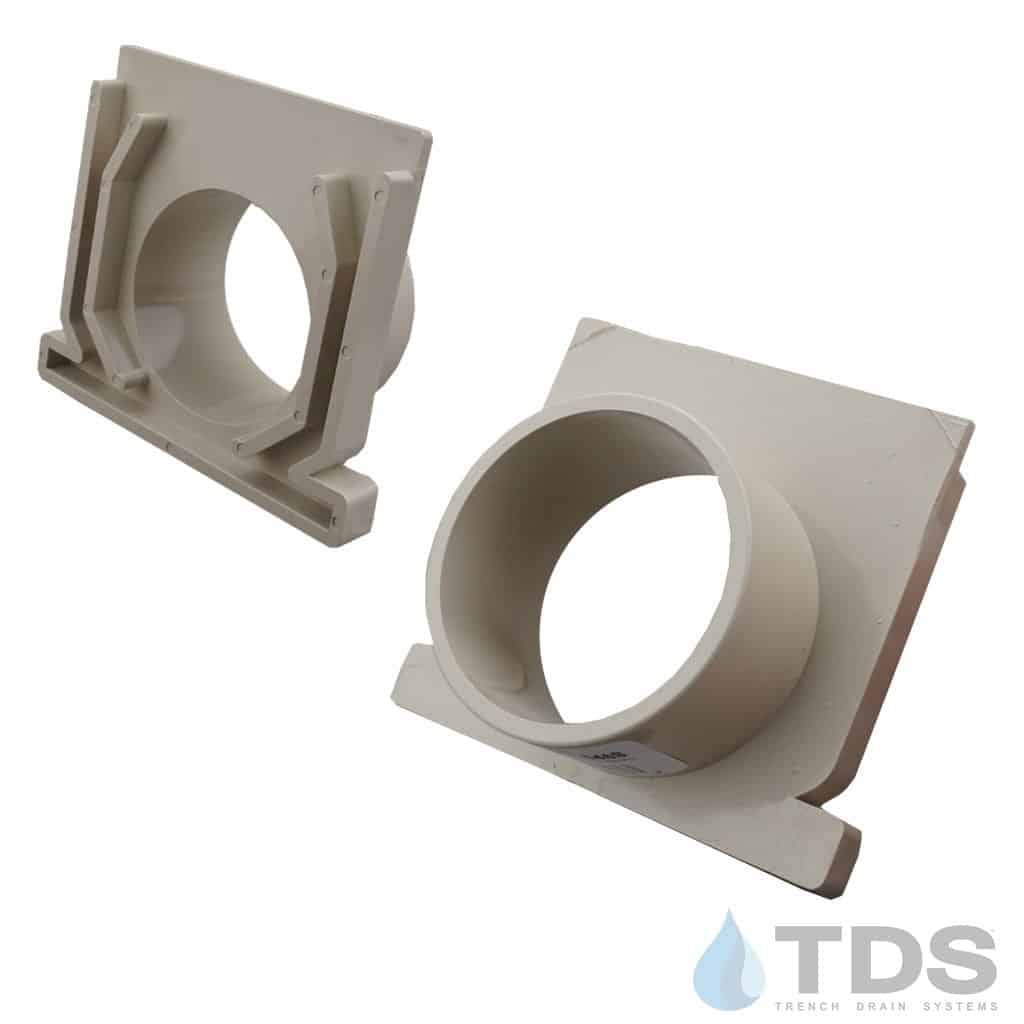

• One Outlet (compatible with SCH 40 pipe)

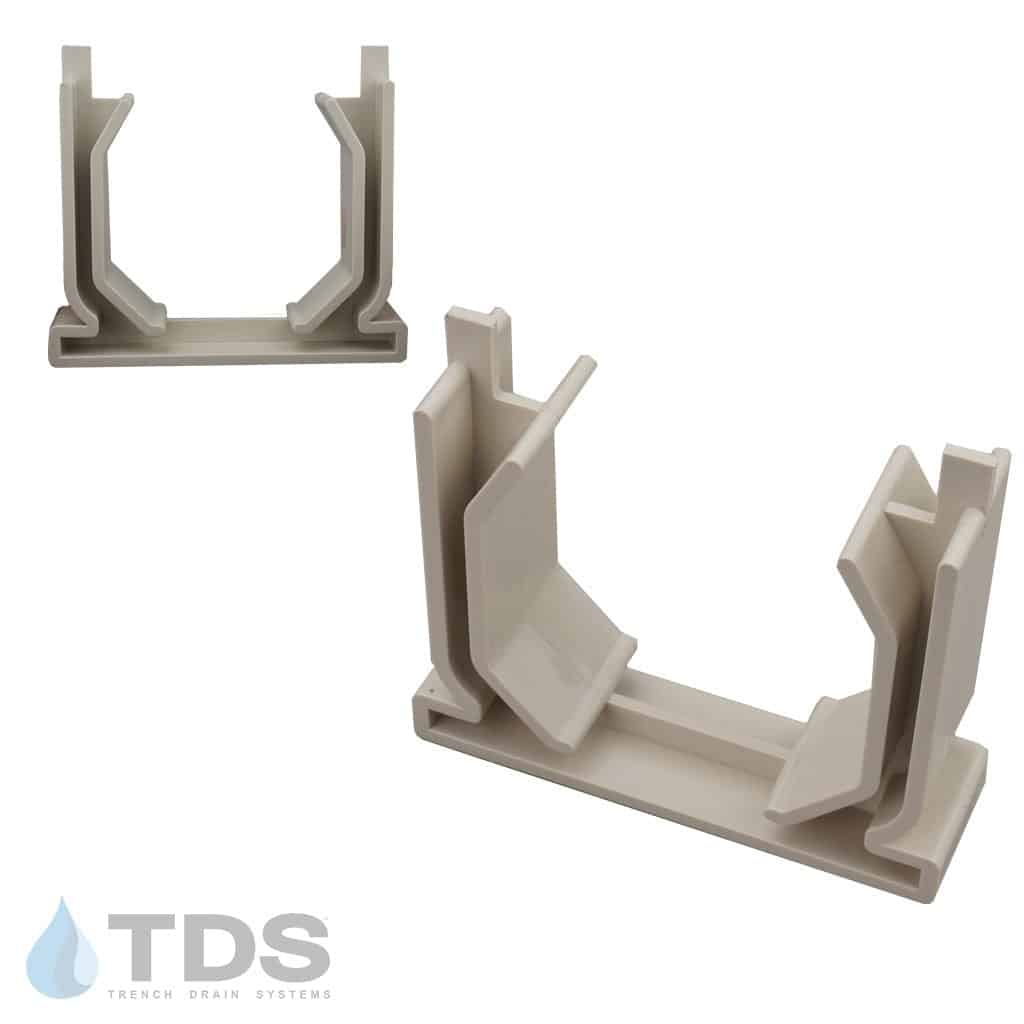

• Couplers (1 for each joint)
• Grates
• Hold Down Screws (2 per grate)

Please note that all raw ductile/cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
