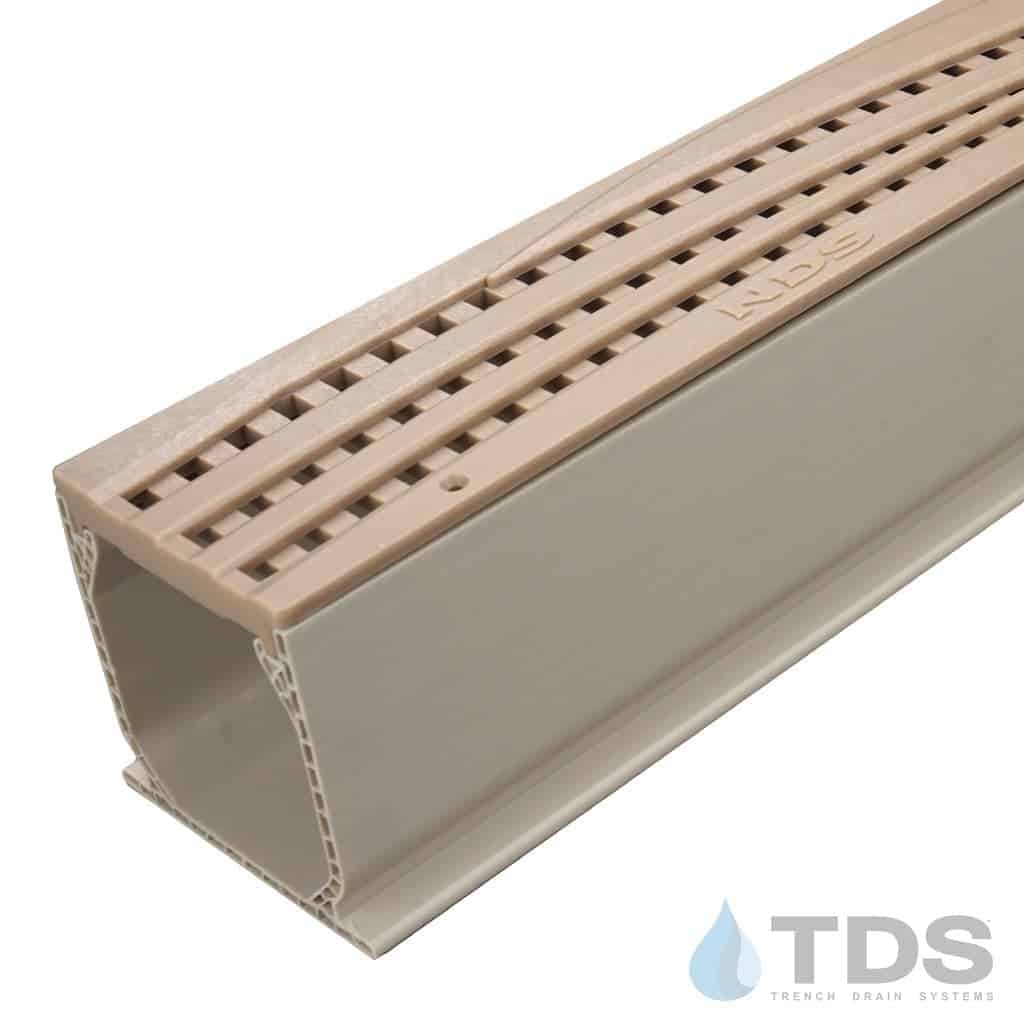

NDS 3" Sand Mini Channel Kit with NDS Wave Grate - Sand

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38" and 0.38" with T-Top

Grate Material / Color / Finish: Plastic/HDPE - Sand

Manufacturer: NDS

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: WAVE

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Sand

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

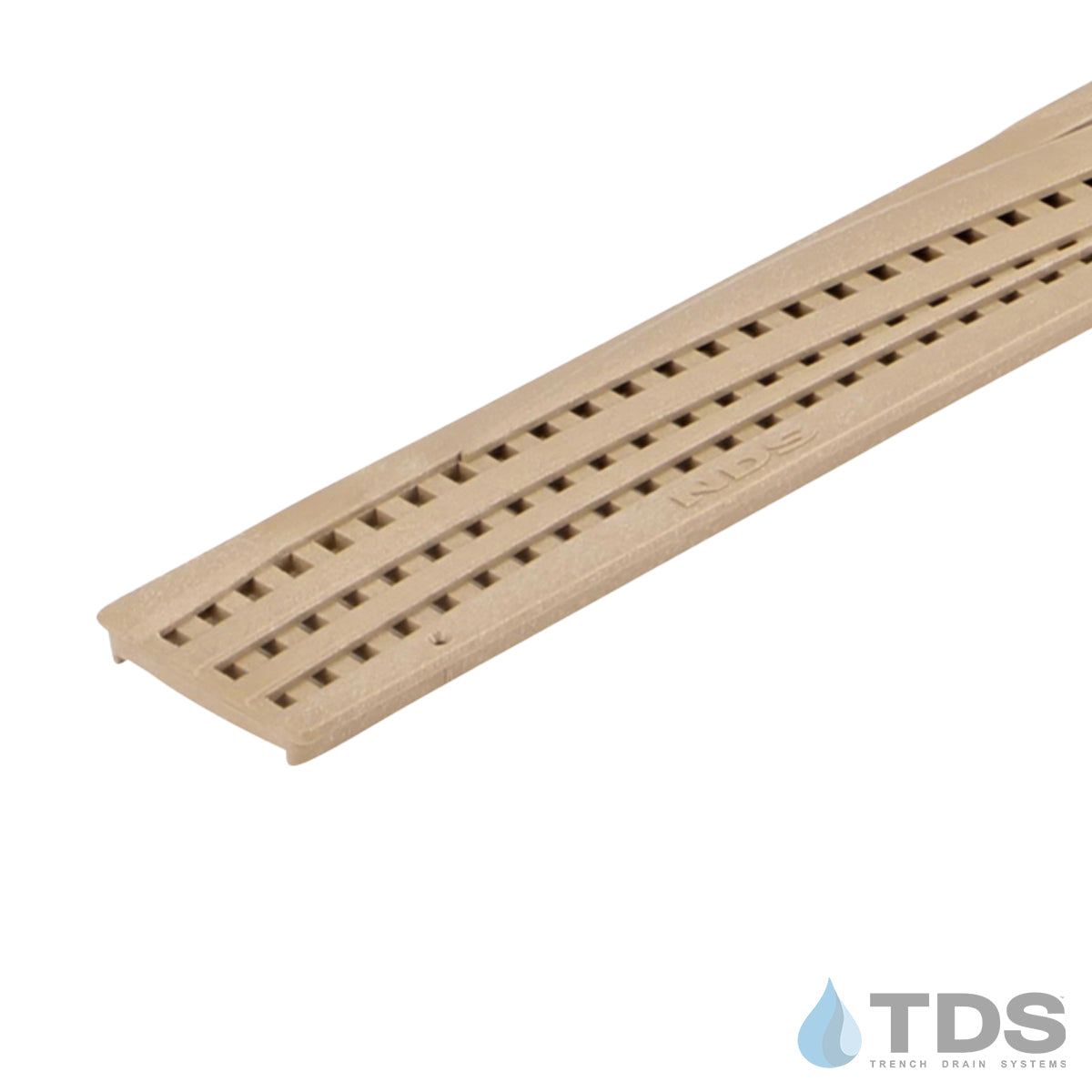

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a polyolefin grate in the Wave pattern by NDS in Sand. The Wave grate overlaps the channel's top edge.

Specification sheet for NDS Mini Channel

Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available by calling 610-638-1221.

Mini Channel Installation Guide

Each standard kit includes:

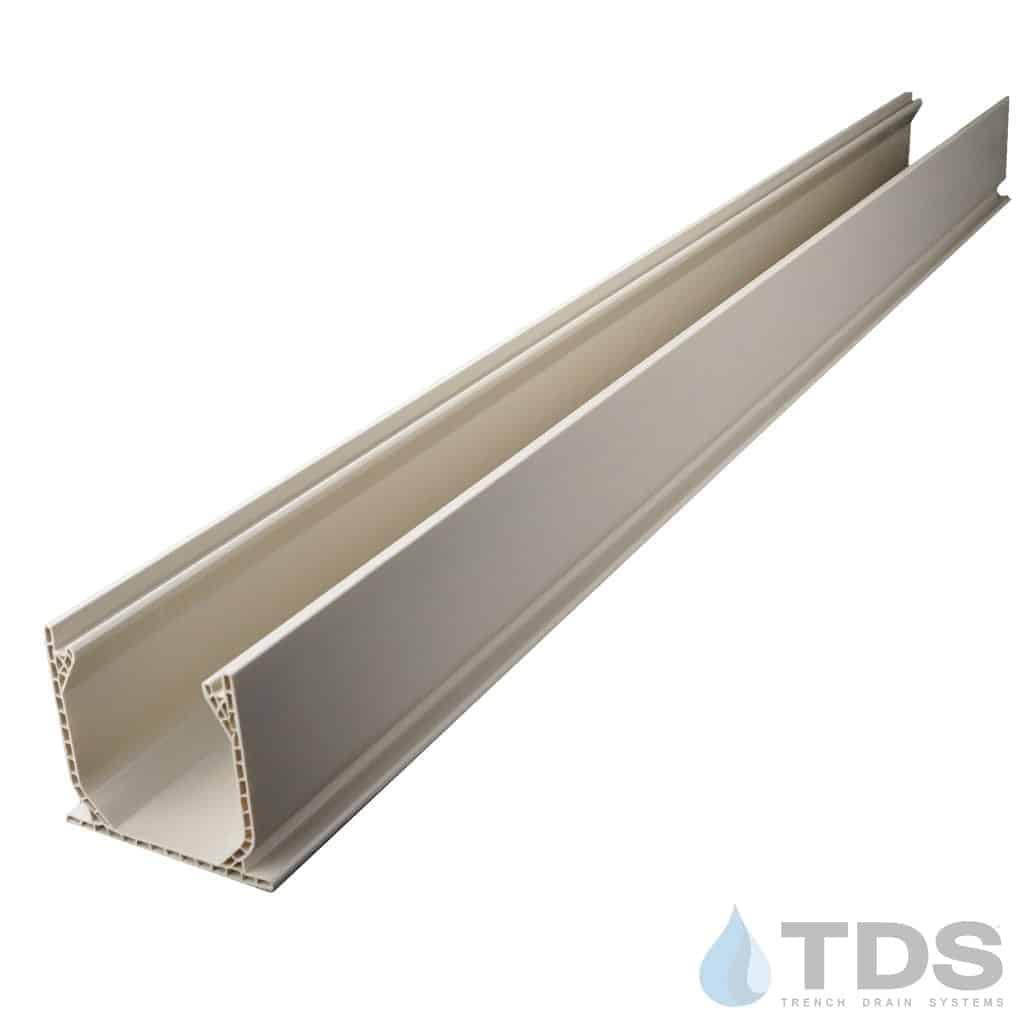

• Channels (in 3′ or 6′ lengths)

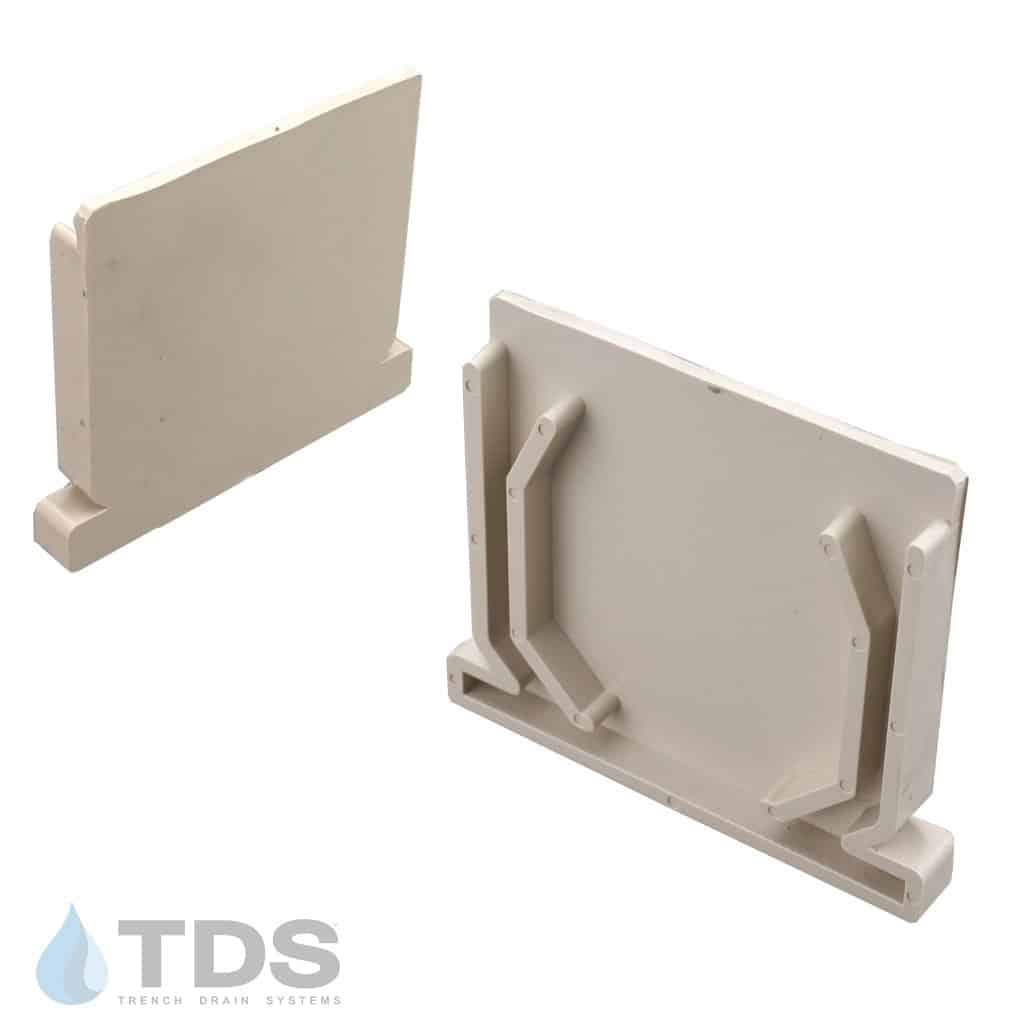

• One End Cap

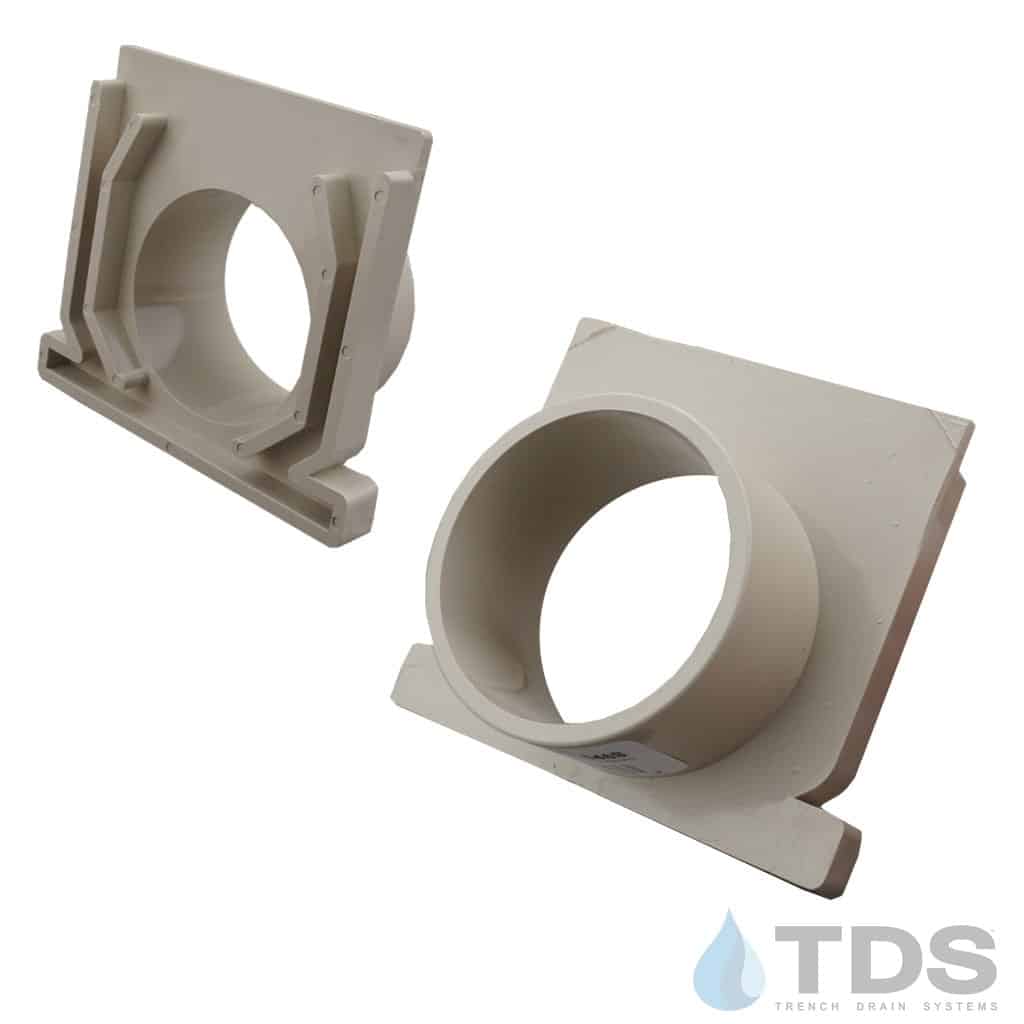

• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• Grates


Each extension kit includes:

• Channel(s) (in 3′ or 6′ lengths)
• Coupler
• Grates
• Locking Devices

The 3' and 6' Extension kits are intended to add on to standard kits and do not include the end cap/outlet. They include grate(s), channel(s), locking devices, and a coupler. Additional parts are sold separately if it is intended to be a stand-alone kit.
