Kit includes:

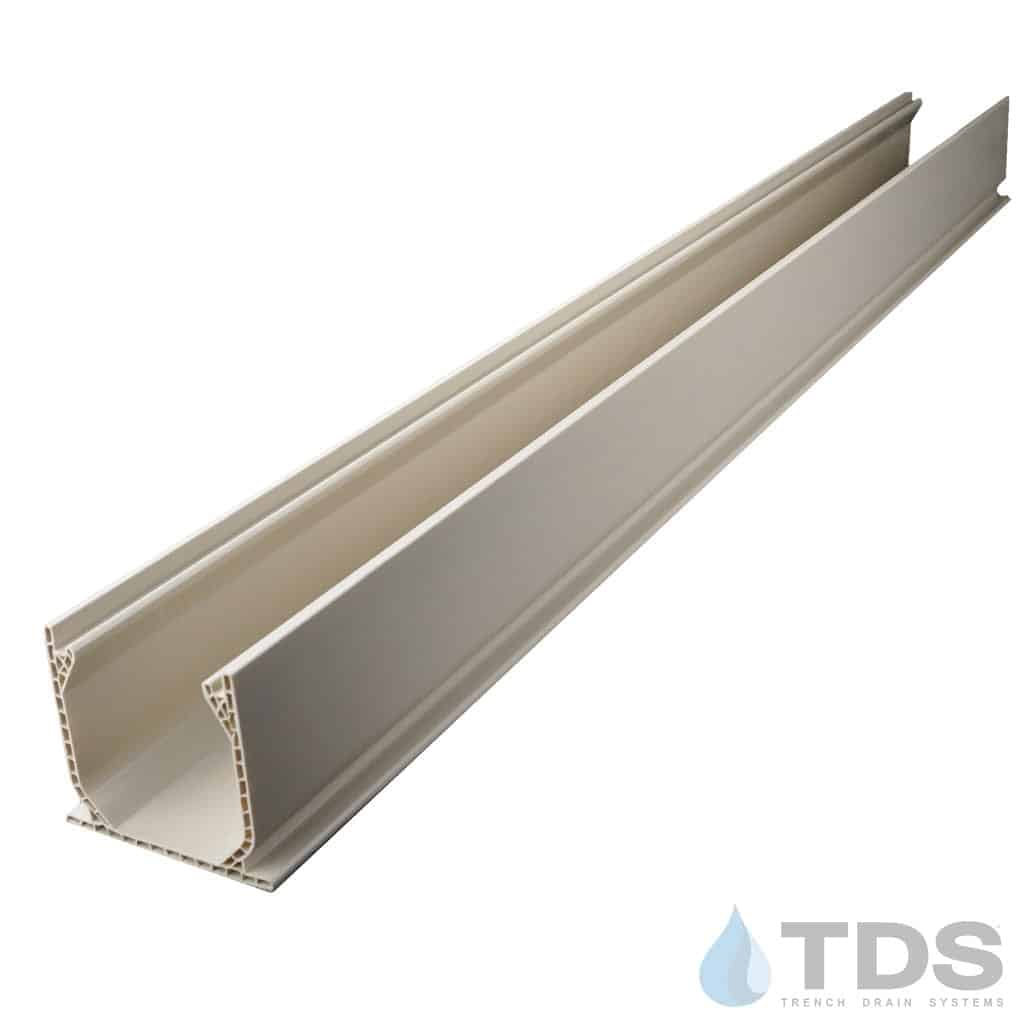

NDS 500S Channel (1) for every 6ft ordered

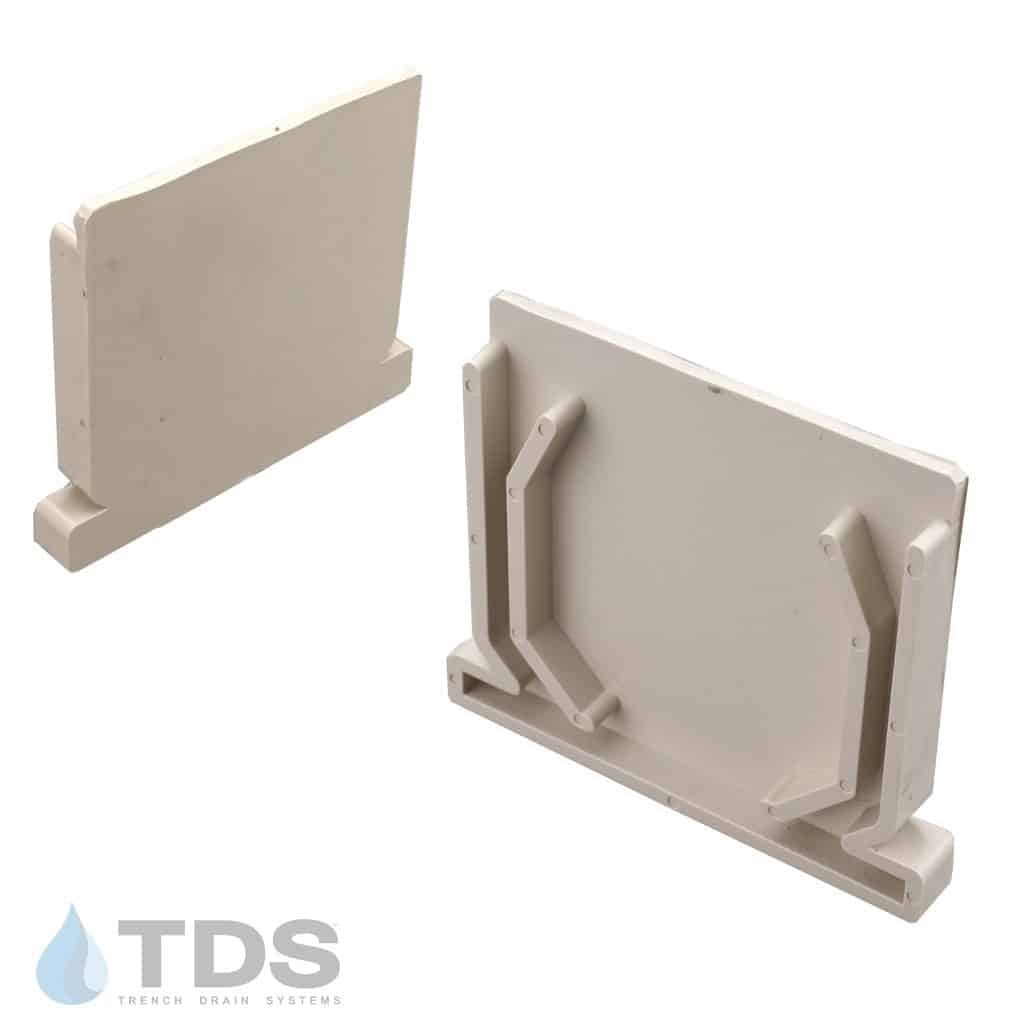

NDS 547S End cap (1)

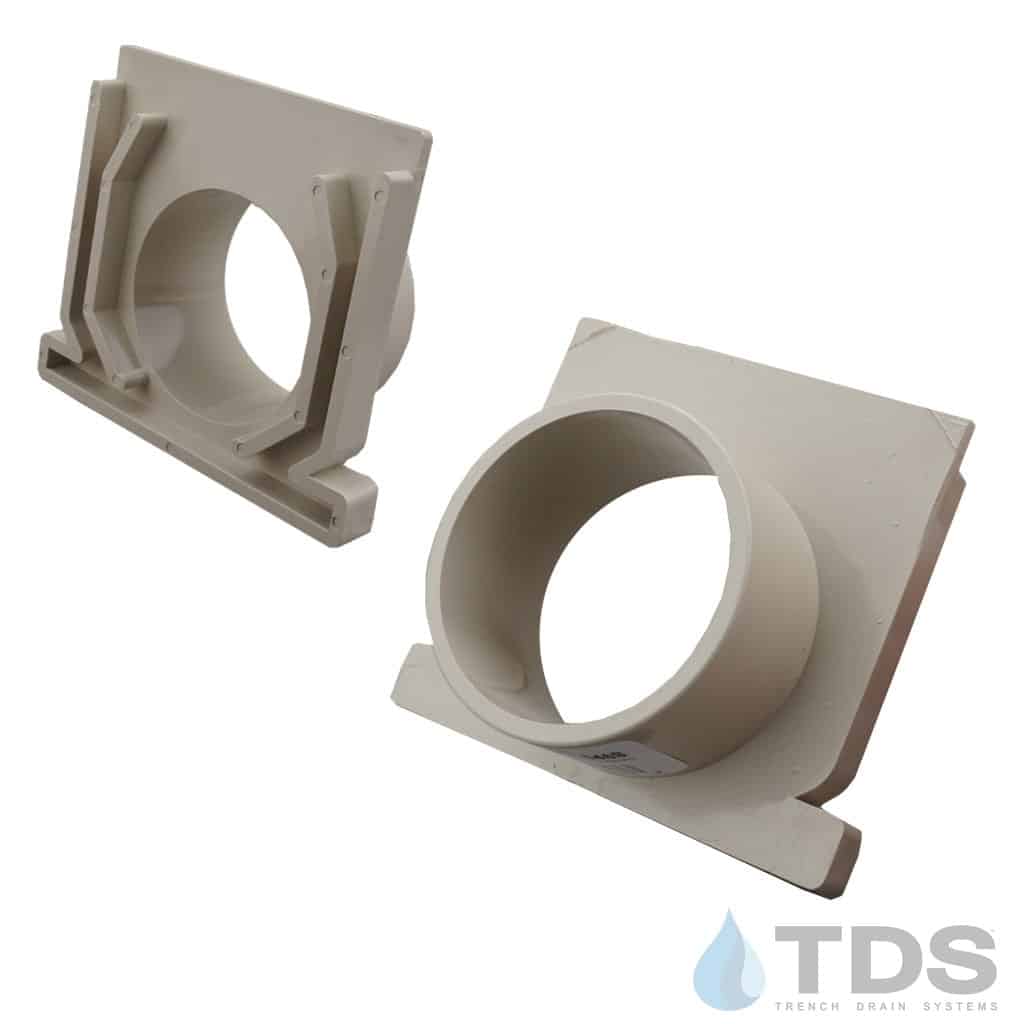

NDS 546S End outlet (1)

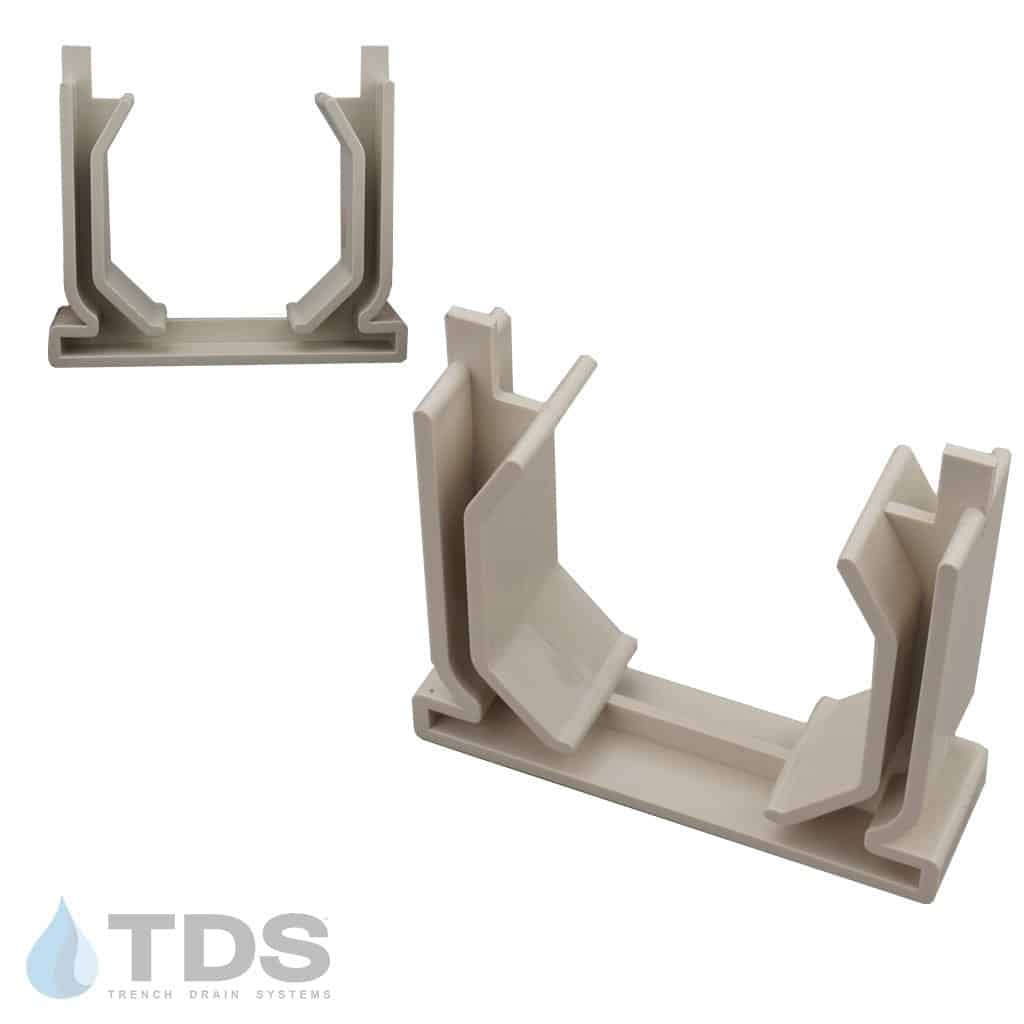

NDS 548S Coupler (1) for each channel over 6ft
Iron Age Interlaken Grate IA-INTER-0311-BF / IN3-11I01

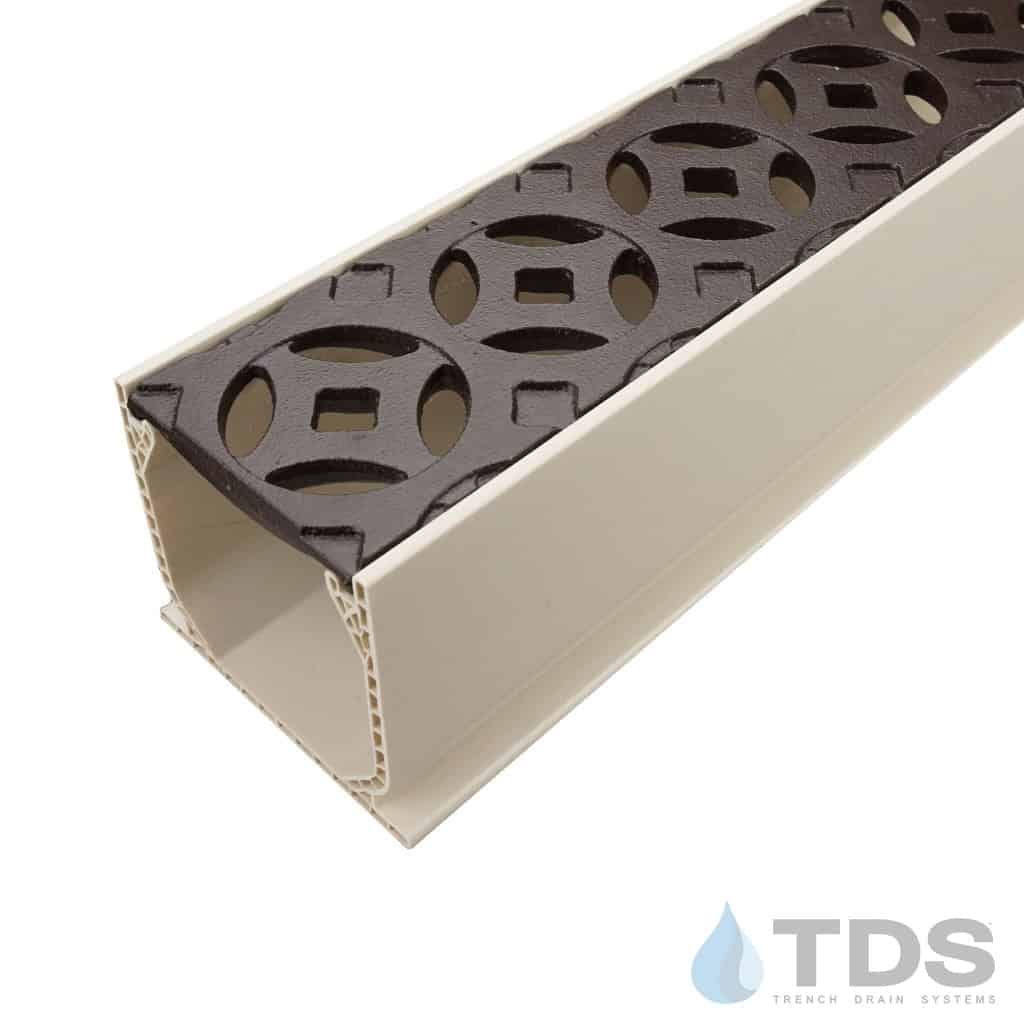

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a cast iron grate in the Interlaken pattern by Iron Age with a TDS Baked on Oil Finish.
Available online in 6, 12, 18 and 24-foot kits; custom system lengths are available by calling 610-638-1221.
NOTE: The 3ft option (SKU# MCKS-IA-INTER-BF-EXT3) is an extension and does not include an end cap or end outlet. It only includes a 3ft channel section, 3 grates and a coupler.
* Interlaken grates are 11″ long. The channel will need to be trimmed to accommodate the grate length. Actual install kit lengths are listed below:
- 6 feet kit (actual kit length 5′ 6″)
- 12 feet kit (actual kit length 11′ 11″)
- 18 feet kit (actual kit length 17′ 5″)
- 24 feet kit (actual kit length 23′ 10″)
Grate Specification Sheet

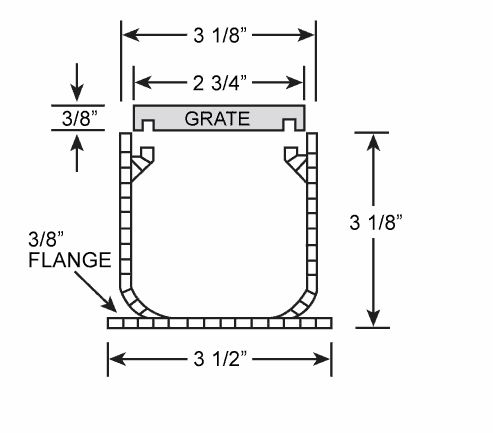

NDS Mini Channel Specifications
Mini Channel Installation Guide
Each kit includes:
- Channels (in 3′ or 6′ lengths)
- One End Cap
- One Outlet (compatible with SCH 40 pipe)
- Couplers (1 for each joint)
- Grates
What is Baked on Oil Finish (BoOF)? Click Here to learn more.
