NDS® 3" Gray Mini Channel Kit with TDS Bronze Age™ STAR Grate - Ductile Iron
NDS® 3" Gray Mini Channel Kit with TDS Bronze Age™ STAR Grate - Ductile Iron
PRODUCT DOCUMENTATION
-
DESCRIPTION
NDS® Mini Channel linear drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV-protected and manufactured from durable lightweight polyolefin plastic. This kit includes the heelproof and ADA-compliant TDS Bronze Age™ ductile iron grate in the Star pattern with a painted black finish (for shipping purposes only).
Available online in 6, 12, 18, and 24-foot kits; custom system lengths are available.
This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the specification sheet for details.
Specification Sheet BA-STAR-0312-D
Mini Channel Installation Guide
Each standard kit includes:
- Channels (in 3′ or 6′ lengths)
- One End Cap
- One Outlet (compatible with SCH 40 pipe)

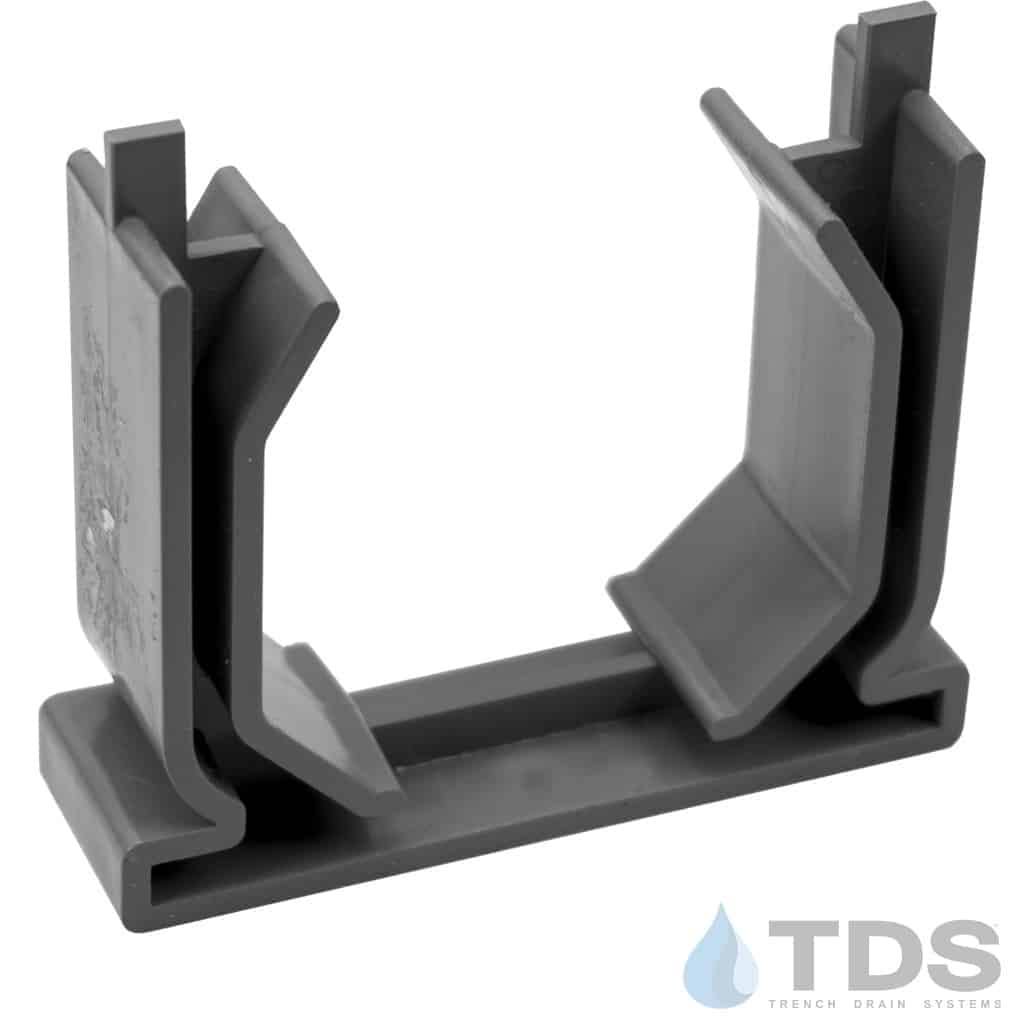

- Couplers (1 for each joint)
- Grates
Each extension kit includes:
- Channel(s) (in 3′ or 6′ lengths)
- Coupler
- Grates
- Locking Devices
The 3' and 6' Extension kits are intended to add on to standard kits and do not include the end cap/outlet. They include grate(s), channel(s), locking devices, and a coupler. Additional parts are sold separately if it is intended to be a stand-alone kit.
Large project? Request a Quote
Please note that all raw ductile/cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
