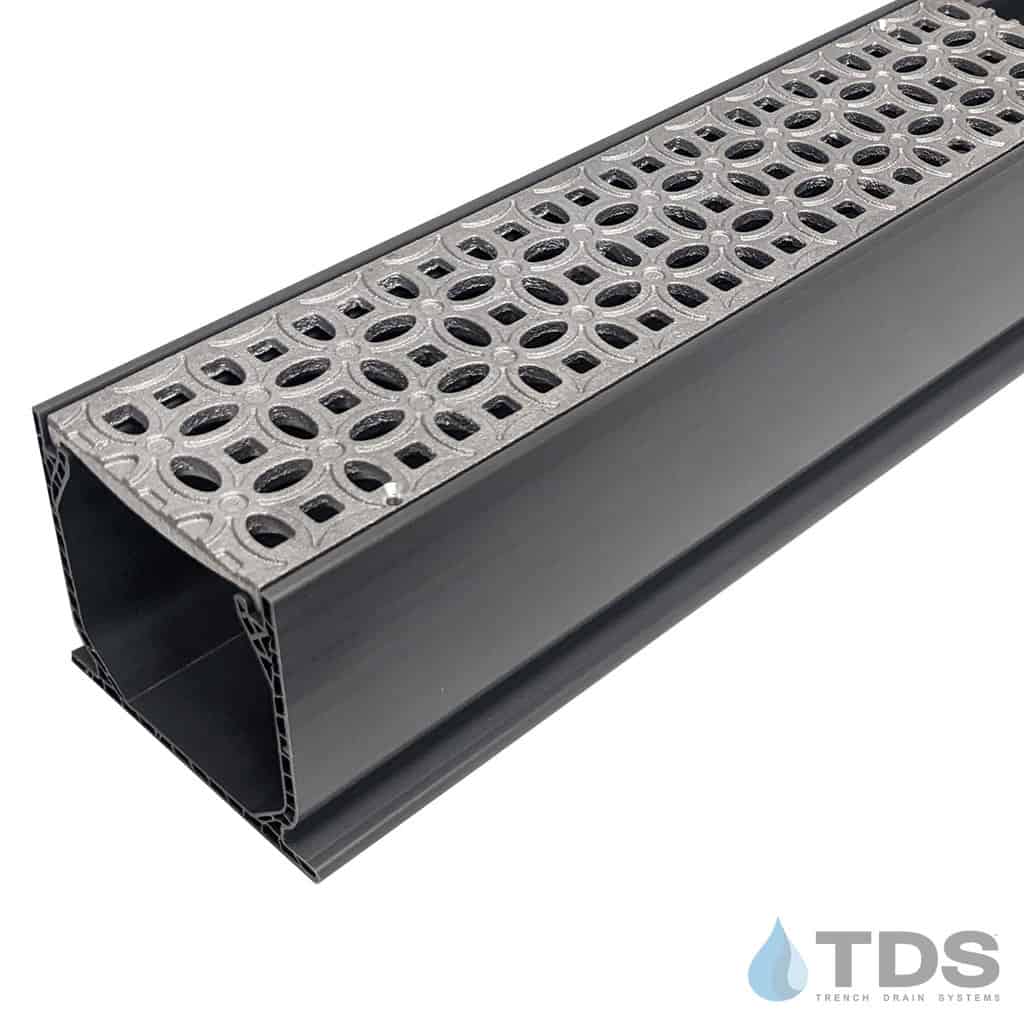

NDS 3" Gray Mini Channel Kit with TDS Bronze Age Luna Grate - Aluminum

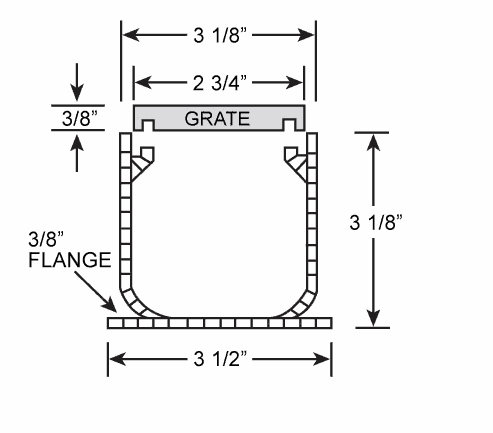

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Aluminum

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: LUNARIA

Grate Pattern Style: TRADITIONAL

Channel Material: Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

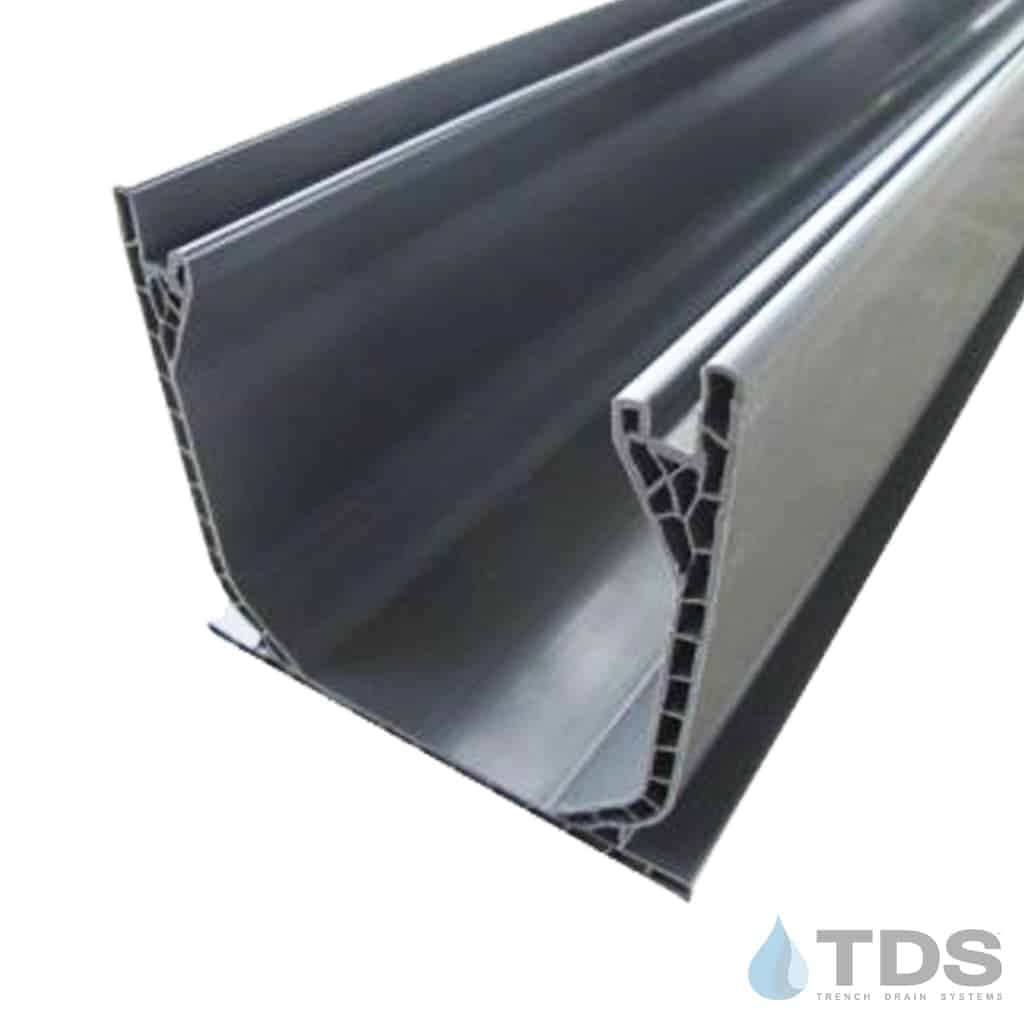

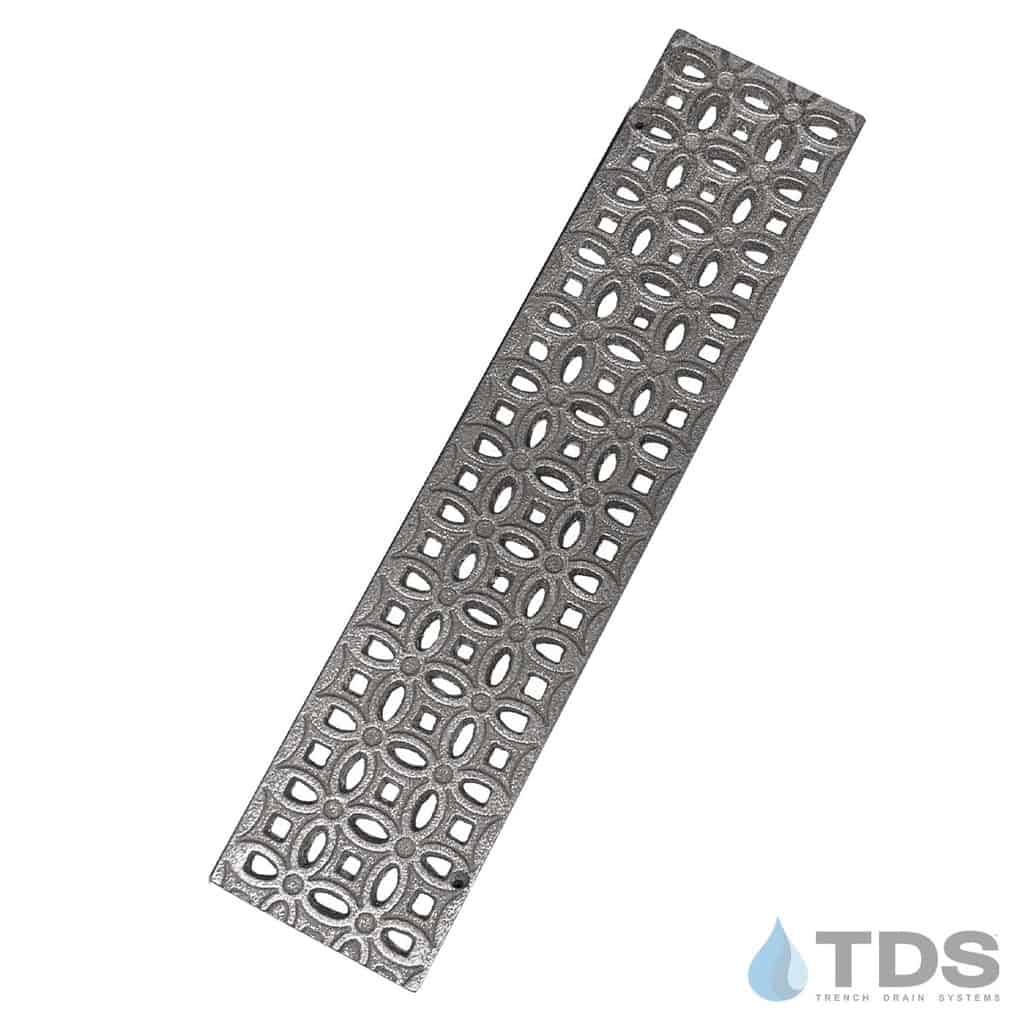

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has an aluminum grate in the Luna pattern by TDS Bronze Age. Made in the USA.

Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available by calling 610-638-1221.

Specification Sheet for BA-LUNA-0312

Mini Channel Installation Guide

The 3ft extension and the 6ft extension kits are intended to be an extension to the standard length kits and do not include the end cap/outlet. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

Each kit includes:

• Channels (in 3′ or 6′ lengths)

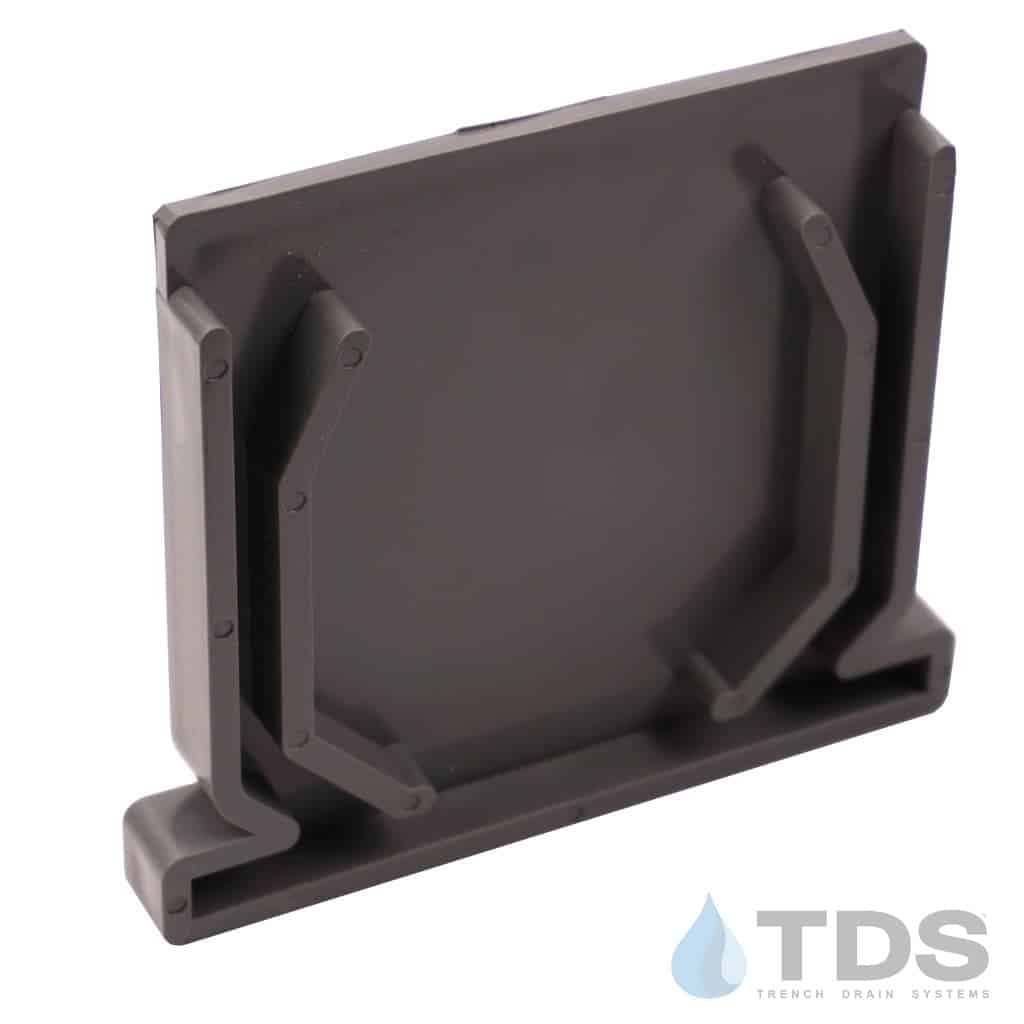

• One End Cap

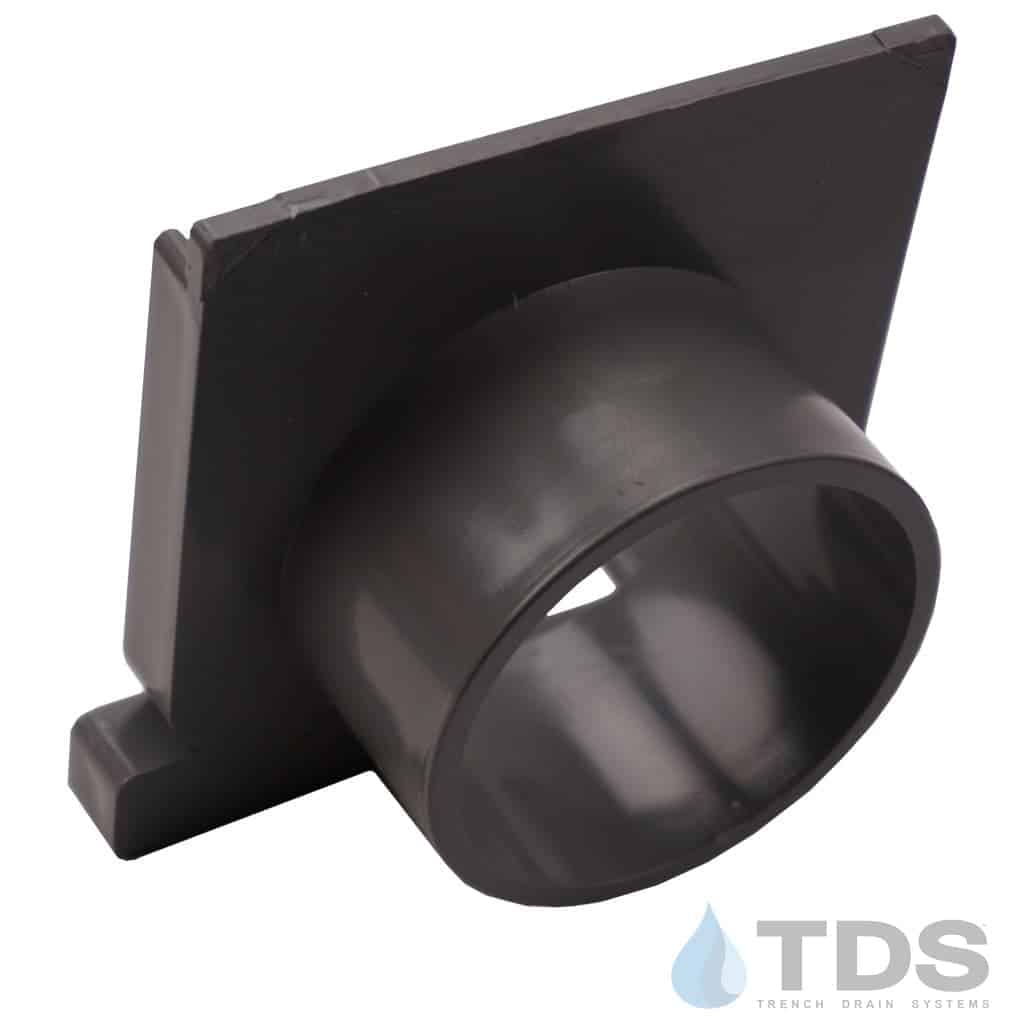

• One Outlet (compatible with SCH 40 pipe)

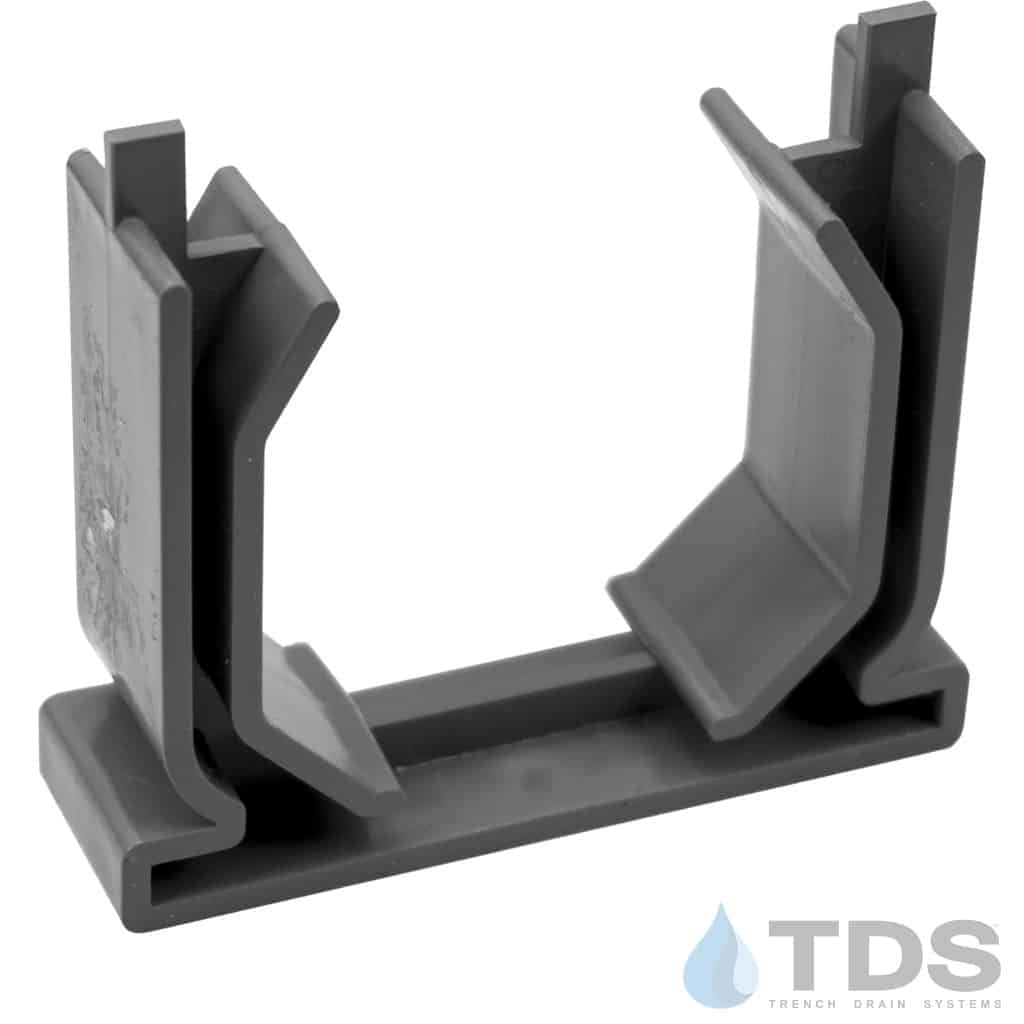

• Couplers (1 for each joint)
• Grates (1 for every 3′ of channel)
• Hold Down Screws (1 pkg per kit - 64 pcs)
