NDS 3" Gray Mini Channel Kit with TDS Bronze Age Cathedral Grate - Natural

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Bronze - Natural

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: CATHEDRAL

Grate Pattern Style: TRADITIONAL and PERFORATED

Channel Material: Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

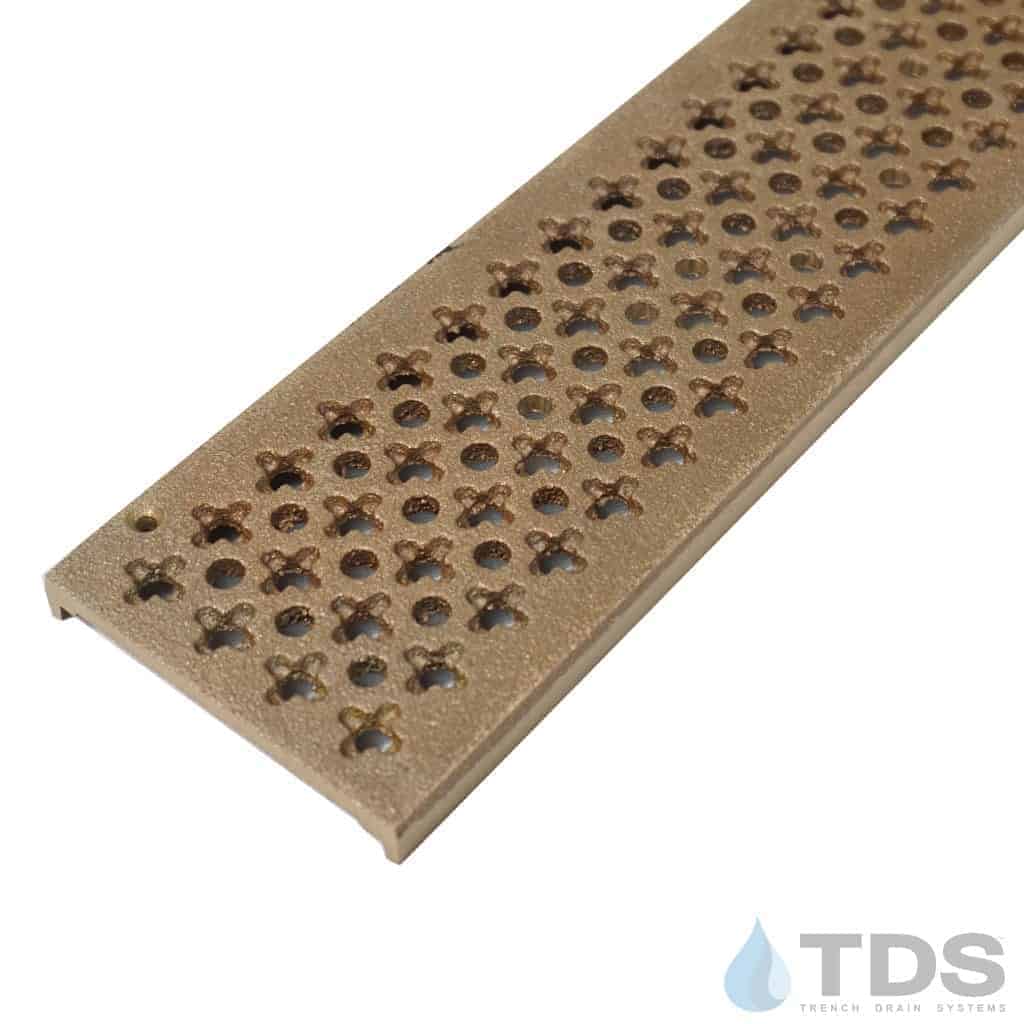

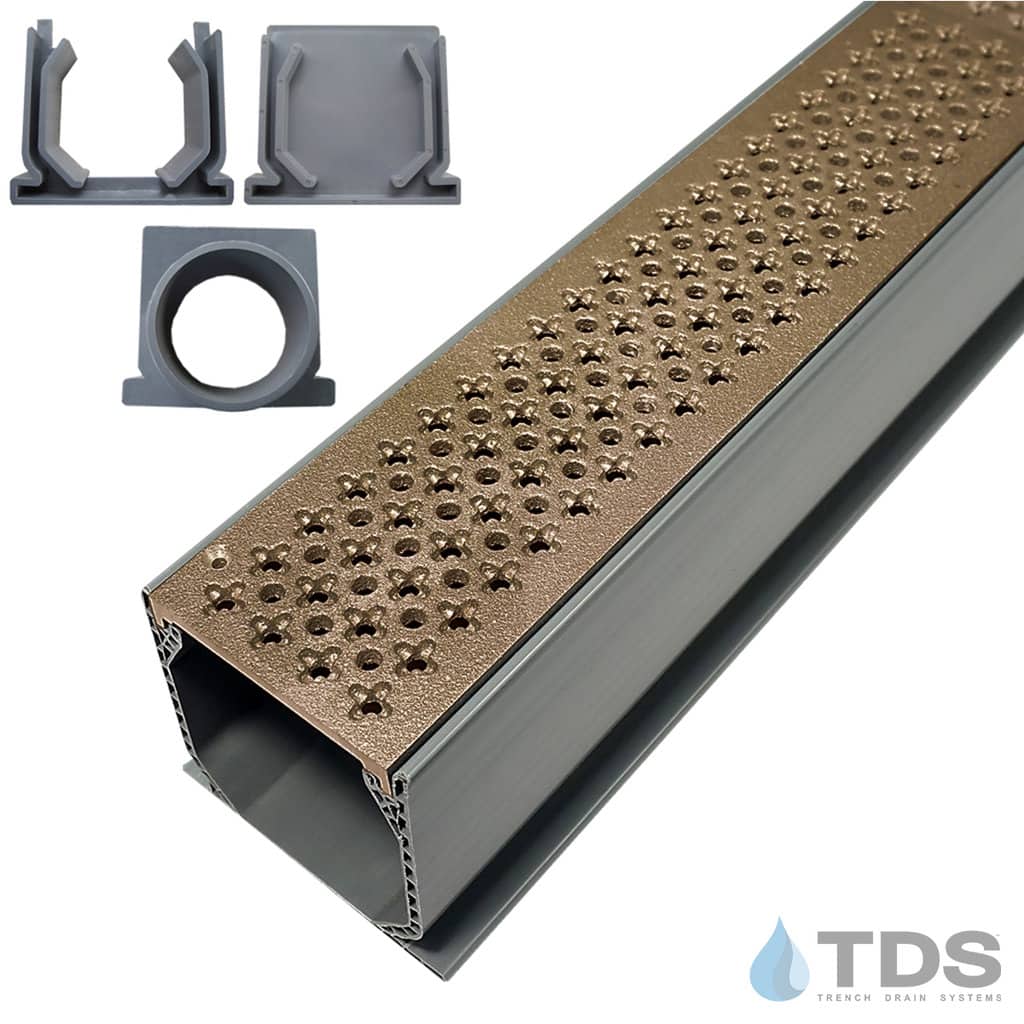

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a bronze grate in the Cathedral pattern by TDS Bronze Age with a natural finish.

Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available by calling 610-638-1221.

Grate Specification Sheet

Each standard kit includes:

• Channels (in 3′ or 6′ lengths)
• One End Cap
• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• Grates


Each extension kit includes:

• Channel(s) (in 3′ or 6′ lengths)
• Coupler
• Grates
• Locking Devices

The 3' and 6' Extension kits are intended to add on to standard kits and do not include the end cap/outlet. They include grate(s), channel(s), locking devices, and a coupler. Additional parts are sold separately if it is intended to be a stand-alone kit.

Large project? Request a Quote
