NDS 3" Gray Mini Channel Kit with NDS Slotted Grate - Black

NDS 3" Gray Mini Channel Kit with NDS Slotted Grate - Black

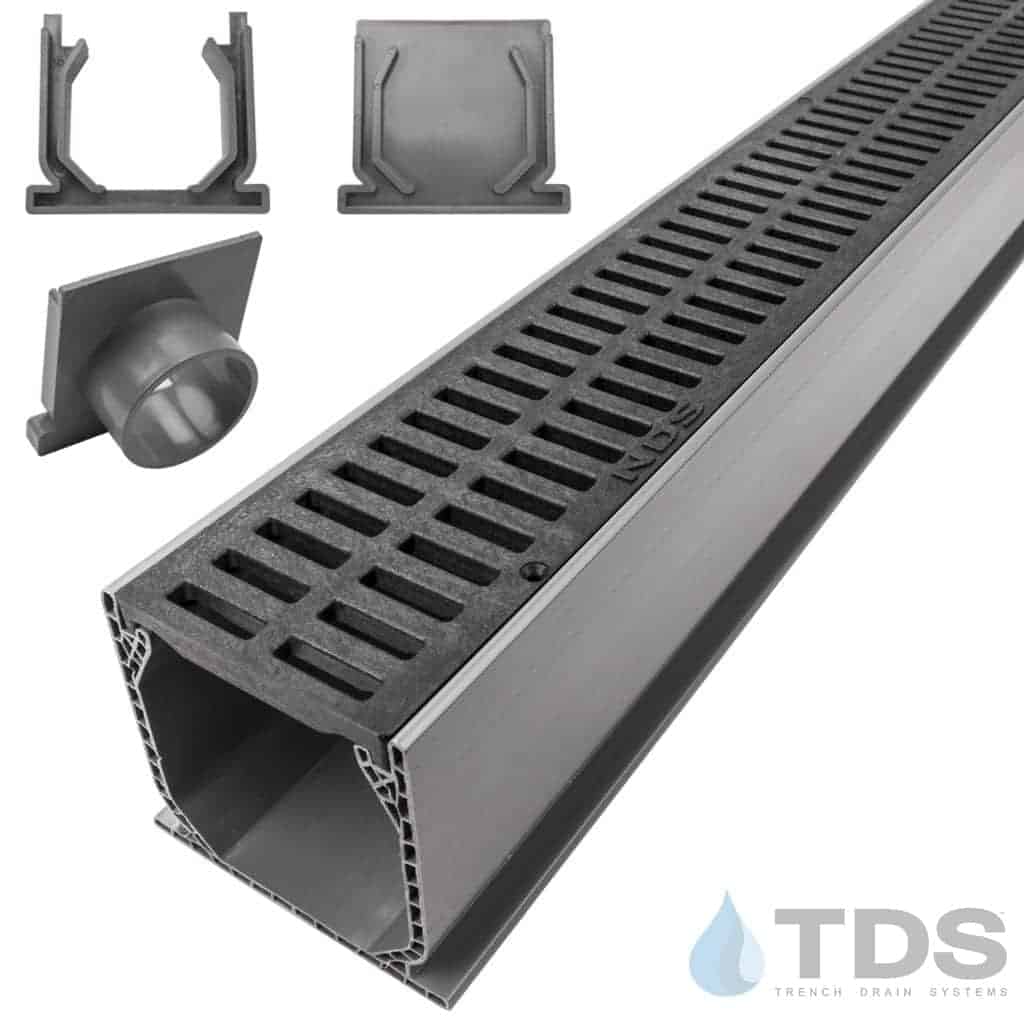

  • NDS Mini Channel with Black Slotted Grate

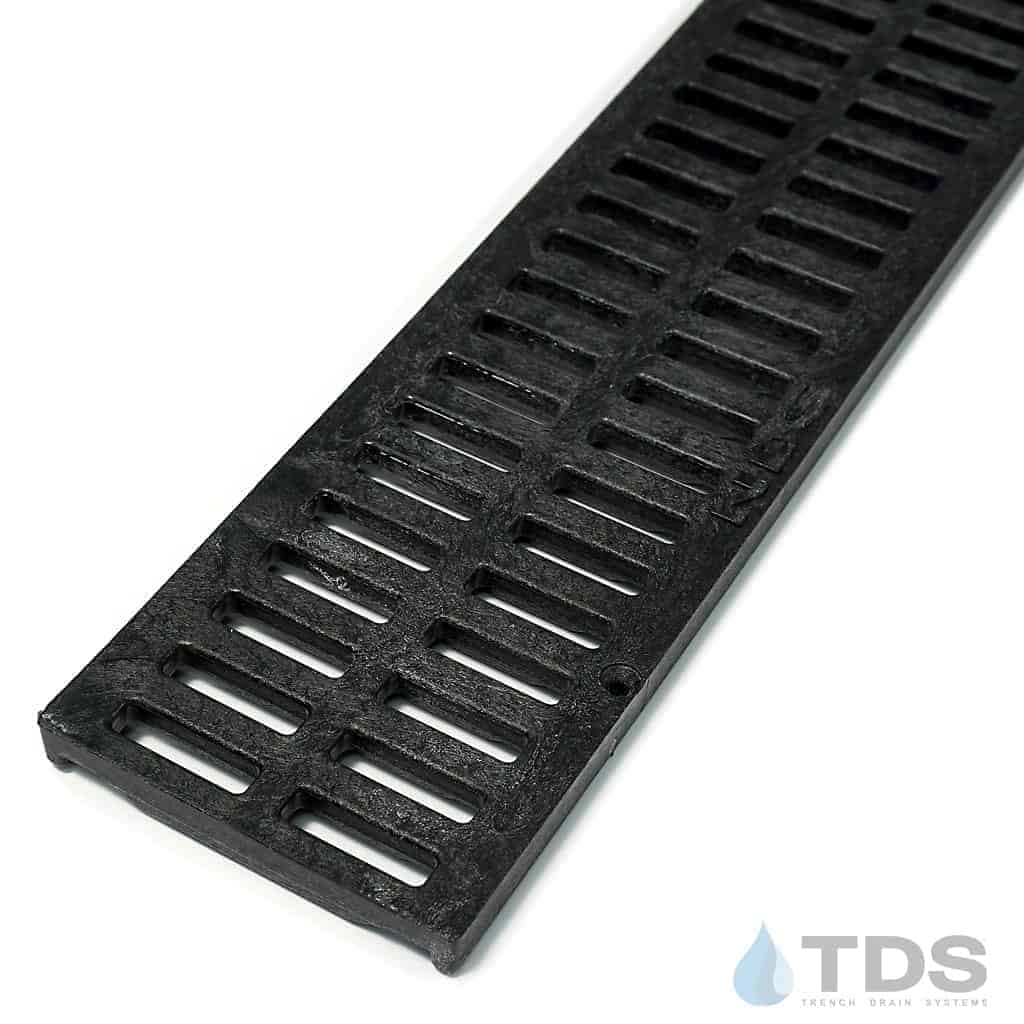

  • NDS543-black-slotted-grate-TDS

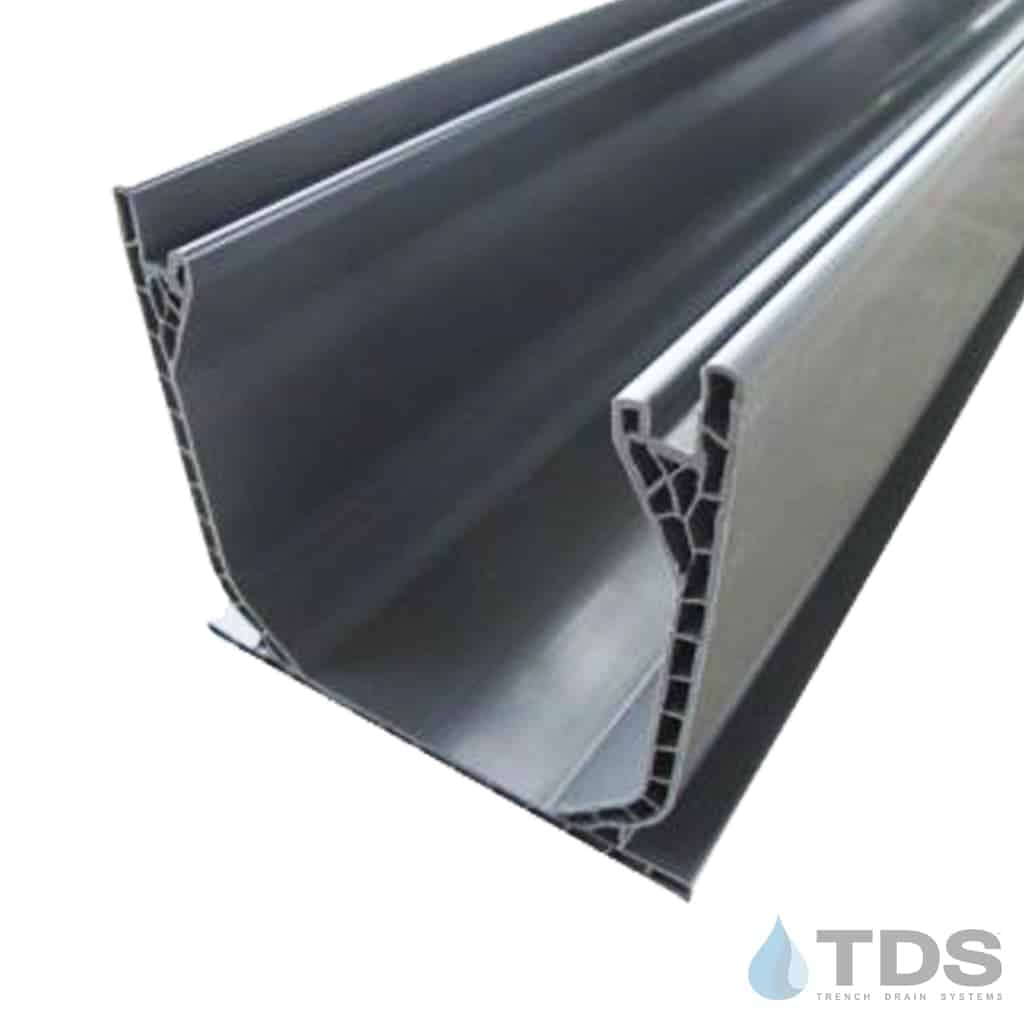

  • NDS Mini Channel - Grey

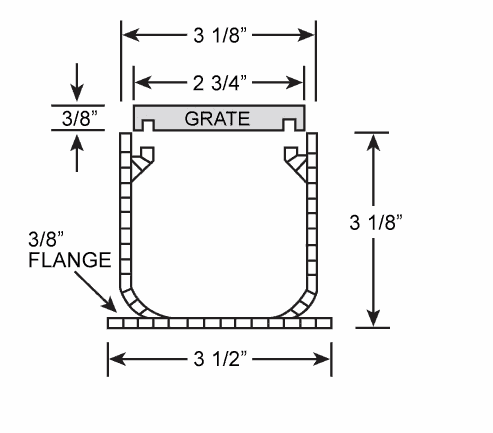

  • mini-channel-side-spec-profile

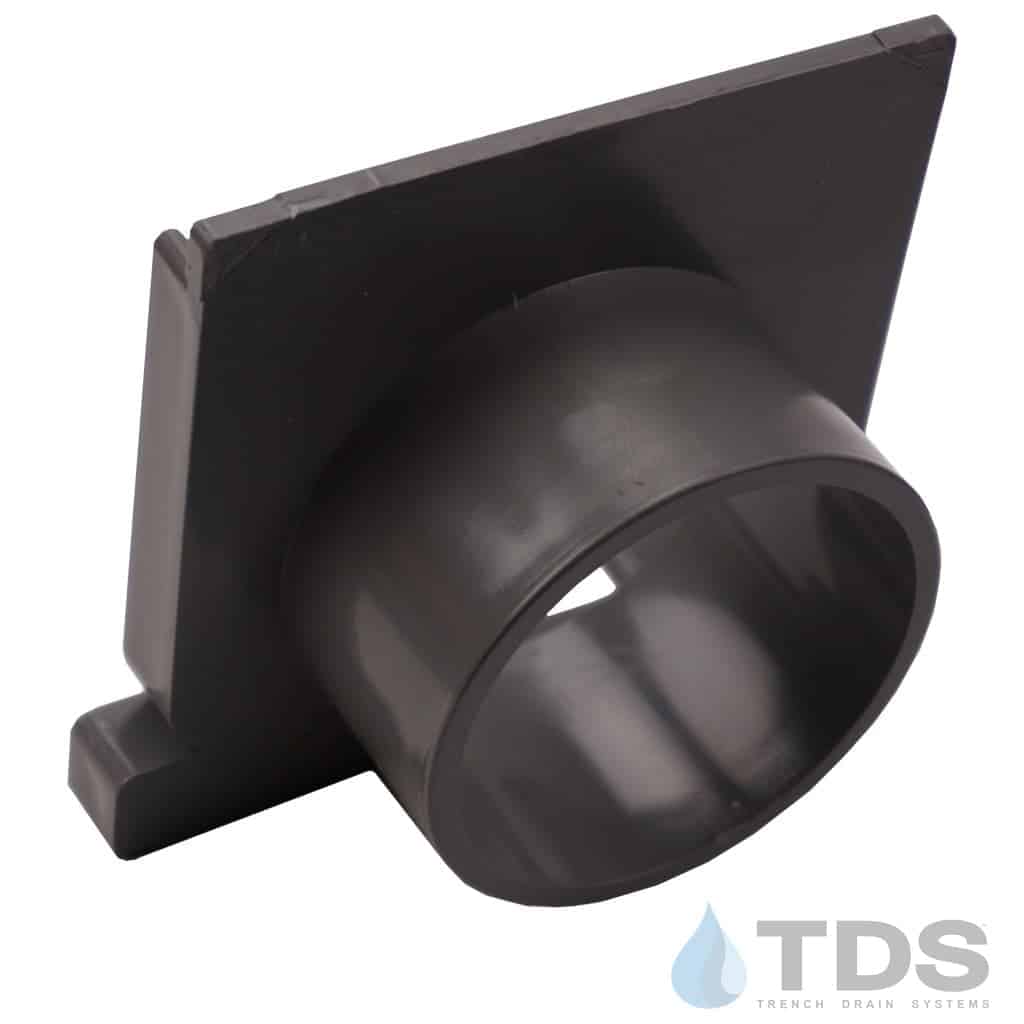

  • NDS-mini-546-TDSdrains outlet

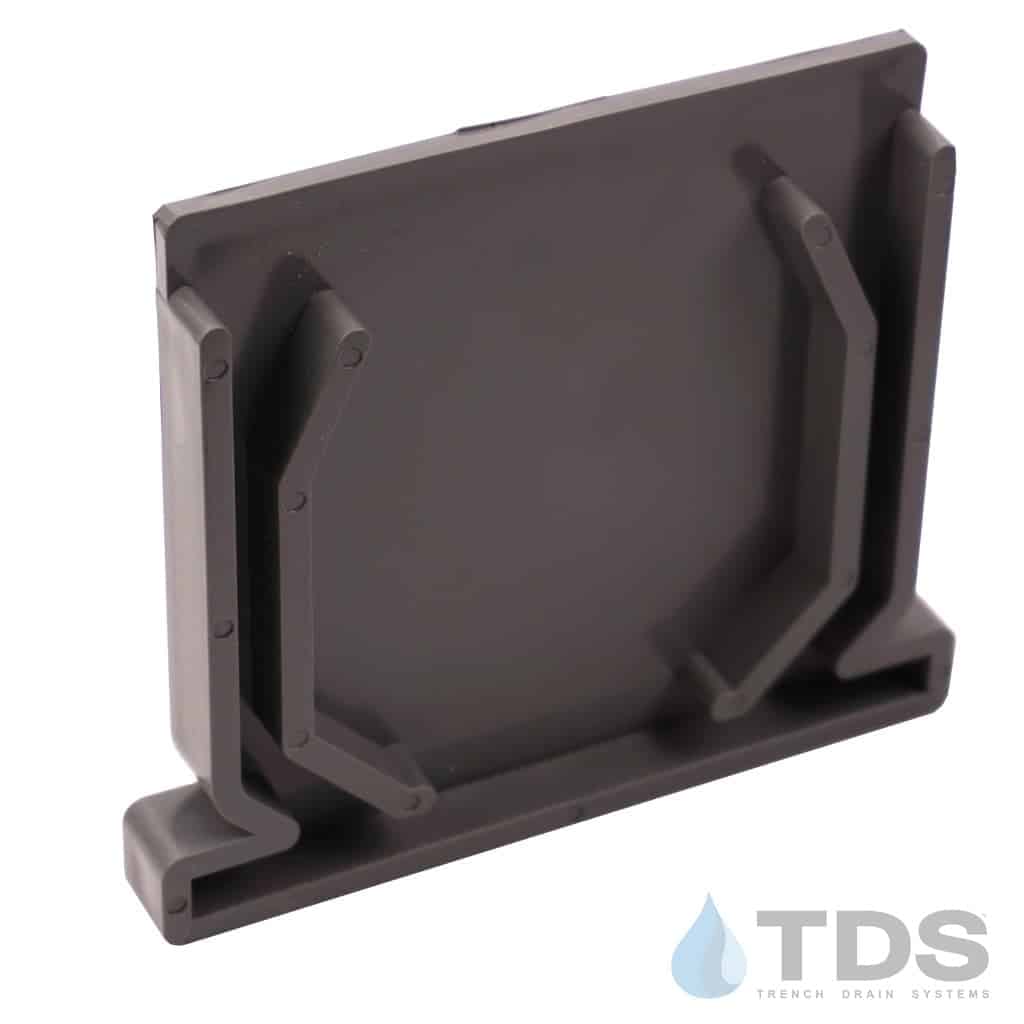

  • NDS-mini-547-TDSdrains end cap

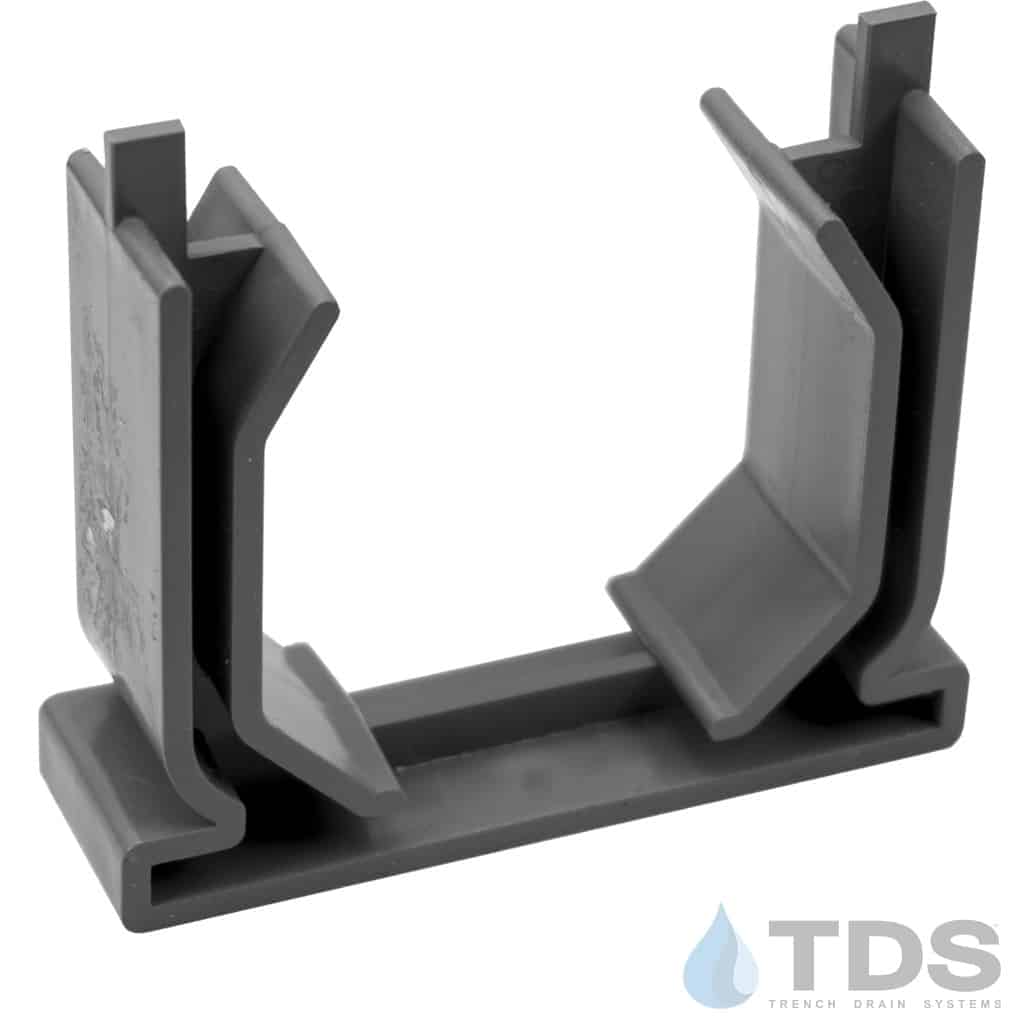

  • NDS-mini-548-TDSdrains NDS coupler
  • Made in America
1 8

Drainage Kits

MCK-543-EXT6

  • Kit includes:
  • NDS 500 Channel (1) for every 6ft ordered
  • NDS 547 End cap (1)
  • NDS 546 End outlet (1)
  • NDS 548 Coupler (1) for each channel over 6ft
  • NDS 529 Grate hold-down (1pkg per kit – 64 pcs)
  • NDS 543 Slotted Black Plastic Grate

    • $160.37 USD
    $160.37 USD
    Sale Sold out
    Kit Length
    View full details

    • ADDITIONAL INFORMATION

      Grate Width: 2.75" for NDS Mini Channel

      Grate Thickness: 0.38"

      Grate Material / Color / Finish: Plastic/HDPE - Black

      Manufacturer: NDS

      System: Mini Channel

      Grate Load Class: Class A and Class B

      Grate Pattern: ACANTHUS

      Grate Pattern Style: NATURE

      Channel Material: Plastic - (PP, HDPE, PE) - Gray

      Channel Frame / Edging: Frame - None and Edging - None

      Application: Residential and Sports Complex - Recreational

    • DESCRIPTION

      Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a polyolefin grate in the Slotted pattern by NDS in Black.

      Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available by calling 610-638-1221.
