Application: Decorative, Residential, and Sports Complex - Recreational
DESCRIPTION

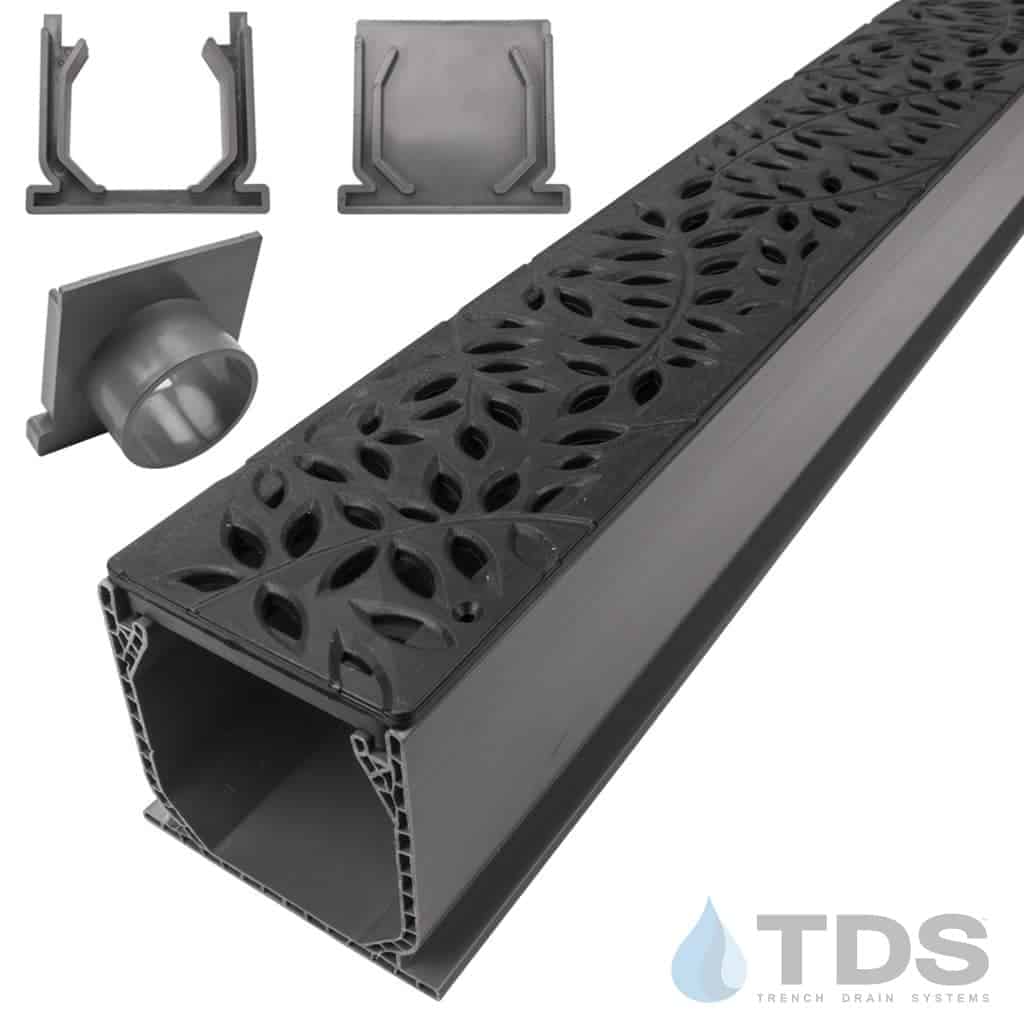

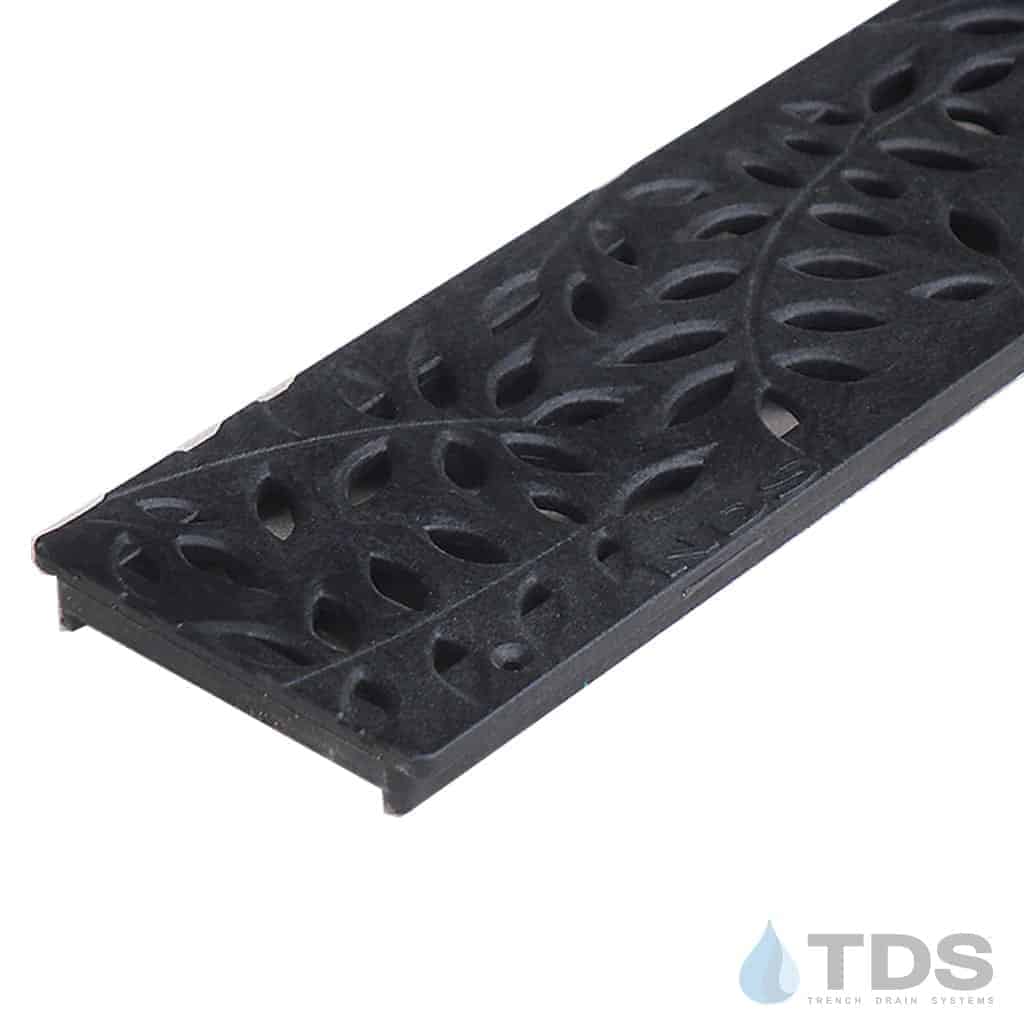

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a polyolefin grate in the Botanical pattern by NDS in Black. Note: The Botanical grate overlaps and covers the channel's top edge.
Available online in 6, 12, 18 and 24 foot kits; custom system lengths are available by calling 610-638-1221.
Each standard kit includes:

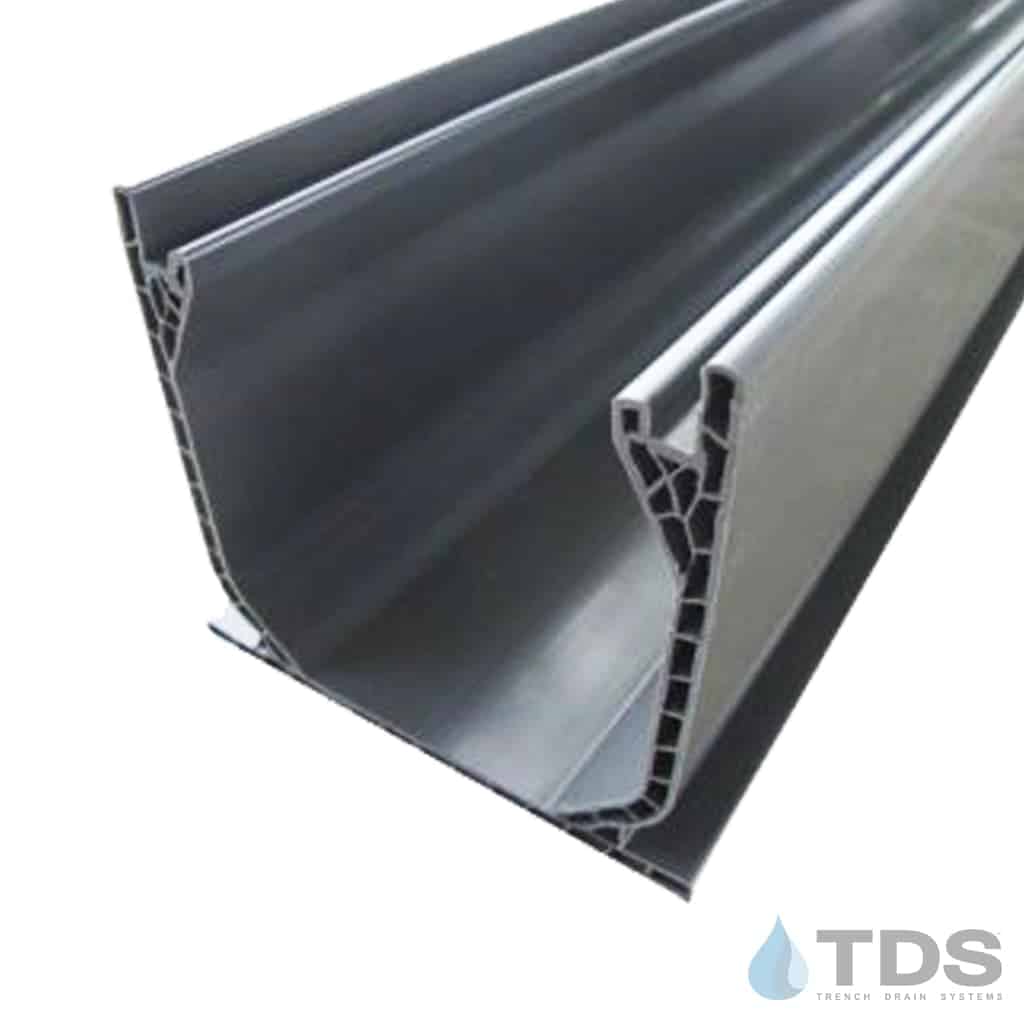

Channels (in 3′ or 6′ lengths)

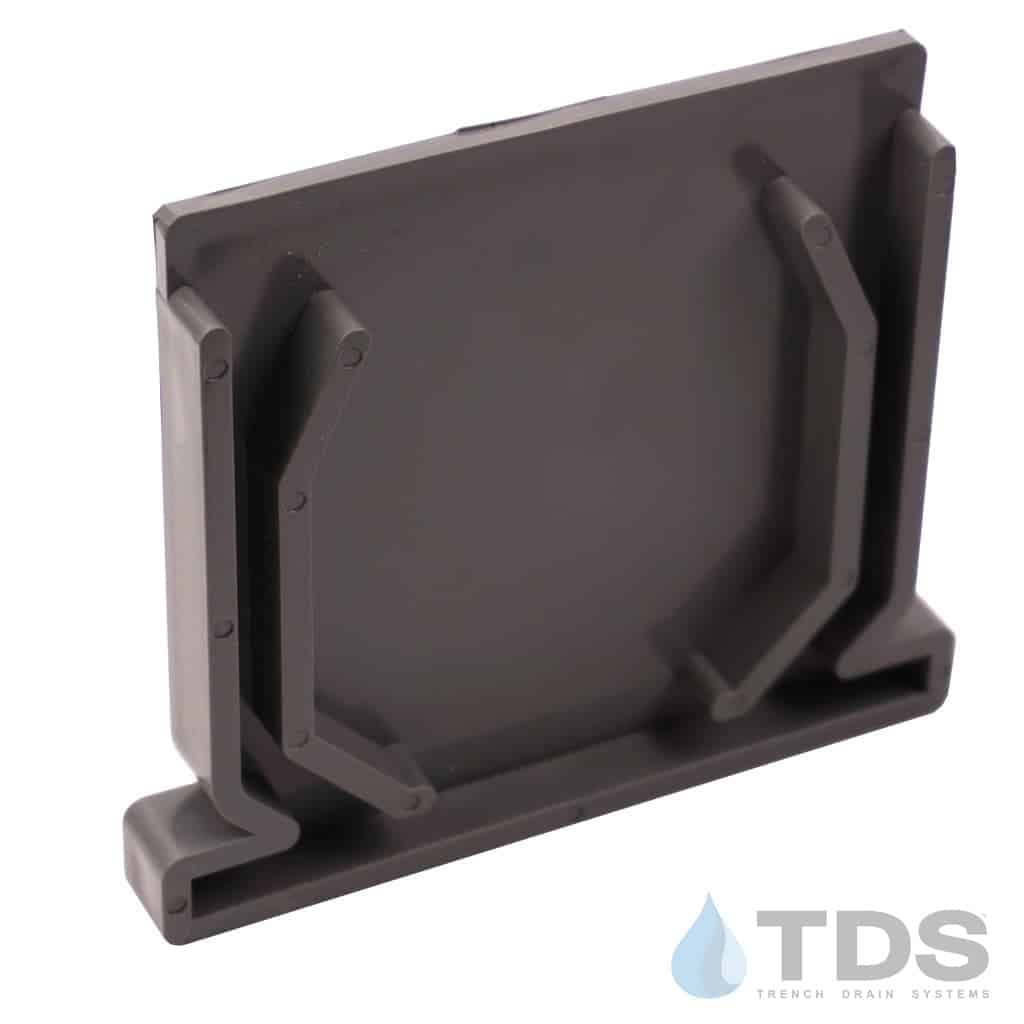

One End Cap

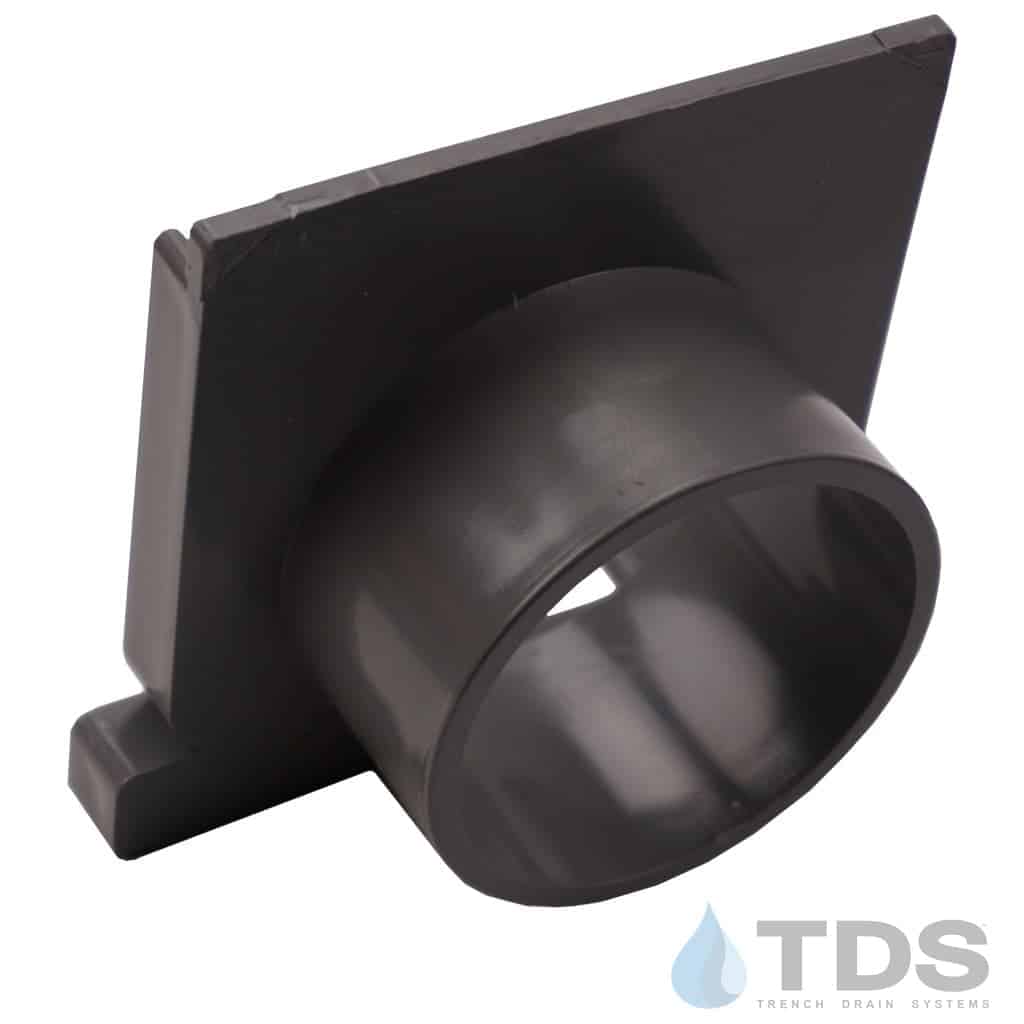

One Outlet (compatible with SCH 40 pipe)

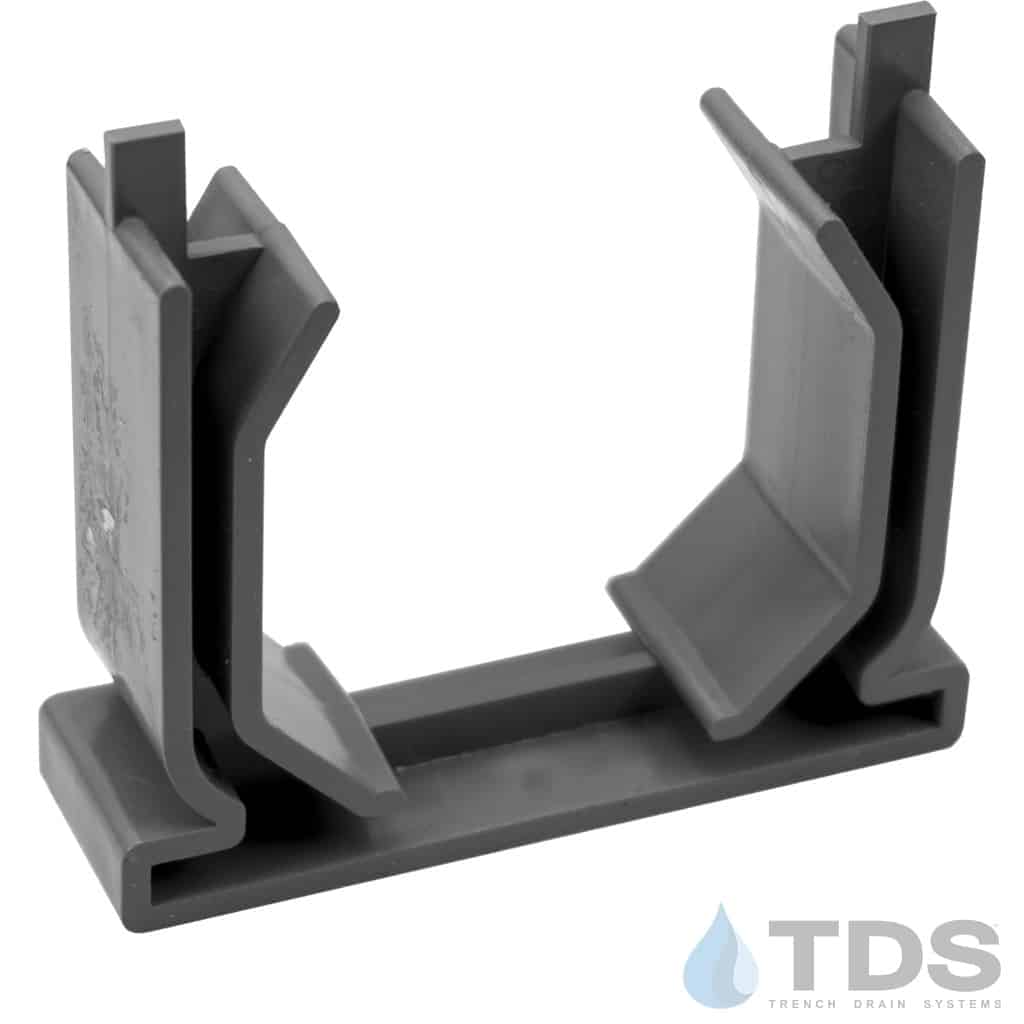

Couplers (1 for each joint)
Grates
Each extension kit includes:
Channel(s) (in 3′ or 6′ lengths)
Coupler
Grates
Locking Devices
The 3' and 6' Extension kits are intended to add on to standard kits and do not include the end cap/outlet. They include grate(s), channel(s), locking devices, and a coupler. Additional parts are sold separately if it is intended to be a stand-alone kit.
