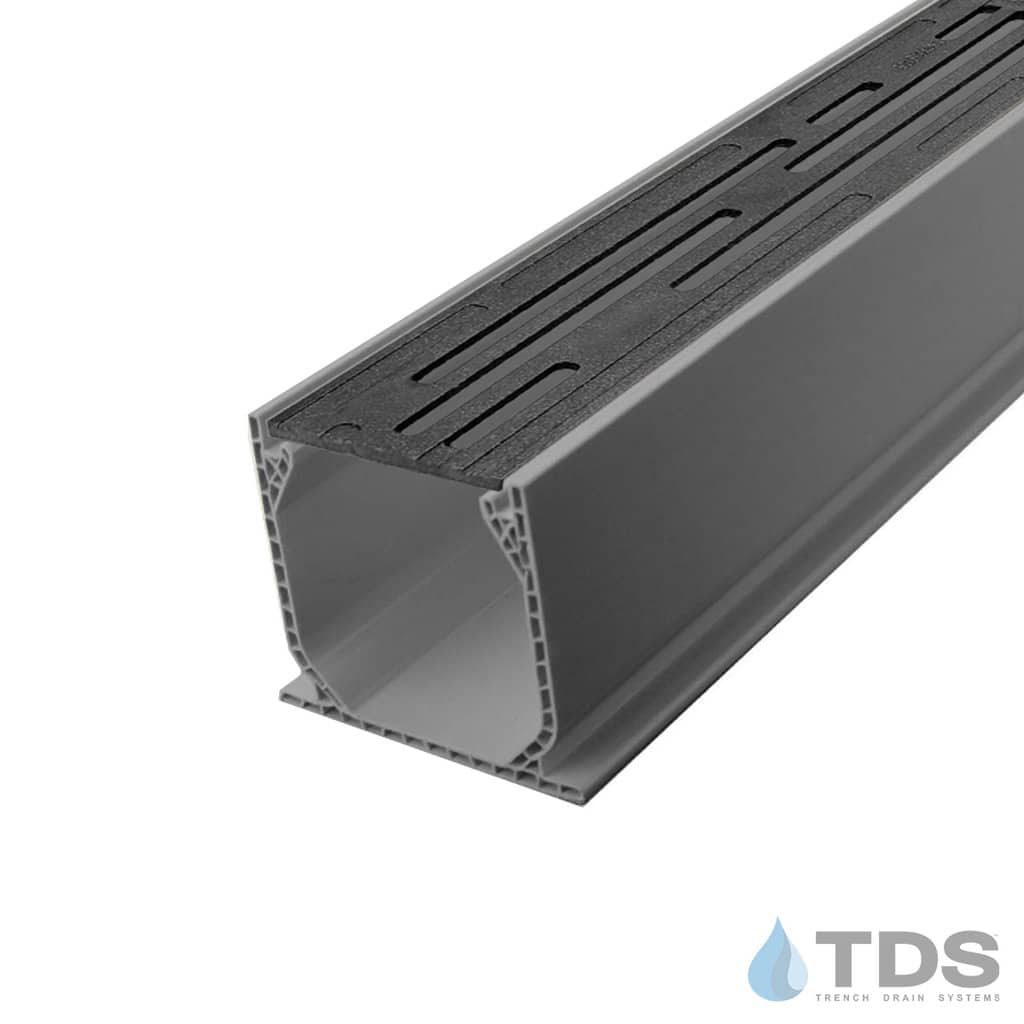

NDS 3″ Gray Mini Channel Kit with Iron Age Rain Grate – RAW

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS and Iron Age Designs

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: ACANTHUS

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

NDS Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin. This kit has a cast iron grate in the Rain pattern by NDS with a Natural Finish.

Available online in 6, 12, 18 and 24-foot kits; custom system lengths are available by calling 610-638-1221.

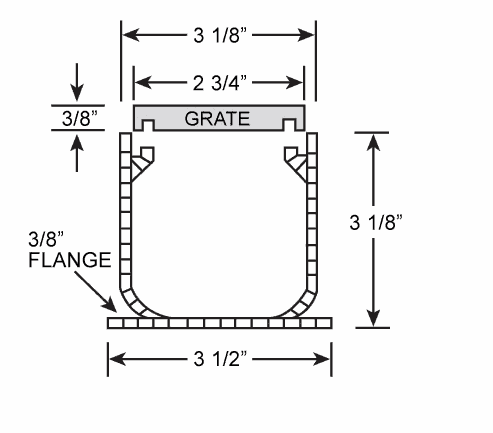

NDS Mini Channel Specifications

Mini Channel Installation Guide

Each kit includes:

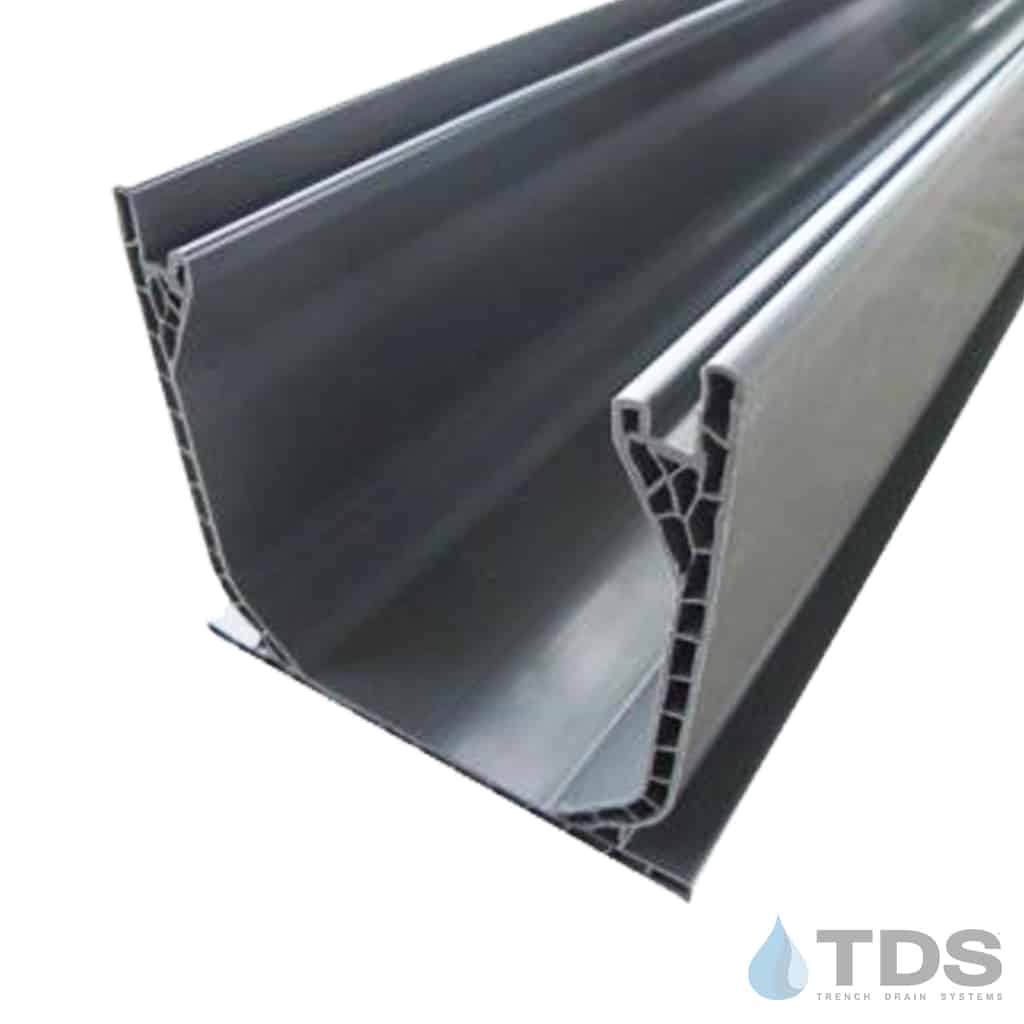

• Channels (in 3′ or 6′ lengths)

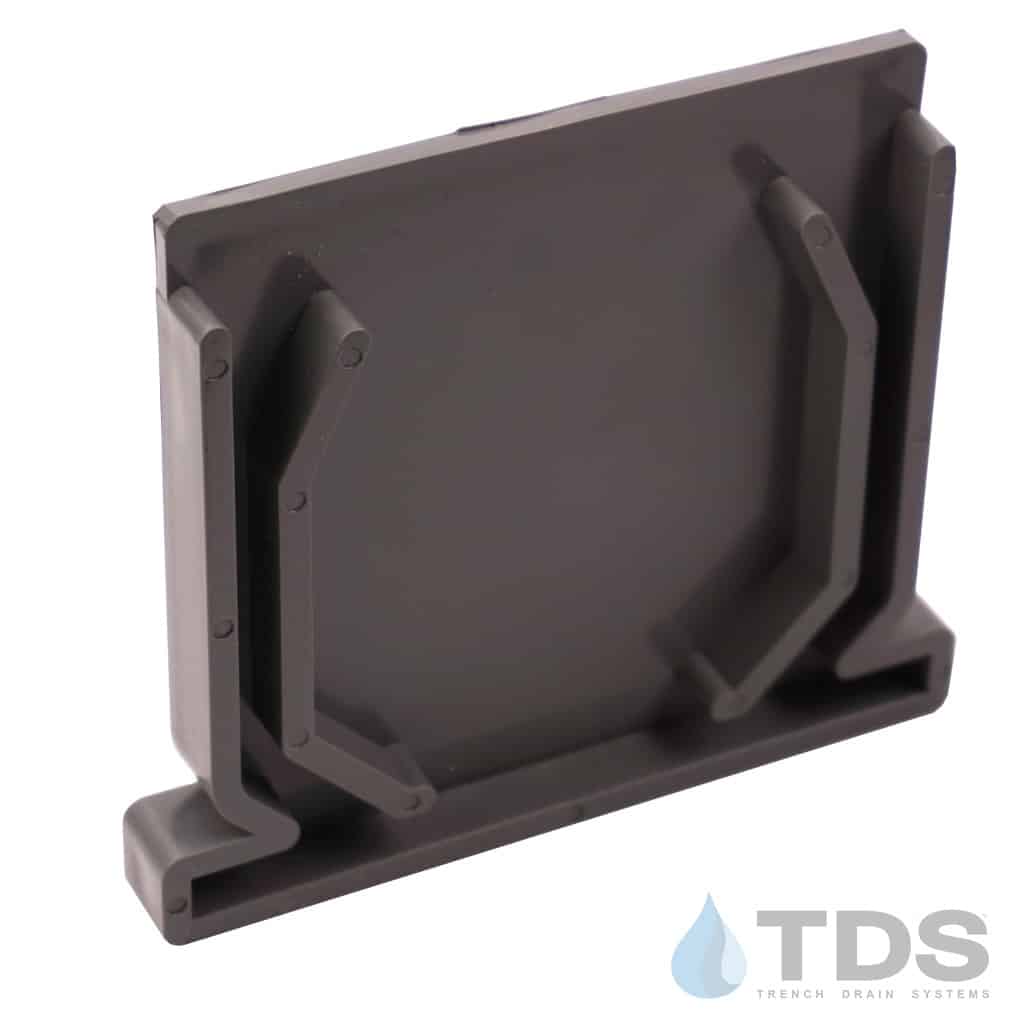

• One End Cap

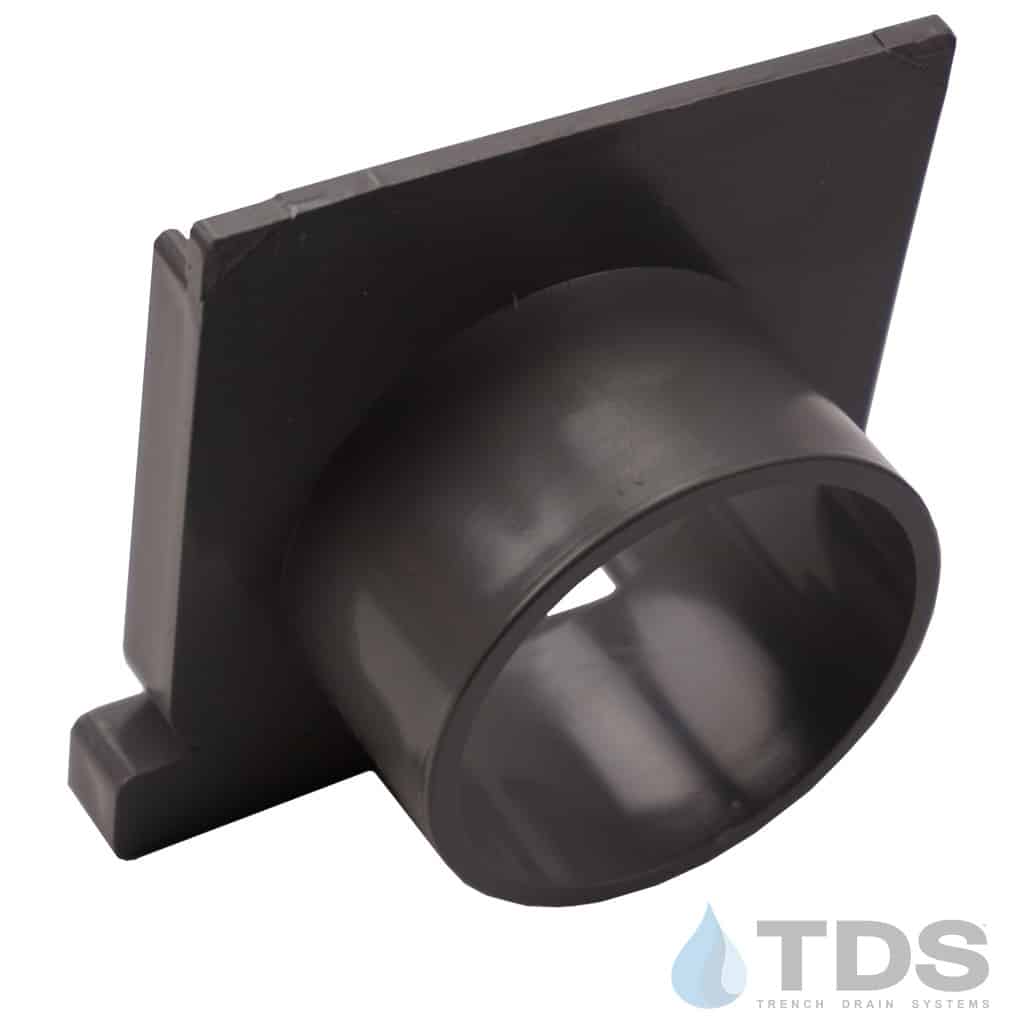

• One Outlet (compatible with SCH 40 pipe)

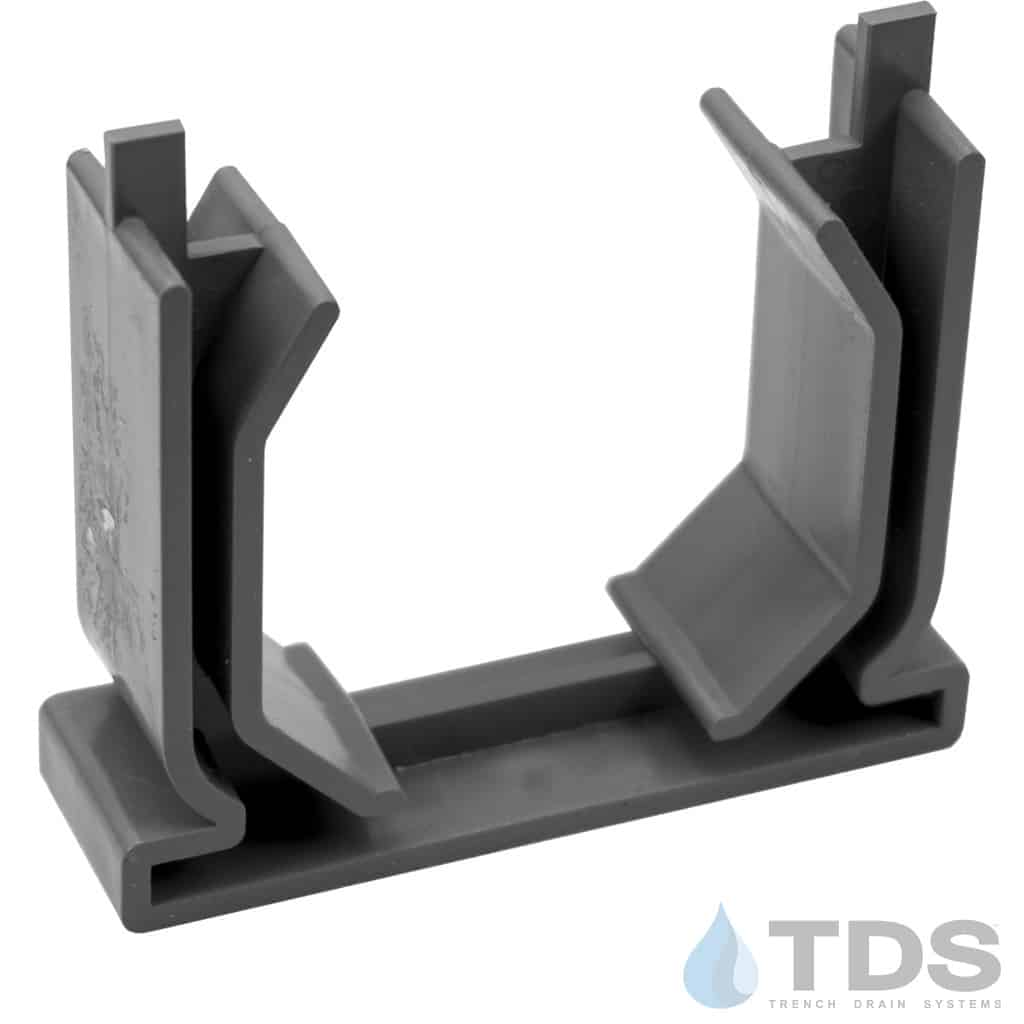

• Couplers (1 for each joint)

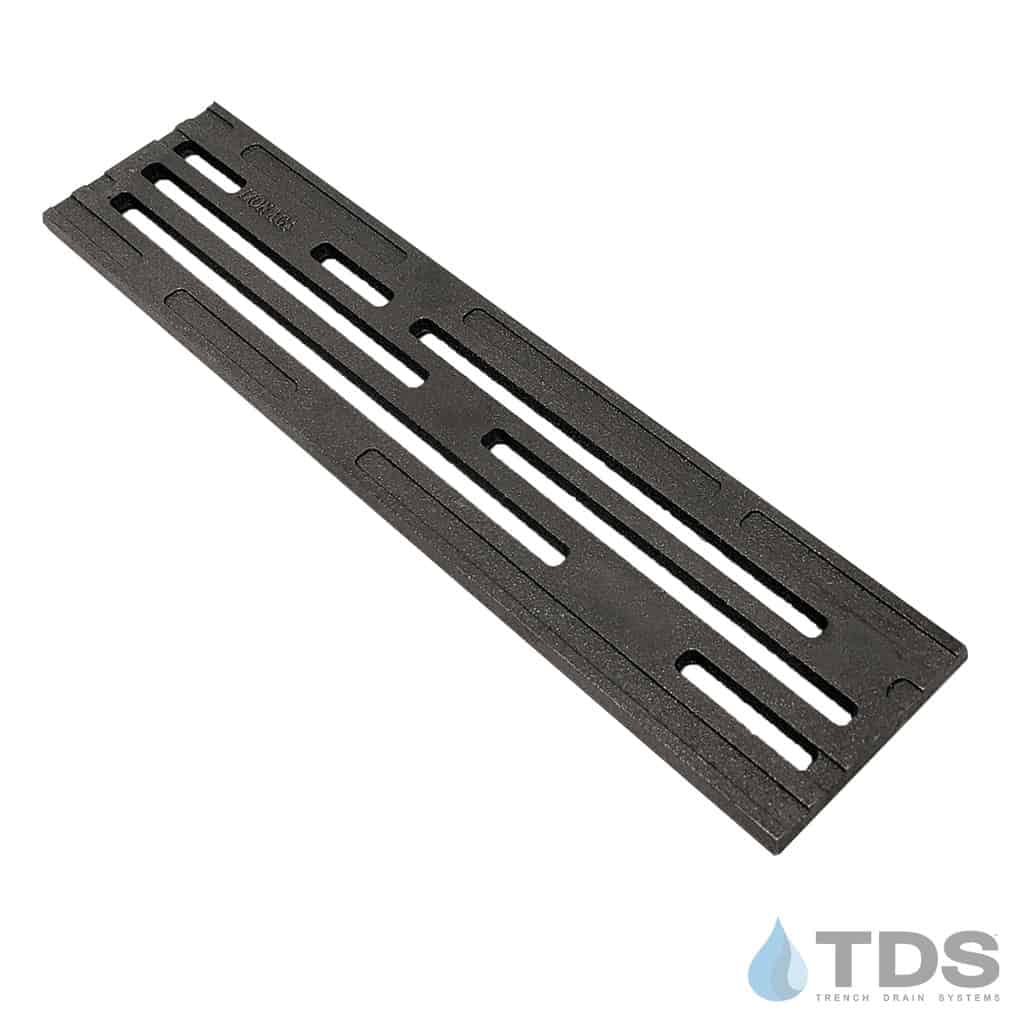

• Grates

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BoOF)? Click Here to learn more.
