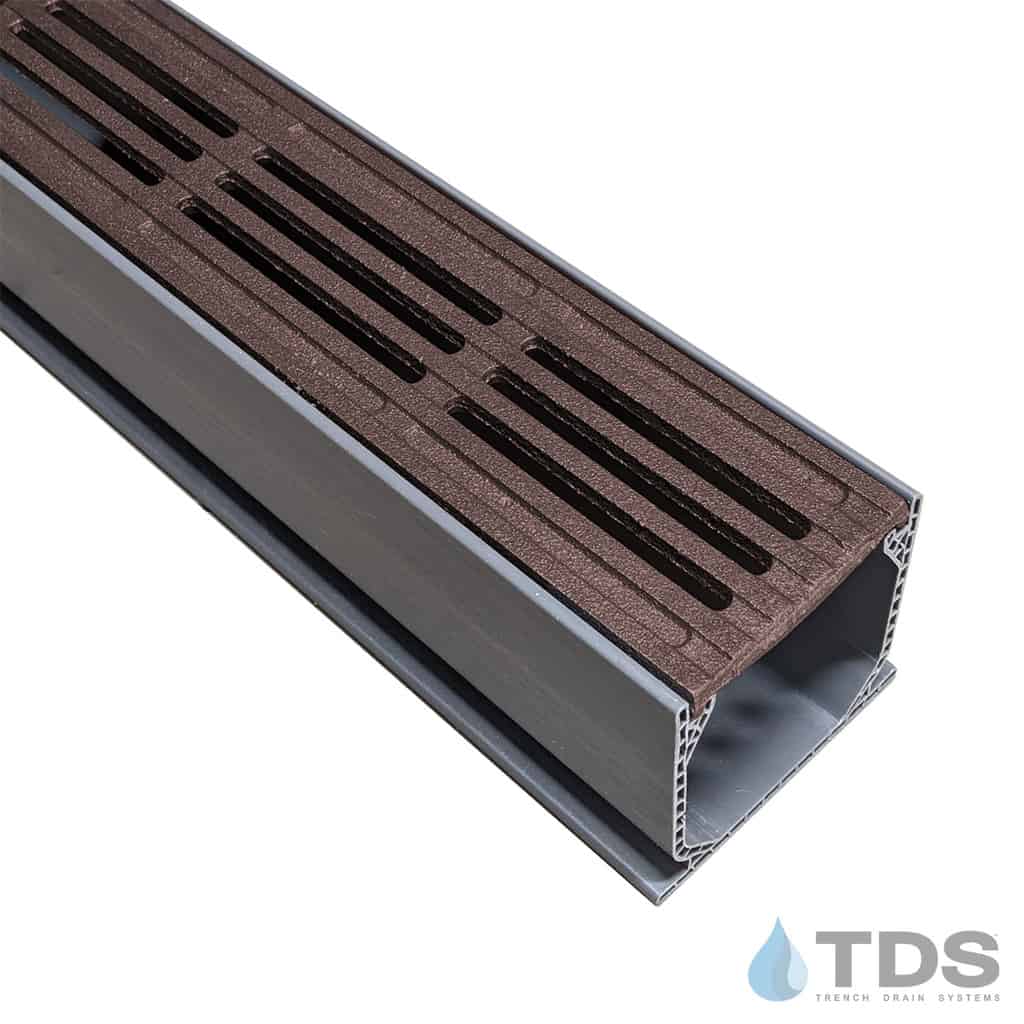

NDS 3" Gray Mini Channel Kit with Iron Age Que Grate - Baked on Oil Finish

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: NDS and Iron Age Designs

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: ACANTHUS

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV protected and manufactured from durable lightweight polyolefin.

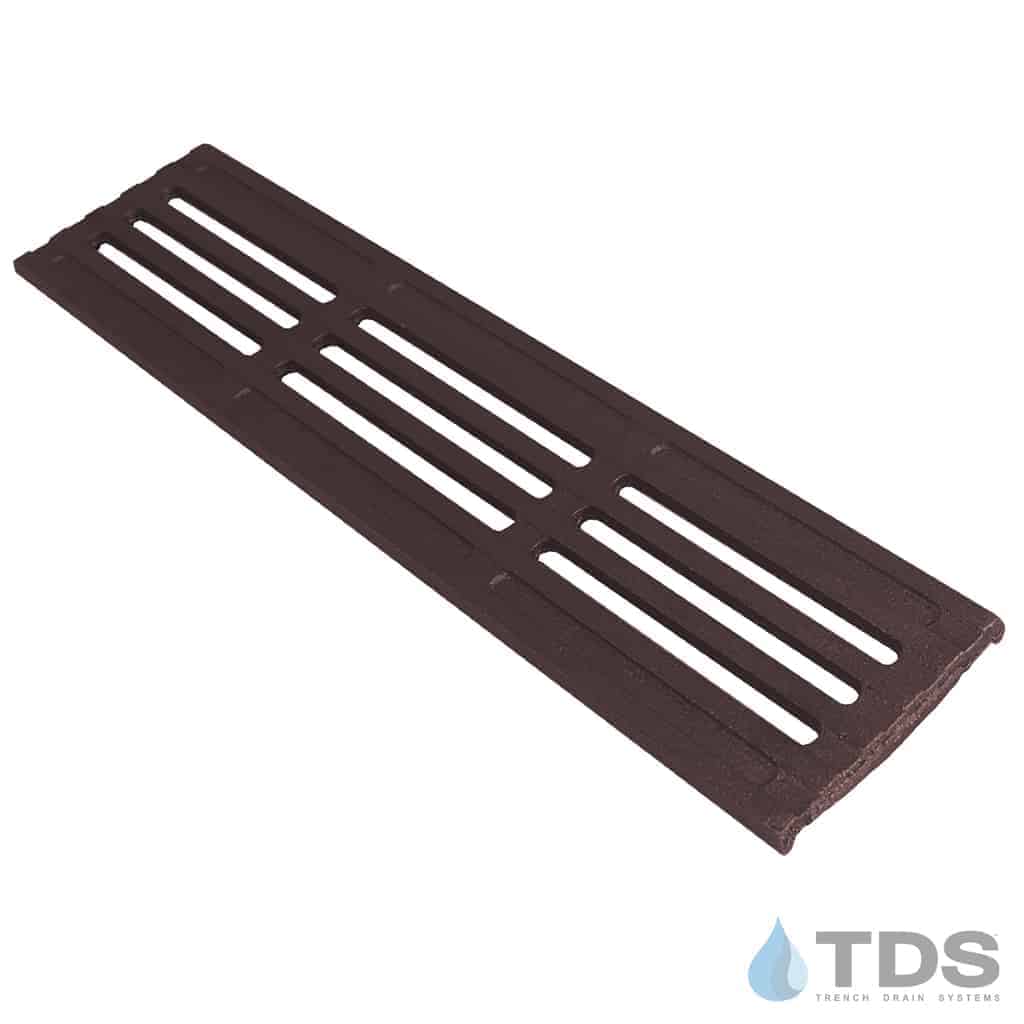

This kit has a cast iron grate in the Que pattern by Iron Age with a Baked-on Oil Finish. Made in the USA.

Available online in 6, 12, 18 and 24-foot kits; custom system lengths are available by calling 610-638-1221.

This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the installation guide for details.

Specification Sheet for IA-QUE-0312

NDS Mini Channel Specifications

Mini Channel Installation Guide

Each kit includes:

• Channels (in 3′ or 6′ lengths)
• One End Cap
• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• Grates
