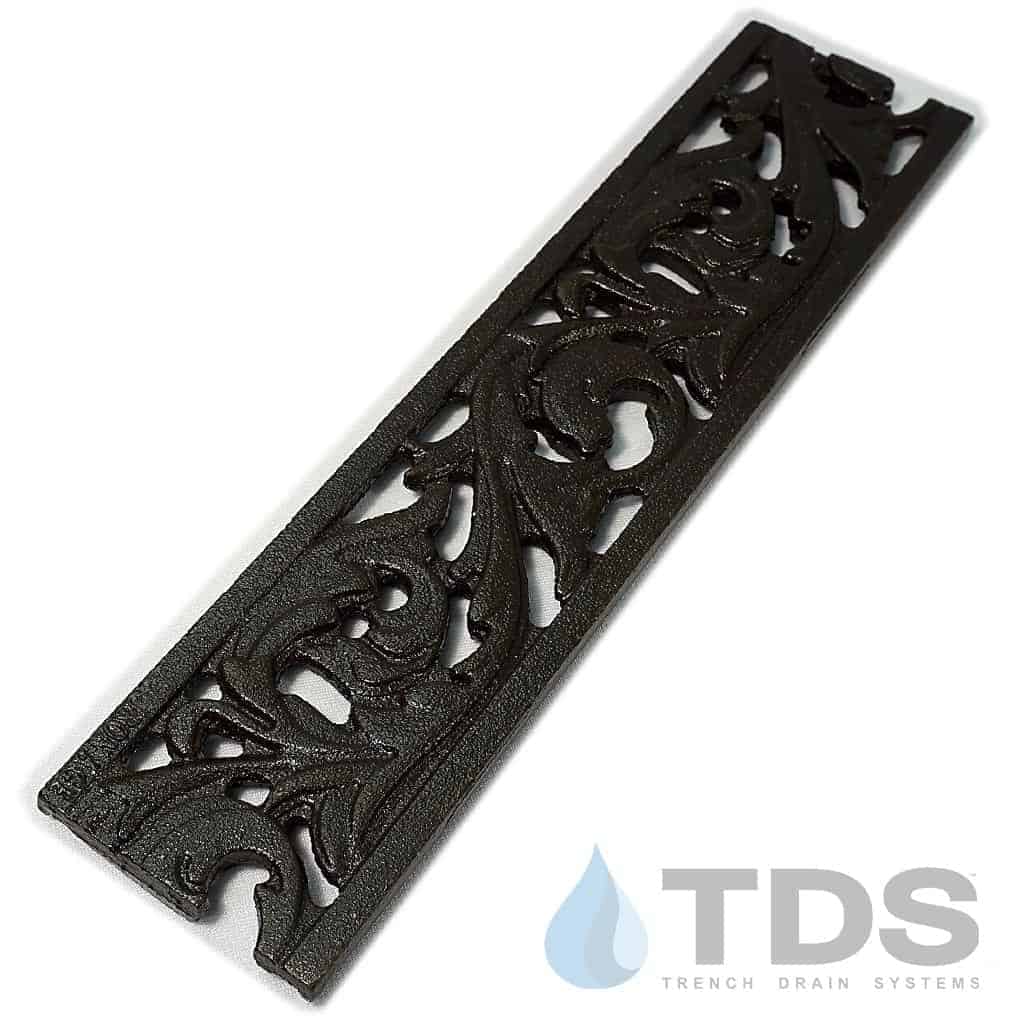

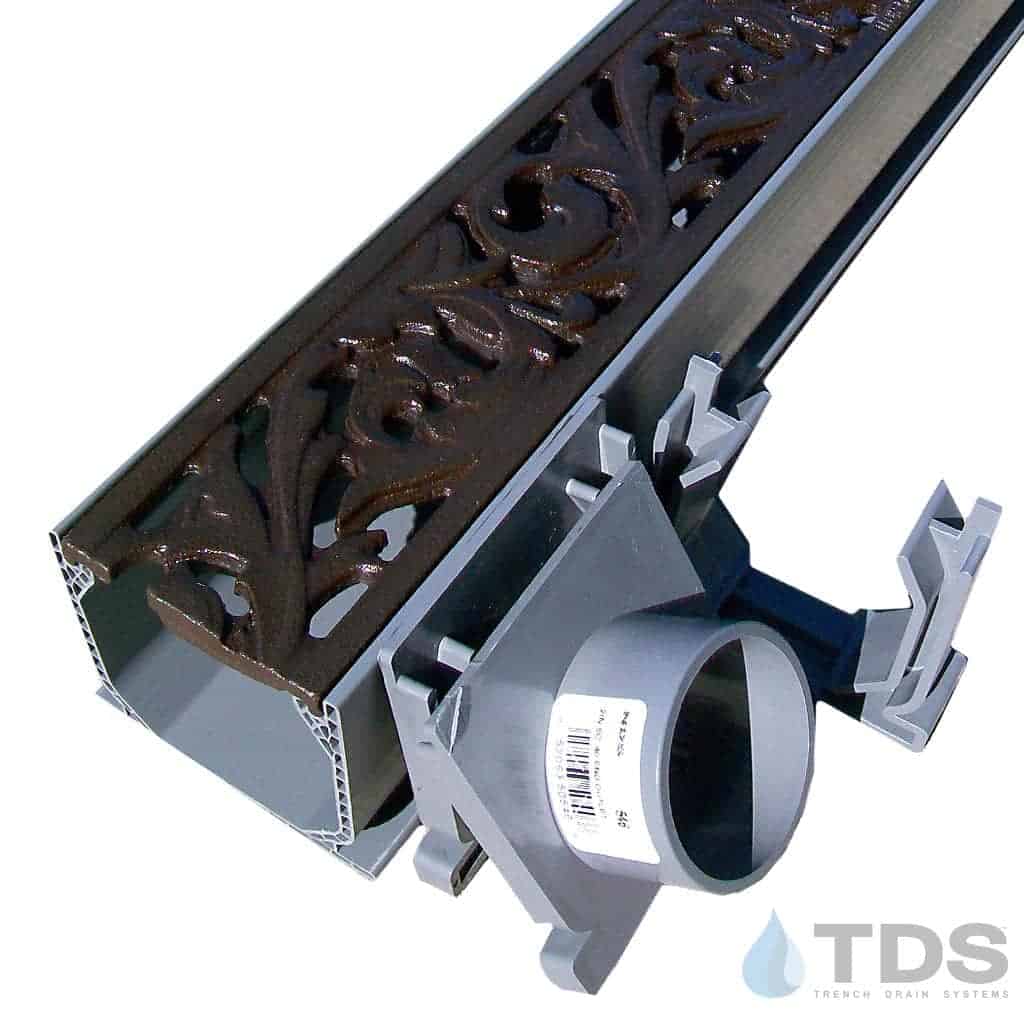

Mini Channel plastic drain is a non-sloped system built for light traffic applications such as pools, patios, and walkways. The channel is UV-protected and manufactured from durable lightweight polyolefin. This kit has a cast iron grate in the Acanthus pattern by Iron Age with a baked-on oil finish.
Available online in 6, 12, 18, and 24-foot kits; custom system lengths are available by calling 610-638-1221.
This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the installation guide for details.
Grate Specification Sheet

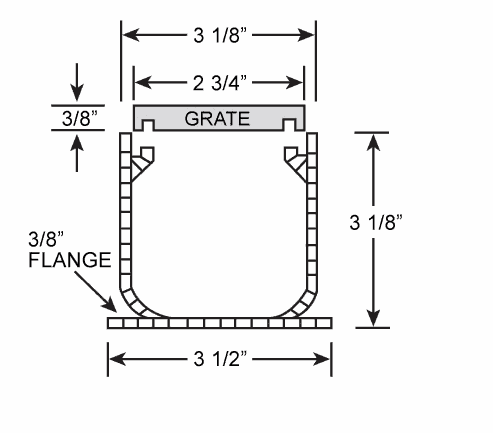

NDS Mini Channel Specifications
Mini Channel Installation Guide
Each standard kit includes:

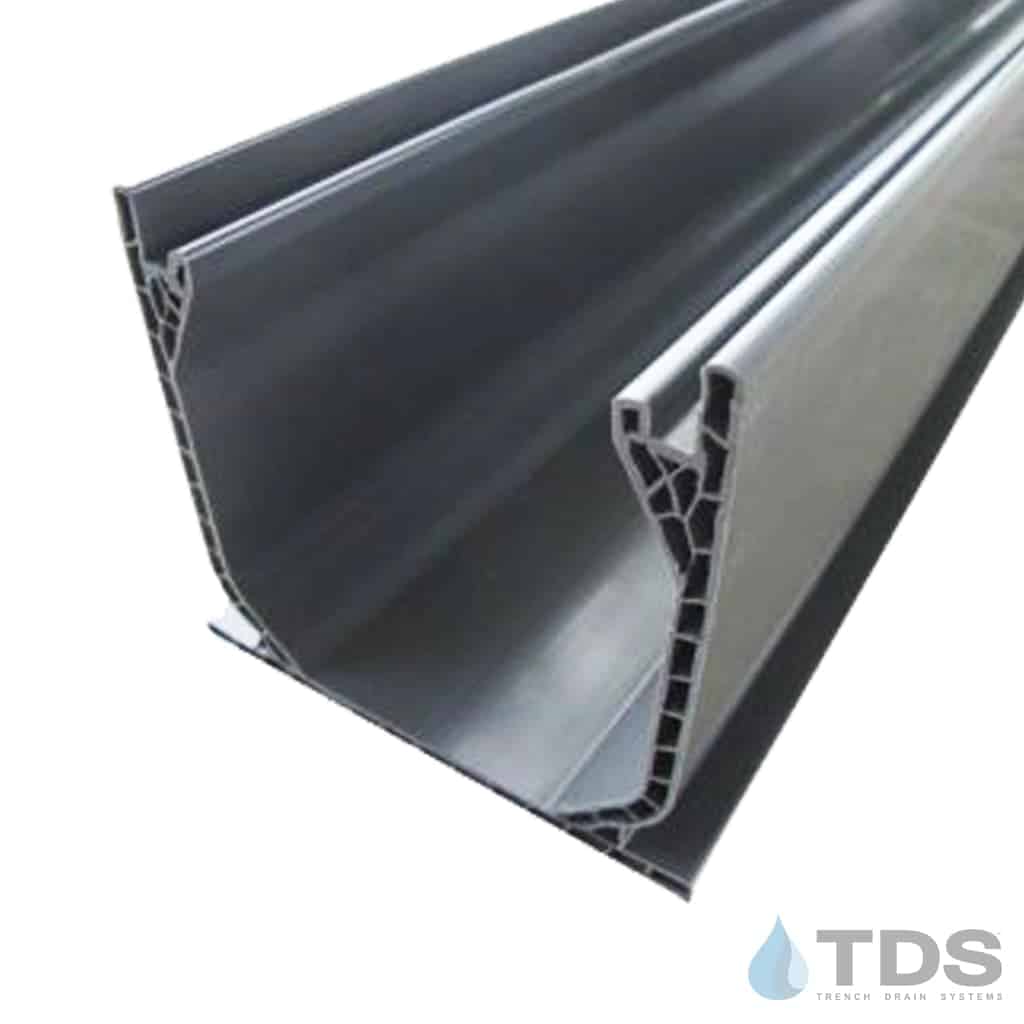

- Channels (in 3′ or 6′ lengths)

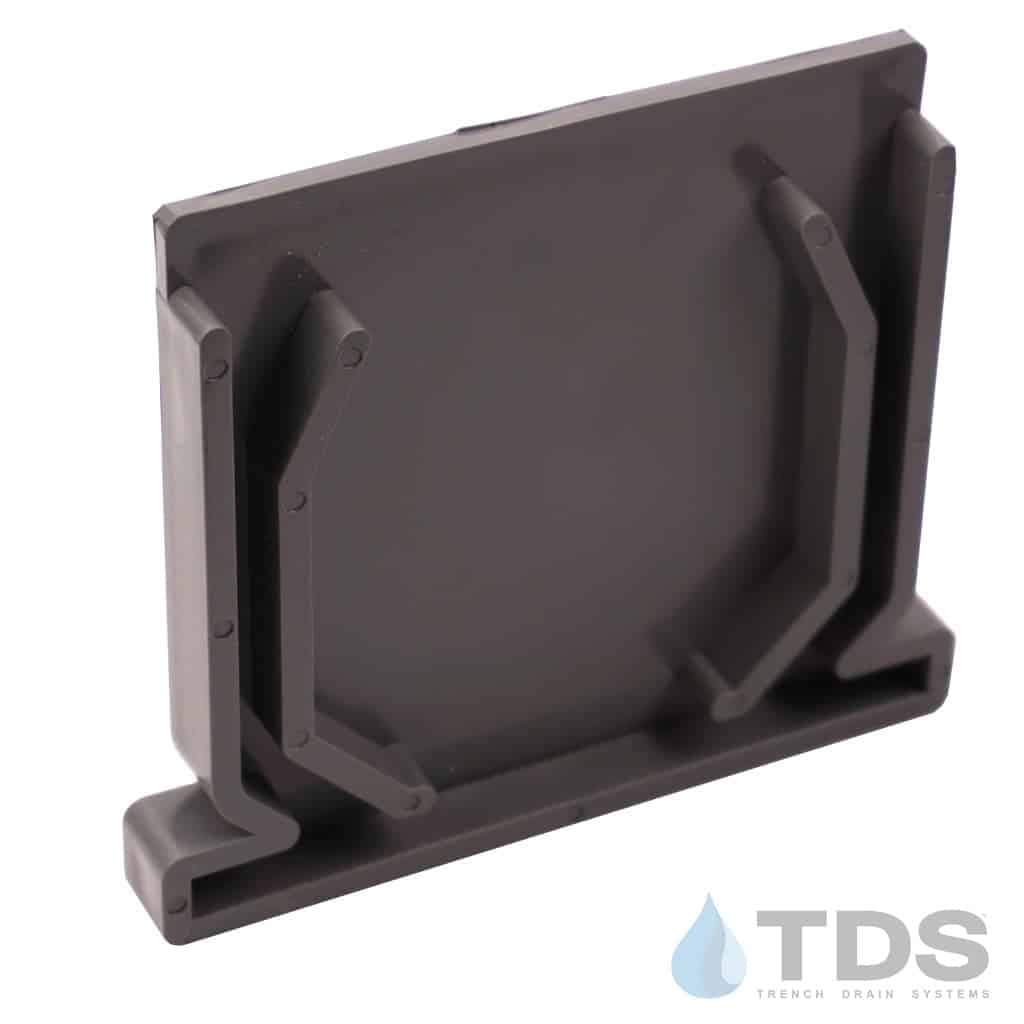

- One End Cap

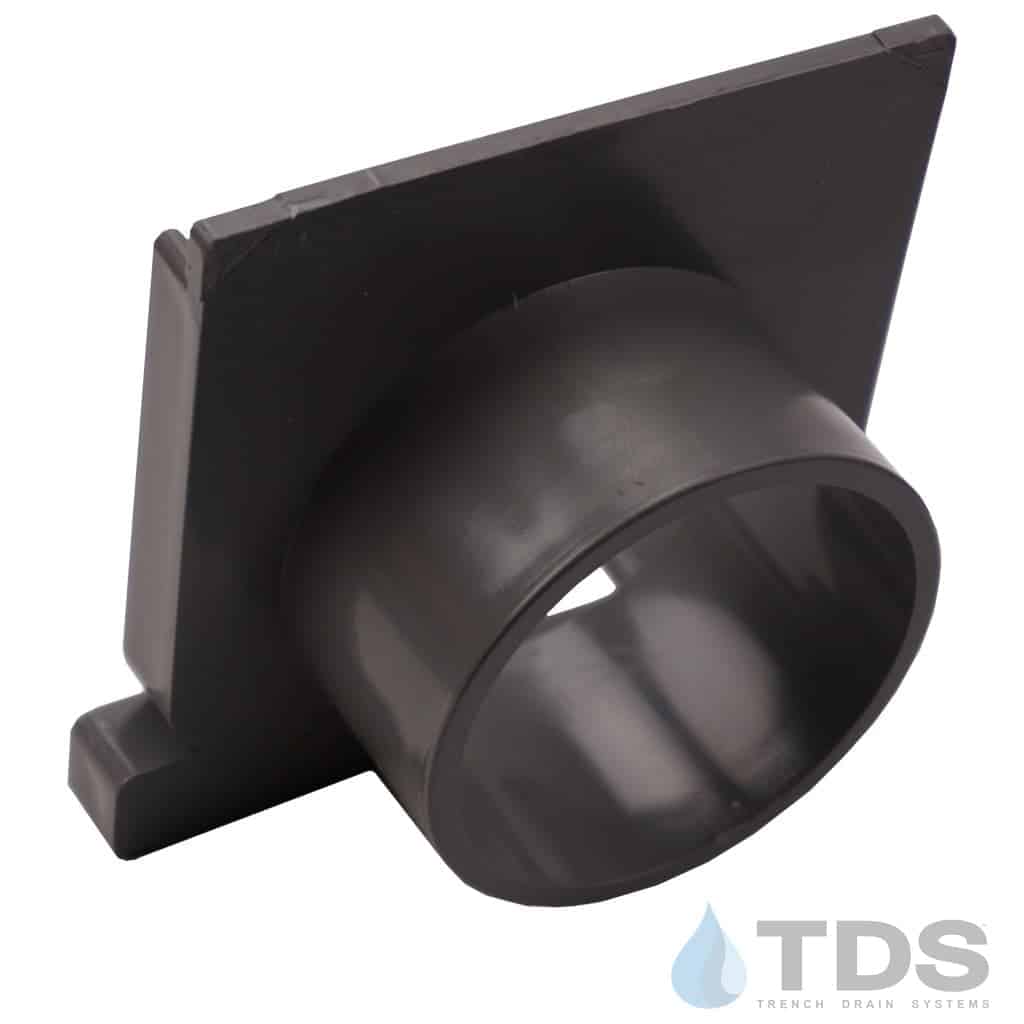

- One Outlet (compatible with SCH 40 pipe)

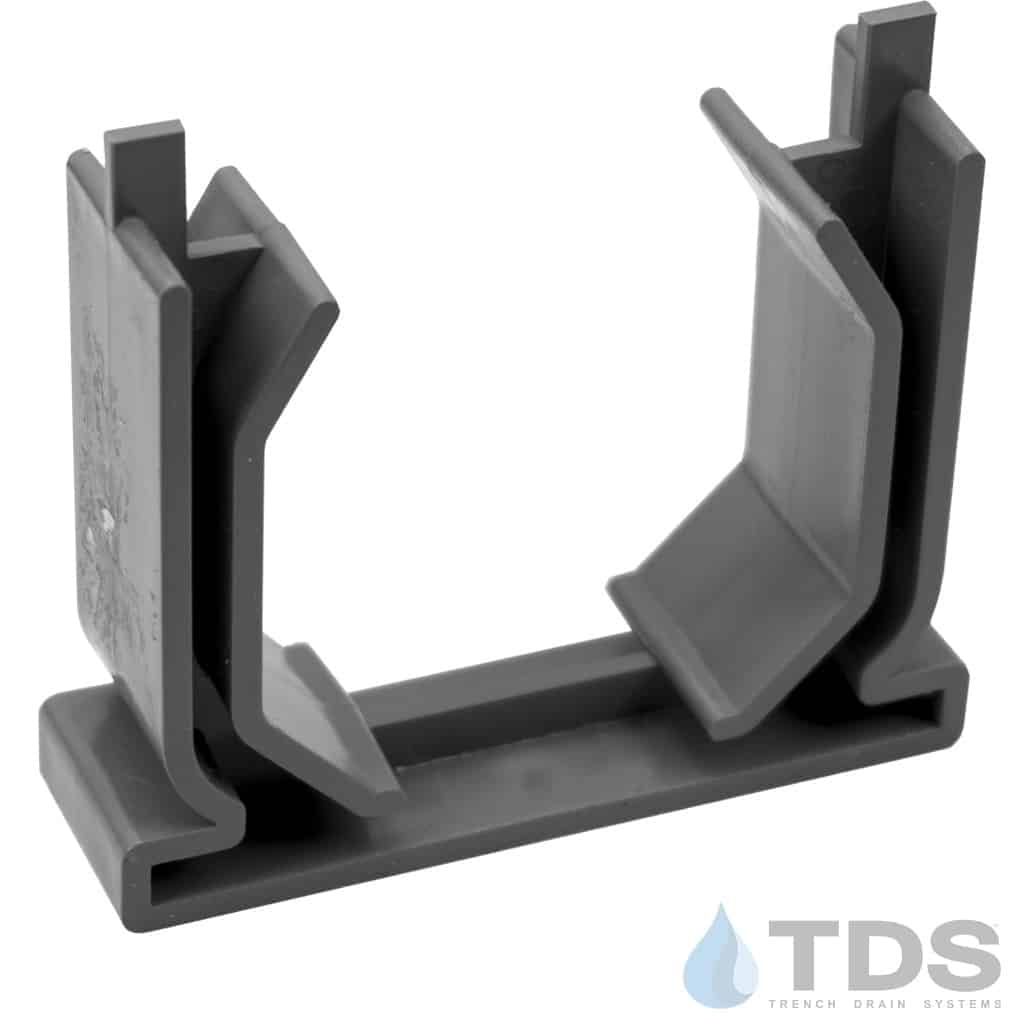

- Couplers (1 for each joint)
- Grates
Each extension kit includes:
- Channel(s) (in 3′ or 6′ lengths)
- Coupler
- Grates
- Locking Devices
The 3' and 6' Extension kits are intended to add on to standard kits and do not include the end cap/outlet. They include grate(s), channel(s), locking devices, and a coupler. Additional parts are sold separately if it is intended to be a stand-alone kit.
Large project? Request a Quote
What is Baked On Oil Finish (BooF)? Click Here to learn more.
