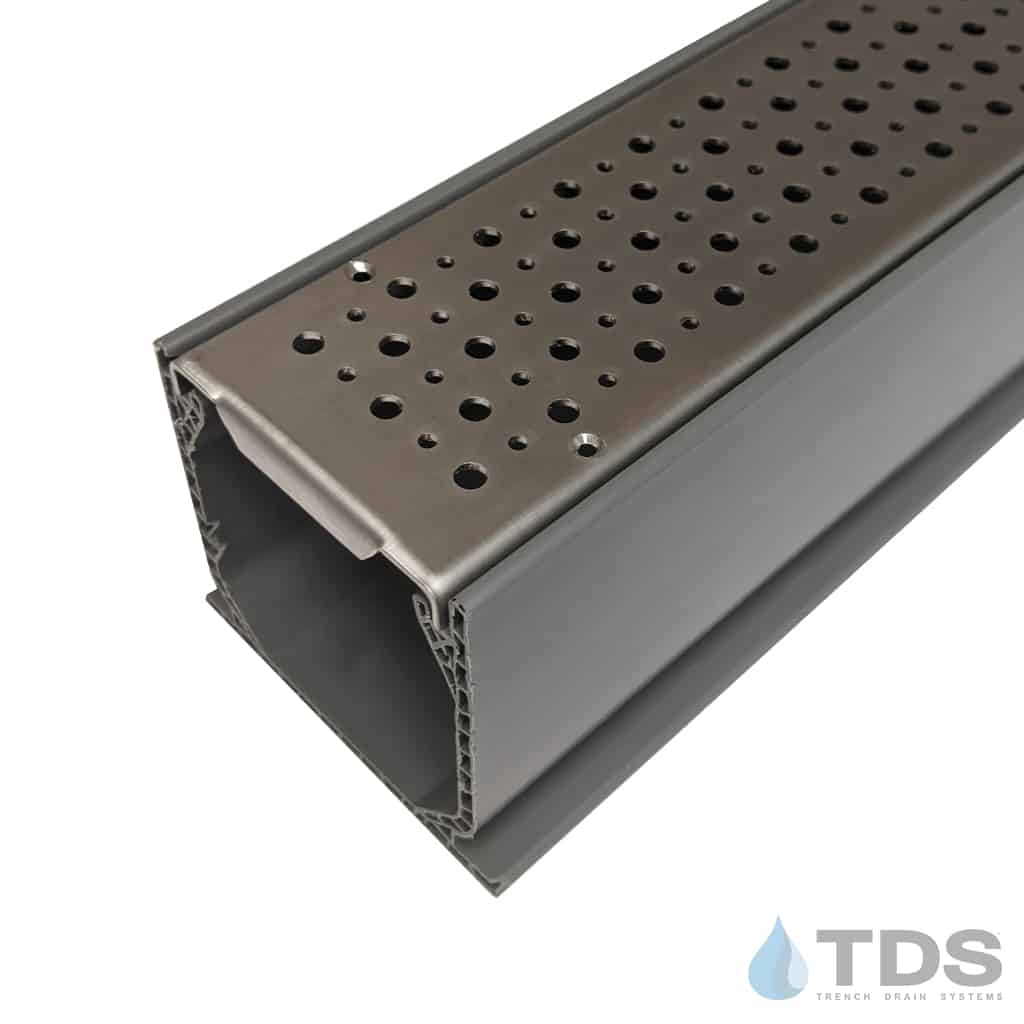

NDS 3" Gray Mini Channel Kit w/ TDS Perforated Foam Heel Proof Grate - 316 Stainless

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Stainless Steel 316L

Manufacturer: NDS and TDS (Trench Drain Systems)

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: FOAM

Grate Pattern Style: PERFORATED

Channel Material: Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Mini Channel plastic drain is a non-sloped 3" wide system built for light load class B traffic applications such as pools, patios, and walkways. The channel is UV-protected and manufactured from durable lightweight polyolefin. This kit has 304 stainless steel grates in the heelproof perforated Foam pattern, an exclusive product from our Bronze Age decorative grate selection.

Each kit includes:

• Channels (in 3′ or 6′ lengths)
• One End Cap
• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• 316 Stainless Grates (1 for every 3′ channel)
• Hold Down Screws (1pkg per kit - 64 pcs)

Extension kits do not include end caps or outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

Available online in 6, 12, 18 and 24-foot kits. Custom system lengths and 316L Marine-grade stainless steel grates are available: Request Quote

This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the installation guide for details.

NDS Mini Channel Specifications

Mini Channel Installation Guide
